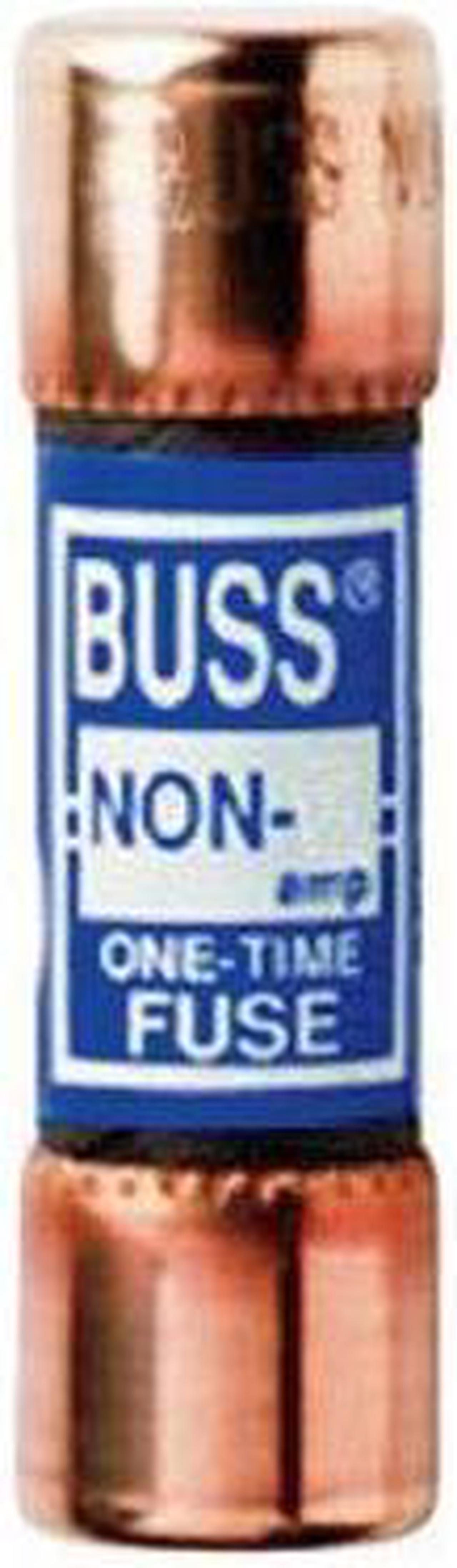

Bussmann NON-10 10 Amp One Time Cartridge Fuse Non Current Limiting Class K5, 250V UL Listed

Bussmann NON-10 10 Amp One Time Cartridge Fuse Non Current Limiting Class K5, 250V UL Listed. Low Voltage Fuse, 10 Fuse Amps, Nonindicating, NON Series, 250VAC/125VDC Voltage Rating, Fast Acting, Single Element, Class K5, Body Material Melamine, Nonrejection, Body Style Cylindrical, Interrupt Rating 50kA at 250VAC, 50kA at 125VDC, Length 2 In., Diameter 9/16 In., Functionally Equal To Ferraz OT, Standards CE, UL Listed, Guide JDDZ, File E4274, STD 2489, CSA Certified Class 142101, File 53787.From the ManufacturerOne-time general purpose non-current limiting fuse used in lighting circuits, main panel protection, and other circuits that don't contain large electric motors or inductive loads. One to 60 amp fuses UL Listed Class K5 (IR: 50kA). 70 to 600 amp fuses UL Class H (IR: 10kA). Cartridge fuses are used to protect motors and branch circuits where higher amps or volt ratings are required. They are available in a wide variety of sizes, amp and volt ratings up to 600Vac and 600 amps. Cartridge fuses are used extensively in commercial, industrial and agricultural applications as well as residential fuse panels, air conditioning, pumps, appliances and other equipment. Cartridge fuses are available in two types. General Purpose fuses have no time-delay and protect fuse panels, appliances and branch circuits. Heavy- Duty fuses have a time-delay feature, allowing momentary motor startups. Both are available in 250Vac and 600Vac versions with catalog symbol and amp rating stamped on the knife blade or end cap.Features: Protect lighting, heating, and other circuits not subject to temporary surges and where available short-circuit currents are relatively low ONE-TIME fuses do not have a time delay feature and thus should not be specified in circuits where large transients or motor overloads occur For general purpose circuits, size at ampere rating of circuit For motor circuits, size at 300% to 400% UL Listed - 250Vac: Class H (65-600A), Std. 248-6
