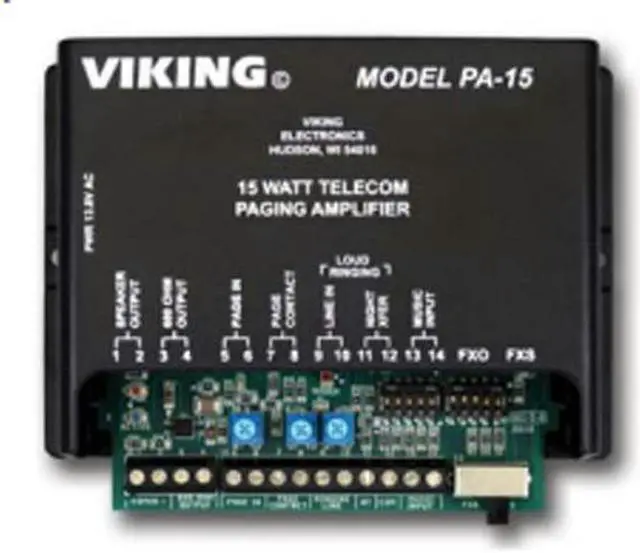

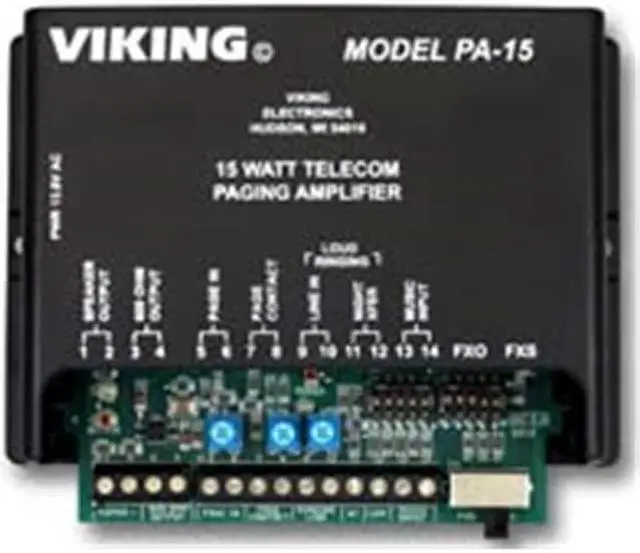

Viking Electronics PA-15 15 Watt Paging Amp With Background Music And Loud Ringing

The PA-15 interfaces with virtually any telephone system to provide 15 watts of paging power - enough to drive fifteen 8-ohm paging horns or speakers.

The PA-15 provides 36V talk battery for interfacing with an FXO or unused analog line input/trunk port. With the flip of a switch, the unit can connect to a FXS or PABX/Centrex station ring trip port or connect to a 600 ohm paging port. When interfacing with systems that do not provide a paging contact closure, the builtin voice activation (VOX) is in control.

After paging, the PA-15 auto disconnects on CPC, busy signal, silence or default disconnect timer (helps prevent accidental paging system lock-up if phone is hung-up incorrectly). The unit will generate adjustable loud ringing from an independent ringing analog FXS / PABX / Centrex station or from a dry contact closure. The PA-15 can provide background music (muted during page) if connected to an external music source.

• 15 Watts of paging power
• Drive up to (15) 8-ohm speakers
• 600 Ohm output to drive additional amplifiers
• Select - FXO (loop start), FXS (ring trip) or paging port (VOX relay) interface mode
• Independent volume controls for Paging, Ringing Tones and Background Music
• 36V DC talk battery for interfacing with FXO or unused phone system line input/trunk port
• Compatible with 24V to 48V FXS (ring trip) analog station operation
• 800 Hz pre-announce page tone (on/off)
• Provides Night Bell warble tone via contact closure or independent ringing analog circuit
• Choose one of four ringing sounds:
• Electronic warble (traditional loud ringer)
• Double gong (two identical gong tones)
• Quadruple chime (four descending chime tones)
• Door chime (ding-dong)
• Night transfer switch input
• CPC detection for immediate disconnect
• Busy signal detect disconnect
• Adjustable silence time out disconnect
• Programmable VOX trigger sensitivity and time out
• 16 to 72 second (or off) default disconnect timer

• Power - 120V AC/13.8V AC 1.25 A, UL listed adapter provided
• Amplifier - 15 watts - to power up to (15) 8-ohm speakers (cascadable to drive additional speakers)
• Environmental - 0C to 32C (32F to 90F) with 5% to 95% non-condensing humidity
• Speakers - 25AE, 30AE, 35AE,40AE and 300AE speakers to complete the system (DOD# 498), not included
• Sound Pressure Level - 115dB, 1KHz @ 1m with (1) 25AE Paging Horn (not included), each additional horn will drop the output level of all horns by 1dB (see Page Power Chart, DOD# 895)
• Talk Battery Output - 36V DC (loop current 36mA nominal)
• Maximum Speaker Cable Length - 91 m (300 ft) 18 AWG
• Connections - 14 cage clamp screw terminals
• Dimension - 5.25 x 3.5 x 1.75 in.
