LED 4Digital Hall Tachometer Speed Meter & NPN/PNP Hall Proximity Switch Sensor
- Condition:New: A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is ...

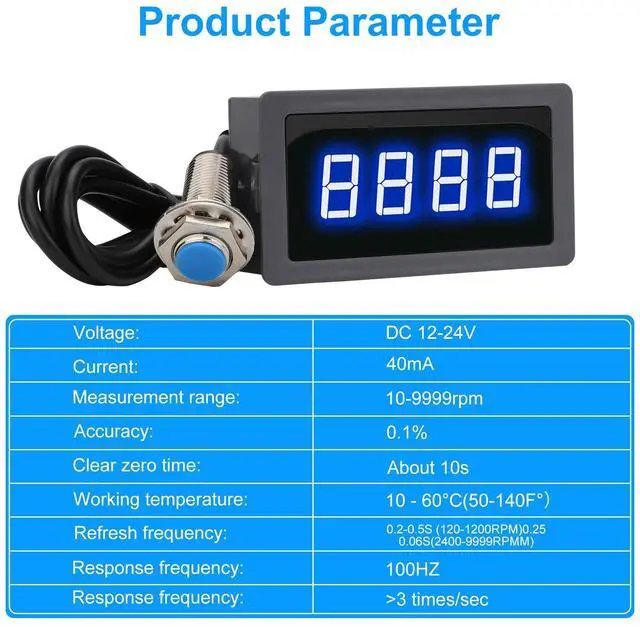

- Operating Temperature:-10 to 60°C.
- Size:about 80*25*40mm(L*W*H)
- LED Color:Blue
- Display Mode:LED display
- Manufacturer Part Number:Does not apply
- Dimension:1.57x3.15x0.98in(4x8x2.5cm)
- Accuracy:0.1%
- Length:4
- Voltage:DC8-24V
- Measurement Method(s):Hall Effect Tachometer
- Height:2.5
- Application:voltage and current measurement, also can be an external sensor t
- Current:30mA
- Width:8
- Measurement Range:10-9999rpm
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Product Features
- 100% brand new and high quality.

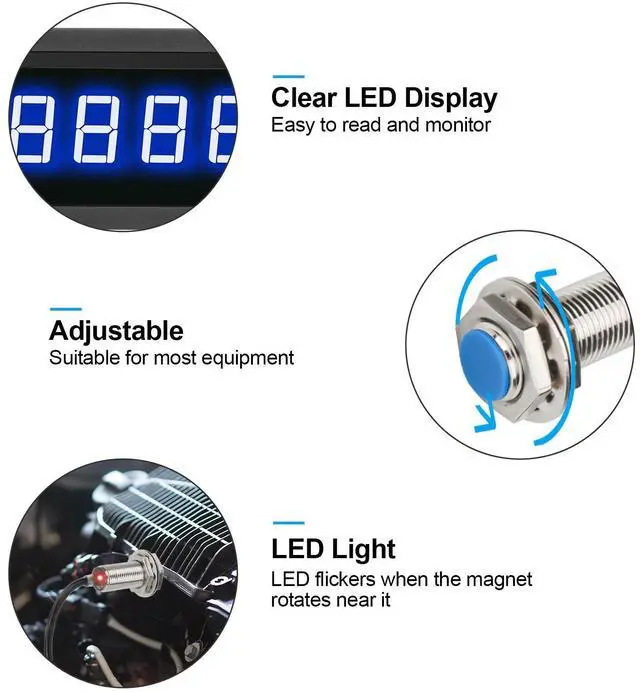

- 4-digits display, clear and easy for readings.
- Mini size, high performance and fast reaction speed.
- With good stability, high accuracy, anti-interference ability.
- Using the latest A/D conversion chip, high stability reference IC and stick chip components.
- It can be applied to voltage and current measurement, also can be an external sensor to measure temperature, pressure, displacement and other physical quantities.
- Setting parameters will be memorized when power off.
- Suitable for detecting the speed of every kind of motors.
- Over-range display: the thousand unit display "1" or "-1", the last three do not show.

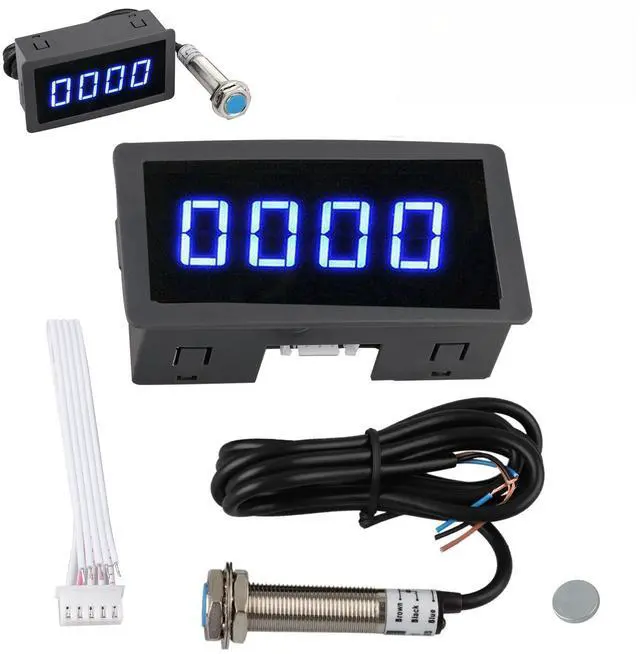

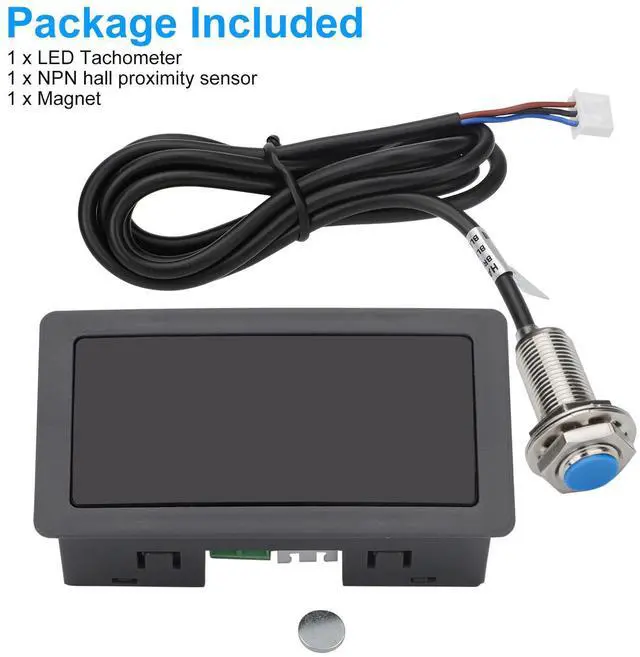

Package Included
- 1 x LED Tachometer
- 1 x NPN hall proximity sensor
- 1 x Magnet
