Power Saving
Automatic power off after 5 minutes without operation or gas detection.
Low Battery Indicator
The low battery indicator will appear on the screen when the battery voltage is below 2.4V.
Adjustable Sensitivity with Dual Range
Low Sensitivity Mode: 500 to 1,000 ppm*
High Sensitivity Mode: 50 to 500 ppm*
(*based on Methane detection)
FAQ
- Q: How to set up the detector to make it ready to detect?
- A: Turn on and wait for 30 seconds to warm up. Please keep in mind that the warm-up process should be performed in a known 'clean' environment to achieve accurate results.
- Q: How close does the detector need to be to detect leaking gas from a natural gas pipeline?
- A: Generally 1-5cm, depending on the severity and concentration of the gas leak.
- Q: How can I tell what sensitivity the detector is currently at?
- A: When the S button light is on, the detector is in high sensitivity mode; when the S button light is off, the detector is in low sensitivity mode.
- Q: Does the alarm continue until the situation is resolved?
- A: Yes, the alarm will continue to sound until the combustible gas concentration is below 5% of the lower explosive limit.
- Q: Can the sensors be replaced?
- A: We do not sell sensors separately. If you find that the sensor is no longer working within three years from the date of purchase, please get in touch with us.
- Q: What is the difference between a gas monitor and a gas leak detector?
- A: Gas monitors are used for continuous gas leak monitoring to monitor the air state in a large space, but they are unable to pinpoint the exact leak point. The gas leak detector is used to locate the source of the gas leak.
- Q: Can the PT199 detect CO and other gases produced during a fire? Can it be used as a fire alarm device?

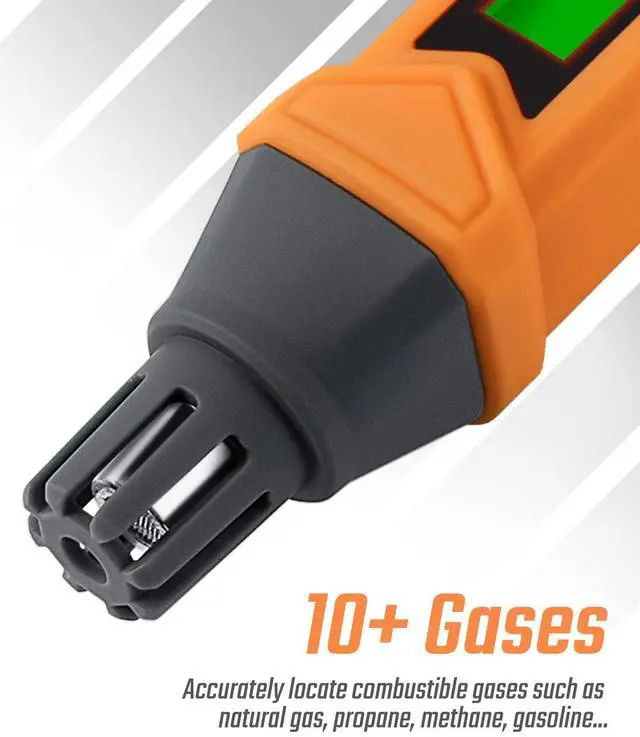

- A: The PT199 is specifically designed to detect and locate sources of combustible gas leaks (such as natural gas, methane, propane, etc.) as a preventive measure to reduce explosion risks. It cannot detect fire-related gases such as carbon monoxide, carbon dioxide, hydrogen cyanide, or sulfur dioxide, and it is not intended to be used as a fire alarm device.
Technical Specifications
 PT199 |  PT177 |  PT299 |  PT210S |  PT760 |  PT520A | |
|---|---|---|---|---|---|---|
| Customer Reviews | — | — | — | — | — | — |
| Price | — | — | — | — | — | — |

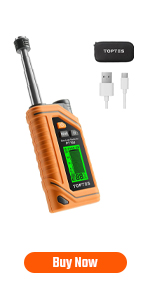

| Greatest Feature | 6.5" Pocket Size | 6.5" Pocket Size | 6.3" Telescopic Probe, Portable, Measures PPM or %LEL reading | 4" Goose Neck, Portable, Measures PPM or %LEL reading | 12" Telescopic Probe, Rechargeable, Built-in Flashlight, Measures PPM or %LEL Reading | 16.5" Goose Neck |
| Detection Range | 50~1,000 ppm | 50~1,000 ppm | 100~5,000 ppm/1%LEL~10%LEL | 100~5,000 ppm/1%LEL~10%LEL | 100~10,000 ppm/1%LEL~20%LEL | 50~10,000 ppm |
| Power Source | 2x AAA batteries (Batteries included) | 2x AAA batteries (Batteries included) | 2x AAA batteries (Batteries included) | 2x AAA batteries (Batteries included) | Rechargeable Lithium battery (Micro USB-C cable inclueded) | 3x AAA batteries (Batteries included) |
| Rechargeable | no data | no data | no data | no data | v(USB-C) | no data |
| Audible& Visual Alarm | ? | ? | ? | ? | ? | ? |

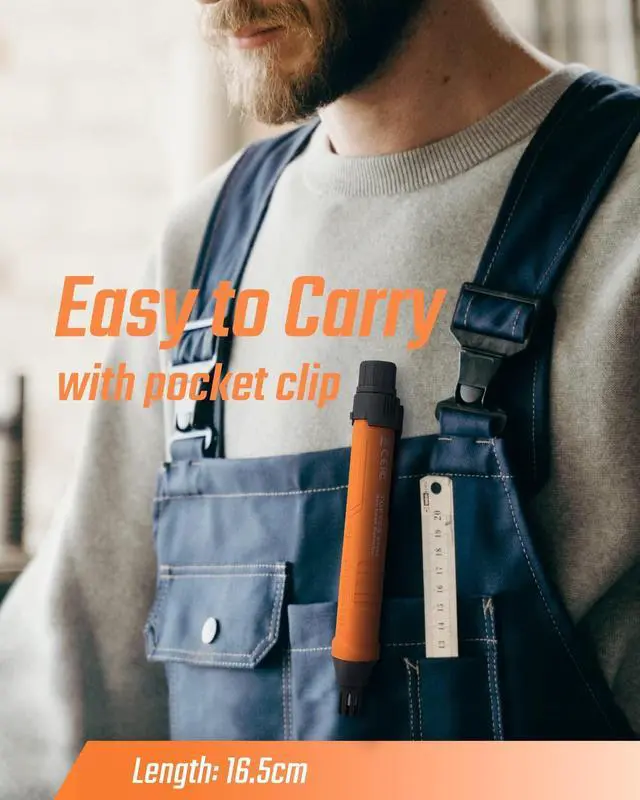

| Pocket Clip | ? | ? | ? | no data | no data | no data |
| Mute button | no data | no data | no data | no data | no data | ? |
| Low Battery Indication | ? | ? | ? | ? | ? | ? |
| APO (Auto Power-off) | 5 Min | 5 Min | 5 Min | 5 Min | 5 Min | 10 Min (can be disabled) |
| Item Weight with Battery | 57g/2.1oz | 57g/2.1oz | 80g/2.8oz | 90g/3.2oz | 140g/4.9oz | 260g/9.2oz |
Power Saving
Automatic power off after 5 minutes without operation or gas detection.
Low Battery Indicator
The low battery indicator will appear on the screen when the battery voltage is below 2.4V.
Adjustable Sensitivity with Dual Range
Low Sensitivity Mode: 500 to 1,000 ppm*
High Sensitivity Mode: 50 to 500 ppm*
(*based on Methane detection)
FAQ
- Q: How to set up the detector to make it ready to detect?
- A: Turn on and wait for 30 seconds to warm up. Please keep in mind that the warm-up process should be performed in a known 'clean' environment to achieve accurate results.
- Q: How close does the detector need to be to detect leaking gas from a natural gas pipeline?
- A: Generally 1-5cm, depending on the severity and concentration of the gas leak.
- Q: How can I tell what sensitivity the detector is currently at?
- A: When the S button light is on, the detector is in high sensitivity mode; when the S button light is off, the detector is in low sensitivity mode.
- Q: Does the alarm continue until the situation is resolved?
- A: Yes, the alarm will continue to sound until the combustible gas concentration is below 5% of the lower explosive limit.
- Q: Can the sensors be replaced?
- A: We do not sell sensors separately. If you find that the sensor is no longer working within three years from the date of purchase, please get in touch with us.
- Q: What is the difference between a gas monitor and a gas leak detector?
- A: Gas monitors are used for continuous gas leak monitoring to monitor the air state in a large space, but they are unable to pinpoint the exact leak point. The gas leak detector is used to locate the source of the gas leak.
- Q: Can the PT199 detect CO and other gases produced during a fire? Can it be used as a fire alarm device?
- A: The PT199 is specifically designed to detect and locate sources of combustible gas leaks (such as natural gas, methane, propane, etc.) as a preventive measure to reduce explosion risks. It cannot detect fire-related gases such as carbon monoxide, carbon dioxide, hydrogen cyanide, or sulfur dioxide, and it is not intended to be used as a fire alarm device.
Technical Specifications
| Sensor | Gas Sensitive Semiconductor (GSS) |
| Warm-up Time | 30 seconds |

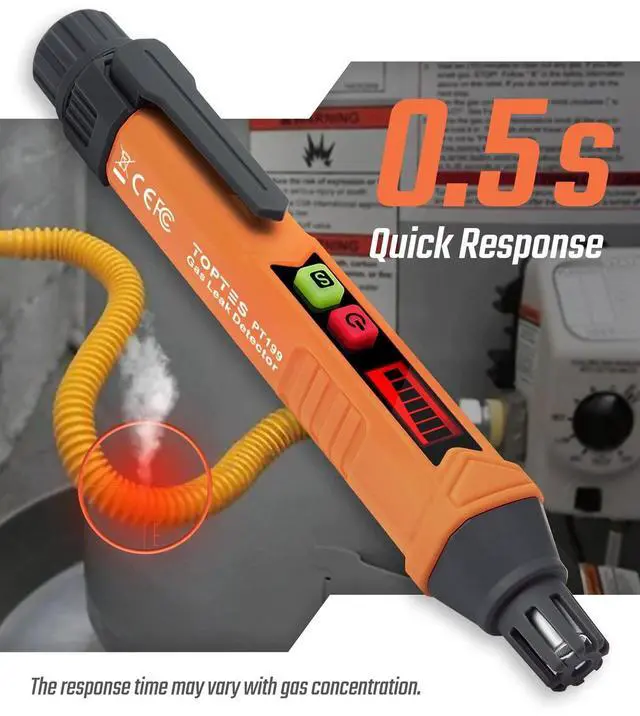

| Response Time | = 500ppm: 0.5 - 3 seconds; >500ppm 0.5 - 2 seconds |
| Detection Range | 50 to 1,000 ppm (Low sensitivity: 500 to 1,000 ppm; High sensitivity: 50 to 500 ppm) |

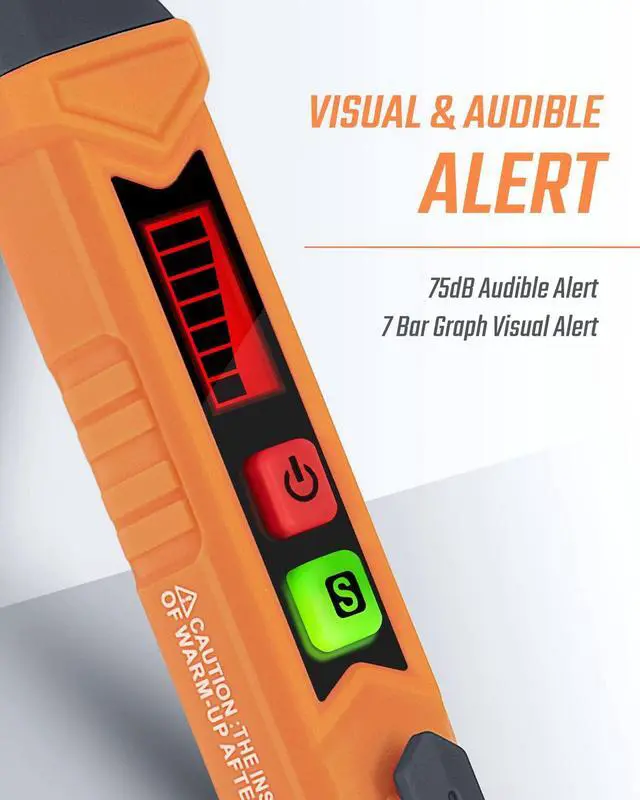

| Alarm | Visual: 7 × bar graph; Audible: Variable Tone Frequency Buzzer |
| Power Source | 2 x 1.5V AAA alkaline (Included) |
| Operating Temperature | 0 - 50°C |
| Relative Humidity | 20 - 80%RH |

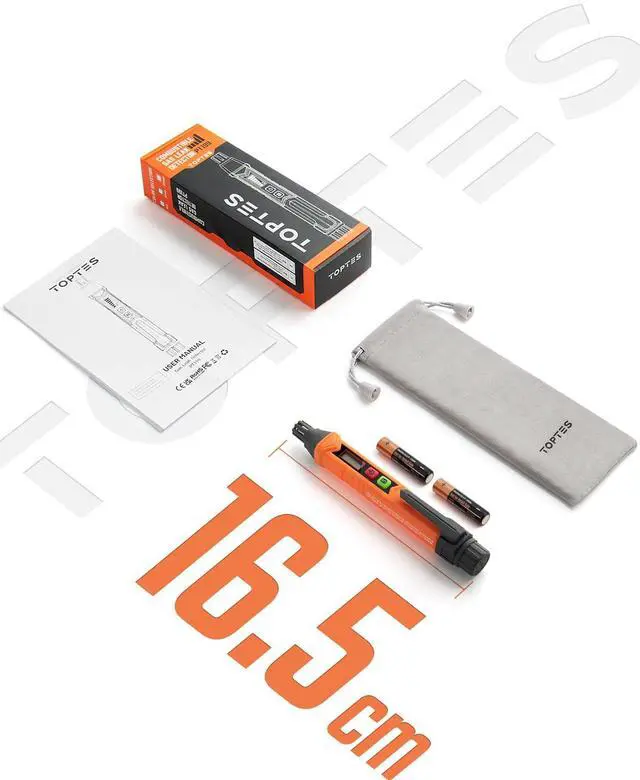

| Dimensions | 6.50" x 0.79" x 0.79" |
| Weight | 2.01 oz. including batteries |
| Material | PVC |
| Certification | CE, UKCA, RoHS, FCC |
PT199 | PT177 | PT299 | PT210S | PT760 | PT520A | |
|---|---|---|---|---|---|---|
| Customer Reviews | — | — | — | — | — | — |
| Price | — | — | — | — | — | — |

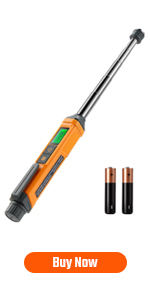

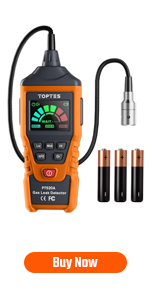

| Greatest Feature | 6.5" Pocket Size | 6.5" Pocket Size | 6.3" Telescopic Probe, Portable, Measures PPM or %LEL reading | 4" Goose Neck, Portable, Measures PPM or %LEL reading | 12" Telescopic Probe, Rechargeable, Built-in Flashlight, Measures PPM or %LEL Reading | 16.5" Goose Neck |
| Detection Range | 50~1,000 ppm | 50~1,000 ppm | 100~5,000 ppm/1%LEL~10%LEL | 100~5,000 ppm/1%LEL~10%LEL | 100~10,000 ppm/1%LEL~20%LEL | 50~10,000 ppm |
| Power Source | 2x AAA batteries (Batteries included) | 2x AAA batteries (Batteries included) | 2x AAA batteries (Batteries included) | 2x AAA batteries (Batteries included) | Rechargeable Lithium battery (Micro USB-C cable inclueded) | 3x AAA batteries (Batteries included) |
| Rechargeable | no data | no data | no data | no data | v(USB-C) | no data |
| Audible& Visual Alarm | ? | ? | ? | ? | ? | ? |
| Pocket Clip | ? | ? | ? | no data | no data | no data |
| Mute button | no data | no data | no data | no data | no data | ? |
| Low Battery Indication | ? | ? | ? | ? | ? | ? |
| APO (Auto Power-off) | 5 Min | 5 Min | 5 Min | 5 Min | 5 Min | 10 Min (can be disabled) |
| Item Weight with Battery | 57g/2.1oz | 57g/2.1oz | 80g/2.8oz | 90g/3.2oz | 140g/4.9oz | 260g/9.2oz |
