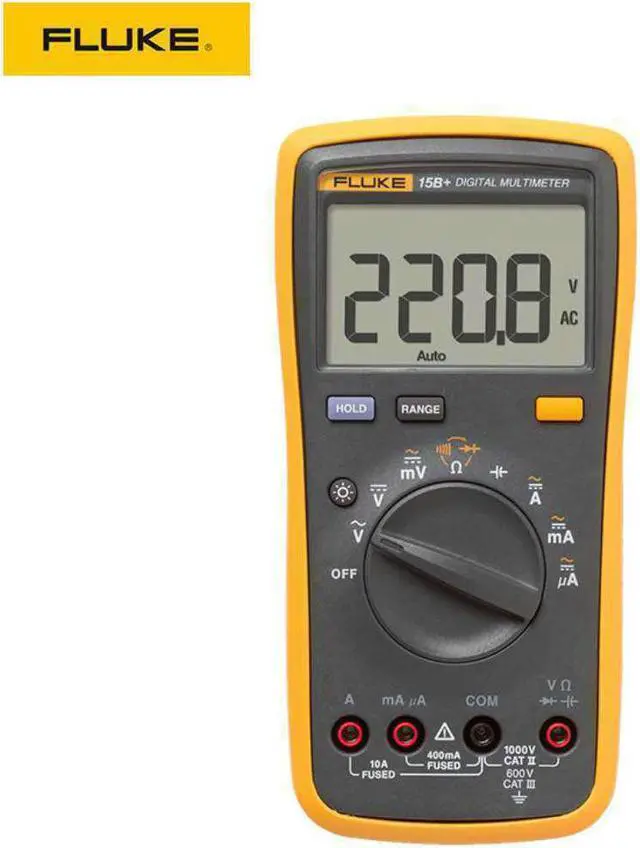

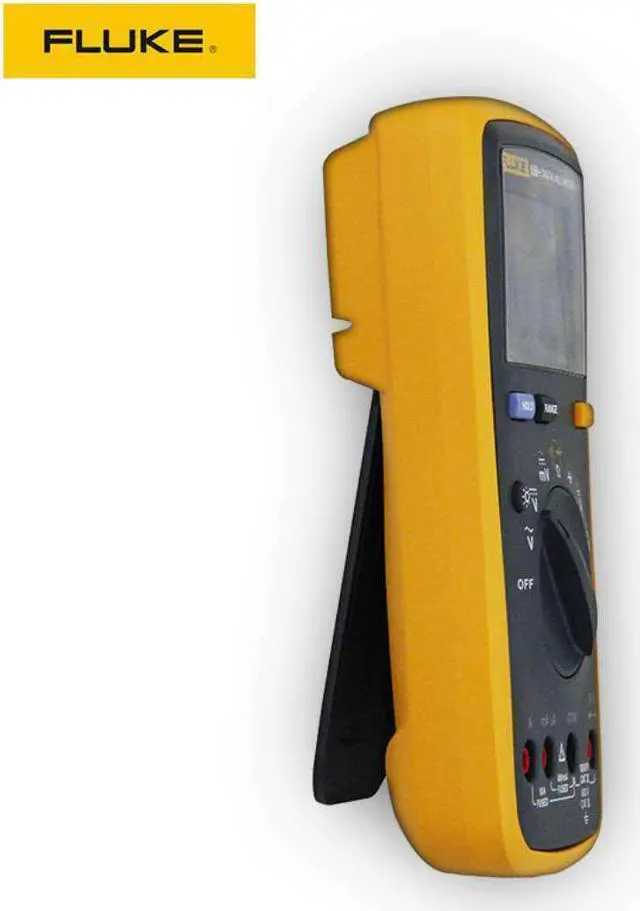

FLUKE 15B+ F15B+ Digital Multimeter Meter & 21 in 1 MultimeterTest Lead Kit
- Faster response
- Greater capacitance range: 0.01nF ~ 1000F
- The more bright: Add white LED backlight
- Larger screen: Larger than the original 1.5 times
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
GeneralSpecifications: Maximum Voltage between any Terminal and
EarthGround: 1000 V Display (LCD).................................................. 4000 counts, updates 3/sec Battery Type................................................... 2 AA, NEDA 15A, IEC LR6 Battery life....................................................... 500 hours minimum(50 hours in LED Test mode without load. The hours with load depends on the type of LED under test) Temperatuere Operating.
....................................................... 0 deg to 40 deg Storage............................................................ -30 deg to 60 deg Relative Humidity Operating Humidity...................................... Non-condensing90%at 10deg to 30deg; 75% at 30deg to 40deg Operating Humidity, 40MC Range............. 80% at 10deg to 30deg; 70% at 30deg to 40deg Altitude Operating.
....................................................... 2000m Storage............................................................ 12.000 m Temperature Coefficient............................. 0.1 × (specified accuracy) /deg ( 28deg) Fuse protection for current inputs........... 440 mA, 1000 V Fast Fuse, Fluck specified part only. 11A, 1000v Fast Fuse, Fluke specified part only. Size(H×W×L)....
.............................................. 183×91× 49.5 (mm) Weight.............................................................. 455g IP Rating.......................................................... IP 40 Safety........................
....................................... IEC 61010-1, IEC61010-2-030 600V CAT, 1000V CAT, Pollution Degree 2 Electromagnetic Environment..................
IEC61326-1: Portable Electromagnetic Compatibility.................. Applies to use in Korea only Class A Equipment (Industrial Broadcasting and Communication Equipment) 21IN1 Multimeter Test Lead Kit for Fluke
ConnectionMode: Assembly
Color: Red And Black
ProductList: 1. 4mm Banana Plug Mutimeter Probe Test Leads*2(Red black each 1, Wire
Length: 1m)
2.
ReplaceableNeedlesKit: Gilded sharp needle *4 Standard needle *4 Protective Cap*2 (red black each 1) 3. U-Type Insert (red black each 1) 4. 2mm inner spring to 4mm male banana plug adapter (red black each 1)
5. Alligator Clips (red black each 1) 6. IC testing hook (red black each 1) 7. 4mm banana plug testing clip
EarthGround: 1000 V Display (LCD).................................................. 4000 counts, updates 3/sec Battery Type................................................... 2 AA, NEDA 15A, IEC LR6 Battery life....................................................... 500 hours minimum(50 hours in LED Test mode without load. The hours with load depends on the type of LED under test) Temperatuere Operating.
....................................................... 0 deg to 40 deg Storage............................................................ -30 deg to 60 deg Relative Humidity Operating Humidity...................................... Non-condensing90%at 10deg to 30deg; 75% at 30deg to 40deg Operating Humidity, 40MC Range............. 80% at 10deg to 30deg; 70% at 30deg to 40deg Altitude Operating.
....................................................... 2000m Storage............................................................ 12.000 m Temperature Coefficient............................. 0.1 × (specified accuracy) /deg ( 28deg) Fuse protection for current inputs........... 440 mA, 1000 V Fast Fuse, Fluck specified part only. 11A, 1000v Fast Fuse, Fluke specified part only. Size(H×W×L)....
.............................................. 183×91× 49.5 (mm) Weight.............................................................. 455g IP Rating.......................................................... IP 40 Safety........................
....................................... IEC 61010-1, IEC61010-2-030 600V CAT, 1000V CAT, Pollution Degree 2 Electromagnetic Environment..................
IEC61326-1: Portable Electromagnetic Compatibility.................. Applies to use in Korea only Class A Equipment (Industrial Broadcasting and Communication Equipment) 21IN1 Multimeter Test Lead Kit for Fluke
ConnectionMode: Assembly
Color: Red And Black
ProductList: 1. 4mm Banana Plug Mutimeter Probe Test Leads*2(Red black each 1, Wire
Length: 1m)
2.
ReplaceableNeedlesKit: Gilded sharp needle *4 Standard needle *4 Protective Cap*2 (red black each 1) 3. U-Type Insert (red black each 1) 4. 2mm inner spring to 4mm male banana plug adapter (red black each 1)
5. Alligator Clips (red black each 1) 6. IC testing hook (red black each 1) 7. 4mm banana plug testing clip
