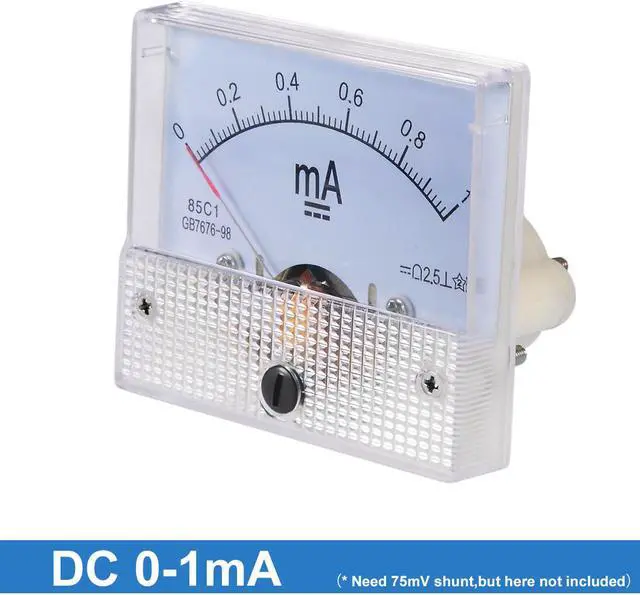

85C1 Analog Current Panel Meter DC 1mA Ammeter Ampere Tester Gauge 1 PCS
- MAIN PARAMETER-Measures amper range of 0-1mA with accuracy of Class 2.5.

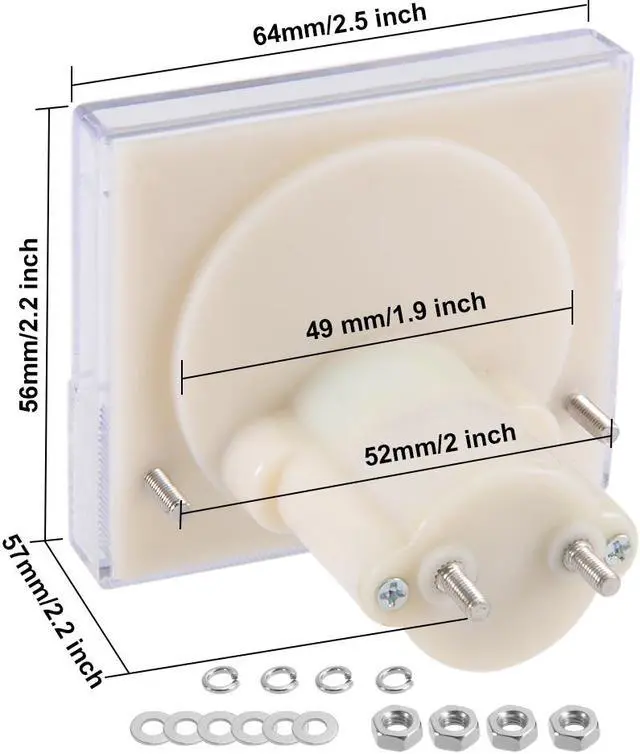

- SIZE-Meter Panel Size(Approx):2.5 x 2.2 x 2.2 inch / 64 x 56 x 57 mm(L*W*T);Mount Size:2 x 1.9 inch / 5
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Note:
If the pointer is not in the 0 position, please use the 0-position adjuster on the cover to adjust the needle to 0 position.
The device should not be knocked or shaken.
Measures amper range of 0-1mA with accuracy of Class 2.5.

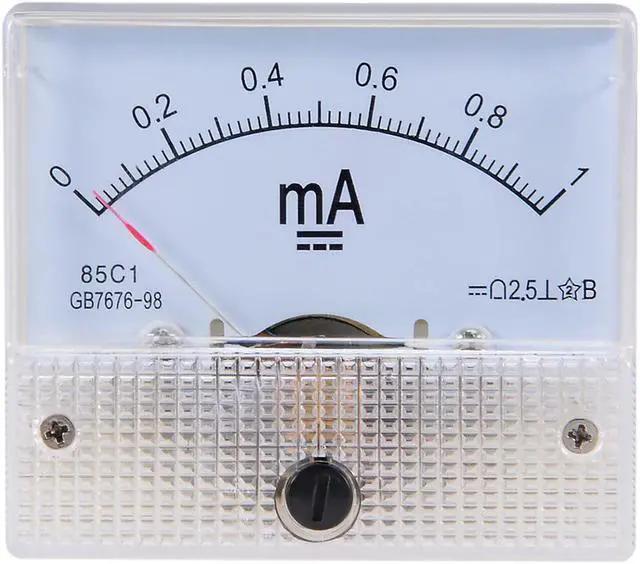

Clear and easy to read scale and a button for fine tuning the dial.
Needle Ampere Panel Meter for electronic applications, auto circuit or other Voltage measurement devices.
Specifications:
Product Name : Analog Amperemeter
Model : 85C1
Measuring Ampere Range : DC 0-1mA
Accuracy : Class 2.5
Work Temperature : -20~+ 50C
Relative Humidity : @
If the pointer is not in the 0 position, please use the 0-position adjuster on the cover to adjust the needle to 0 position.
The device should not be knocked or shaken.
Measures amper range of 0-1mA with accuracy of Class 2.5.
Clear and easy to read scale and a button for fine tuning the dial.
Needle Ampere Panel Meter for electronic applications, auto circuit or other Voltage measurement devices.
Specifications:
Product Name : Analog Amperemeter
Model : 85C1
Measuring Ampere Range : DC 0-1mA
Accuracy : Class 2.5
Work Temperature : -20~+ 50C
Relative Humidity : @
