$4,599.00
Meet Your Seller

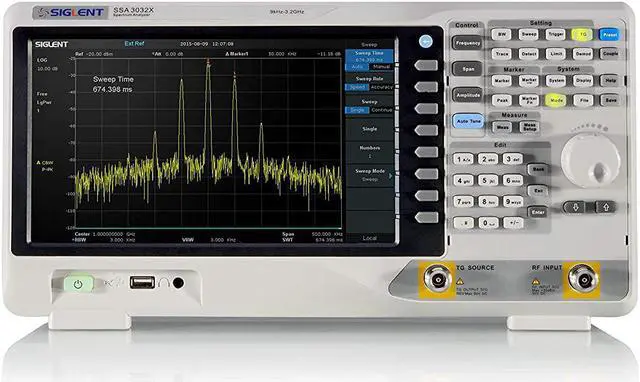

Siglent Technologies SSA3032X Spectrum Analyzers,9 kHz to 3.2 GHz
- All-Digital IF Technology
- TG standard
- -161 dBm/Hz Displayed Average Noise Level (Typ.)
- -98 dBc/Hz @10 kHz Offset Phase Noise (1 GHz, Typ.)
- Standard Preamplifier
- Reflection/VSWR Measurement Kit (Opt.*)
- Advanced Measurement Kit/Waterfall Chart (Opt.*)
- EMI Pre-compliance Measurements Kit (Opt.*)
- 10.1 lnch WVGA (1024 x 600) Display
- 9 kHz to 2.1/3.2 GHz Frequency Range
- Total Amplitude Accuracy < 0.7 dB
- 1 Hz Minimum Resolution Bandwidth (RBW)
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Siglents SSA3000X family of spectrum analyzers offer a frequency range of 9 KHz to 2.1 / 3.2 GHz. With their light weight, small size, and friendly user interface, the SSA3000s present a large, bright easy to read display, powerful and reliable automatic measurements, and plenty of impressive features. Applications include research and development, education, production, maintenance, and pre-compliance testing.
Easy to operate, Support four independent traces and cursors
Four selectable color-coded traces can be used for different functions (ie. Max Hold, Min Hold, Clear-Write, Math, Average, etc)
Four movable markers.
1 Hz Minimum Resolution Bandwidth (RBW)
RBW: 1 Hz 1 MHz in 1-3-10 sequence.
(Minimum RBW depends on Frequency Span)
-151 dBm Displayed Average Noise Level (RBW=10 Hz)
Phase noise -98 dBc/Hz @ 1 GHz @ 10 kHz offset
Zero span and demodulation capabilities
AM / FM demodulation with audio output jack.
Advanced measurement kit (AMK-SSA3000X) includes on-screen ACPR measurements
Channel power, Adjacent channel power ratio, TIme domain power, Occupied BW, Third-order intercept, Spectrum monitor (waterfall)
On-screen VSWR/Return Loss measurements with the reflection measurement option (REFL-SSA3000X)
Available with or without directional coupler
EMI filters and Quasi-Peak detector following CISPR 16 (EMI-SSA3000X)
Comes with EMI report software. Speeds measurement time, generates test reports
Easy to operate, Support four independent traces and cursors
Four selectable color-coded traces can be used for different functions (ie. Max Hold, Min Hold, Clear-Write, Math, Average, etc)
Four movable markers.
1 Hz Minimum Resolution Bandwidth (RBW)
RBW: 1 Hz 1 MHz in 1-3-10 sequence.
(Minimum RBW depends on Frequency Span)
-151 dBm Displayed Average Noise Level (RBW=10 Hz)
Phase noise -98 dBc/Hz @ 1 GHz @ 10 kHz offset
Zero span and demodulation capabilities
AM / FM demodulation with audio output jack.
Advanced measurement kit (AMK-SSA3000X) includes on-screen ACPR measurements
Channel power, Adjacent channel power ratio, TIme domain power, Occupied BW, Third-order intercept, Spectrum monitor (waterfall)
On-screen VSWR/Return Loss measurements with the reflection measurement option (REFL-SSA3000X)
Available with or without directional coupler
EMI filters and Quasi-Peak detector following CISPR 16 (EMI-SSA3000X)
Comes with EMI report software. Speeds measurement time, generates test reports
