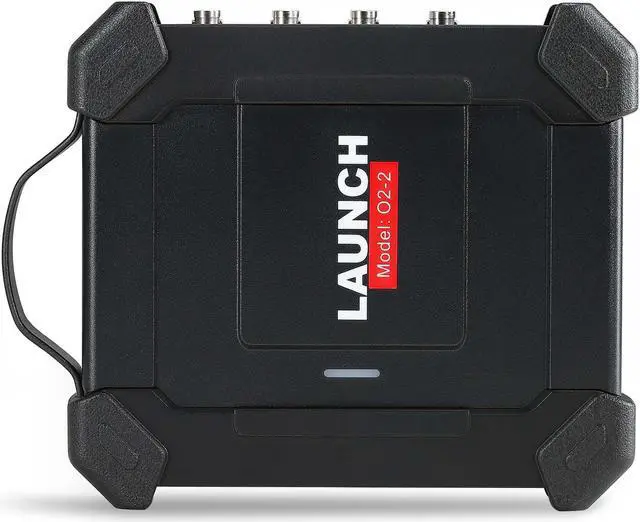

LAUNCH X431 Oscilloscope O2-2 Scopebox Analizador 4 Channels Digital Scopebox Tester USB Port
LAUANCH Electrical analyzer oscilloscope is stable, durable and portable. Launch X431 Oscilloscope is designed to analyzes data for all kinds of the testing applications on the automotive parts,including circuits, sensors,actuators, ignition etc. to resolve complex electrical faults.
Featuring a new design and upgraded hardware, the LAUNCH O2-2 Scopebox is a versatile and easy to use add-on module that can detects high level faults on various electrical components, such as sensors, actuators and circuits. By integrating with the X-431 series scan tools via O2-2 application, it delivers accurate and conclusive diagnostic faults that enable the shop and technician to enlarge their scan tools functionality.
-NOTE: DO NOT SUPPORT old version PRO5, PRO ELITE, CRP919X BT/CRP919E BT, PRO3S+ V2.0, If you are not sure if your device is supported, please feel free to contact us with your serial number.
Function:
1.Provides all kinds of testing applications on automotive parts (including circuits, sensors, actuators, ignition etc.).
2. Menu Includes the following options:
Measure: It provides 23 parametric measurement items.
Save: It allows you to save the current waveform as a reference waveform for future comparison.
Display: Sets the display mode of the waveform.
User Setting: The following items are available: storage depth, factory reset, self-adjust (self-calibration), and save & recovery.
About: Displays the detailed information of the app.

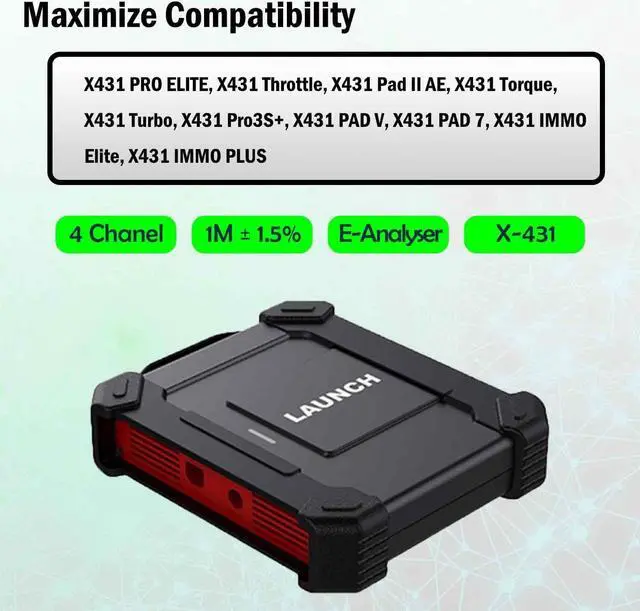

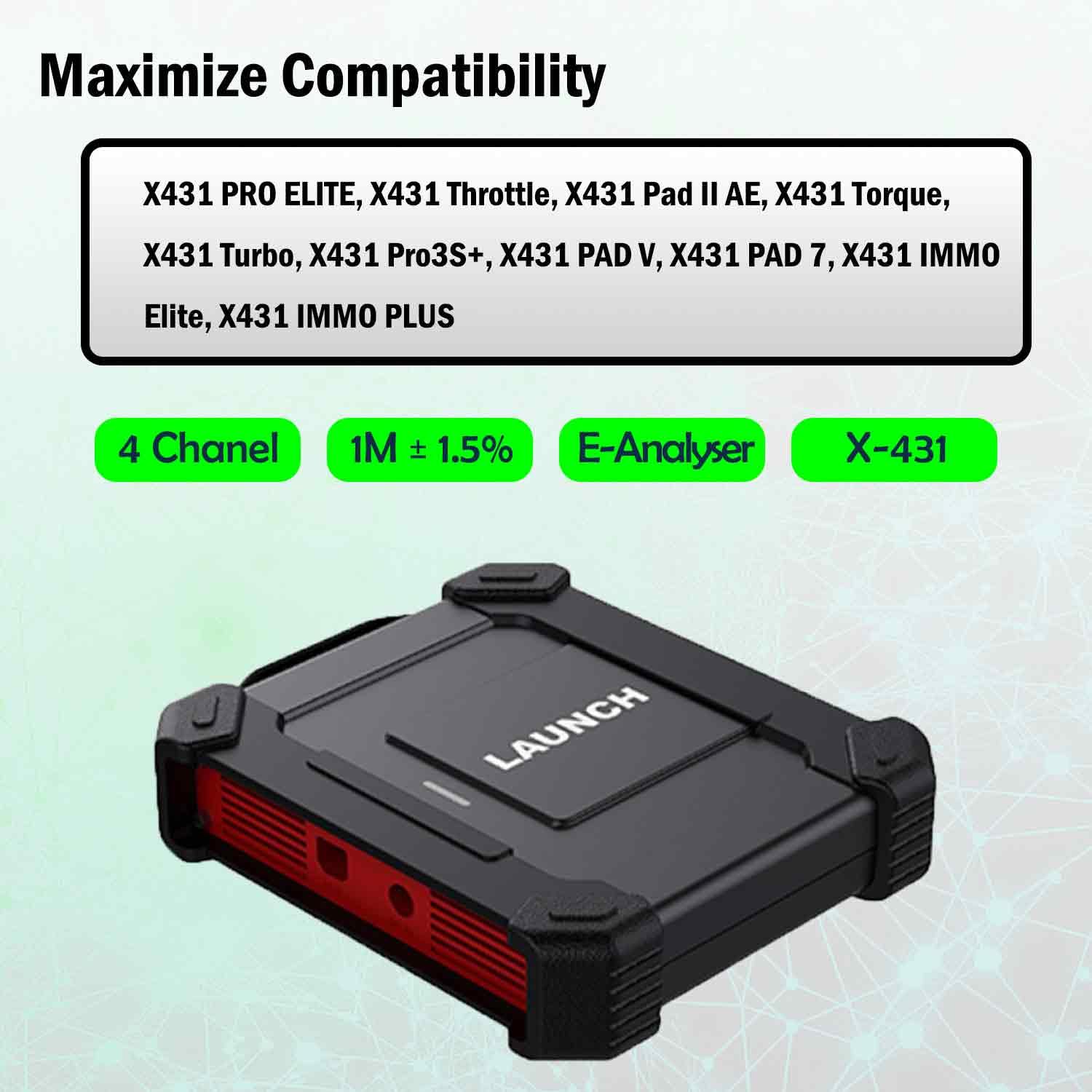

3.Integrate with X-431 series scan tools (such as X431 pro3 link, X431 Throttle, X431 Pad II AE, X431 Torque, X431 Turbo, X431 V+ V5.0, X431 Pro3S+ V5.0, X431 PRO3 APEX, X431 PAD V, X431 PAD VII, X431 IMMO Elite, X431 IMMO PLUS) through the O2-2 application for conclusive diagnostic results.

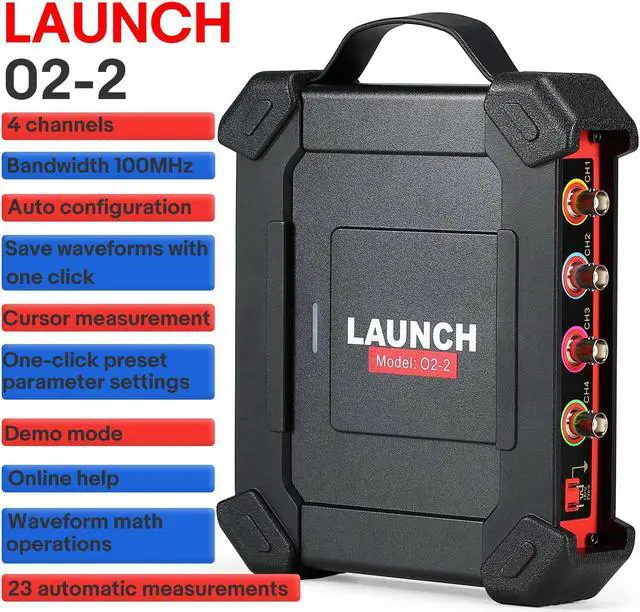

Features:
Extensive library of known good waveform, waveform auto setup on all 4 channels
Ultra fast capture of glitch occurrences with advanced triggers
Plug & Play Software comes preloaded in all the throttle and PAD III units.nothing to install
Independent ground on each channel: allows for clean signal without interference or potentially damaging feedback
High quality Twist & Lock BNC connectors
Built in square wave signal generator ensures verification of accuracy & calibration
Playback of waveform can be slowed down for observation and analysis
Electrical signals and their waveform can be recorded, displayed, compared and examined based on the following parameters: amplitude the maximum voltage of a signal, shape the form of the signal, pulse width the duty cycle or time interval of the signal and array the repetition characteristics of the signal

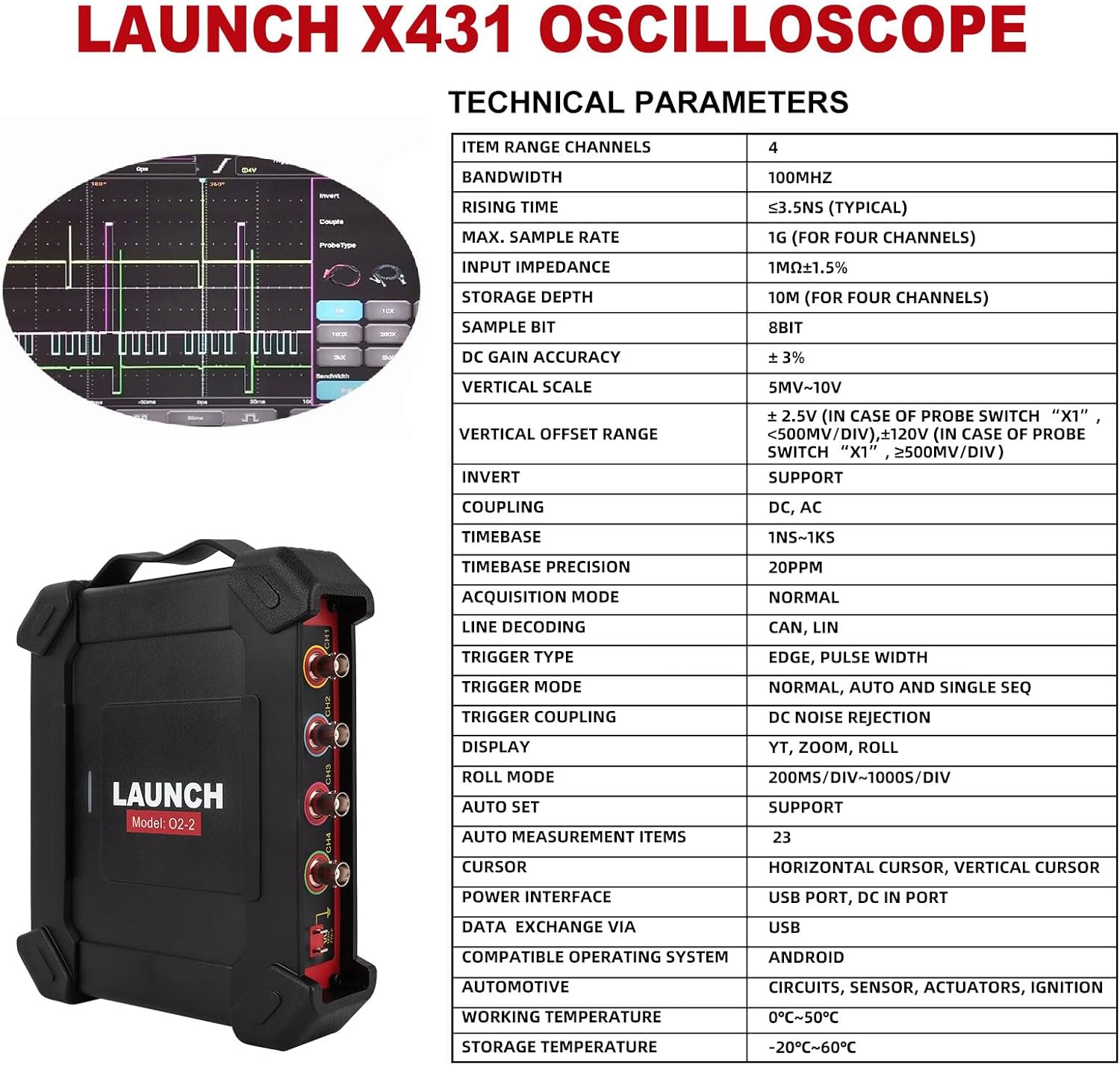

| Channels | 4 |
|---|---|
| Bandwidth | 100MHz |
| Rising time | less than 3.5ns(typical) |
| Max | sample rate: 1Gbps(for four channels) |
| Input impedance | 1M ±1.5% |
| Storage depth | 50M(for four channels) |
| Sample bit | 8bit |
| Horizontal precision | 3% |
| Horizontal scale | 5mV~10V |
| Horizontal offset range | ± 2.5V in case of probe switch x1, less than 500mV/div), ±120V(in case of probe switch x1, more than500mV/div |
| Invert | Support |
| Coupling | DC, AC |
| Timebase | 50ns~1ks (1 channel), 10 200ns~1ks (4 channels) |
| Timebase precision | 20ppm |
| Acquisition mode | Normal |
| Line decoding | CAN, LIN |
| Trigger type | Edge, Pulse widt |
| Trigger mode | Normal, Auto and |
| Trigger Coupling | DC, Noise re |
| Display | YT, Zoom, Roll |
| Roll mode | 200ms/div~1000s/div |
| Automotive | Circuits, sensor, actuators, ignition |
| Working temperature | 0 degree C-50 degree C |
| Storage temperature | -30 degree C~70 degree C |

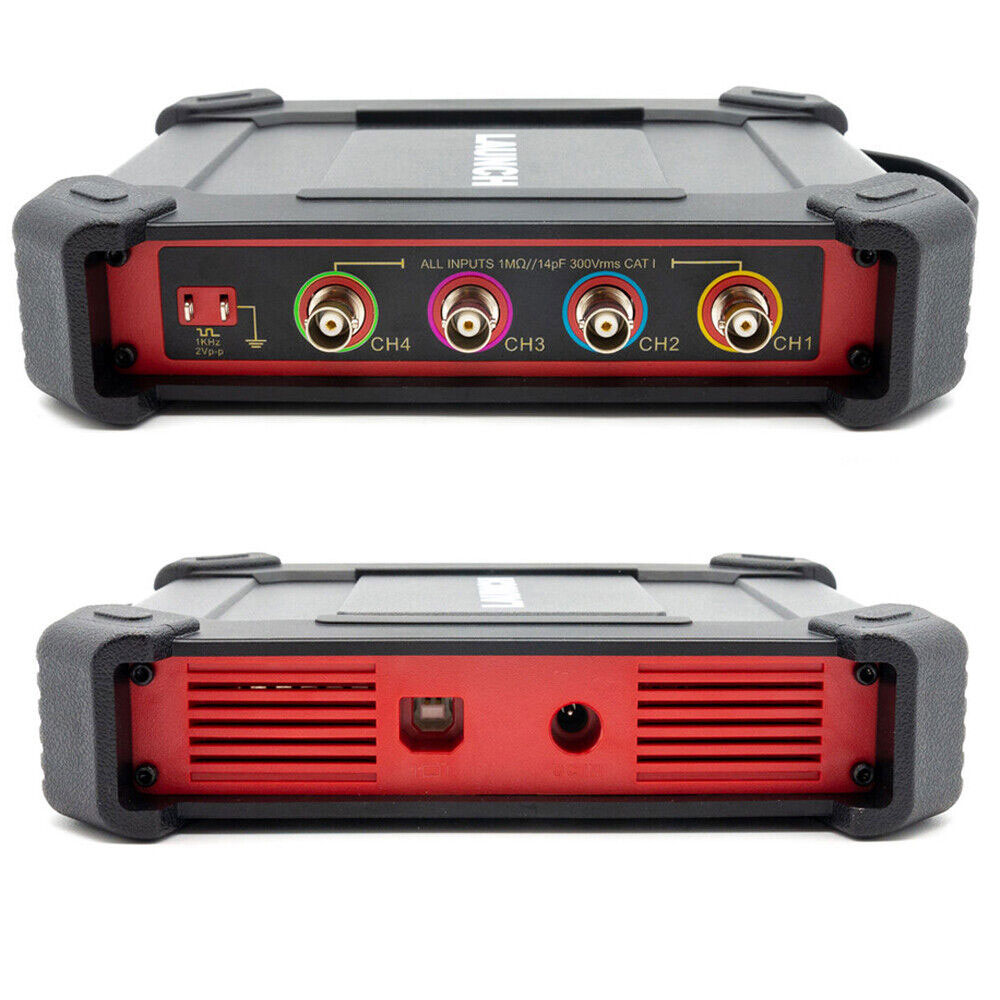

How to Connect the Cables?
Different application scenarios require different connection methods (no matter which application scenario, the following connections are required):
First, power the oscilloscope box through the double-clip power cable: Connect one end of the double-clip power cable to the power interface of the oscilloscope box, and the other end to the vehicle battery to draw power (red is connected to the positive pole, black is connected to the negative pole).
Note: * PADVII series tablets support USB power supply.
2. Connect the Type B terminal of the USB cable to the Type B interface of the oscilloscope, and connect the other end to the USB interface of the diagnostic device.

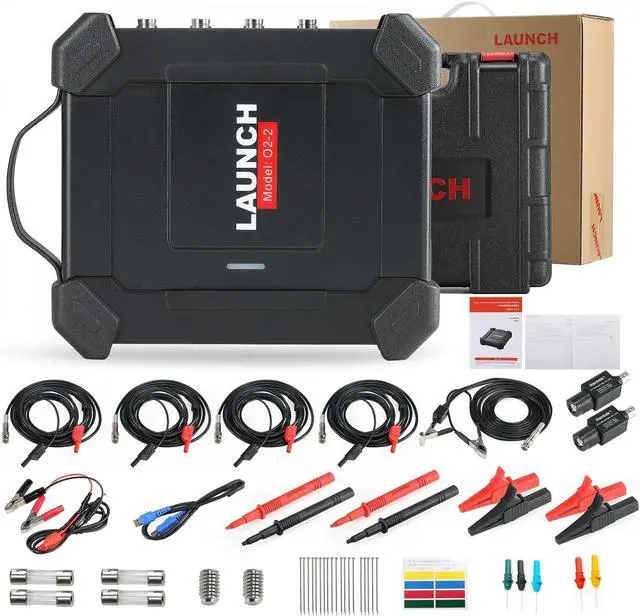

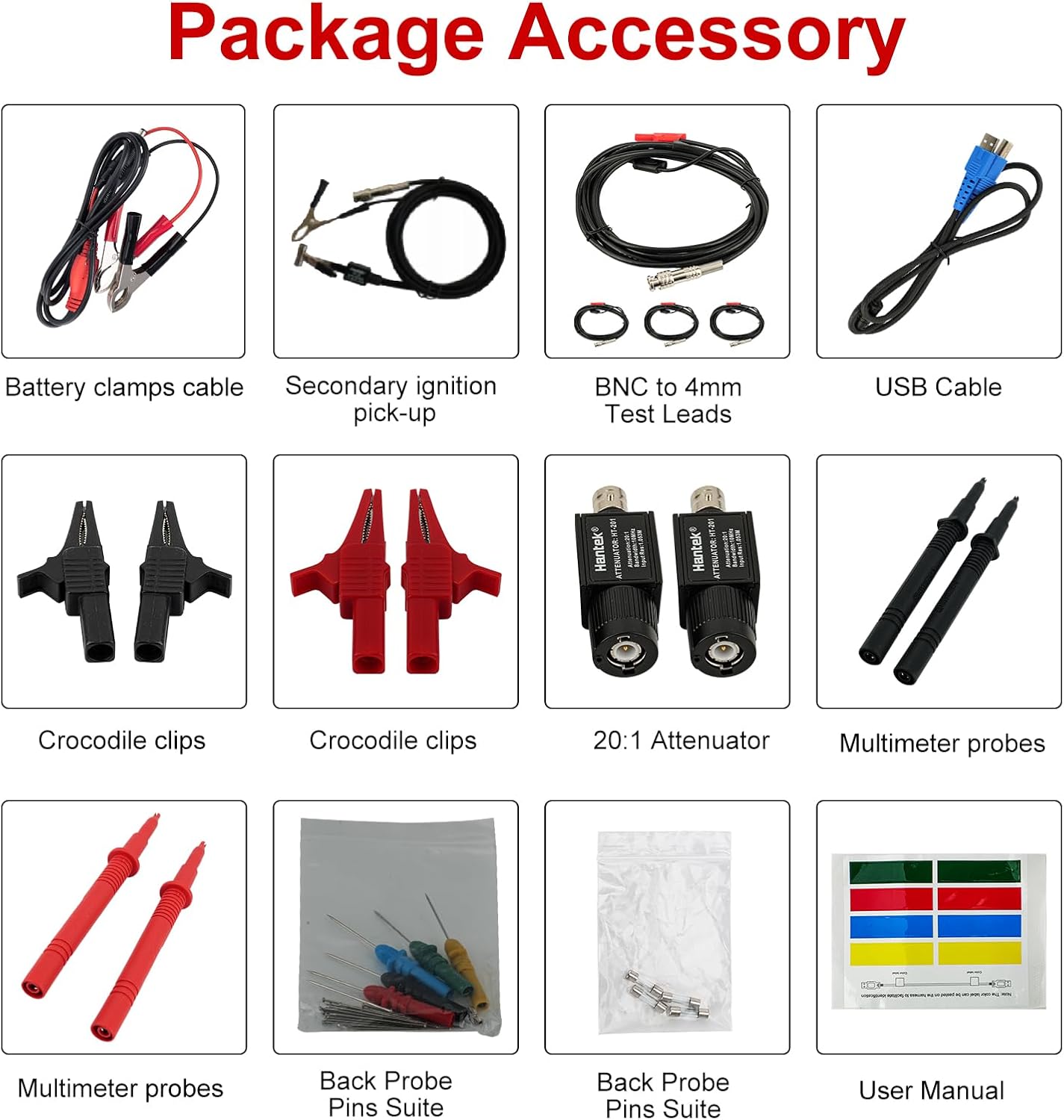

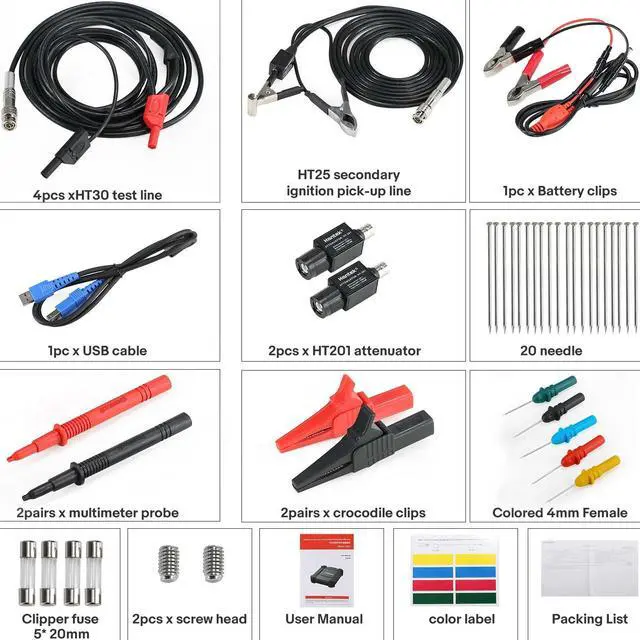

Package Includes:
1pc x Launch O2-2 main unit
4pcs x HT 30 test lines
1pc x HT25 secondary ignition pick-up line
1pc x battery clip cable
1pc x USB cable
2pcs x HT201 attenuator
20pcs x piercing needles
2 pairs x multimeter probes
2 pairs x crocodile clips
5pcs x colored 4 female probes
4pcs x clipper fuses(5*20mm)
2pcs x screw head
1pc x user manual
1pc x color label
1pc x packing list
