OBDSTAR DC706 ECU Tool Full Version With P003+ Adapter Kit for Car and Motorcycle ECM TCM BODY Clone by OBD or BENCH
Package Contains: OBDSTAR DC706 ECU Tool Full Version and New P003+ KIT & ECU Bench Cable

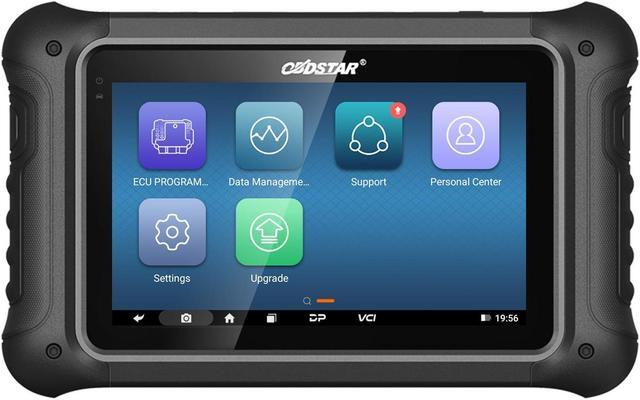

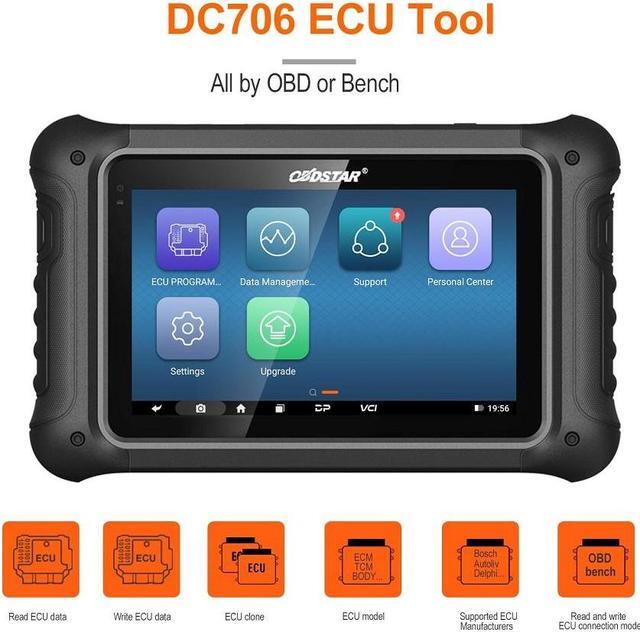

OBDSTAR DC706 ECU tool is designed for vehicle ECM, TCM and body/other system for ECU flasher. It can read ECU info, R/W Eeprom/Dflash/Pflash/MAP, reset ECU, calibrate mileage, read IMMO pincode, ECU recovery... It's all by OBD or bench mode and makes ECU cloning easy.
OBDSTAR P003+ KIT supports reading and writing ECU eeprom & flash data and calculating IMMO data of BOSCH ME17XX, MED17XX, EDC17XX & CONTINENTAL PCR2.1 for VW/Skoda/Audi/Seat, Bentley, Peugeot/Citroen/DS, Lamborghini, Porsche, Mahindra etc. Supports the following models require a higher frequency clock during the decryption process(ME9.0, MED9.1,MED9.6.1, ME9.6.1, MED9.5.10,EDC16C39, EDC16CP35, EDC16C8)
1. R/W eeprom/dflash/pflash/Map, reset ECU, calibrate mileage, read IMMO pincode, ECU recovery...
2. Support 1520+ ECM types(Partial functions require P003+ adapter.)
3. Support 320+ TCM types
4. Support 160+ body/other ECU types(AIRBAG, BCM, BSI, CEM, DDM/PDM, DIM, EPS, KeyLess(RFHUB/RFHM), KVM, RFA, SAM...)
5. Support VW DQXXX (TCM) calibrate mileage
6. Support motorcycle Delphi MT05, MT05.2, MT05.3 ECU clone
7. Support motorcycle BRP ME17.8.5 ECU clone (works with P003 adapter)
8. Support Piaggio series engine ECU clone(such as MIU G4 (M4G1))
9. Support intelligent search by brand, model, part No., ECU manufacturer, MCU controller type
10. Support automatic identification
11. Strong help data files
12. All by OBD or Bench mode
13. Please check newest OBDSTAR DC706 Coverage list before shopping, newest updated on August 30th, 2024
14. One Year Free Update Online
Notice:
1. Our Distributor Code: 0086A002
2. Not support DQ250 before Year 2008 with the old protocol
- 1. ECU Clone/ All by OBD or Bench
- 2. ECM clone for cars (Bosch, Continental, Delphi, Denso, Magneti Marelli, Siemens...)
- 3. ECM clone for motorcycles (Bosch, Delphi, EFI...)
- 4. TCM clone (Ac Delco, Bosch, Continental, Getrag, GM, Kefico, Siemens, Temic, ZF)
- 5. Body/Other clone (FCA, FIAT, FORD, GM/OPEL, LAND ROVER/JAGUAR, PSA, SMART, VOLVO...)
- This package is the full configuration.
- 7 configurations optional
- 1. ECM clone (Car/Motorcycle)
- 2. TCM clone
- 3. Body/Other clone
- 4. ECM clone(Car/Motorcycle) + TCM clone
- 5. ECM clone(Car/Motorcycle) + Body/Other clone
- 6. TCM clone + Body/Other clone
- 7. ECM clone(Car/Motorcycle) + TCM clone + Body/Other clone
- For 6HP, Fiat IAW 9GF/9GV/7GF/10GF, Simos etc ECU, you will also need P003 bench adapter.
- ALPS
- Autoliv
- Bosch
- Continental
- Delphi
- Denso
- Johnson Controls
- Lear
- Magneti Marelli
- Siemens
- Temic
- Valeo
- APRILIA
- BRP
- CFMOTO
- DERBI
- GILERA
- GUZZI
- PEUGEOT
- PIAGGIO
- QJBENELLI
- VESPA
Advanced Functions
1. R/W eeprom/dflash/pflash/Map, reset ECU, calibrate mileage, read IMMO pincode, ECU recovery
2. Support 200+ ECM types(Partial functions require P003 adapter.)
3. Support dozens of TCM types
4. Support 100+ body/other ECU types(AIRBAG, BCM, BSI, CEM, DDM/PDM, DIM, EPS, KeyLess(RFHUB/RFHM), KVM, RFA, SAM...)
5. Support VW DQXXX (TCM) calibrate mileage
6. Support motorcycle Delphi MT05, MT05.2, MT05.3 ECU clone
7. Support motorcycle BRP ME17.8.5 ECU clone (works with P003 adapter)
8. Support Piaggio series engine ECU clone(such as MIU G4 (M4G1))
9. Support intelligent search by brand, model, part No., ECU manufacturer, MCU controller type
10. Support automatic identification
11. Strong help data files
12. All by OBD or Bench mode
13. Allows to backup data to PC

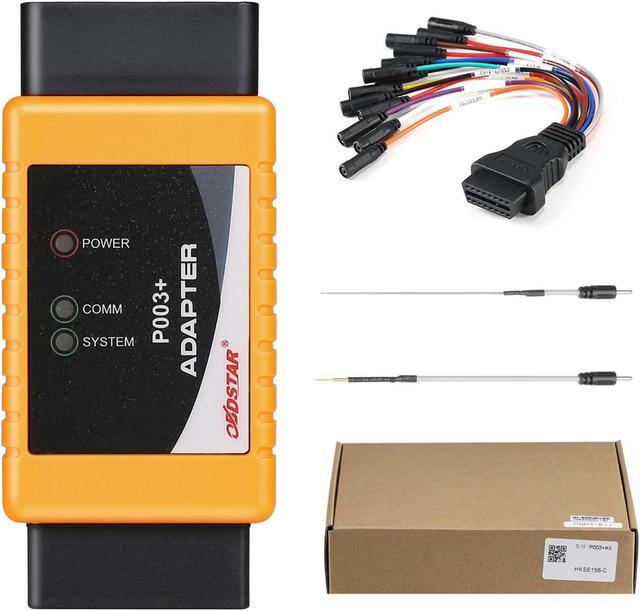

OBDSTAR P003+ Kit Working with OBDSTAR DC706 Series/IMMO Tablets
OBDSTAR P003+ Kit, working with OBDSTAR IMMO series tablets, supports reading and writing ECU eeprom & flash data and calculating IMMO data of BOSCH ME17XX, MED17XX, EDC17XX & CONTINENTAL PCR2.1 for VW/Skoda/Audi/Seat, Bentley, Peugeot/Citroen/DS, Lamborghini, Porsche, Mahindra etc
Functions:
1. Continental PCR 2.1 reading CS, PinCode, MAC value
2. Bosch MED17.4.4 reading eeprom , PinCode
3. Bosch EDC17C60 reading eeprom , PinCode
4. Bosch MD1CS018 reading eeprom, PinCode
5. Bosch MED17XX/EDC17XX reading eeprom, flash, CS, PinCode, MAC value
6. Bosch ME17XX reading & writing eeprom, flash
7. T87A, 6HP reading & writing TCM eeprom, flash
8. Add compatibility with P002 adapter (need to use with OBDSTAR IMMO series tablets).
9. Support below special models: ME9.0, MED9.1, MED9.6.1, ME9.6.1, MED9.5.10, EDC16C39, EDC16CP35, EDC16C8...
Works with OBDSTAR DC706, OBDSTAR IMMO series tablets: Key Master DP Plus, Key Master DP, Key Master 5,X300 DP Plus, X300 DP,X300 Pro4
| Operation system | Android 5.1.1 |
|---|---|
| CPU | RK3128 quad-core ARM cortex A7 |
| Battery | 3700mA, rechargeable polymer lithium battery |
| Extension memory card | 32G micro SD (TF) card supported |
| Storage capacity | 16GB |
| LCD | 7.0 inch |
| LCD resolution | 1024*600 |
| Touch screen | Capacitive touch screen |
| Wifi | Supported |
| Working temperature | -20Degree C~55 Degree C |
| Storage temperature | -20Degree C~70 Degree C |
| Weight | About 1.3kg |
| Dimension | 243mm*148mm*36mm |

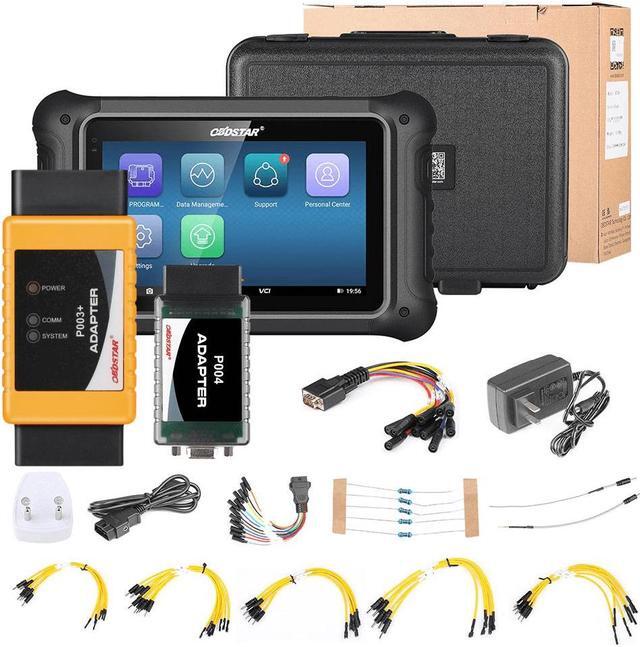

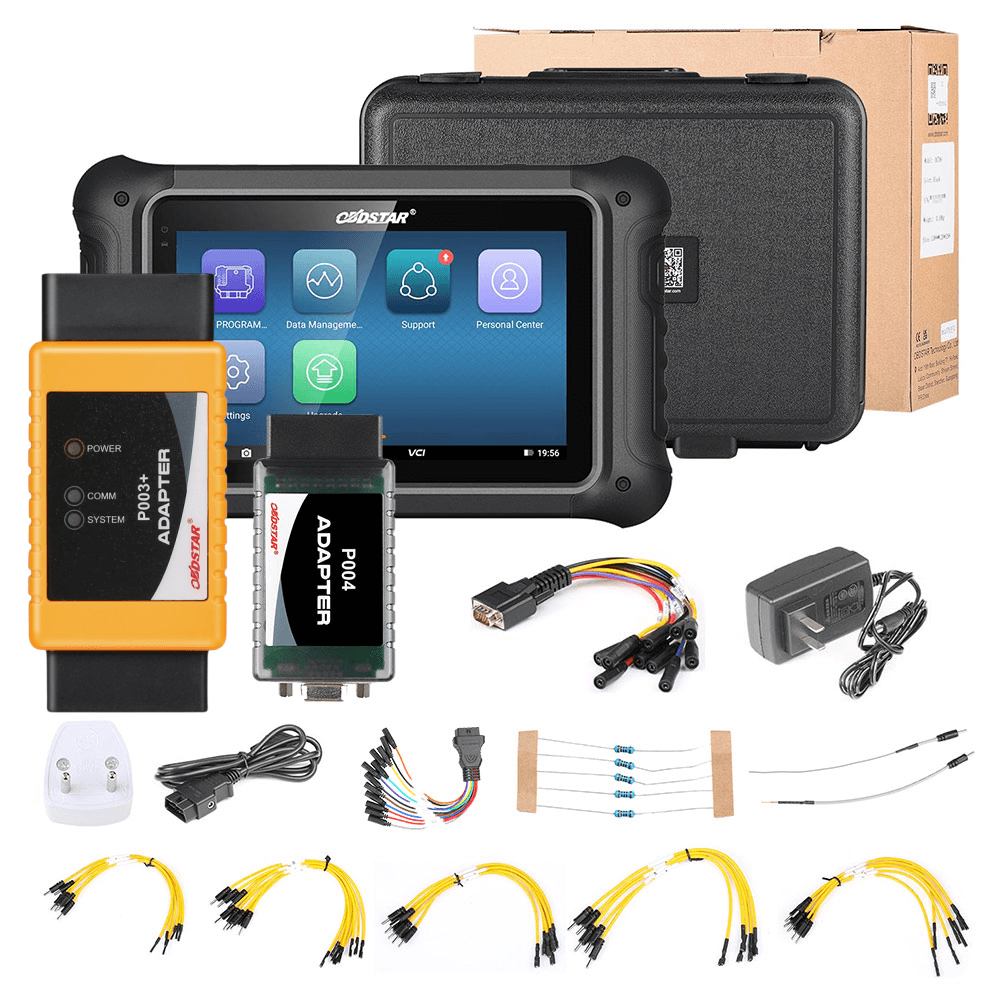

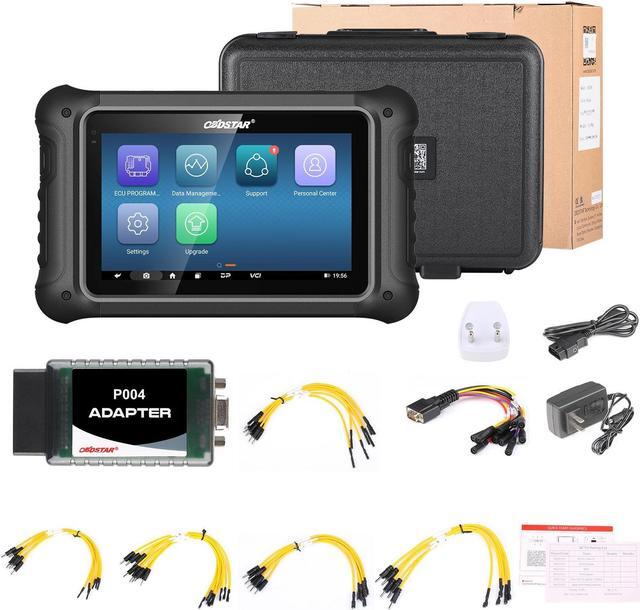

1pc x DC706 Main Unit
1pc x main cable
1pc x P004 adapter
1pc x P004 ECU clone jumper
1pc x 12V2A charger
1pc x OBDSTAR P003+ adapter
1pc x ECU BENCH jumper
