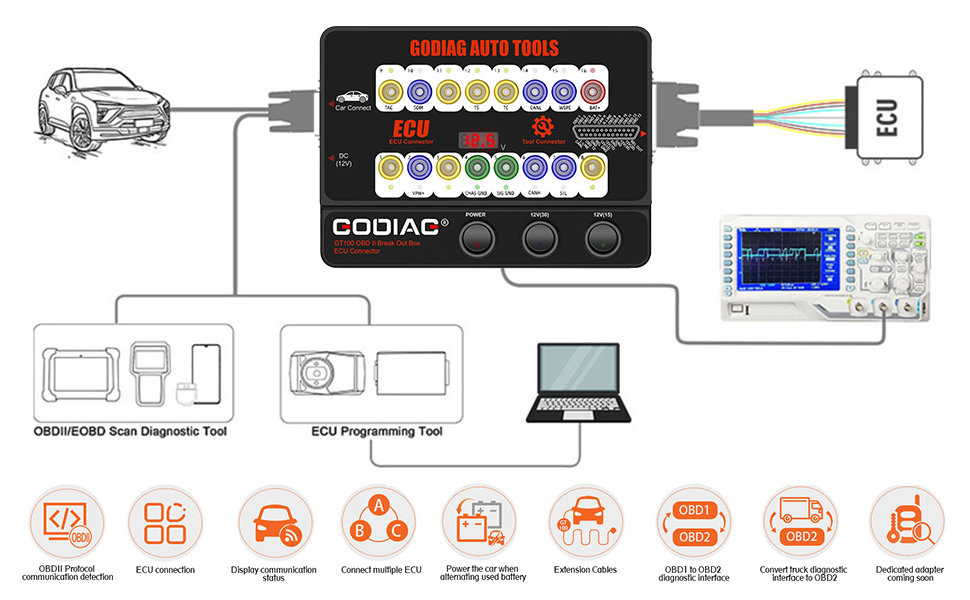

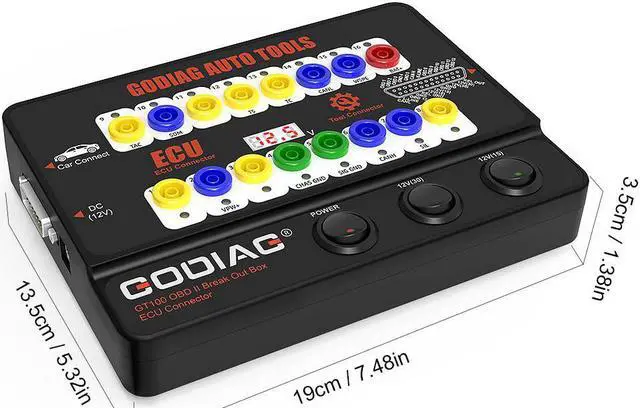

GODIAG GT100 is a latest testing platform for OBDII protocol communication detection and ECU maintenance / diagnosis / programming / coding. GODIAG GT100 ECU Breakout Box Features:

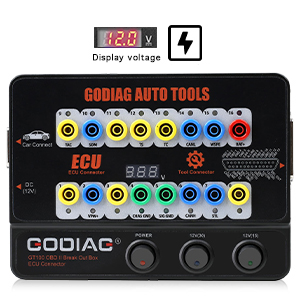

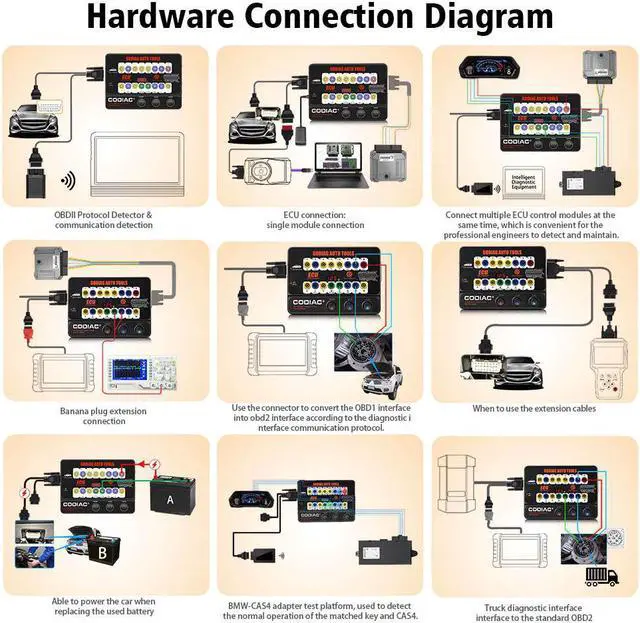

- Display Voltage and Current Function: GT100 OBDII Breakout Box connect with ECU module via banana connector or DB25 connector, can directly shows your current data. You can easily judge whether your cable has connect correctly or whether the ECU module is in good condition.
- Tell Whether The Diagnostic & Programming Tool Can Send Out Communication Signal:After connecting the diagnostic & programming tool to the OBD2 port of GT100, select the car model and function to be performed. Then you will see on GT100 the protocol indicator light will turn on or flash , if the indicator won't turn on, it indicates that the diagnostic & programming tool has a incorrect connection or the machine is damaged.
- ECU Connection or Multiple Vehicle ECU Module Connecting: Connecting the single or multiple ECU control modules at the same time, GT100 OBDII Breakout Box is good helper for programming and diagnosing.
- Banana Plug Extension Connection: Extend the car's OBDII 16pin interface to tell you whether the OBDII interface connection is good or not, which is convenient for the test of OBDII interface voltage waveform.
- Convert Obd1 Diagnostic Interface To The Standard Obd2: GT100 OBDII Breakout Box Use the connector to convert the OBD1 interface into obd2 interface according to the diagnostic interface communication protocol.
- The Extension Cables: The space of the diagnostic interface location is too narrow to connect to the diagnostic tool, or the user find that the diagnostic cable is not long enough during maintenance. It can be extended by 4.5ft.

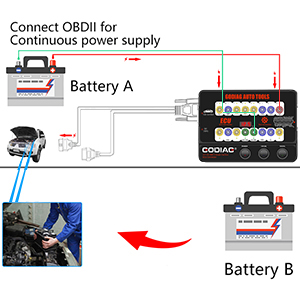

- Power The Car When Replace Battery: The auxiliary power supply aims at supplying power to the vehicle through GT100 OBDII Breakout Box before replacing the battery to sustain the power supply to the vehicle. It guarantees the vehicle ECU is power connected during replacement of the battery

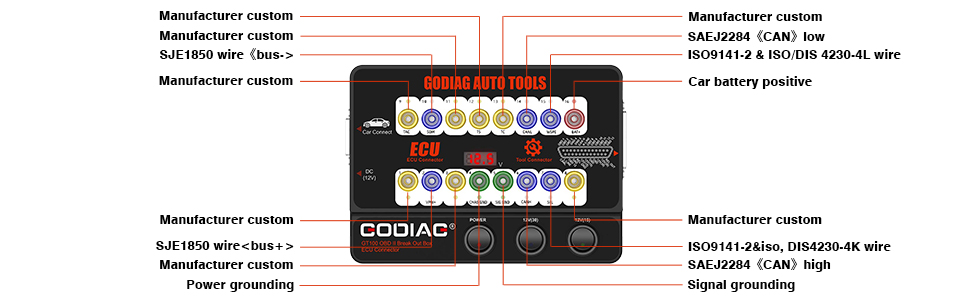

GT100 Pin 1, 9, 3, 11 12, 13, 8 [corresponding to the yellow banana connector on the machine], these non-standard obd2 protocol interface may display CAN BUS or K-Line communication protocol. GT100+ will display CAN BUS K-Line Pwm Vpw+ KWP 2000 protocol communication.
All Diagnostic + Live Data in Graphic + Print
Quickly communicate with a single ECU on bench by connecting with the ECU diagnostic / programming tool.
Which allow the engineers or technicians to complete the job on bench, also keep away the risk of data loss in other modules when directly testing on the vehicle.
While you do the live date function, you can choose the present inform, Connecting the computer and this obd2 scanner to print the data.
GODIAG GT100 function and operation guide
- - By connecting the vehicle and diagnostic tool via OBDII, Godiag GT100's LED will indicate whether the OBDII diagnostic interface has a good communication with the car.
Please Note:
- - Monitor the voltage of vehicle OBDII interface and display it in real time. If it is less than 11V, please stop the diagnosis and programming to avoid the vehicle being unable to start/data loss/module locked.
- GT100 OBDII breakout box not only provide power to ECU,but also directly display electronic current value.
- There is no current display or the actual displayed current is inconsistent with the engineer's expected current, then you can immediately check whether the wiring is wrong or the ECU is broken.
- Before connecting to your expensive scan tools, you can use GT100 OBDII Breakout Box to verify the networks are communicating properly, or there is proper power and grounds being supplier to the box assembly. In case if you do not have the proper power or grounds may burn your expensive scan tools
The auxiliary power supply aims at supplying power to the vehicle through GT100 OBDII Breakout Box before replacing the battery to sustain the power supply to the vehicle.To avoid malfunction or loss of anti-theft remote control data when removing the battery.
The OBD2 cable of GT100 OBD II Break Out Box ECU Connector is as long as 1.2 meter, which will solve the problem that the diagnostic tool cable is not long enough or the vehicle diagnostic port is too tight to connect. Please connect GT100 first, turn on the power switch and you will see the voltage on the screen, which can tell if the power supply of the vehicle is normal. (They keep away the risk of burnout diagnosis,programming tool due to modified vehicle OBD2 port)

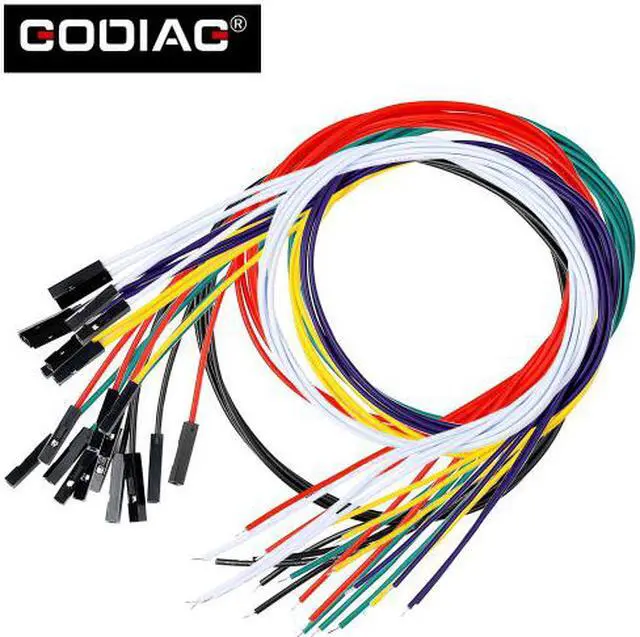

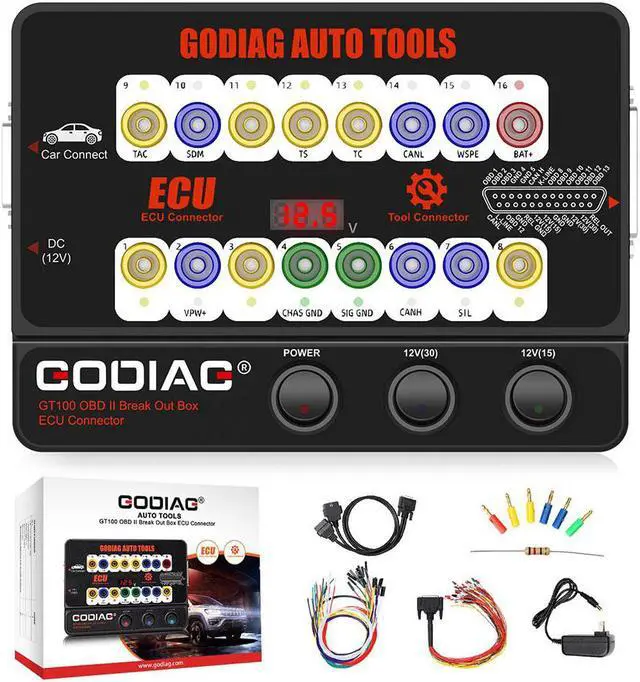

- Compared with other breakout box, Godiag GT100 has come with full package of accessories like DB25 jumpe cable, 24pcs wire cable, 6pcs Banana plug which can simplify your work
- DB25 color jumper cable as the ECU dedicated connection line. You can use it to diagnose or program to diagnose which is convenient for the professional engineers to detect and maintain
| Products | ||
|---|---|---|
| Diagnostic Port | OBDII | OBDII |
| Working Voltage | DC 9V-24V | DC 9V-24V |
| Display Voltage | YES | YES |
| Display Current(to check wiring/ECU) | NO | YES |
| Protocol of Pin 1,9,3,11,12,13,8 | K-Line PWM VPW+ KWP2000 | CAN BUS K-Line PWM VPW+ KWP2000 |
| ECU Connection | YES | YES |
| OBDII Protocal Detecor | YES | YES |
| Convert OBD1 to OBD2 | YES | YES |
| Diagnostic port | OBDII |
|---|---|
| Working voltage | DC 9V-24V |
| Work and power | 0.5-0.6W |
| Adapter power | Input AC100v-240v, Output DC12V 1A |
| Operating temperature ran | -20 to 70 °C ( -4 to 158 °F ) |
| Storage temperature range | -40 to 85 °C ( -40 to 185 °F ) |
| Dimension | L: 9 inches , W:7.08 inches , H:5.75inches |
