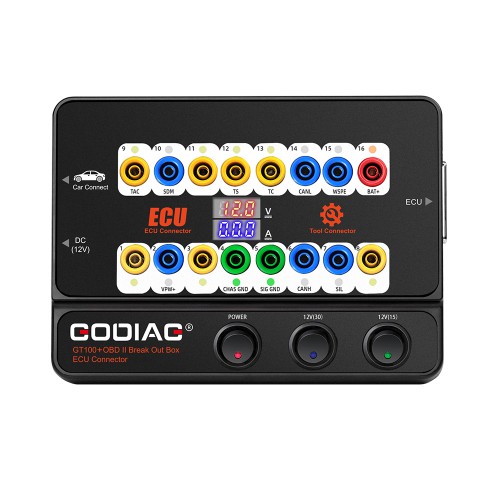

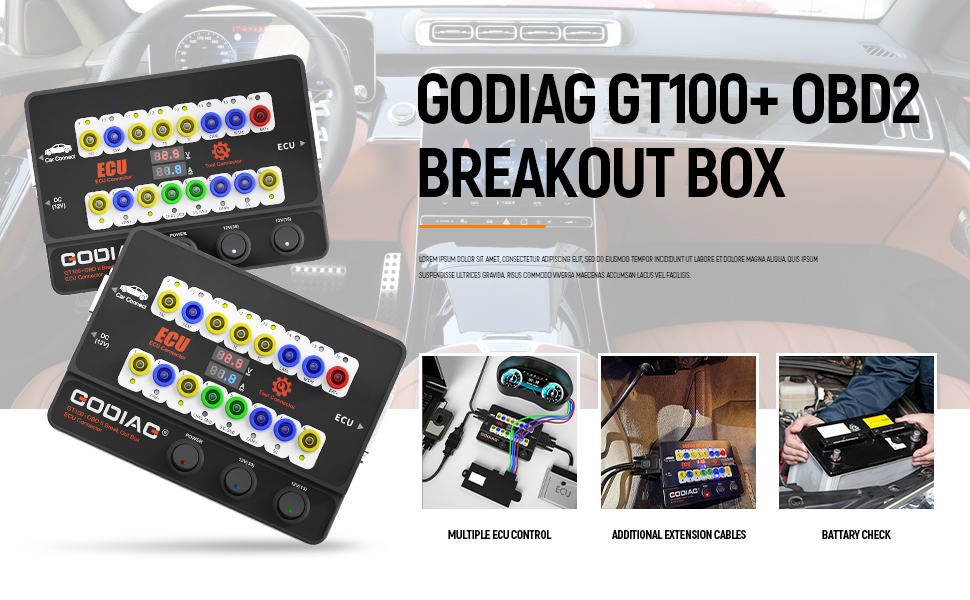

Godiag GT100+ OBDII Breakout Box ECU Bench Porgramming
GODIAG GT100+ OBDII Breakout Box is a latest testing platform for OBDII protocol communication detection and ECU maintenance / diagnosis / programming / coding. Different from GT100 OBDII Breakout Box , this new version OBDII Breakout Box support CAN BUS protocol and add Current Display.
- Display Voltage and Current Function: GT100 plus OBD2 Breakout Box connect with ECU module via banana connector or DB25 connector, can directly shows your current data. You can easily judge whether your cable has connect correctly or whether the ECU module is in good condition.
- Newly Added CAN BUS And K LINE Protocol: GT100 plus OBD2 Breakout Box port 1,9,3,11,12,13,8 those are not standard obd2 protocol port, it will shows CAN BUS and K LINE protocol while GT100 OBDII Breakout Box only shows K LINE, PWM VPW and KWP2000 protocol.
- Help Activated the dashboard or IMMO module for VW,Porsche,MIT and Toyota: For VW, Porsche or MIT or Toyota all key lost, you can use GT100 plus OBDII Breakout Box to activate dashboard or immo module before you use other tools like Autel IM608 to do all key lost.
- ECU Connection or Multiple Vehicle ECU Module Connecting: Connecting the single or multiple ECU control modules at the same time, GT100 plus OBDII Breakout Box is good helper for programming and diagnosing.
- Banana Plug Extension Connection: Extend the car OBDII 16pin interface to tell you whether the OBDII interface connection is good or not, which is convenient for the test of OBDII interface voltage waveform.
- Convert Obd1 Diagnostic Interface To The Standard Obd2: GT100 plus OBDII Breakout Box Use the connector to convert the OBD1 interface into obd2 interface according to the diagnostic interface communication protocol.
- The Extension Cables: The space of the diagnostic interface location is too narrow to connect to the diagnostic tool, or the user find that the diagnostic cable is not long enough during maintenance. It can be extended by 4.5ft.
- Power The Car When Replace Battery: The auxiliary power supply aims at supplying power to the vehicle through GT100 Plus OBDII Breakout Box before replacing the battery to sustain the power supply to the vehicle.
ECU Connection or Multiple Vehicle ECU Module Connecting: Connecting the single or multiple ECU control modules at the same time
GT100+ Pin 1, 9, 3, 11 12, 13, 8 [corresponding to the yellow banana connector on the machine], these non-standard obd2 protocol interface may display CAN BUS or K-Line communication protocol. GT100+ will display CAN BUS K-Line Pwm Vpw+ KWP 2000 protocol communication.
All Diagnostic + Live Data in Graphic + Print
Quickly communicate with a single ECU on bench by connecting with the ECU diagnostic / programming tool.
Which allow the engineers or technicians to complete the job on bench, also keep away the risk of data loss in other modules when directly testing on the vehicle.
While you do the live date function, you can choose the present inform, Connecting the computer and this obd2 scanner to print the data.
Product Features:
This OBDII Protocol Detector & Break Out Box has wide range of applications in diagnostics, key programming and chip tuning:
- To monitor data steam while performing test on vehicle using a Scantool. This makes it possible for you to both execute a test and simultaneously monitor the testing process.
- Display testing voltage and current on the car or truck
- Display communicating pin number
- Is an extension of OBD Diagnostic Link Connector (DLC)
- For short circuiting of pins
- To detect isolated circuits problems
- Is a power extension cord for small DC testers that need an external power source (maximum 1.2 amps.)
- To test circuits with a meter or scope.
- To check Power (Pin 16), Chassis Ground (Pin 4) and Signal Ground (Pin 5)

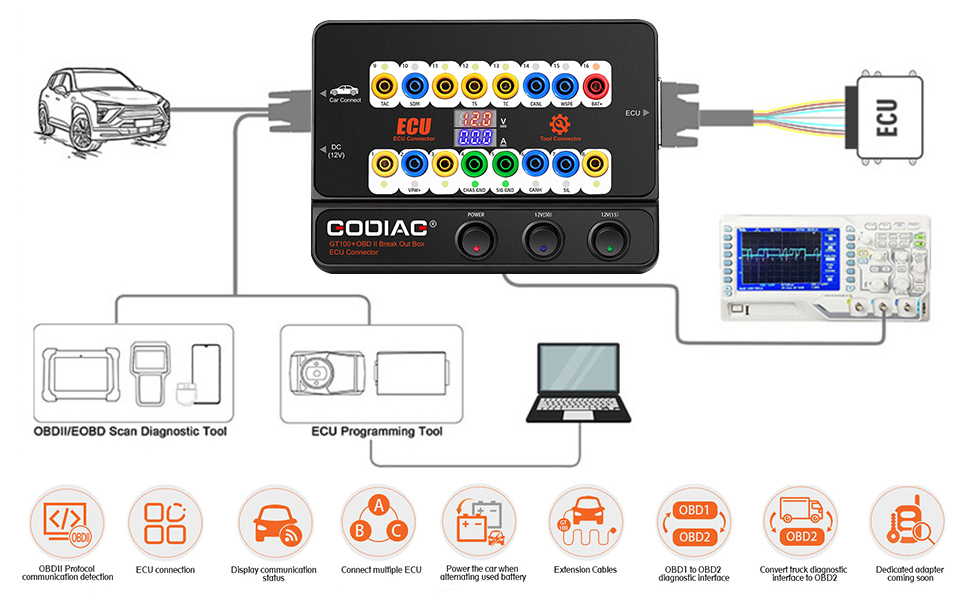

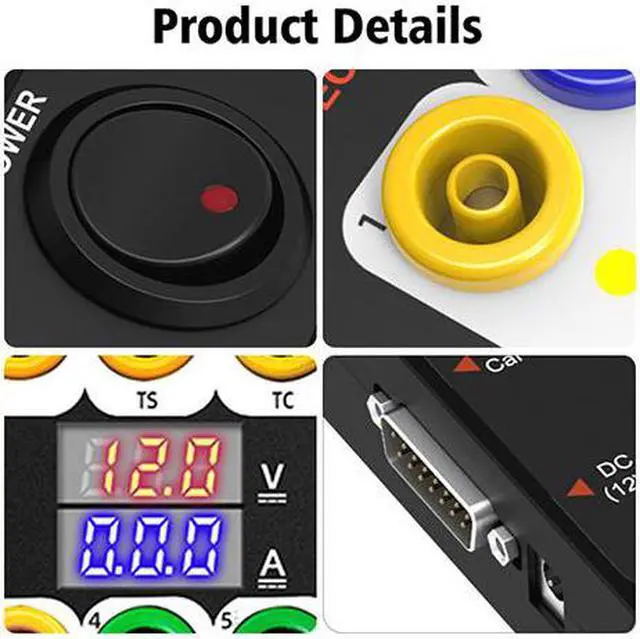

Godiag GT100+ OBDII Breakout Box Function Display
Wide Capability
- GT100 + OBDII breakout box not only provide power to ECU,but also directly display electronic current value.
- There is no current display or the actual displayed current is inconsistent with the engineer's expected current, then you can immediately check whether the wiring is wrong or the ECU is broken.

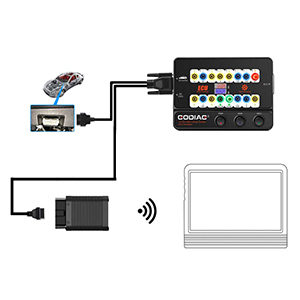

Check The Communication Signals
- Before connecting to your expensive scan tools, you can use GT100+ OBDII Breakout Box to verify the networks are communicating properly, or there is proper power and grounds being supplier to the box assembly. In case if you do not have the proper power or grounds may burn your expensive scan tools.

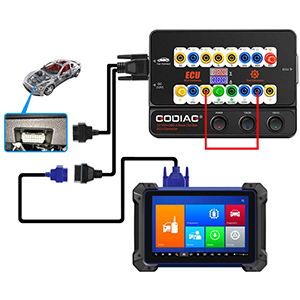

Activate IMMO or Dashboard Module
- For VW, Porsche or MIT or Toyota all key lost, you can use GT100+ OBDII Breakout Box to activate dashboard or immo module before you use other tools like Autel IM608 to do all key lost.
- Toyota replaces the engine ECU or some key matching equipment to match the Toyota car with all lost keys Short-circuit PIN13 PIN4,like the picture.
Godiag GT100+ OBDII Breakout Box Advanced Function

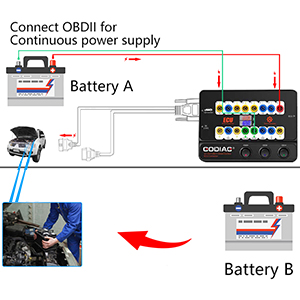

Power Car When Replacing Battery
- Power Car When Replacing Battery
- The auxiliary power supply aims at supplying power to the vehicle through GT100+ OBDII Breakout Box before replacing the battery to sustain the power supply to the vehicle.To avoid malfunction or loss of anti-theft remote control data when removing the battery

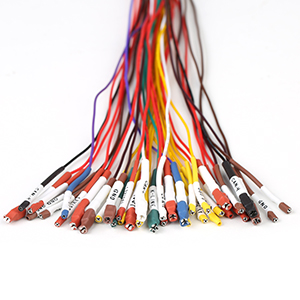

Full package of Accessories
- Compared with other breakout box, Godiag GT100+ has come with full package of accessories like DB25 jumpe cable, 24pcs wire cable, 6pcs Banana plug which can simplify your work

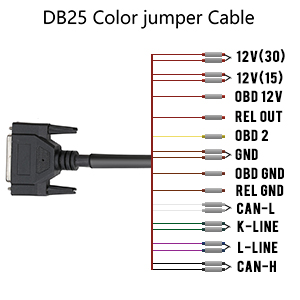

DB25 Color Jumper Cable
- DB25 color jumper cable as the ECU dedicated connection line. You can use it to diagnose or program to diagnose which is convenient for the professional engineers to detect and maintain
| Products |
|
|
| Diagnostic Port |
OBDII |
OBDII |
| Working Voltage |
DC 9V-24V |
DC 9V-24V |
| Display Voltage |
YES |
YES |
| Display Current(to check wiring/ECU) |
NO |
YES |
| Protocol of Pin 1,9,3,11,12,13,8 |
K-Line PWM VPW+ KWP2000 |
CAN BUS K-Line PWM VPW+ KWP2000 |
| ECU Connection |
YES |
YES |
| OBDII Protocal Detecor |
YES |
YES |
| Convert OBD1 to OBD2 |
YES |
YES |
Godiag GT100+ OBDII Breakout Box Parameter
| Diagnostic port |
OBDII |
| Working voltage |
DC 9V-24V |
| Work and power |
0.5-0.6W |
| Adapter power |
Input AC100v-240v, Output DC12V 1A |
| Operating temperature ran |
-20 to 70 °C ( -4 to 158 °F ) |
| Storage temperature range |
-40 to 85 °C ( -40 to 185 °F ) |

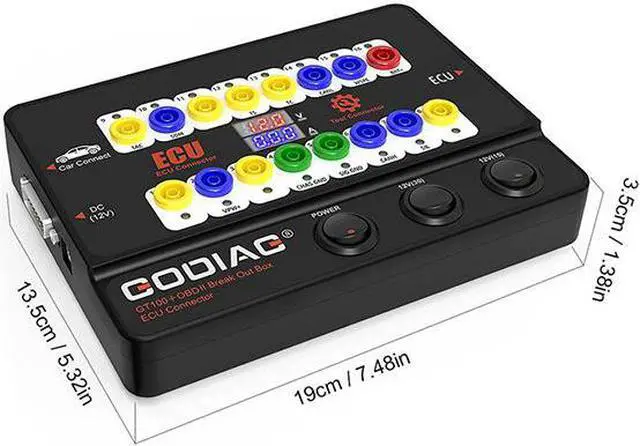

| Dimension |
L: 9 inches , W:7.08 inches , H:5.75inches |

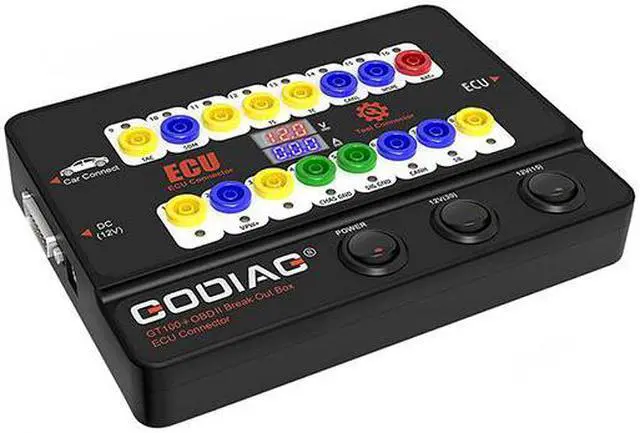

GODIAG GT100 + New Generation AUTO TOOLS OBD II Break Out Box ECU Connector with Electronic Current Display
GODIAG GT100+ is the latest testing platform for OBDII protocol communication detection and ECU maintenance/ diagnosis/ programming/ coding And after all the keys are lost, the instrument and the anti-theft system are forced to activate by short-circuiting.
GT100+ has a voltage and current display. It is convenient for maintenance engineers to judge the current working status of ECU.
It can convert the car OBD2 interface into 16 pin for signal detection and electrical level conversion. Able to connect the single modules or multiple modules of the vehicle. It can be connected with any diagnostic tool to tell whether the car communication is good or not. It can also supply power to the car when you change the battery to avoid the vehicle control module data being lost, automatically locked, the key remote control fails and the fault light turns on.

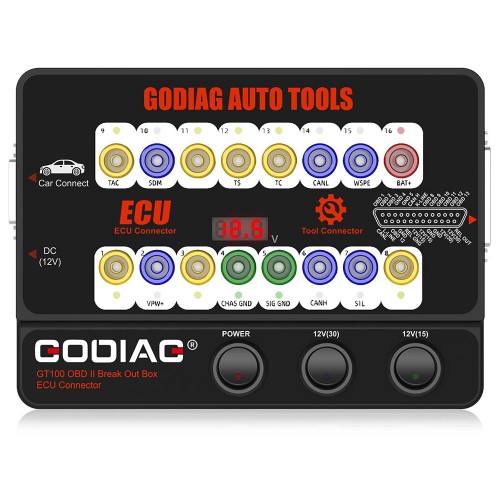

What is the difference between GODIAG GT100 + VS. GT100?
1. GT100+includes all the functions of GODIAG GT100.
2. GT100+add a Current Display on the Main Unit. You can intuitively see the current display of the ECU by Connecting the ECU module with the Banana interface or the DB25 cable, which can make your work much easier.
3. GODIAG GT100+ can also support non-standard can protocal.
GODIAG GT100+ Functions Introduction - By connecting the vehicle and diagnostic tool via OBDII, Godiag GT100+'s LED will indicate whether the OBDII diagnostic interface has a good communication with the car.
Monitor the voltage of vehicle OBDII interface and display it in real time. If it is less than 11V, please stop the diagnosis and programming to avoid the vehicle being unable to start/data loss/module locked.

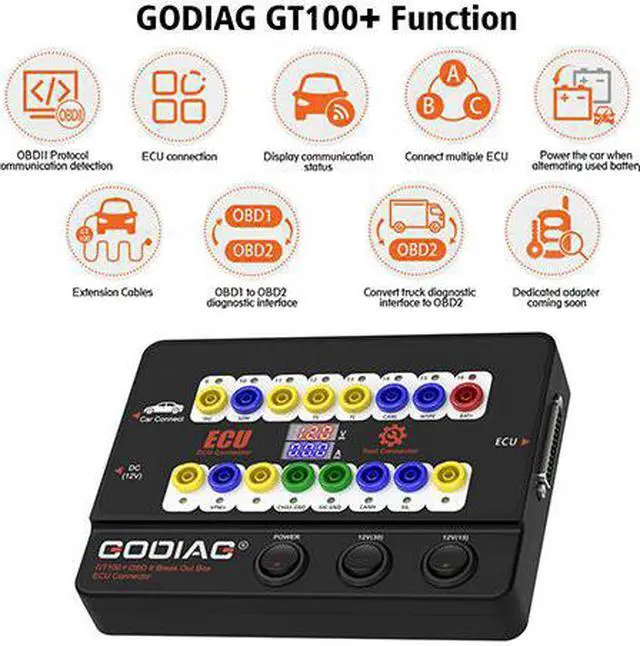

GODIAG GT100+ Functions Display:
1) Used to check whether the diagnostic / programming / coding tool can send communication signals.
2)ECU connection: single module connection GODIAG GT100+, connected to a single ECU module, is convenient for a user to do the single-module diagnosis and programming.
3) GT100+ program key for VW, Porsche, Mitsubishi etc with all keys lost - activate the instrument or immobilizer module.
A. To program VW 4th generation / 5th generation Lost all keys (for example: new A6L Touareg A4 Q5 A7), please use GT100+ to short-circuit banana connector PIN 16----PIN 1 to lit up the dashboard, aft that use the key programmer tool to connect with the female adapter of GT100+ for data collection. Some vehicle dashboards won't be lit up, but data can also be collected, for example: A6L Q7.
B. To replace the engine ECU of Toyota or to use some key programmer to program Toyota when all keys lost, it needs to short-circuit PIN13-PIN4
C. To program Mitsubishi key with all keys lost or to set OBDII when all remote key lost, please short-circuit PIN1-PIN4.
D. To program Porsche Cayenne key with all keys lost or with all remote key lost, please short circuit PIN3-PIN7.

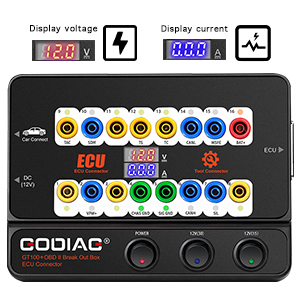

4) Voltage and Current Value Display function
On bench connect the ECU module by using the banana connector or db25 dedicated ECU interface, and Godiag GT100+ will display the voltage / current value.
The user can intuitively see the current status of the ECU. There is no current display or The actual displayed current is inconsistent with the engineer's expected current, then you can immediately check whether the wiring is wrong, if the wiring is correct, he can judge that the ECU may be broken, so there is no need to perform diagnostic communication and can directly repair the ECU.
If it shows too much current, then you can also determine if the cable is wrongly connected or the ECU is broken.
5)GT100+ will display CANBUS, K-Line, Pwm, Vpw+, KWP 2000 protocol communication.
GT100+ Pin 1, 9, 3, 11 12, 13, 8 (corresponding to the yellow banana connector on the machine), these non-standard obd2 protocol interface may display CAN BUS or K-Line communication protocol. GT100 can only display K- Line, Pwm, Vpw+, KWP 2000 protocol.
6) Quickly communicate with a single ECU on bench by connecting with the ECU diagnostic / programming tool. [Which allow the engineers or technicians to complete the job on bench, also keep away the risk of data loss in other modules when directly testing on the vehicle. ]
7. )Multiple vehicle ECU module connecting. [It's aimed at solving the problem of engineers and technicians who need to connect multiple ECU during programming a module, such as connecting to multiple ECU modules for key programming]
8. )Replace the auxiliary power supply for the battery - uninterruptible power supply connecting mode.
Since there's failure or missing antitheft remote control data of some vehicles when the battery is dismantled, the auxiliary power supply aims at supplying power to the vehicle through GT100+ before replacing the battery to sustain the power supply to the vehicle.
It guarantees the vehicle ECU is power connected during replacement of the battery.
9) The OBD2 cable of GT100+ is as long as 1.4 meters, which will solve the problem that the diagnostic tool cable is not long enough or the vehicle diagnostic port is too narrow to connect. Please connect GT100+ first, turn on the power switch and you will see the voltage on the screen which can tell whether the power supply of the vehicle is normal. [Which keep away the risk of burning out the diagnostic & programming tool due to the modified vehicle OBD2 port]
10) Convert OBD1 diagnostic port to standard OBD2 diagnostic port. For old OBD1 vehicles or special diagnostic port, please connect GT100+ through the banana plug and DB25 jumper.
11) GT100+ will convert the OBD1 port of special truck to the standard OBD2 diagnostic port according to the protocol.
12)Work together with BMW CAS4/CAS4+Programming Test Platform, it's used to test whether the programmed key works with CAS4 normally
13) Work with BMW FEM/BDC Programming Test Platform
14) More connectors and dedicated modules are under development, please wait...
Package includes:
1pc x Host 1pc xOBD 2-in-1 extension cable
1pc xColored jumper cable
1pc xPower supply 12V 1pc xResistance 120 ohm
6pcs xBanana plug
24pcs xWire accessories, Dupont 2.54 mm connector female pins
