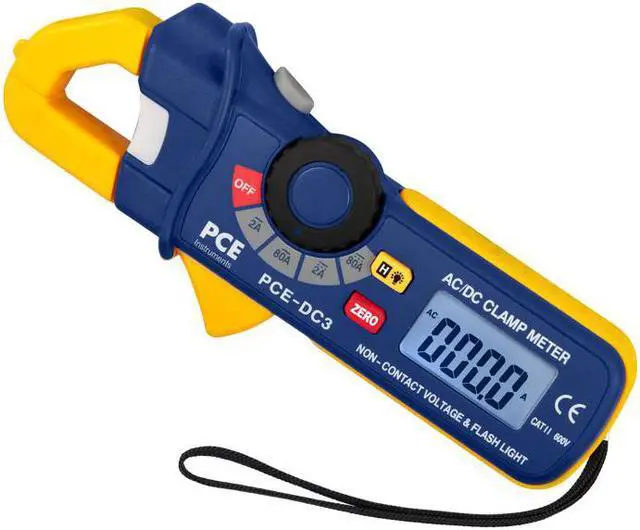

PCE-DC3 Digital Current Clamp
- 4 digit LCD display with backlighting
- AC/DC current measurement up to 80 Amps
- Save function
- DCA zero rest function
- Current tester, non-contact
- Integrated light to illuminate measured area
- Automatic range selection
- Automatic disconnect
- Clamp diameter: 18 mm / .7 in
- AC current (50 / 60 Hz): Range: 2 A, 80 A / Resolution: 1-mA, 100-mA / Accuracy: ± 2.8% + 10 dgt, ± 3.0% + 8 dgt
- DC current: Range: 2 A, 80 A / Resolution: 1-mA, 100-mA / Accuracy: ± 3.0% + 10 dgt, ± 3.0% + 8 dgt
- AC overload protection (Non-contact): 100V AC up to 600V AC 50 / 60 Hz
- Flashlight illumination: White LED
- Conductor diameter: 18 mm / 0.7 in maximum
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
This current clamp was developed for the indirect measurement of AC/DC currents with high resolution. A non-contact voltage tester function and a torch/flashlight for illuminating the measuring point have also been integrated into this clamp meter. The small dimensions of this amperage clamp enable it to be used in places that are difficult to access.
The large, illuminated display of these measuring clamps ensures very good readability even in dark locations, such as in switch cabinets and cable ducts. The non-contact voltage tester function not only supports you in the detection of dangerous voltage potentials, but also gives you a precise tool for determining cable break positions in cable reels, extension cables and appliance connection cables.
The large, illuminated display of these measuring clamps ensures very good readability even in dark locations, such as in switch cabinets and cable ducts. The non-contact voltage tester function not only supports you in the detection of dangerous voltage potentials, but also gives you a precise tool for determining cable break positions in cable reels, extension cables and appliance connection cables.
