10KV Digital Insulation Meter Insulation Resistance Tester and megohmmeters High Voltage Resistance Multimeter with Absorption Ratio and Polarization Index Measurement

Test Voltage(V) : rated voltage×(1±10%)

DC Voltage Range : 0~1000V Resolution: 0.1V

AC Voltage Range : 0~750V Resolution: 0.1V

DC Current : 0.1nA~6mA Resolution: 0.1nA

Capacitance : 10nF~50uF Resolution: 10nF

Output short-circuit Current : 6mA@15KV

Absorption Ratio and Polarization Index Measurement Have Filter test(FR) : 10S 20S 30S 40S 50S

Oblique wave test(RAMP) Target voltage %10 Step up to the final target voltage

Power Supply : 12.6V rechargeable battery

Backlight Controllable gray screen backlight, suitable for use in dim places

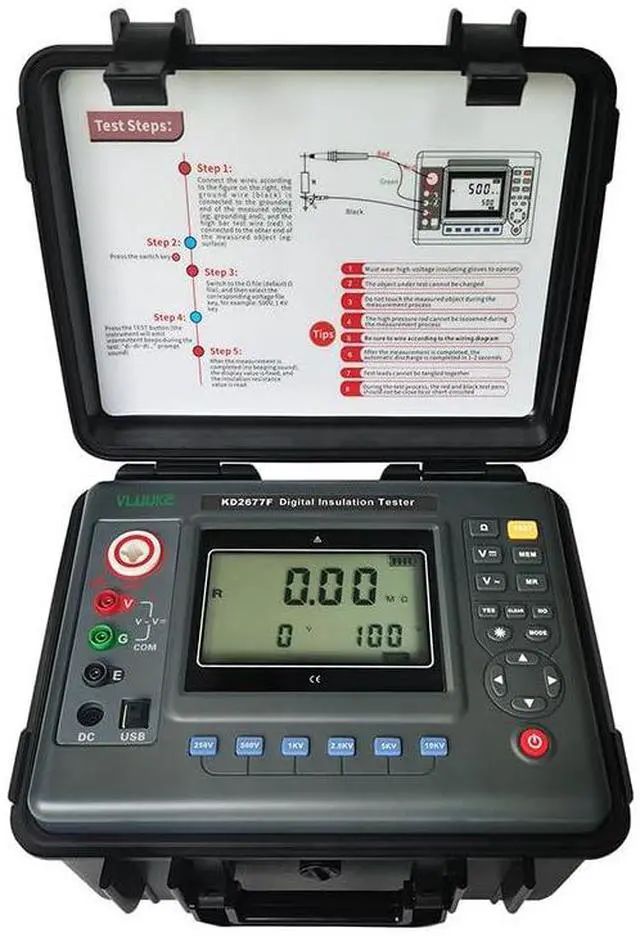

Dispaly mode 4-bit large LCD display, gray screen backlight

LCD display size 108mm×65mm

Instrument size L/W/H:240mm×188mm×85mm

USB interface With USB interface, software monitoring, storage data can be uploaded to the computer, save and print

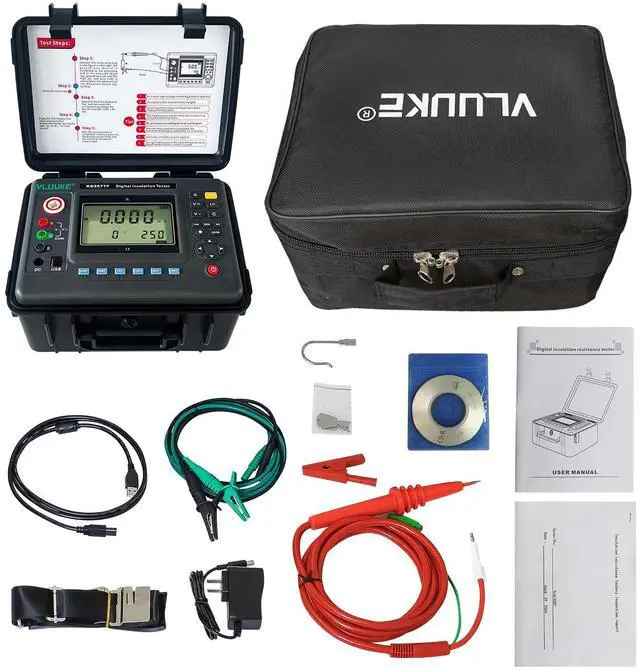

Communication Line USB communication line 1PC

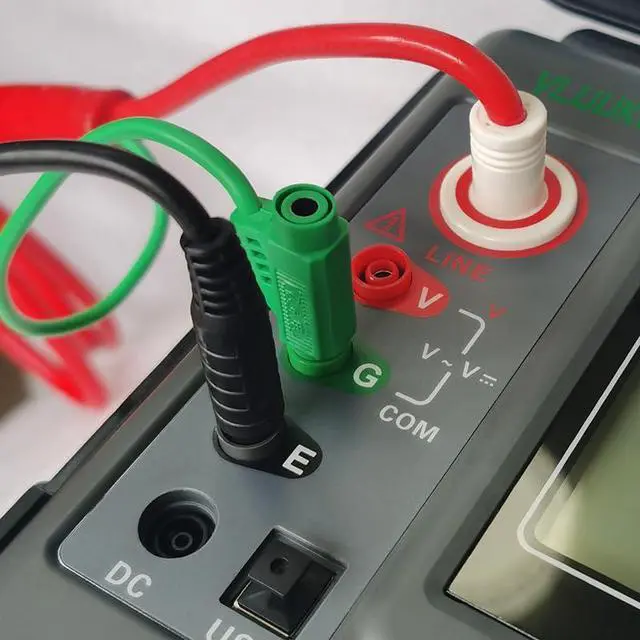

Test Line High voltage rob red 3meter, high voltage test line black 1.5meter, green 1.5meter

Data Storage 500 groups, "FULL" symbol indicates that storage is full

Data Review Data review function: "MR" symbol display

Overflow Display Exceed measurement range overflow function: > symbol display

Alarm Function Alarm when the measured value larger or smaller than the alarm setting value

Power Consumption Standby: 30mA Max(backlight off), Turn on backlight: 42mA Max

Measure:200mA Max(backlight off)

Instrument weight 2750g(including battery)

Battery voltage When the battery voltage is low, low battery symbol will display

Automatic shut-down automatic shutdown after 15 minutes boot

Insulation Resistance 50M(between Measuring line and housing)

Pressure Resistance AC3kV/50Hz 1min

Working Temperature and Humidity -10~+50<85%RH

Storage Temperature and Humidity -15~+55<90%RH
