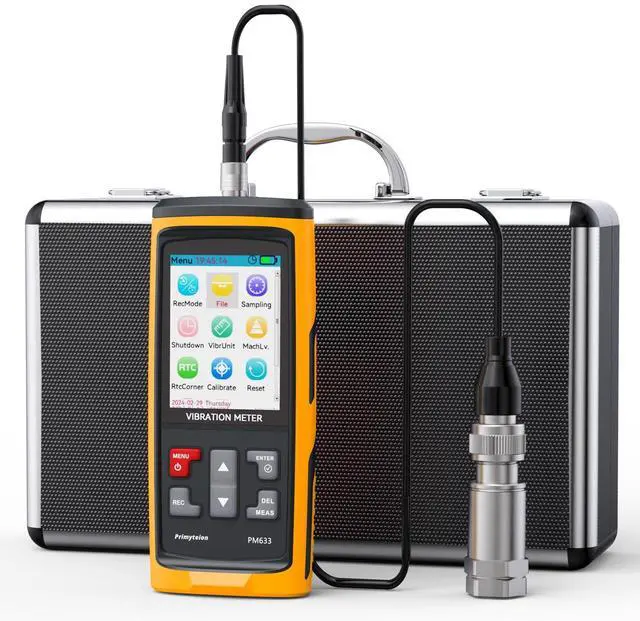

Digital Vibration Meter, Measurement Analysis Mechanical Equipment Vibration Frequency, Acceleration, Velocity, Displacement, Temperature for Motors, HVAC, Engines, Generator, Pumps
- Wide Range: The vibrometer gauge adopts a piezoceramic accelerometer (shearing Type ); (Acceleration: 0.1 to 300m/s2 at peak, Velocity: 1 to 850mm/s RMS and Displacement: 1 to 3300um, Frequency: 30Hz to 14KHz, Accuracy: ±1.5%+2digits.)Temperature: 14 to 140(Accuracy ±1.5)
- Wide Frequency Range: You can switch between high and low frequency measurements (30Hz to 14KHz); acceleration(20Hz to 12KHz) velocity and displacement frequency(20Hz to 1KHz)

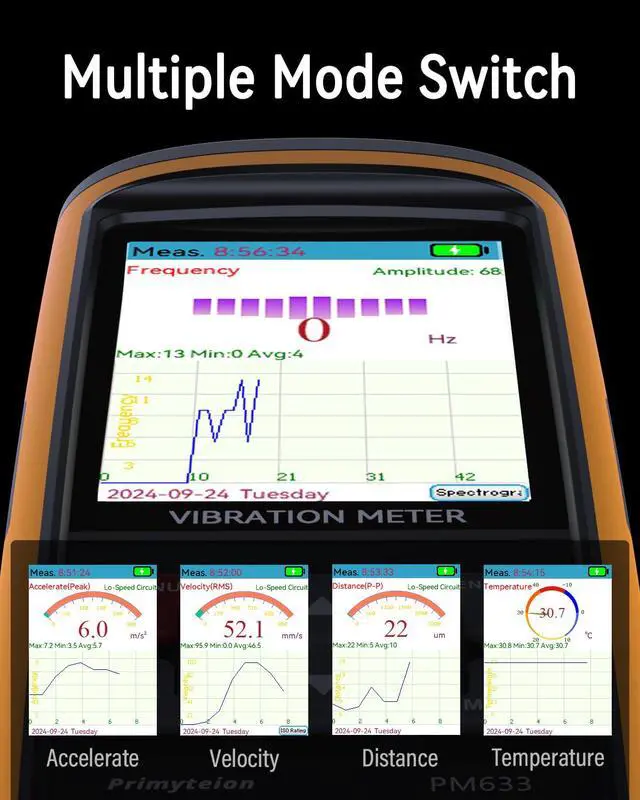

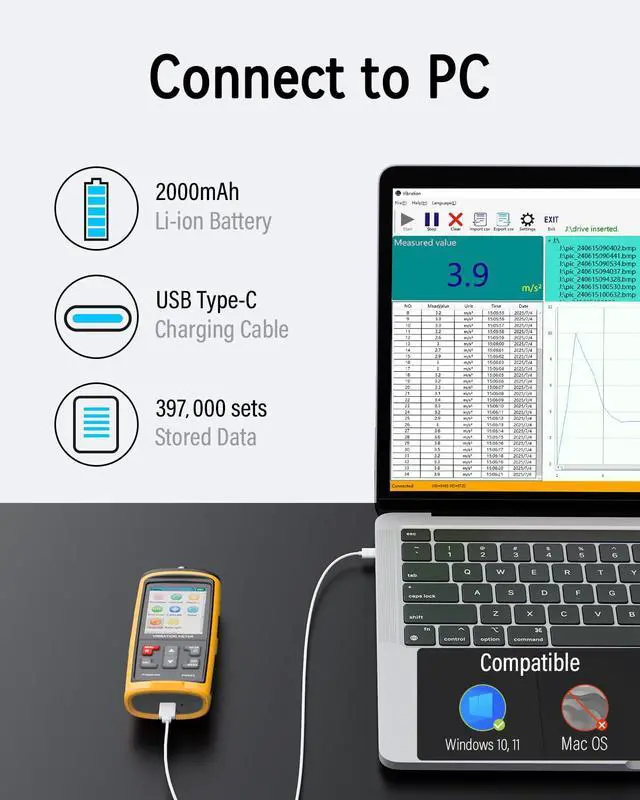

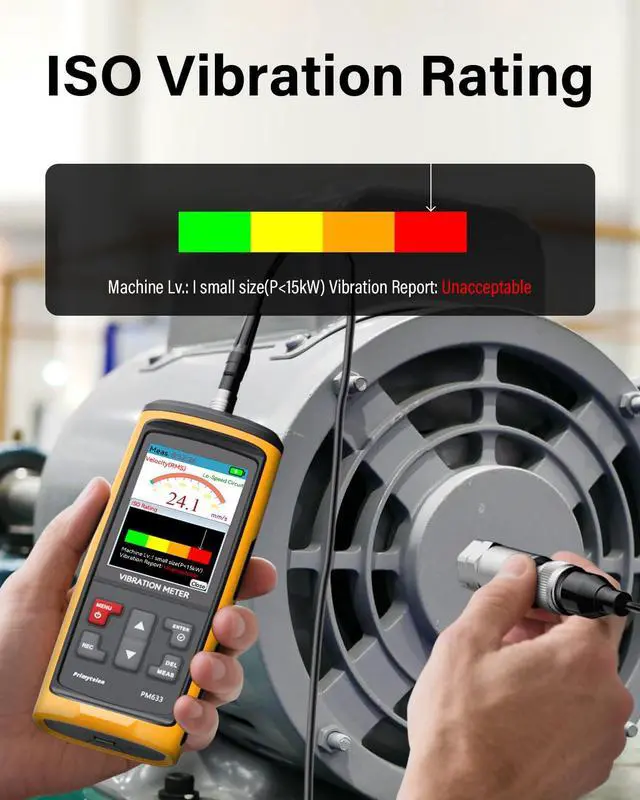

- Multifunctional: The vibration meter has TFT color, Max/Min/Ave, line graph display, auto high/low speed line switch, machine grade selection, ISO vibration severity rating display, unit selection, low battery indication, calibration function, stored data(up to 397000) and view files; adjustable sampling time, auto power off time, screen brightness, also it can be connected to a computer PC software to transfer and store data
- Eliminate the Guesswork: Vibration meters are used in a wide range of applications to monitor the condition of motors, HVAC, engines, generators, pumps, fans, compressors, and turbines, helping you to predict and avoid failures in advance.
+
+
Overview
Specs
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now

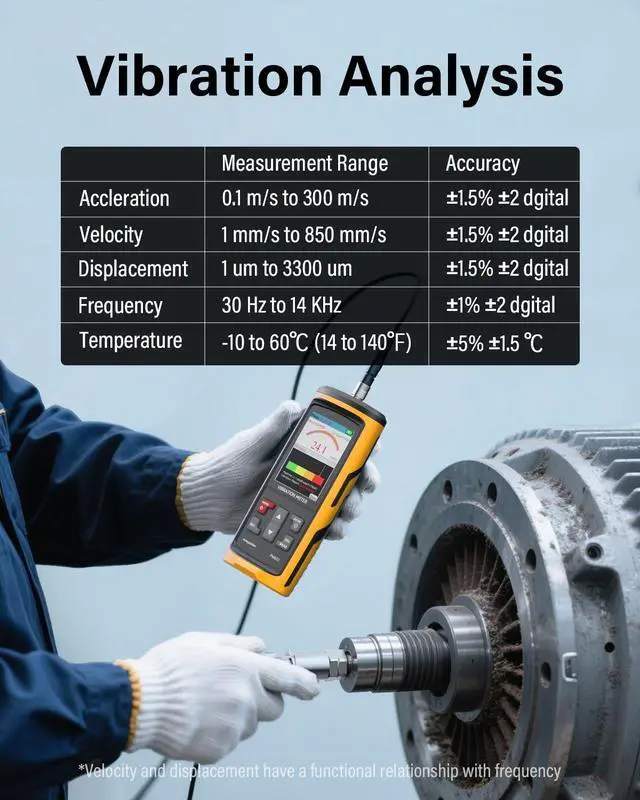

| Acceleration Range: | 0.1 m/s² to 300 m/s², Accuracy:±1.5%+2digits |
| Velocity Range: | 1 mm/s to 850 mm/s, Accuracy:±3%+2digits |
| Dislacement Range: | 1 um to 3300 um, Accuracy:±1.5%+2digits |
| Frequency Range: | 30 Hz to 14 KHz, , Accuracy:±1%+2digits |
| Temperature Range: | '-10°C to +60°C (14°F to 140°F), Accuracy:±1.5 |
| Vibration Acquisition Method | Piezoelectric Sensor |
| Data Storage Capacity | 397000 readings |
| Lower Limit of Pipe Measure | Automatic shutdown when voltage is below 3.3V |
| Battery Capacity: | 2000mAh 3.7V li-ion battery |
| Charging Time: | 4 Hours |
| Dimensions: | 158 mm x 28 mm x 66 mm (6.22 X 1.10 X 2.59) |
| Weight: 328.5g | 328.5 g (0.724 lb) including batteries |
| Operating Temp: | '0°C to +60°C (32°F to 140°F) |
| Storage Temp: | '0°C to +60°C (32°F to 140°F) |
