TFI-40 Optical Fiber Identifier All-in-one Chuck Live with 10mw VFL 800nm-1700nm Fiber Detector Fiber Traffic Identifier OFI

Friendship: Approximate core power reading; Battery low indication
Detector Type: 1mm InGaAs 2 pcs; Testing sensitivity -40dBm to 10 dBm
Product Description

TFI-40

Fiber Identifier

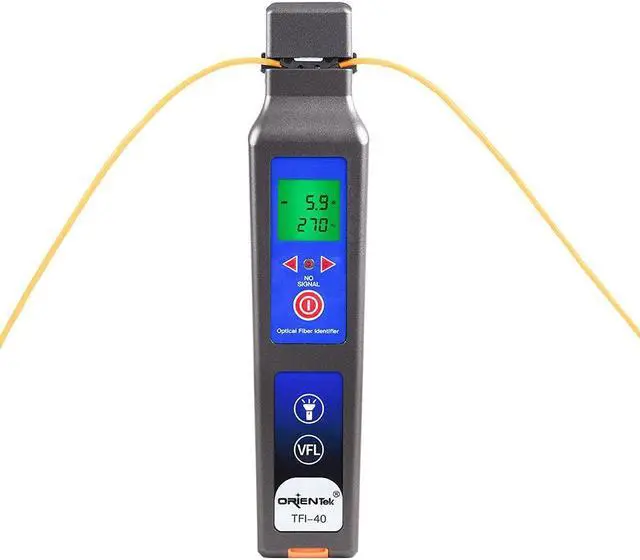

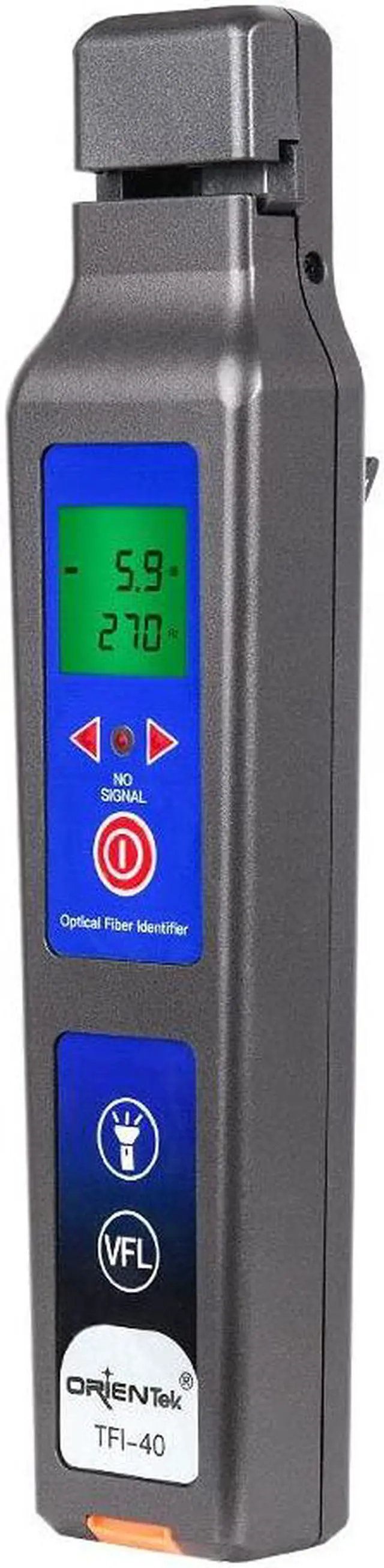

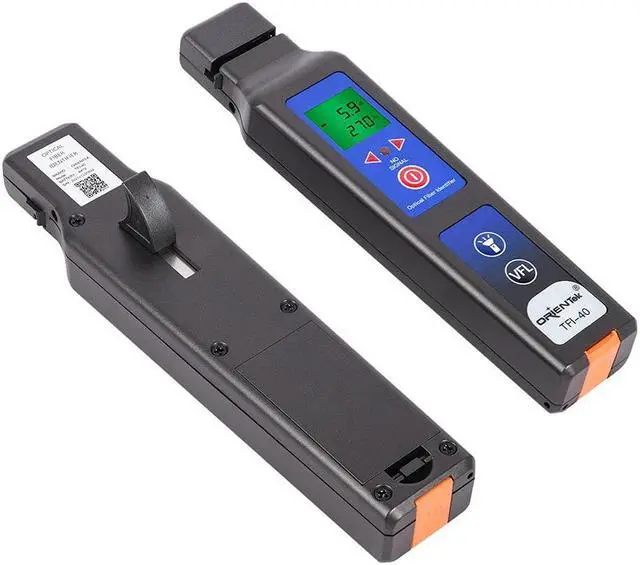

Upgraded high accuracy fiber identifier TFI-40 integrates VFL and LED lighting function, It is one of the necessary tools for fiber maintenance. Fiber identifier can detect any position of the single mode and multi mode fiber.

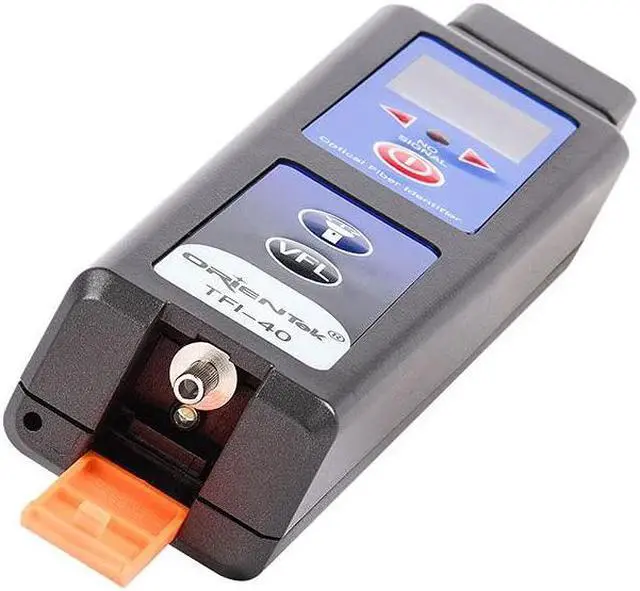

With the fiber identifier to identify the fiber on the line, you can identify the fiber power and 3 kinds of signal frequencies, and there will be a buzzer sound when identifying the frequency. Display the signal direction via left and right direction light and to make prompt judgment. VFL adopt 2.5 mm universal connector and output power is up to 10mW, It can detect fiber break or bending problems within 10km, and it supports pulse and continuous wavelength operation. And it equipped with LED light, convenient for you to work in the dark.

Products characters and functions

Suitable for 0.25 / 0.9 / 2.0 / 3.0 mm fifibers

Test sensitivity: -40dBm to 10 dBm.

Confifigure VFL function, 2.5 mm universal

Test distance up to 10km, high stability

Be equipped with LED light, more con-venient to check the fifibers in the dark

LED backlight display, suitable for variousenvironments without auxiliary lighting.

Strong light source, strong penetrating power

Easy to carry, no need to replace the chucks.

Specification:

Type TFI-40

Identied Wavelength Range: 800nm to 1700nm

Identied Signal Type: CW, 270 Hz ± 5%, 1 kHz ± 5%, 2 kHz ± 5%

Detector Type: 1mm InGaAs 2 pcs

Adapter Type: Universal Holder for 0.25 (Bare Fiber), 0.9, 2.0, 3.0 Cable

Signal Direction: Left & Right LED

Optical Power Reading: -40 dBm to 10 dBm

Signal Frequency: 270Hz, 1kHz, 2kHz

Power Supply: AA*2

Operating Temperature: -10 to 60

Storage Temperature: -25 to 70

PRODUCT SPECIFICATION:
