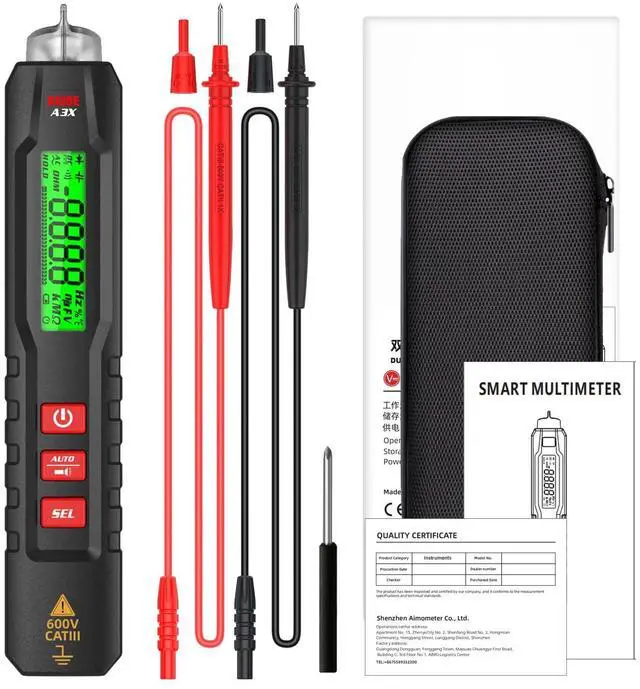

DURFICST A3X Digital Multimeter Pen Type Voltage Tester NCV Detector AC DC Voltage 600V LCD Backlight and Flashlight
- [Multi-function voltage tester] A3X pen tester is not only a voltage test pen, but also a multimeter, which can be used to test AC and DC voltage, resistance, capacitance, frequency, diode and continuity, temperature, as well as non-contact test AC voltage and determine the location of line breakpoints.
- [Smart Auto Mode] The electrical tester enters automatic mode immediately after powering on, intelligently identifying the measurement parameters, AC and DC voltage, resistance or continuity.

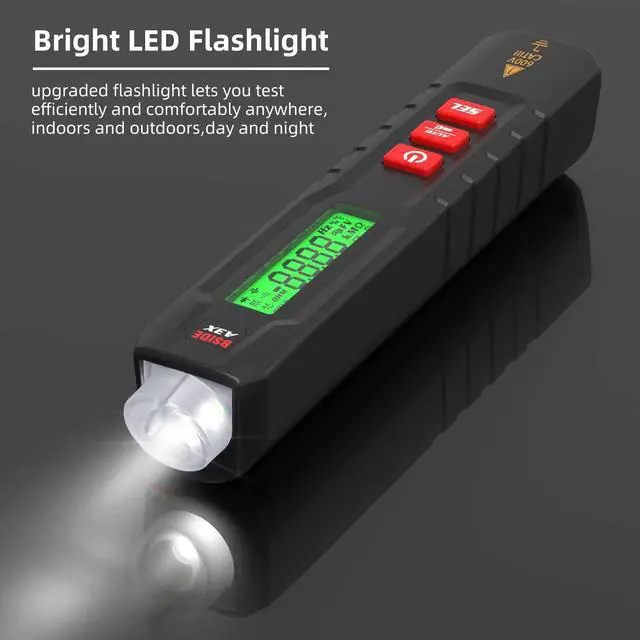

- [LCD display] The electrical tester has a flash function and a large back screen, so users can clearly see the results even in a dark environment, which brings great convenience for night operation.

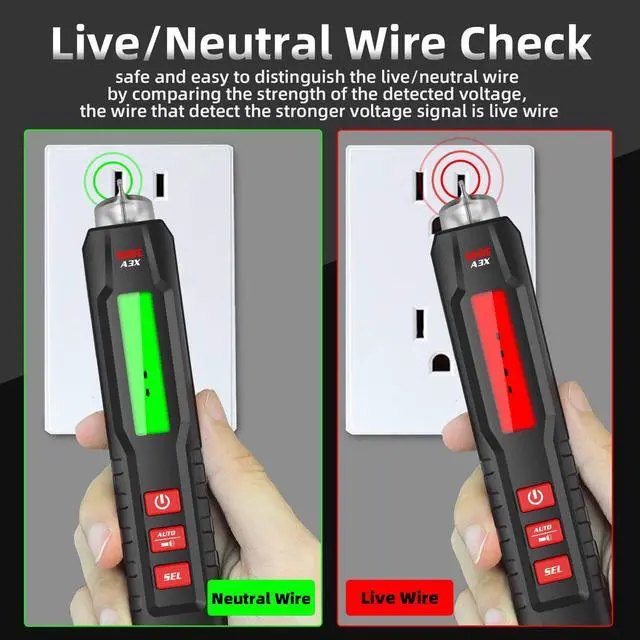

- [Non-contact voltage test] This tester supports non-contact NCV voltage detection, and the detected voltage signal strength is displayed on the screen through the corresponding icon.
- [Low power consumption] The pen tester will automatically shut down if there is no operation within 15 minutes.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
This is a pen-style voltage tester with the features of a multimeter. It's compact enough to carry with you. It's a versatile electrical tester for testing and maintaining electrical equipment.
Technical Index:
DC Voltage: 0-600V ± ( 0.8 % + 3 counts) -
AC Voltage: 0-600V ± ( 1.2 % + 5 counts).
Resistance: 0~ 10.00M ± ( 1.2 % + 3 counts), 10M~ 40.00M ± ( 2.0 % + 10 counts)
Capacitance: 1nF ~ 1.00 mF ± (3rd 5% + 8 counts) 1.00 mF ~ 4.00 mF ± ( 4.5 % + 10 counts).
Frequency: 0 Hz ~ 4 MHz (900 mVrms ~ 20 Vrms) ± ( 2.0 % + 10 counts).
Temperature range: 0 ~ 50 °C, accuracy ± 2 °C.
Overview:
1. Auto-ranging.
Overload protection for the full measurement range.
3.
Auto-mode: Automatic identification of AC voltage, DC voltage, resistance, and continuity.
Display: LCD.
5.
Maximum display value: 4000 digits.
6. Polarity indication.
7.
Over-range display: 'OL' or '-O'.
8.
Sampling time: The meter's figures show approximately 0.4 seconds.
9.
Auto-off time: 15 minutes.
10. Low battery indicator
11.
Operating temperature and humidity: 040°C, 080% RH
Storage temperature and humidity: -1060°C, 070% RH
12.
Battery: 1.5V AAA x 2 (not included)
13.
Operating altitude: 2000m
14.
Boundary dimensions: 169 x 30 x 31mm
15.
Weight: 77g (without battery)
Technical Index:
DC Voltage: 0-600V ± ( 0.8 % + 3 counts) -
AC Voltage: 0-600V ± ( 1.2 % + 5 counts).
Resistance: 0~ 10.00M ± ( 1.2 % + 3 counts), 10M~ 40.00M ± ( 2.0 % + 10 counts)
Capacitance: 1nF ~ 1.00 mF ± (3rd 5% + 8 counts) 1.00 mF ~ 4.00 mF ± ( 4.5 % + 10 counts).
Frequency: 0 Hz ~ 4 MHz (900 mVrms ~ 20 Vrms) ± ( 2.0 % + 10 counts).
Temperature range: 0 ~ 50 °C, accuracy ± 2 °C.
Overview:
1. Auto-ranging.
Overload protection for the full measurement range.
3.
Auto-mode: Automatic identification of AC voltage, DC voltage, resistance, and continuity.
Display: LCD.
5.
Maximum display value: 4000 digits.
6. Polarity indication.
7.
Over-range display: 'OL' or '-O'.
8.
Sampling time: The meter's figures show approximately 0.4 seconds.
9.
Auto-off time: 15 minutes.
10. Low battery indicator
11.
Operating temperature and humidity: 040°C, 080% RH
Storage temperature and humidity: -1060°C, 070% RH
12.
Battery: 1.5V AAA x 2 (not included)
13.
Operating altitude: 2000m
14.
Boundary dimensions: 169 x 30 x 31mm
15.
Weight: 77g (without battery)
