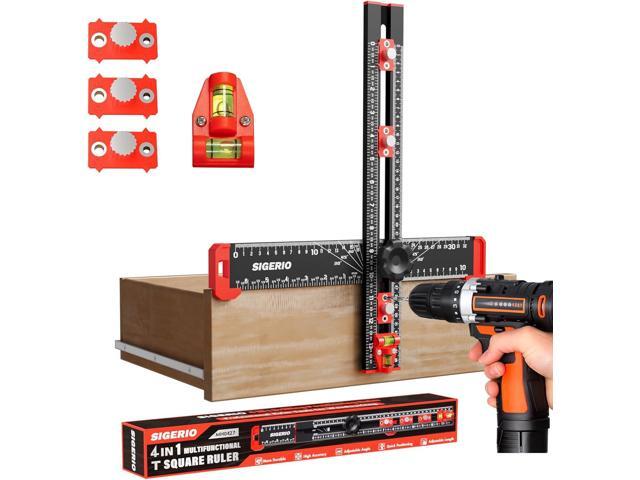

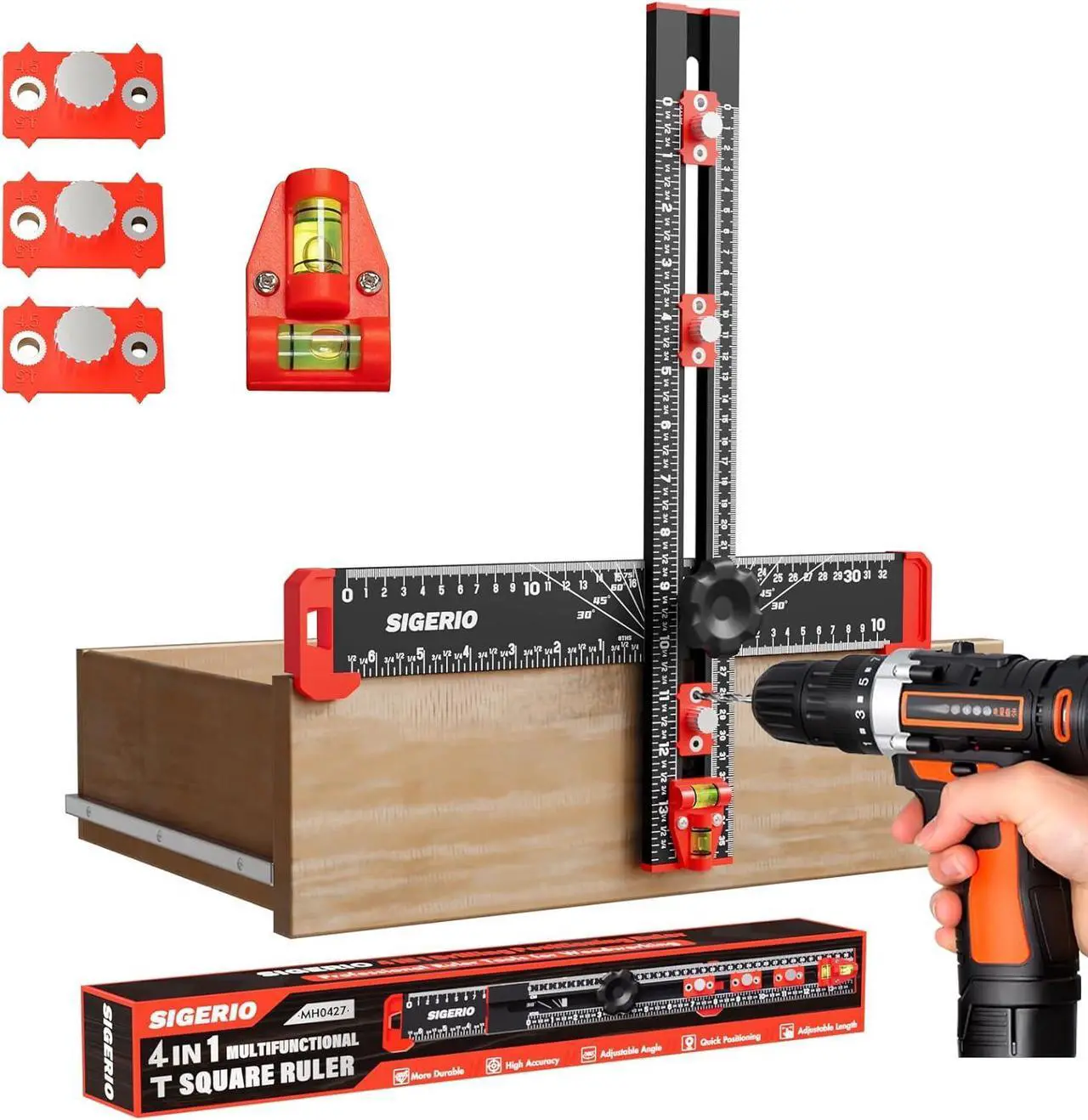

4 in 1 Drilling Positioning Ruler, Sigerio Aluminum Alloy T Square Ruler, Multi Angle Measuring Ruler, Cabinet Handle Template Tool for Installation of Handles, Cabinet Hardware Jig for Woodworking

Multifunctional T Square Ruler Sigerio 4 in 1 drilling positioning ruler has three sets of adjustable positioning blocks, supporting a variety of different combinations of adjustment methods, which can complete a variety of drilling and marking tasks faster and more accurately, thereby improving work efficiency. Suitable for installing cabinet handles of different sizes.
Dual-Axis Bubble-Tube LevelOur multifunctional T-square ruler is equipped with two bubble levels to assist longitudinal and transverse leveling, ensuring high balance of the tool for precise drilling and installation even on uneven surfaces.
Multi-function Adjustment of Length/AngleOur multi-angle measuring ruler is equipped with ABS knobs that can adjust the length and angle, providing greater flexibility for measuring length and angle. This allows users to complete a variety of complex woodworking projects with ease.
High Quality & High Definition ScaleOur cabinet handle template ruler tool is made of high quality aluminum alloy, which is wear-resistant and durable. The scale marks on the ruler are printed using ultraviolet light, which greatly ensures the clarity of the ruler, is not easy to fade, and can be used for a long time.

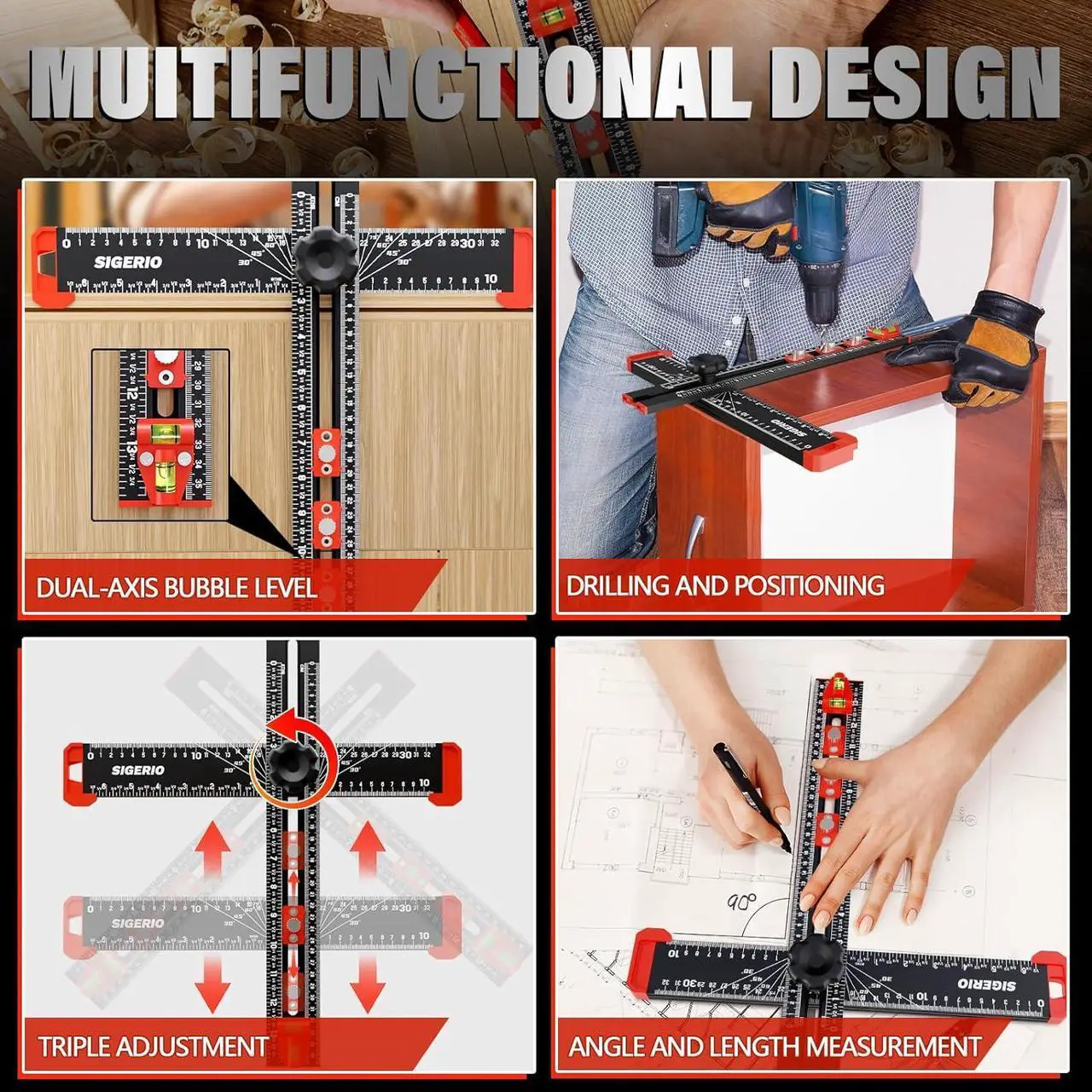

Wide Application ScenariosThe multifunctional design of the 4-in-1 drilling positioning ruler aims to become one of the indispensable tools for various woodworking tasks and DIY projects.It integrates measuring angles, measuring lengths, marking, drilling and so many other functions. You only need one tool to complete a large number of tasks. It must be one of those neccessary tools for all woodworking enthusiasts.

Feature:

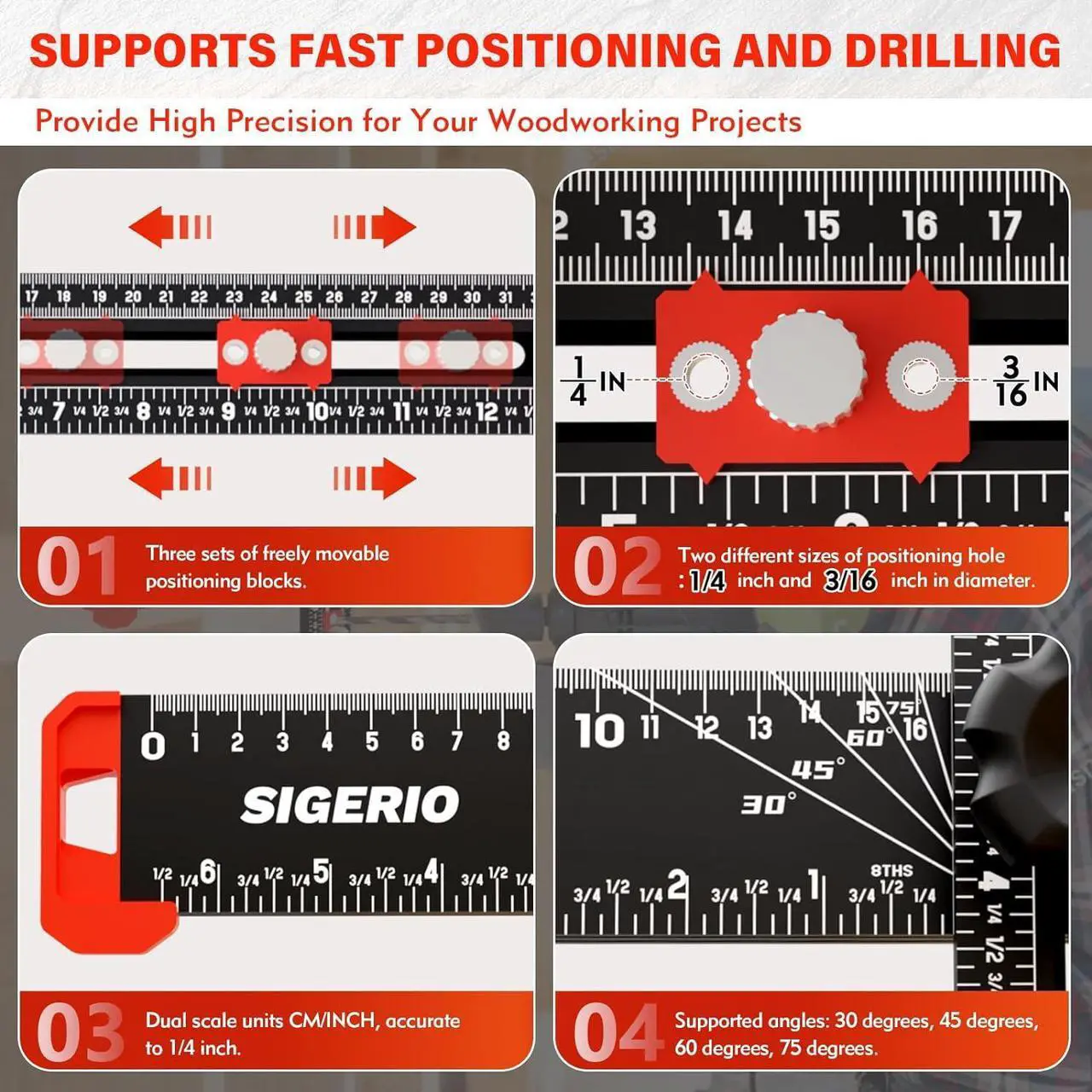

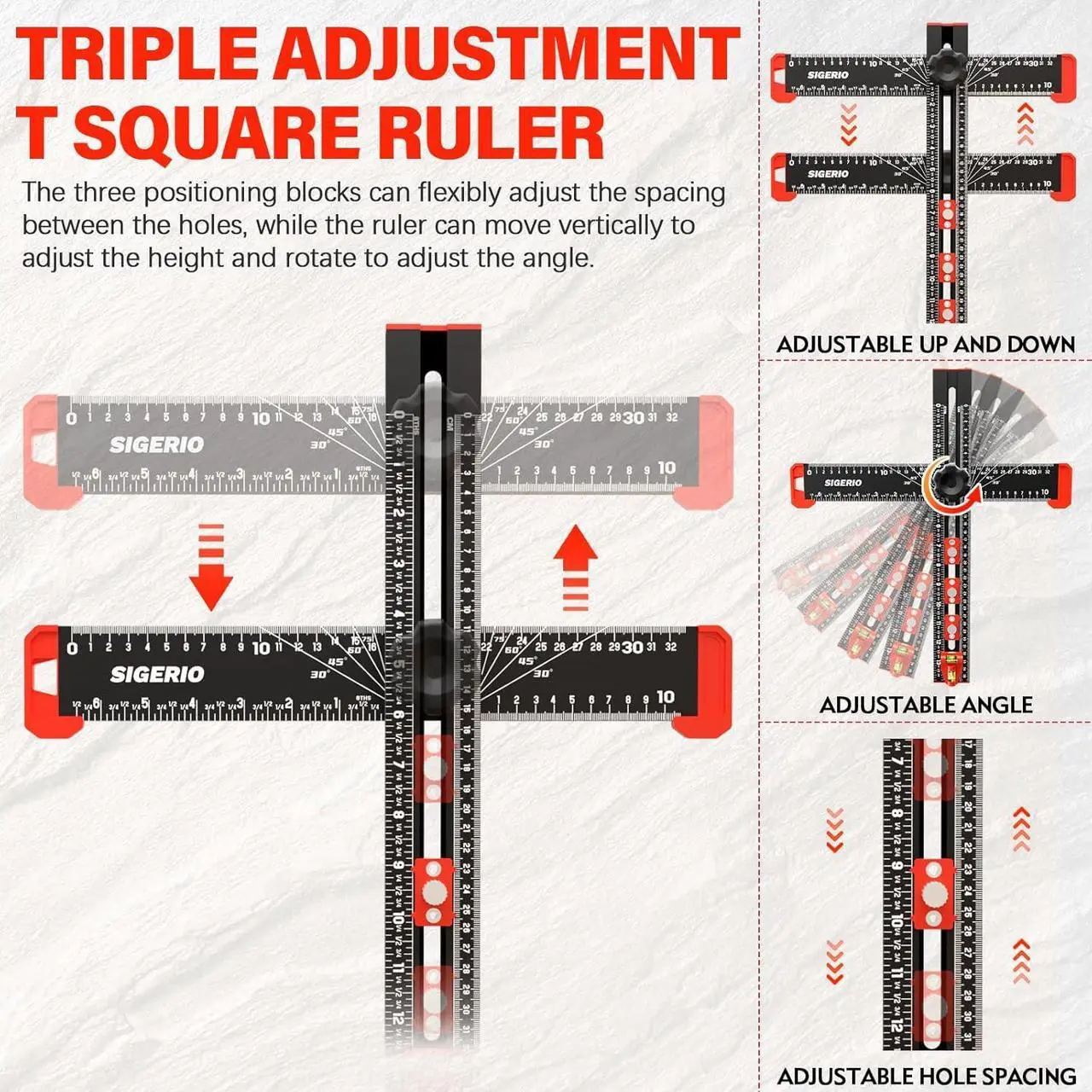

1.TRIPLE ADJUSTMENT FOR ACCURACY: This multifunctional T-square tool includes three sets of freely movable positioning blocks to adjust the distance between holes; the ruler can move up and down to adjust the desired measurement height; and the adjustment knob can change the measurement angle of the ruler.

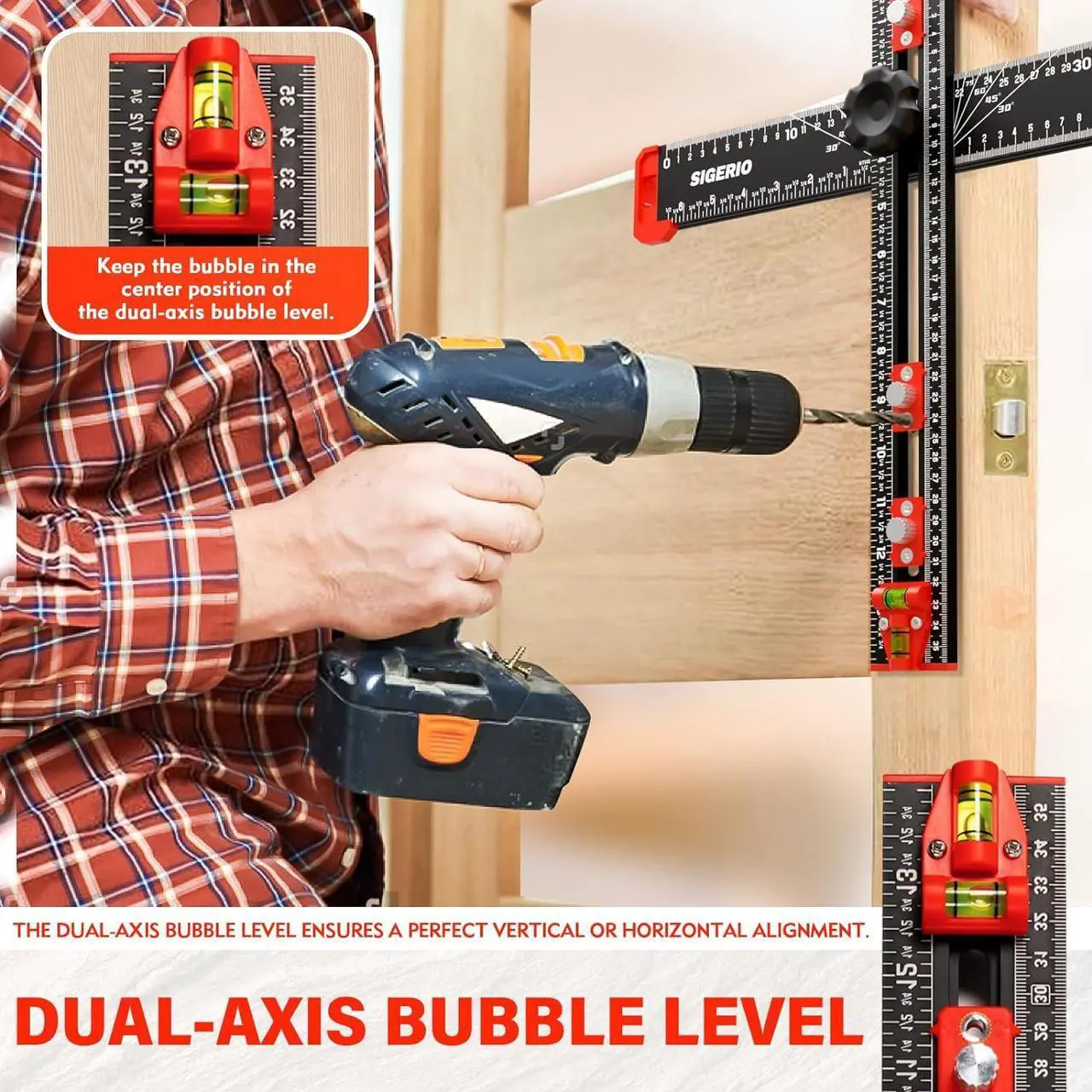

2.DUAL-AXIS BUBBLE LEVEL: Our ruler is equipped with two bubble levels, allowing for vertical measurement along the length and horizontal measurement across the width, thereby enhancing the accuracy of vertical and horizontal measurements required for your daily work.
3.MULTI-ANGLE MEASUREMENT AND MAPPING: In addition to the routine tasks of drilling positioning and installing cabinet handles, our tool also offers a variety of angle measurement and drawing functions to meet your daily needs for learning or drawing, among others.
4.PRODUCT SIZE AND DIMENSIONS: Once fully extended, the ruler measures 14.6 inches horizontally and 16.9 inches vertically, supporting a maximum hole spacing of 12 inches, ensuring it meets the requirements for the majority of home installations.

HOW TO INSTALL HANDLES WITH OUR TOOL:
Step 1: Place the tool flat on the table. The built-in ruler can measure the handle length and the screw hole distance on the back.
Step 2: Slide any two blocks so that the distance between the same diameter holes matches the distance between the holes on the back of the handle. Tighten the knobs to secure the blocks. (Note: There are two different diameter holes)
Step 3:Place the tool against the wood where the handle will be installed. Snde it left or right to center the tool horizontally on the cabinet. Then adjust it up or down to the desired installation height.
Step 4: Adjust the caliper and cabinet door until the bubble in the level is centered to ensure proper alignment.
Step 5: After setting the desired position, drill holes in the corresponding slider positions.
Step 6: Screw the handle from the back of the cabinet door to complete the installation.

WIDE RANGE OF APPLICATIONS: Architectural Drawing Furniture; Installation; Giving Lessons; Door Lock.
