BOOGIIO Multifunctional Wire Tracker -- Quality Tool To Solve Your Life Problems.( Not Support through-wall detection )
The Ethernet Cable Tester is a versatile handheld network tester. It supports a wide range of applications for enhanced cable types and multiple functions. Not only the necessary test kits for telecom engineering, cabling engineering and network maintenance personnel, but also ideal for everyday life, such as telephone line cable testing, network cable tracking, TV cable and other weak electrical wires.
Sensitive sensor, stable and reliable.
With easy to operate and smooth appearance, the circuit finder and tracer is wide applicated in our life and work. The interface of the LAN tracker is flexible, switch is energy-saving and the high quality protecive case also provides more secure protection.
This wire tracer does NOT support through-wall detection and cannot locate wires inside walls.
Specifications
- Power specs: Use only DC, 9V laminated or rechargeable battery(Not included)
- Max operating current: Emitter+-10mA;Receiver+-30mA
- Signal transmission format: Multi-frequency pulse
- Testable wire: Twisted pair, telephone line, video line, common metal wire and network wire
- Testable port: RJ11, RJ45
- Signal output level: 8Vp-p
- Signal transmission distance: 1-3000m
- Note: Please Install with correct polarity; reversed battery will cause no power.
EASY TO OPERATE

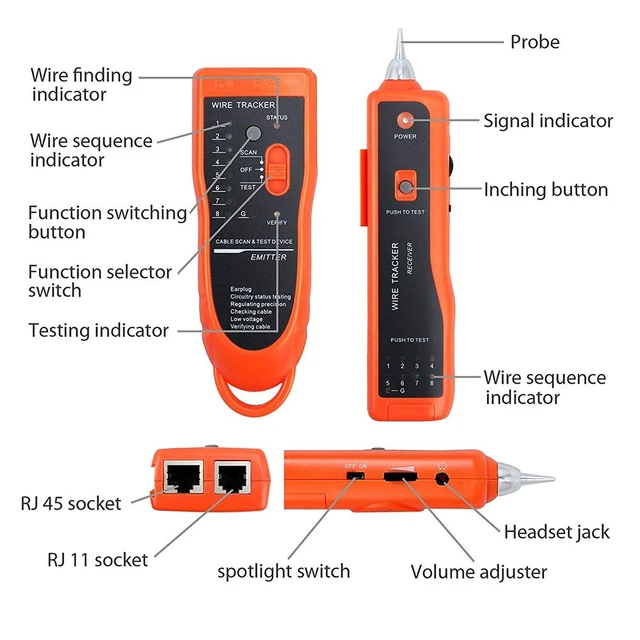

It can trace not only Ethernet LAN wires, but also electrical and speaker wires when connecting to the alligator clip. In this situation, the wires must be in power-off status, otherwise the units will be damaged. There are only 2 buttons on the emmiter, FUNCTION SLECETING & FUNCTION SWTICHING, and 1 INCHING button on the receiver. The indicating words such as "SCAN" and "TEST" are clear and easy to identify.
Function

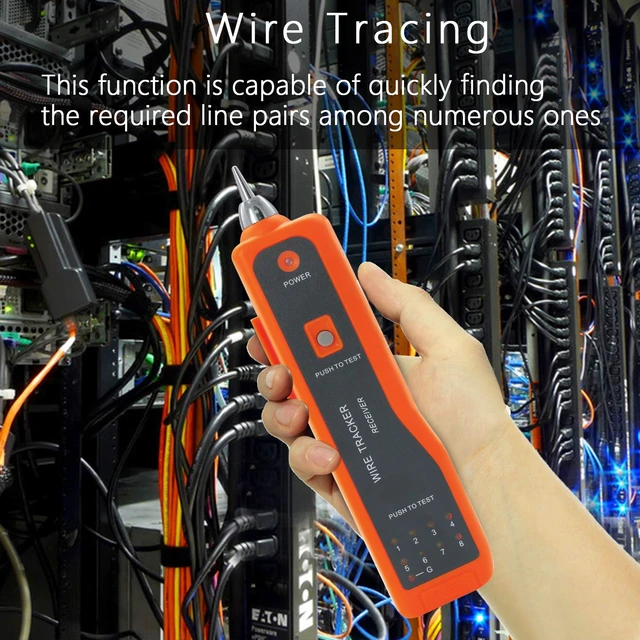

- Tracer function: This instrument is suitable for RJ11, RJ45, and other metal wires can be found through the transmitter.

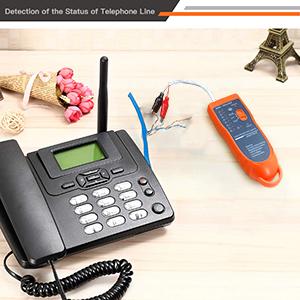

- Telephone line test: the work of the telephone line of the detection of various states, only the transmitter can be detected, such as determining TIP or PING line, to determine the work of the telephone line idle, ringing and off-hook state.
- Line function: the line detection is on the line of the open, shorted, wrong, reverse the physical connection detection.
- Rapidly find the target wire from among plenty of network, telephone wires.
- Equipped with a pair of headphones, it is convenient for you to quickly find lines in noisy environment.

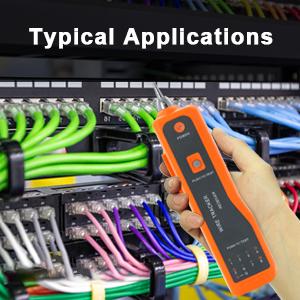

Typical Applications
- Telecommunication network, line engineering and routine maintenance
- Computer network line engineering
- Other metal wire wiring works and maintenance work
Scope of Applications
- Internet Cafe
- Hotel network room
- Electric power repair
- Monitoring installation
- Network line engineering
Attentions
- Do not use on a line with a strong current.
- Remove the battery when you don't use it for a long time.
- Never use it in a thunderstorm.
- Use the standard 9V alkaline product battery or 9V charging battery.
- Storage note: Dust-proof and moisture-proof.

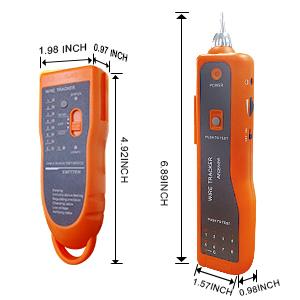

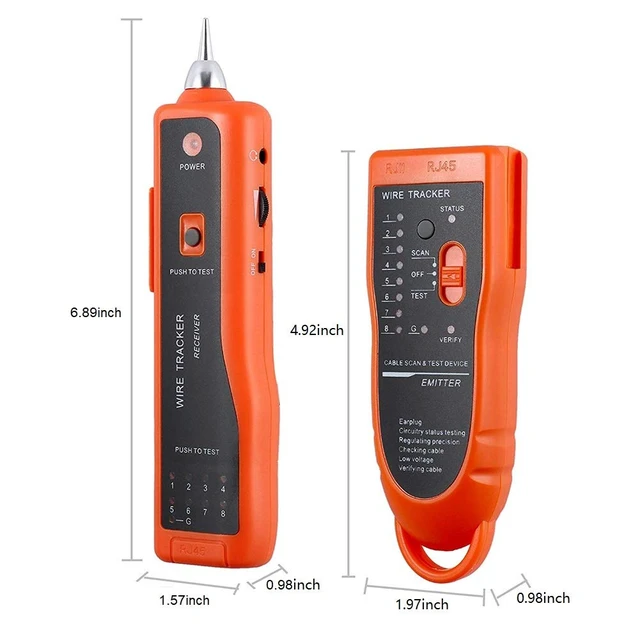

Size
- Emitter Size: 125 x 50 x 25mm / 4.92 x 1.97 x 0.98in
- Receiver Size: 175 x 40 x 25mm / 6.89 x 1.57 x 0.98in
- Emitter Weight: 51g / 1.8oz
- Receiver Weight: 66g / 2.33oz
- Package Size: 23.5 x 14.7 x 4.0 cm / 9.25 x 5.79 x 1.57in
- Package Weight: 400g / 14.11oz

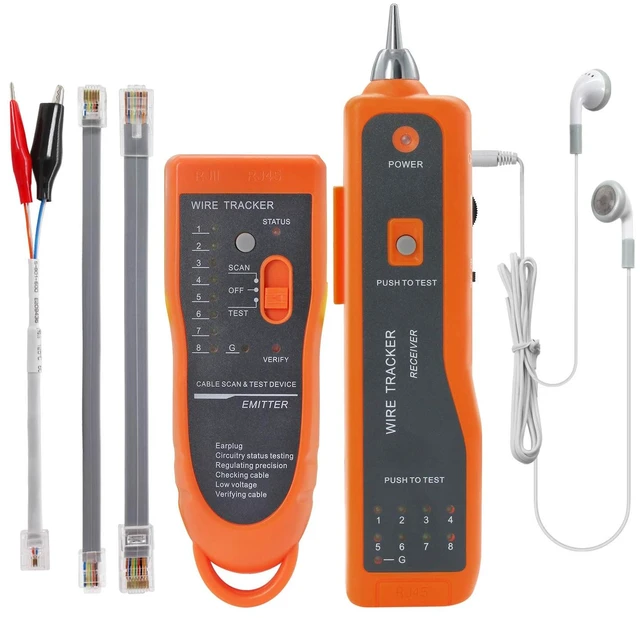

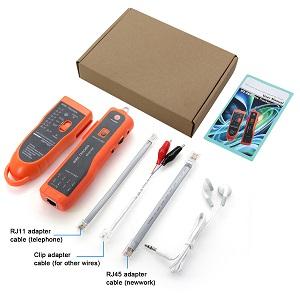

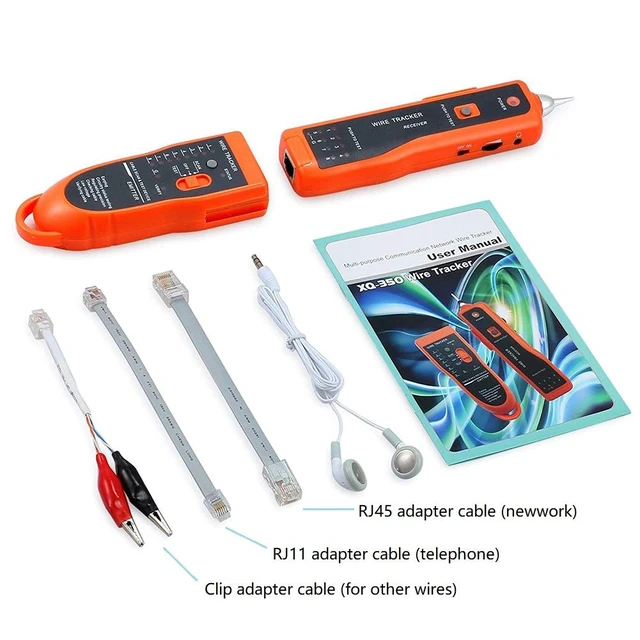

What's In The Box?
- 1 x Emitter
- 1 x Receiver
- 1 x Pair of Earphone
- 1 x Alligator clip adapter
- 1 x RJ11 with Clip Adapter Cable
- 1 x RJ45 Adapter Cable
- 1 x English User Manual
- 1 x Box

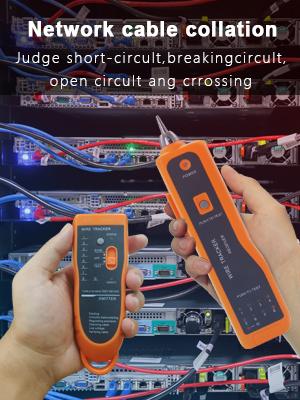

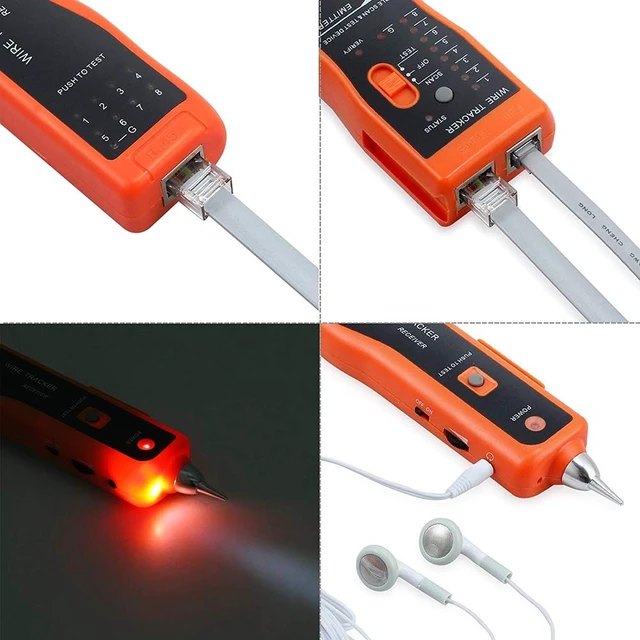

Network Line Verification Function:
1.Insert the RJ45 plugs on both ends of the network cable into the corresponding port of the emitter and the receiver.
2.Move the function selector switch of the mitter to "TEST", then the testing indicator "VERIFY" will be on, indicating that the emitter works normally.
3.According to the 18 wire sequence indicators, determine such characteristics as short circuit.broken circuit, open circuit, crossing and so on.
The receiver does not have an RJ11 port and cannot perform a line test on an RJ11 cable.
4. For wire tracing function: Complete cable calibration and matching first, then set the receiver to the corresponding frequency for accurate tracing. Ensure the transmitter is properly connected to the cable and the alligator clip has good contact before use.
