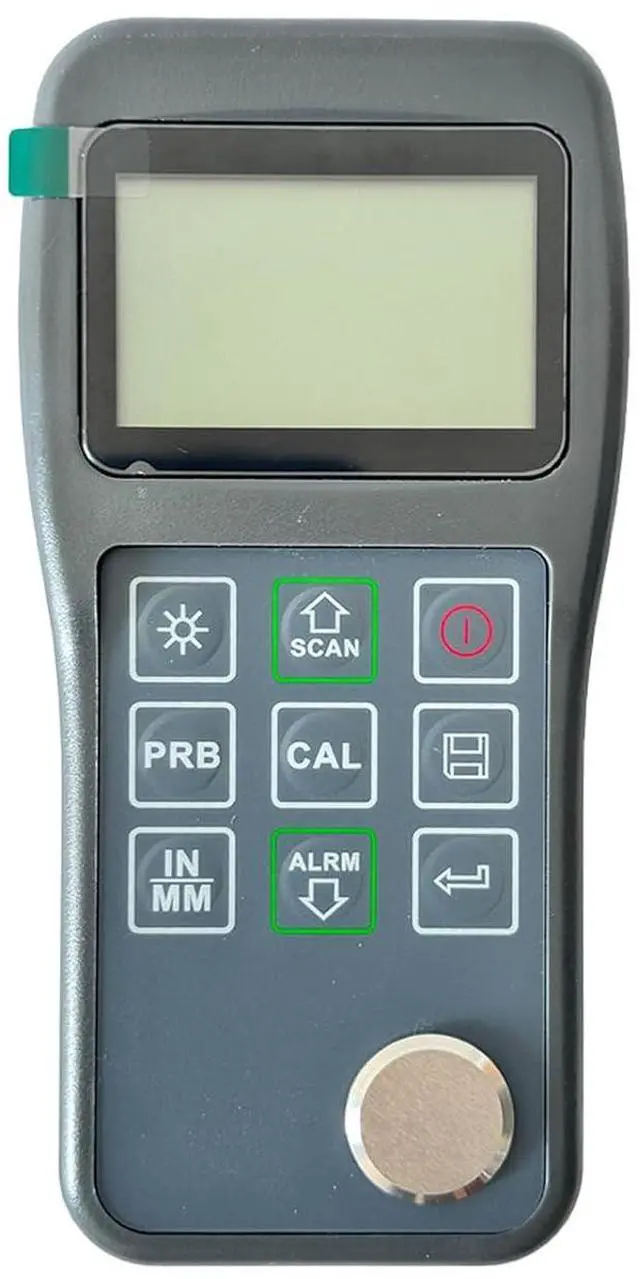

    Mitech MT160 Ultrasonic Thickness Gauge 0.75-300mm (in Steel) 0.1/0.01mm

    Be the first to review this product...
    • Capable of performing measurements on a wide range of material, including metals, plastic, ceramics, composites, epoxies, glass and other ultrasonic wave well-conductive materials.
    • Transducer models are available for special application, including for coarse grain material and high temperature applications.
    • Probe-Zero function, Sound-Velocity-Calibration function
    • Two-Point Calibration function
    • Two work modes: Single point mode and Scan mode
    • Coupling status indicator showing the coupling status
    • Battery information indicates the rest capacity of the battery
    • Auto sleep and auto power off function to conserve battery life
    • Optional software to process the memory data on the PC for MT160
    • Optional thermal mini-printer to print the measured data via RS232 port for MT160
    +
    +
    Overview
    Specs
    Reviews
    avatar

    Any questions? Our AI beta will help you find out quickly.

    Try me now
    1

    General Introduction

    1. The model MT150/MT160 is a digital ultrasonic thickness gauge. Based on the same operating principles as SO NAR, the instrument is capable of measuring the thickness of various materials with accuracy as high as 0.1/0.01 millimeters. It is suitable for a variety of metallic and non-metallic materials.

    Main Functions:

    1. Capable of performing measurements on a wide range of material, including metals, plastic, ceramics, composites, epoxies, glass and other ultrasonic wave well-conductive materials.

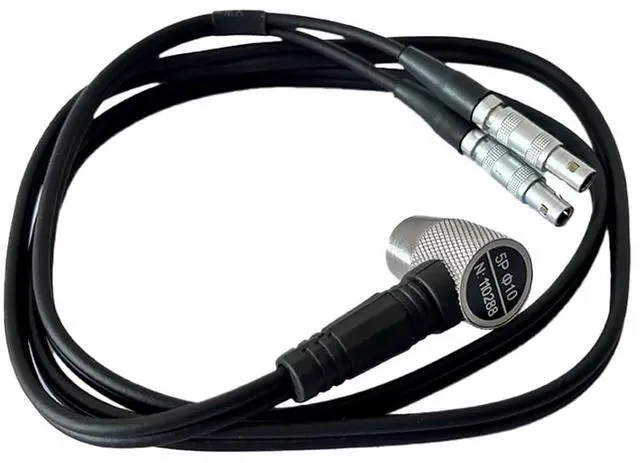

    2. Transducer models are available for special application, including for coarse grain material and high temperature applications.
    3. Probe-Zero function, Sound-Velocity-Calibration function
    4. Two-Point Calibration function.
    5. Two work modes: Single point mode and Scan mode.
    6. Coupling status indicator showing the coupling status.
    7. Battery information indicates the rest capacity of the battery.
    8. Auto sleep and auto power off function to conserve battery life.
    9. Optional software to process the memory data on the PC for MT160.
    10. Optional thermal mini-printer to print the measured data via RS232 port for MT160.
    Technical Specifications
    Display 4.5 digits LCD with EL backlight
    Measuring Range 0.75~300mm (in Steel)
    Sound Velocity Range 1000~9999 m/s
    Resolution MT150: 0.1mm; MT160: 0.1/0.01mm
    Measurement Frequency 4 times per second for single point measurement, 10 times per second for scan mode measurement.
    Units Metric/Imperial unit selectable
    Power Source Two AA size, 1.5 Volt alkaline batteries. 100 hours typical operating time (EL backlight off).
    Communication RS232 serial port for MT160. No communication port for MT150.
    Outline Dimensions 150×74×32 mm
    Weight 245g
