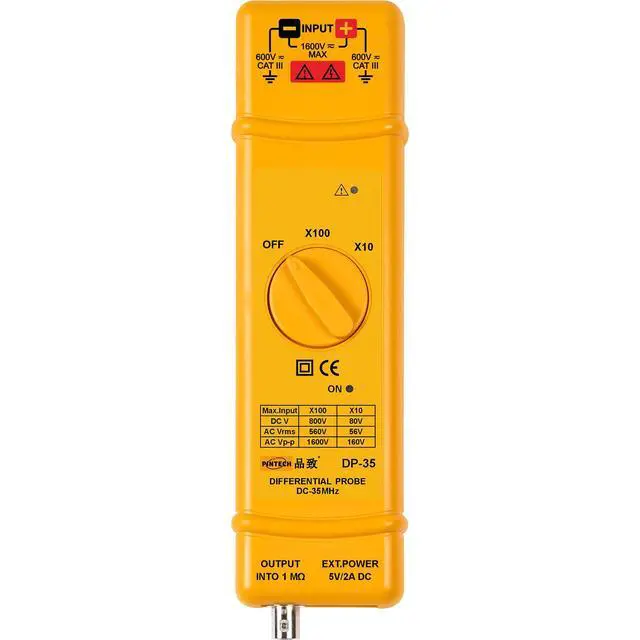

PINTECH High Voltage Differential Active Probe 1600V, 35MHz, 10X/100X Attenuation Rate Oscilloscope Probe DP-35

  • DP-35 differential probe's maximum measurement voltage can be up to 1600Vp-p. The high voltage probe will help you with most high voltage situations.
  • The High Voltage probe with Bandwidth: DC-35MHz(100X), DC-25MHz(10X). Attenuation Ratio: 10X/100X. Accuracy: ±2%. Input resistance: 9M//1.7pF(between the two ends); 4.5M//3.4pF(Single-ended to ground).

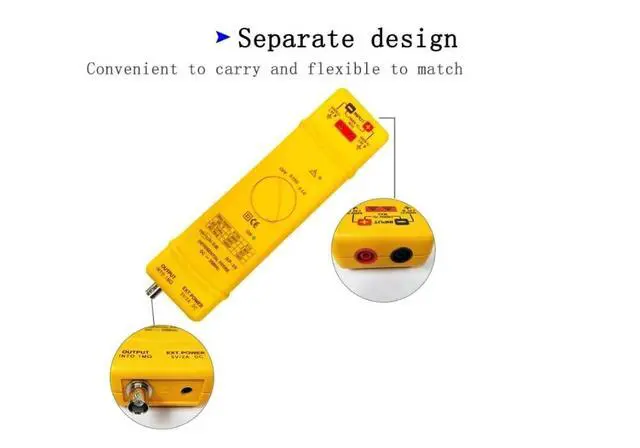

  • Widely Used: Our oscilloscope probe features with BNC interface, compatible with a wide range of oscilloscopes, requiring only that the device be equipped with standard BNC connectors.

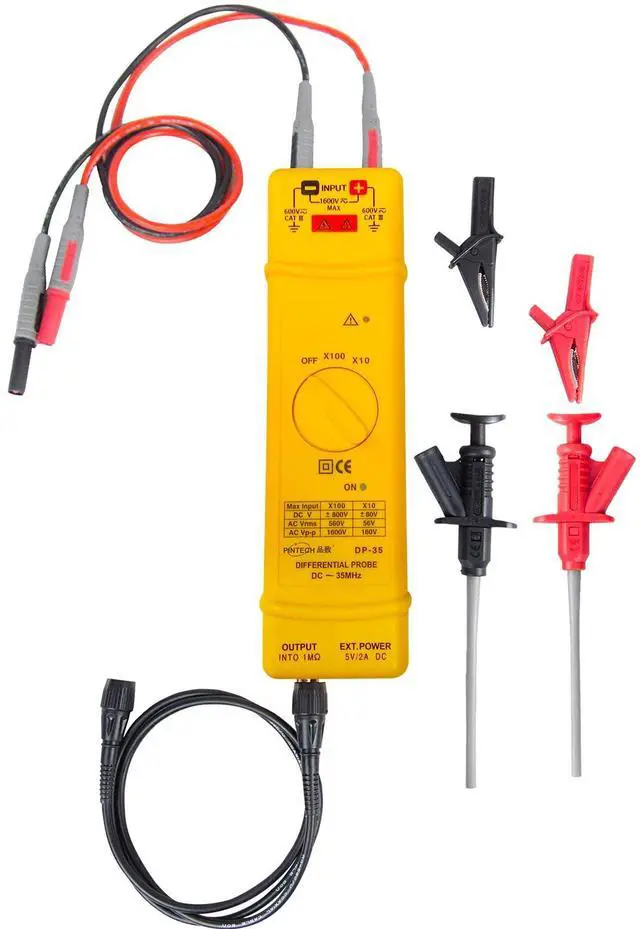

  • Package Included: DP-35 differential probe host x 1, Adapter x 1, Alligator Clip x 2, Probe Hook x 2, BNC cable x 1, Dedicated input cable x 1, User Manual x 1.
  • This oscilloscope differential probe offers high stability, long service life, reliability and precision. We provide one year after-sales service, you can contact us if you have any questions!
+
+
Overview
Specs
Reviews
avatar

Any questions? Our AI beta will help you find out quickly.

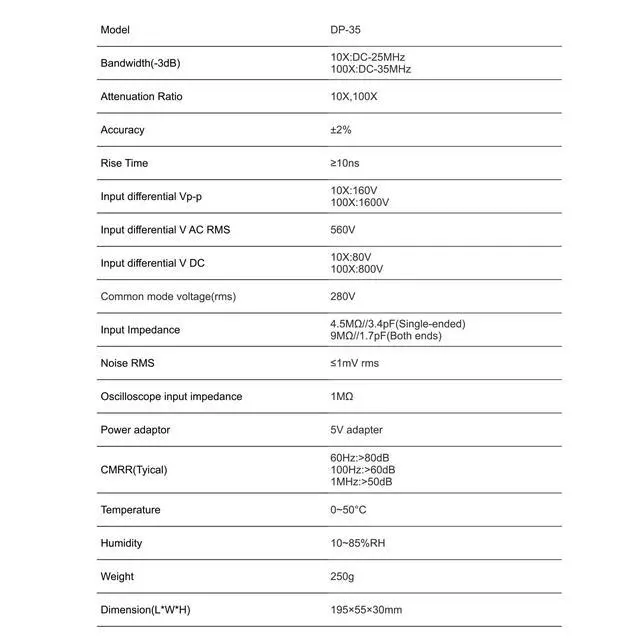

MODEL: DP-35


Bandwidth(-3dB): DC-35MHz100X, DC-25MHz10X


Attenuation Rate: 10X, 100X


Rise time: 10ns


Accuracy: ±2%(after 20 minutes of warming up)


Testing Vp-p: 160V(10X), 1600V(100X)


Input DC Voltage: 80V(10X), 800V(100X)


RMS Value: 560V


Common-mode voltage RMS: 280V

Noise: 1.0mV rms


CMRR(typical): 60Hz:80dB;100Hz:60dB;1MHz:50dB


Input Impedance: 9M//1.7pF(between two ends); 4.5M//3.4pF(Single-ended to ground)


Dimension(LxWxH): 195x55x30 mm


Weight: 250g/0.55lb


Product information
Product Dimensions 7.67 x 2.16 x 1.18 inches
Item Weight 8.8 pounds
Manufacturer PINTECH
Item model number DP-35
Date First Available May 10, 2021
