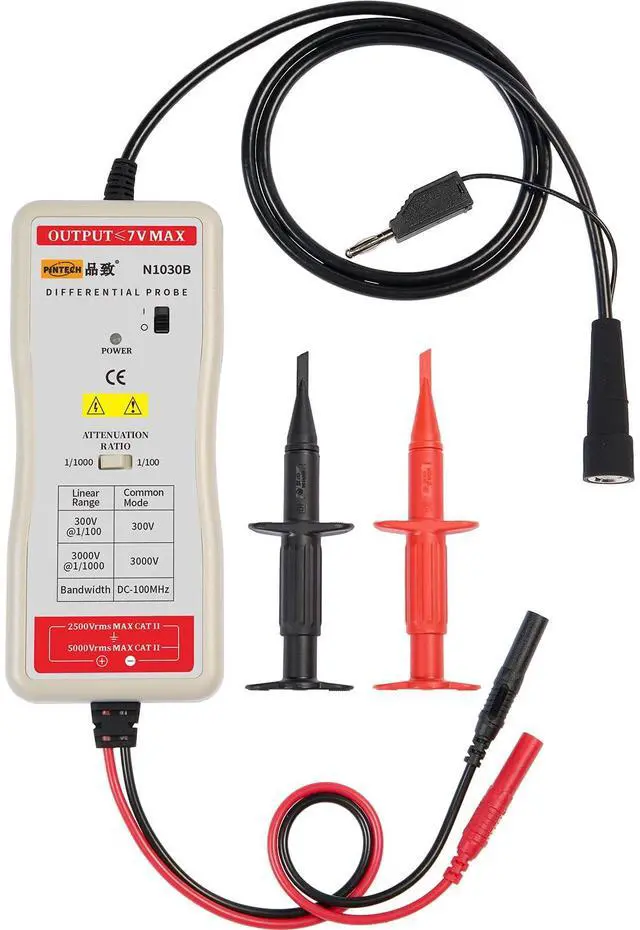

Main image of PINTECH High Voltage Differential Probe, 100MHz, 3000V, 1000X/100X Attenuation, ±1% Accuracy, Oscilloscope Probe with Standard BNC Interface, N1030B

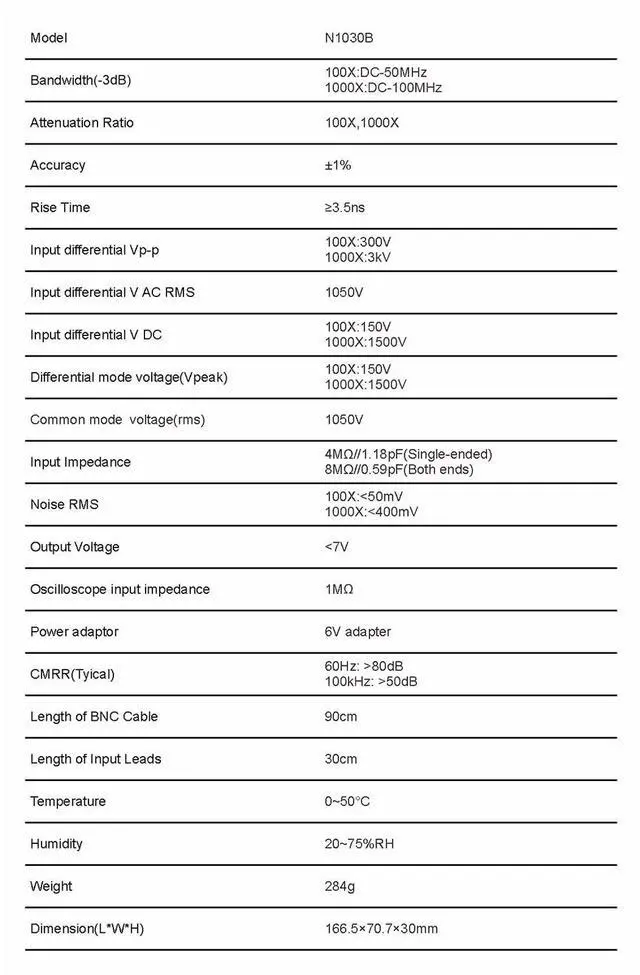

Alt view image 2 of 4 - PINTECH High Voltage Differential Probe, 100MHz, 3000V, 1000X/100X Attenuation, ±1% Accuracy, Oscilloscope Probe with Standard BNC Interface, N1030B

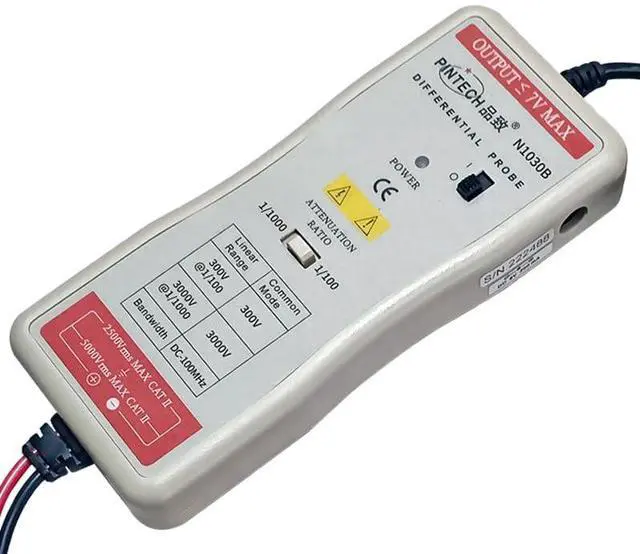

Alt view image 3 of 4 - PINTECH High Voltage Differential Probe, 100MHz, 3000V, 1000X/100X Attenuation, ±1% Accuracy, Oscilloscope Probe with Standard BNC Interface, N1030B

Alt view image 4 of 4 - PINTECH High Voltage Differential Probe, 100MHz, 3000V, 1000X/100X Attenuation, ±1% Accuracy, Oscilloscope Probe with Standard BNC Interface, N1030B

Visit GUANGZHOU PINTECH CO LTD Store

PINTECH High Voltage Differential Probe, 100MHz, 3000V, 1000X/100X Attenuation, ±1% Accuracy, Oscilloscope Probe with Standard BNC Interface, N1030B

Be the first to review this product...

Maximum differential test voltage: 3000Vp-p, the N10130B probe provides ample capacity for a wide range of high voltage's applications.
Accuracy (Typical)±1%, Bandwidth DC-100MHz (-3dB), Attenuation Ratio: 1000X/100X, Rise Time: 3.5ns. Featured with built-in auto-zero and overload protection for voltage.
Our active differential probes convert any two-point signal to ground signal for oscilloscopes, meters, and data acquisition equipment. The differential probe is used for testing most circuits, especially motor circuits.
Widely Used: The oscilloscope probe features BNC interface, compatible with all oscilloscopes.
Package Included: N1030B differential probe x 1, Adapter x 1, Probe Hook x 2, Manual x 1. PINTECH offers 1 Year warranty, you can contact us if you have any questions!

Overview

Specs

Reviews

Any questions? Ask Celeste^SM will help you find out quickly.

Try me now

PINTECH is a high-tech enterprise specializing in the research, manufacturing and sales of measurement and testing instruments.
Currently, we offer over 70 products, including optical isolation voltage probes, differential probes, high-voltage attenuation rods, current probes, high-voltage amplifiers, power amplifiers, signal generators, oscilloscopes, multimeters, high-voltage power supplies, AC power supplies and DC power supplies.
Differential Probe
Voltage Probe
Current Probe
High Voltage Amplifier
What can we provide?
We not only provide professional measuring instruments and equipment, but also have a technical team that can offer professional advice according to your needs.
How did we get our start?
At PINTECH we have been designing and manufacturing electrical testing equipment since 2006.
What makes us different?
PINTECH places great emphasis on pre-sales and after-sales service, prioritizing product quality to provide our customers with cost-effective products.

PINTECH is a high-tech enterprise specializing in the research, manufacturing and sales of measurement and testing instruments.
Currently, we offer over 70 products, including optical isolation voltage probes, differential probes, high-voltage attenuation rods, current probes, high-voltage amplifiers, power amplifiers, signal generators, oscilloscopes, multimeters, high-voltage power supplies, AC power supplies and DC power supplies.
Differential Probe
Voltage Probe
Current Probe
High Voltage Amplifier
What can we provide?
We not only provide professional measuring instruments and equipment, but also have a technical team that can offer professional advice according to your needs.
How did we get our start?
At PINTECH we have been designing and manufacturing electrical testing equipment since 2006.
What makes us different?
PINTECH places great emphasis on pre-sales and after-sales service, prioritizing product quality to provide our customers with cost-effective products.

MODEL: N1030B

Bandwidth (-3dB): 100X: DC-50MHz; 1000X: DC-100MHz

Output(into 50k load):7V

Offset(typical):±5mV

Attenuation Rate: 1000X/100X

Rising Time: 3.5ns

Accuracy: ±1%

Input Impedance: Between the two ends: 8M//0.59pF, Single-ended to ground: 4M//1.18pF

Oscilloscope Input Impedance: 1M

CMRR: 60Hz:80dB; 100kHz:50dB

Testing Voltage(Vp-p):100X: 300V; 1000X: 3kV

Input DC Voltage: 100X: 150V; 1000X: 1500V

Differential-mode voltage(Vp-p):100X: 150V; 1000X: 1500V

RMS Value: 1050V

Common-mode voltage RMS: 1050V

Noise RMS: 100X: 50mV; 1000X: 400mV

BNC Cabe Length: 90cm/65.43in

Weight: 284g/0.63lb

Dimension(LxWxH): 166.5x70.7x30 mm

Product information

Product Dimensions	6.65 x 2.71 x 1.02 inches
Item Weight	4.4 pounds
Manufacturer	PINTECH
Item model number	N1030B
Is Discontinued By Manufacturer	No
Date First Available	April 20, 2021

Details
Includes	differential probe x 1, Adapter x 1, Probe Hook x 2

Additional Information
First Listed on Newegg	March 02, 2026

Warranty & Returns

Warranty, Returns, And Additional Information

Warranty

Please contact the Seller directly for warranty information. Warranty information may also be found on the Manufacturer's website.
CONTACT

Return Policies

Return for refund within: 30 days
Return for replacement within: 30 days
This item is covered by GUANGZHOU PINTECH CO LTD Return Policy

Manufacturer Contact Info

For a directory of all our manufacturers, please click below.
Manufacturers Directory

The PINTECH N1030B is a 100MHz high-voltage differential oscilloscope probe designed for engineers, technicians, and lab users who need to measure floating or high-side signals up to 3000Vp-p with 100X or 1000X attenuation through a standard BNC oscilloscope connection.

Recommended For

Power electronics engineers measuring floating high-side nodes in motor drives, inverters, or three-phase systems with a standard ground-referenced oscilloscope. High-voltage differential probes are the normal fit for line-to-line and inverter measurements where a regular passive probe ground lead would be unsuitable.
Bench engineers debugging switch-mode power supplies, PFC stages, or mains-referenced power sections who need to view differential voltage safely through a BNC-input oscilloscope. Community discussions around SMPS work consistently point to a high-voltage differential probe when the node is not safely ground-referenced.
Lab users who already have a general-purpose oscilloscope and need a standalone differential probe with standard BNC connectivity rather than a scope-specific probe interface. The N1030B is positioned as compatible with ordinary oscilloscopes and converts two-point signals into a ground-referenced scope input.
Teams doing routine troubleshooting on medium-bandwidth power electronics where 100 MHz bandwidth and 1000X/100X attenuation are a practical match for switching waveforms, gate-drive related voltage checks, and general high-voltage waveform inspection rather than ultra-fast edge analysis.

Spec Summary

Attribute	Value
Best For	High-voltage differential measurements and motor-circuit testing with oscilloscopes, meters, and data-acquisition equipment; connects to oscilloscopes via a standard BNC interface
Package Contents	Differential probe x1, Adapter x1, Probe Hook x2
