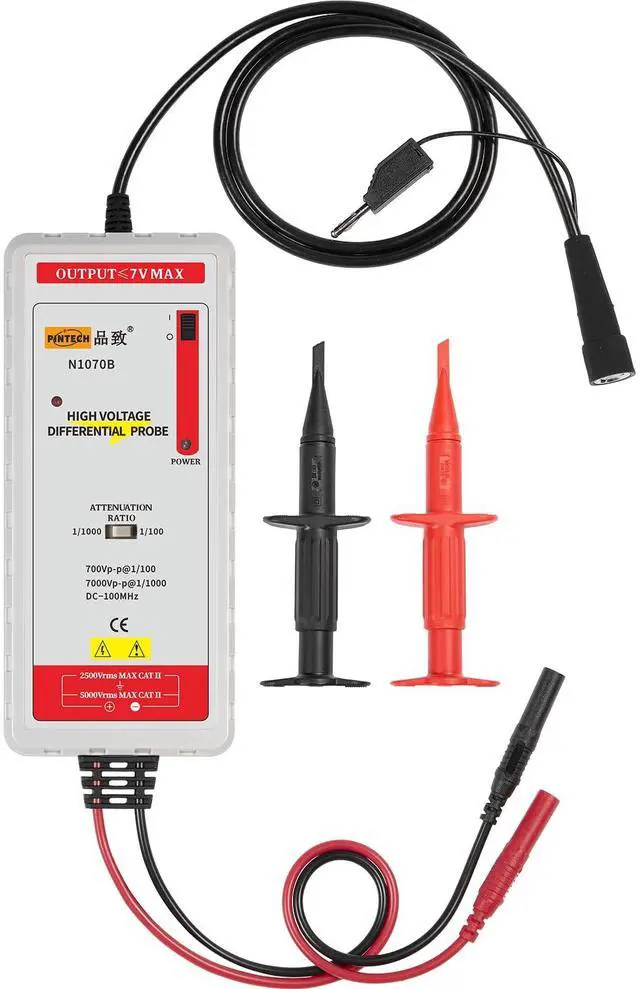

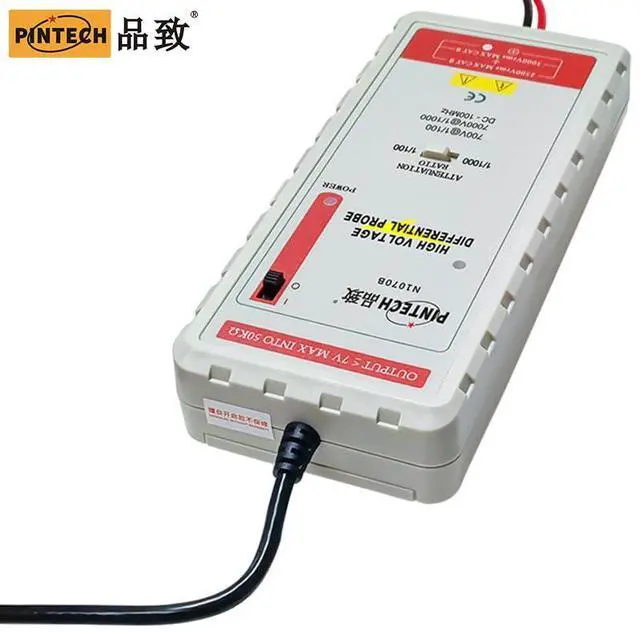

PINTECH High Voltage Differential Probe, 100MHz, 7kV, 1000X/100X Attenuation, ±1% Accuracy, Oscilloscope Probe with Standard BNC Interface, N1070B

  • Maximum differential test voltage: 7kVp-p, the N1070B probe is suitable for testing high voltage signals.
  • Accuracy (Typical)±1%, Bandwidth DC-100MHz (-3dB), Attenuation Ratio: 1000X/100X, Rise Time: 3.5ns. Featured with built-in auto-zero.
  • Two Power Supply Modes: The probe is powered by batteries and adapter, convenience and flexibility in power supply. BATTERY Not IN INCLUDED.
  • Widely Used: The oscilloscope probe features BNC interface, compatible with all oscilloscopes.
  • Package Included: N1070B differential probe host unit x 1, Adapter x 1, Probe Hook x 2, Manual x 1. PINTECH offers 1 Year warranty, you can contact us if you have any questions!
+
+
Overview
Specs
Reviews
avatar

Any questions? Our AI beta will help you find out quickly.

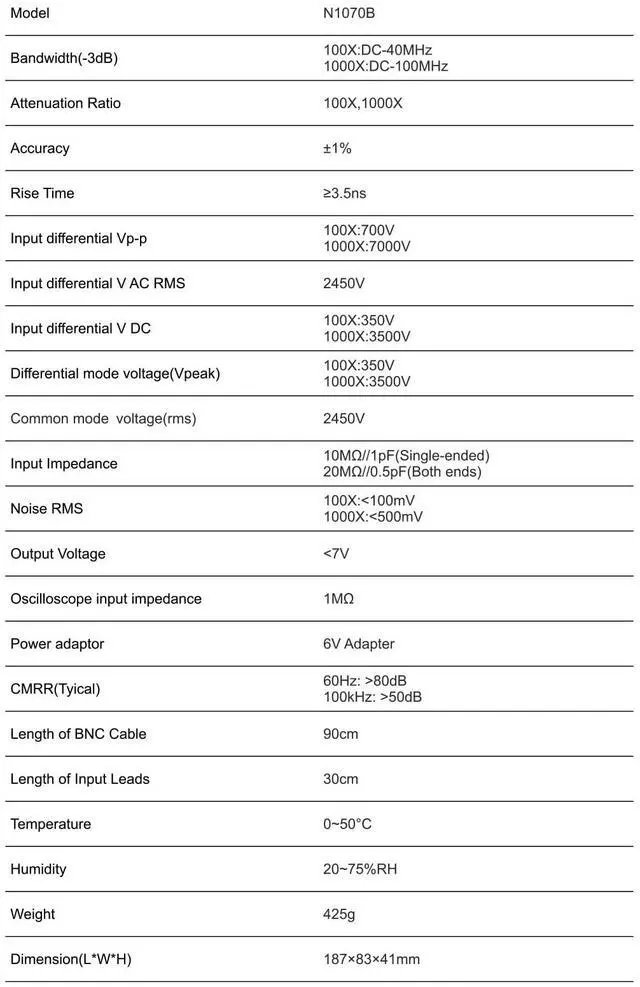

MODEL: N1070B

Bandwidth (-3dB): 100X: DC-40MHz; 1000X: DC-100MHz


Output(into 50k load):7V


Offset(typical):±5mV


Attenuation Rate: 1000X/100X


Rising Time: 3.5ns


Accuracy: ±1%


Input Impedance: Between the two ends: 20M//0.5pF, Single-ended to ground: 18M//2pF


Oscilloscope Input Impedance: 1M


CMRR: 60Hz:80dB; 100kHz:50dB


Testing Voltage(Vp-p): 100X: 700V; 1000X: 7kV


Input DC Voltage: 100X: 350V; 1000X: 3.5kV


Differential-mode voltage(Vp-p):100X: 350V; 1000X: 3.5kV


RMS Value: 2450V


Common-mode voltage RMS: 2450V


Noise RMS: 100X: 100mV; 1000X: 500mV


Weight: 425g/0.94lb


Dimension(LxWxH): 187x73x41 mm


Product information
Product Dimensions 7.32 x 3.3 x 1.49 inches
Item Weight 4.4 pounds
Manufacturer PINTECH
Item model number N1070B
Is Discontinued By Manufacturer No
Date First Available April 20, 2021
