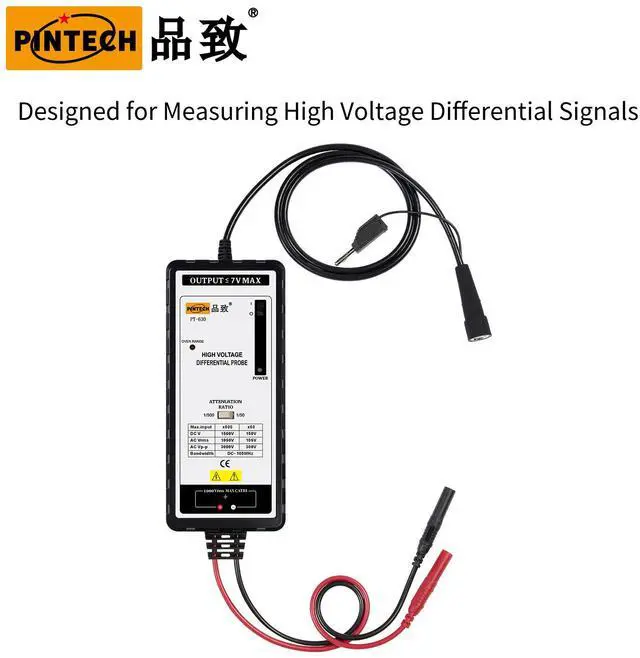

PINTECH Oscilloscope Probe 3000V, 100MHz High Voltage Differential Probe kit 3.5ns Rise Time 50X/500X Attenuation Rate, PT-630
Limited time offer, ends 03/31 By GUANGZHOU PINTECH CO LTD
- Rise Time: 3.5ns. This differential probe measures signals with very fast rise times.
- DC-100MHz. Accuracy (Typical):±2%, Attenuation Ratio: 50X/500X.
- The oscilloscope probe features with BNC interface, compatible with all oscilloscopes.
- Widely Used: Our active differential probes convert any two-point signal to ground signal for oscilloscopes, meters, and data acquisition equipment. The differential probe is used for testing most circuits, especially motor circuits.

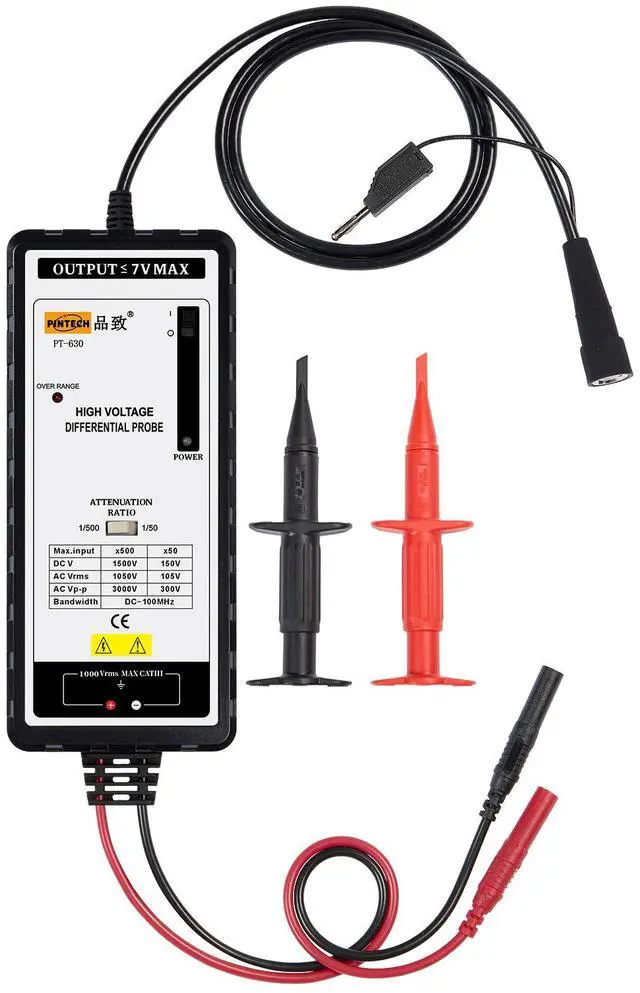

- Package Included: PT-630 differential probe x 1, Adapter x 1, Probe Hook x 2, Manual x 1. PINTECH offers 1 Year warranty, you can contact us if you have any questions!
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now

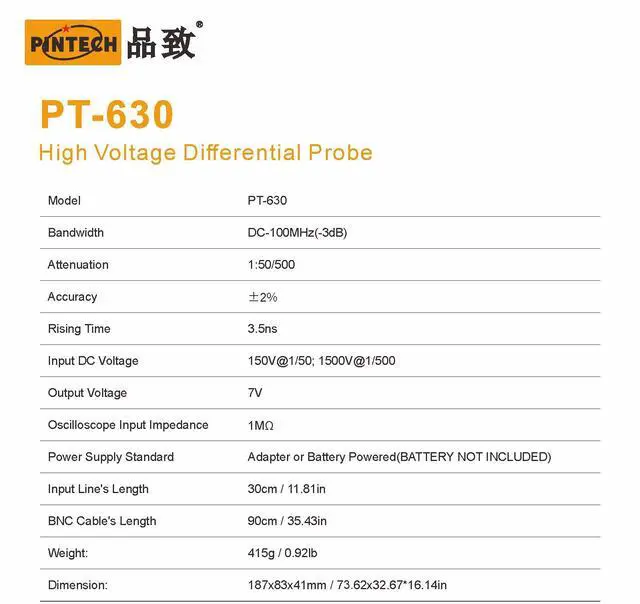

MODEL: PT-630
Bandwidth (-3dB): 50X: DC-50MHz; 500X: DC-100MHz
Attenuation Rate: 50X/500X
Rising Time: 3.5ns
Testing Voltage(Vp-p): 50X: 300V; 500X: 3000V
Input DC Voltage: 150X: 150V; 500X:1500V
Accuracy: ±2%
Common-mode Voltage RMS: 1050V
CMRR: 60Hz:>80dB; 100kHz:>50dB
Output impedance: 4M//1.18pF(Single-ended to ground); 8M//0. 59pF(between the two ends)
Noise RMS: 50X: <50mV; 500X:<200mV
Ouput Voltage: <7V
Oscilloscope Input Impedance: 1M
Power Supply: Adapter-powered or battery-powered
Input Line Length: 30cm/11.81 inch
BNC Cable Length: 90cm/35.43 inch
Weight: 415g/0.92lb

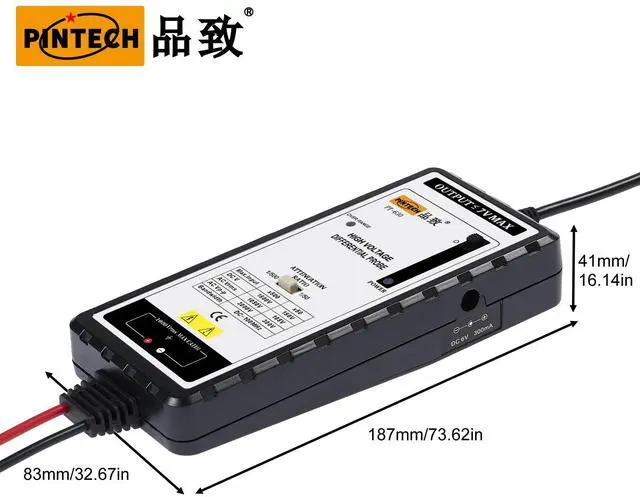

Dimension(LxWxH): 187x83x41 mm
