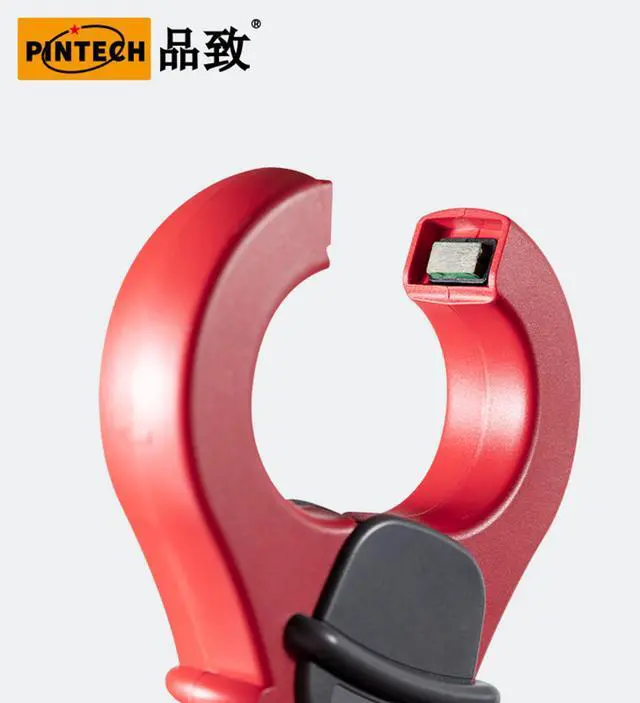

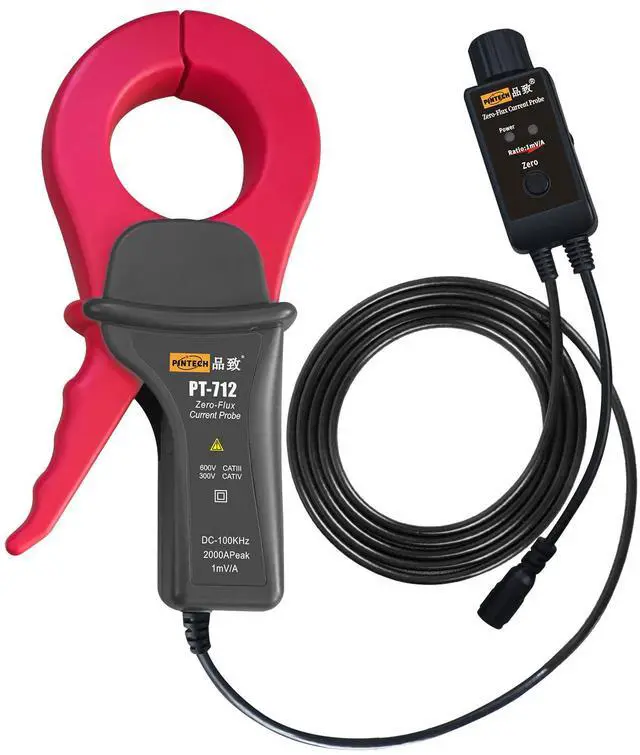

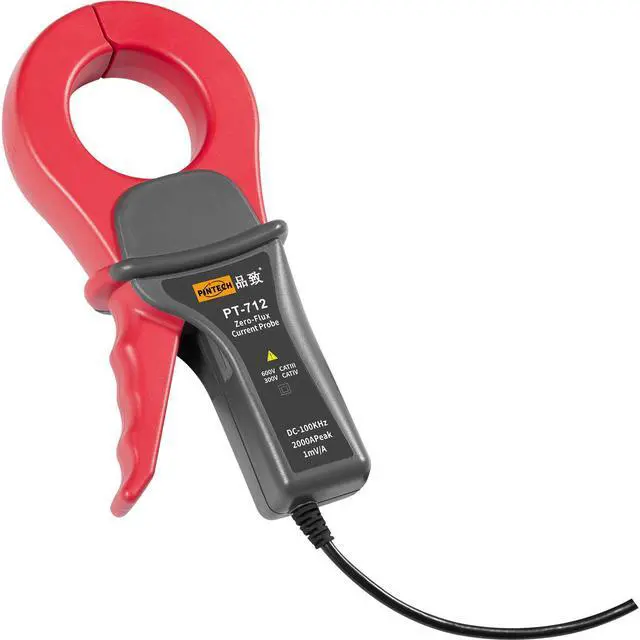

PINTECH AC/DC Current Clamp Probe for Oscilloscope 100kHz Bandwidth, 4000A, Zero Flux Current Probe with BNC Connector, PT-712
- Test Range: PINTECH PT-712 current clamp measure currents up to 4000A. 1000:1 ratio.
- High Precision: Zero flux current probes eliminate errors caused by core excess in DC measurements.
- Great Stability: The probe reduced insertion resistance, reducing the loading effect on the object to be measured, which can improve long-term stability of the current probe.
- Widely Used: The current probe features with standard BNC interface, compatible with all oscilloscopes.
- Package Included: PT-712 AC/DC Current Probe x 1, Adaptors x 1, BNC Cable x 1, Power Cable x 1, Adapter x 1, Manual x 1.
+
+
Overview
Specs
Reviews
Any questions? Ask CelesteSM will help you find out quickly.
Try me now

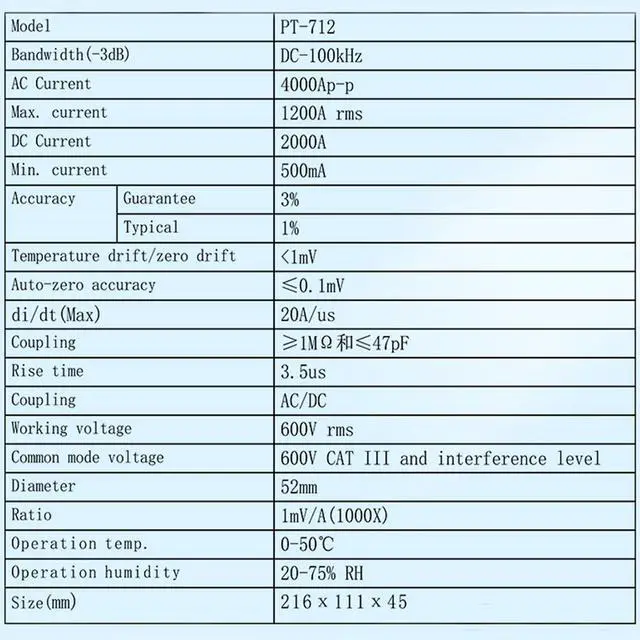

MODEL: PT-712
Bandwidth (-3dB): DC-100kHZ
AC Current: 4000Ap-p
Max Current: 1200A rms
DC Current: 2000A
Min Current: 500mA
Accuracy: 3%(Guaranteed); 1%(Typical)
Noise: 0.5mV
Temperature Drift/Zero Dift: <1mV
Auto-zero Accuracy:0.1mV
di/dt(Max): 20A/us
Load Impedance: 1M and 47pF
Coupling:AC/DC
Rise Time: 3.5s
Clamp Diameter: 52mm/2.05in
Ratio: 1mV/A(1000:1)
Size: 216 x 111 x 45 mm
Weight:650g/1.43lb
Warranty & Returns
Warranty, Returns, And Additional Information
Warranty
- Please contact the Seller directly for warranty information. Warranty information may also be found on the Manufacturer's website.
- CONTACT
Return Policies
- Return for refund within: 30 days
- Return for replacement within: 30 days
- This item is covered by GUANGZHOU PINTECH CO LTD Return Policy
Manufacturer Contact Info
- For a directory of all our manufacturers, please click below.
- Manufacturers Directory
LOADING...
The PINTECH PT-712 is an AC/DC zero-flux current clamp probe for oscilloscopes, built for measuring high current up to 4000A with 100kHz bandwidth and ±1% accuracy. It is best suited for engineers, lab technicians, and industrial power users who need non-intrusive current measurement on high-current electrical systems through a standard BNC connection.
Recommended For
- Engineers and technicians using a bench oscilloscope to view high-current AC waveforms on busbars, cables, drives, inverters, or industrial power equipment, where a clamp-on probe is preferred over inserting a shunt into the circuit.
- Power electronics labs that need a zero-flux current probe for oscilloscope work on lower-frequency current waveforms, especially when DC offset stability and non-intrusive measurement matter more than very high bandwidth.
- Users troubleshooting motor drives, UPS systems, welding power stages, battery systems, or other heavy-current setups that can exceed the range of smaller hobby-class current probes.
- Scope users who already understand probe setup and want a BNC-output current probe they can integrate into existing oscilloscope workflows, including zeroing/degaussing and scaling the display for current readout.
Spec Summary
| Attribute | Value |
|---|---|
| Best For | Technicians and engineers performing electrical testing and measurement who need a current clamp probe with ±1% accuracy |
| Model Identifiers | PINTECH PT-712 |
| Measurement Accuracy | ±1% measurement accuracy suitable for precise electrical measurements |
| Product Type | Electrical Testing & Measuring device |
| Physical Dimensions | 216 × 111 × 45 mm (product dimensions) |
| Standards And Certifications | CE certified |
| Packaging | Sold individually (Each) |
