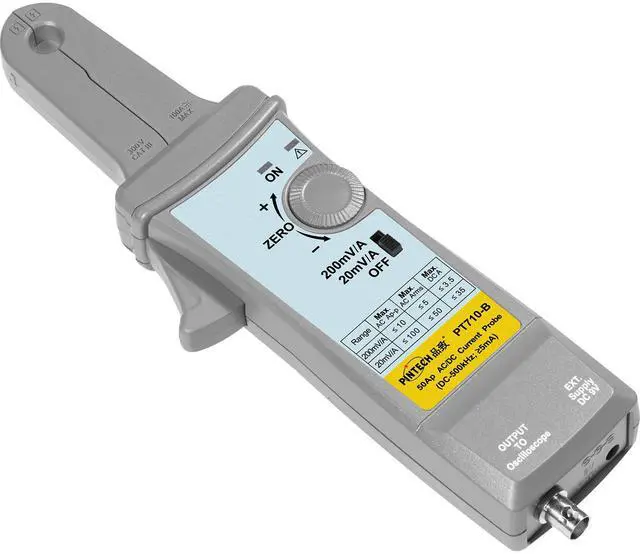

PINTECH Oscilloscope Probe AC/DC Current Probes, 100Ap-p, 500kHz, Multimeter Current Clamp Meter with BNC Connector, PT710-B
- Test Range: PINTECH PT710-B current probe meter measure AC currents up to 100A, DC current up to 50A. Maximum working voltage up to 300V.
- Great Sensitivity: The multimeter probe's maximum sensitivity is 5mA. Our probe's Bandwidths up to 500kHz.
- Widely Used: The current probe features with standard BNC interface, compatible with all oscilloscopes. The ac/dc current probe also includes an adapter to connect to a multimeter
- Convenient Use: Current probe meter is small and exquisite, featuring with the split design, easy to carry and use.
- Package Included: PT710-B Current Probe x 1, Adaptors x 1, BNC Cable x 1, Adapter x 1, Manual x 1.
+
+
Overview
Specs
Reviews
Any questions? Ask CelesteSM will help you find out quickly.
Try me now
MODEL: PT710-B
Bandwidth (-3dB): DC-300kHZ
Max. ACp-p value: 100Ap-p
Mac DC Current: 50A
Max AC Effective Value: 35A RMS
Range Gears: 2 Ranges
Voltage and Current Conversion Values: 20mV/A, 200mV/A
Maximum Diameter of Measuring Wire: 11mm
Maximum Sensitivity: 5mA
Rise Time:0.7 s
Measurement Accuracy: ±3%: 30mA~5Apeak at 200mV/A; ±4%: 300mA~20Apeak at 20mV/A; ±15%: 20A~50Apeak at 20mV/A
Maximum Working Voltage: 300V CAT III
Maximum Floating Voltage:600V CAT II
Weight: 260g/0.57lb
Size: 280 x 70 x 32 mm
Warranty & Returns
Warranty, Returns, And Additional Information
Warranty
- Please contact the Seller directly for warranty information. Warranty information may also be found on the Manufacturer's website.
- CONTACT
Return Policies
- Return for refund within: 30 days
- Return for replacement within: 30 days
- This item is covered by GUANGZHOU PINTECH CO LTD Return Policy
Manufacturer Contact Info
- For a directory of all our manufacturers, please click below.
- Manufacturers Directory
LOADING...
The PINTECH PT710-B is an AC/DC current probe for oscilloscopes or multimeters, suited for electronics technicians, lab users, and troubleshooting work that needs up to 50A DC, 100Ap-p AC, 500kHz bandwidth, and a standard BNC connection. It fits bench testing and field diagnostics where compact size matters.
Recommended For
- Bench technicians and electronics troubleshooters who need to view AC+DC current waveforms on an oscilloscope without breaking the circuit, especially for power supplies, motor drives, and general waveform checking within the probe’s mid-bandwidth range.
- Engineers or repair users who want one clamp-style probe they can move between an oscilloscope and a multimeter, using the BNC output for waveform work and the included adapter for quick current checks.
- Users working on switching power electronics or similar circuits where roughly 500 kHz bandwidth is enough for current-shape analysis, and where community guidance treats sub-1 MHz current probes as practical for many SMPS troubleshooting tasks.
- Field or mobile users who need a compact split-core current probe for clipping around individual conductors during setup, maintenance, or diagnostic work, rather than inserting a shunt in series.
Spec Summary
| Attribute | Value |
|---|---|
| Best For | Technicians and engineers performing electrical testing and measuring tasks |
| Model Identifiers | PINTECH PT710-B, sold individually |
| Physical Dimensions | 280 × 70 × 32 mm |
| Accuracy And Certifications | ±3% accuracy; CE certified |
