- $1,069.00
- Free 30-day Returns
Volume Discounts Available
- $949.05 ea.
- $939.06 ea.
- $929.07 ea.
Ships from China.
Sold by GUANGZHOU PINTECH CO LTD
Shipped by GUANGZHOU PINTECH CO LTD
Meet Your Seller

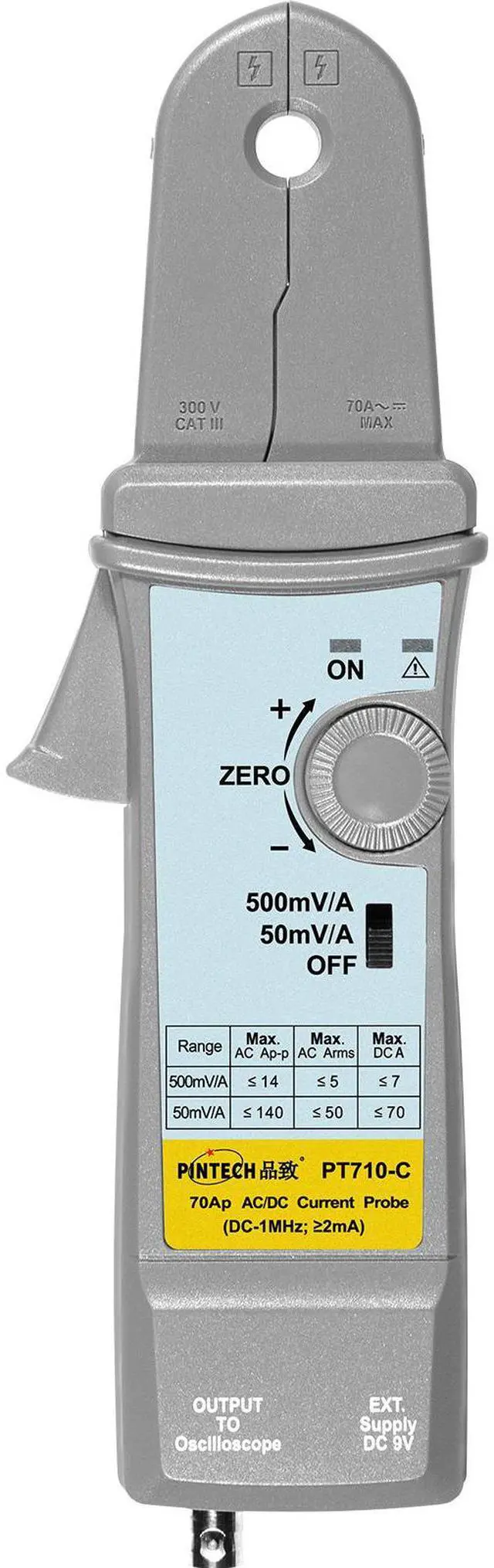

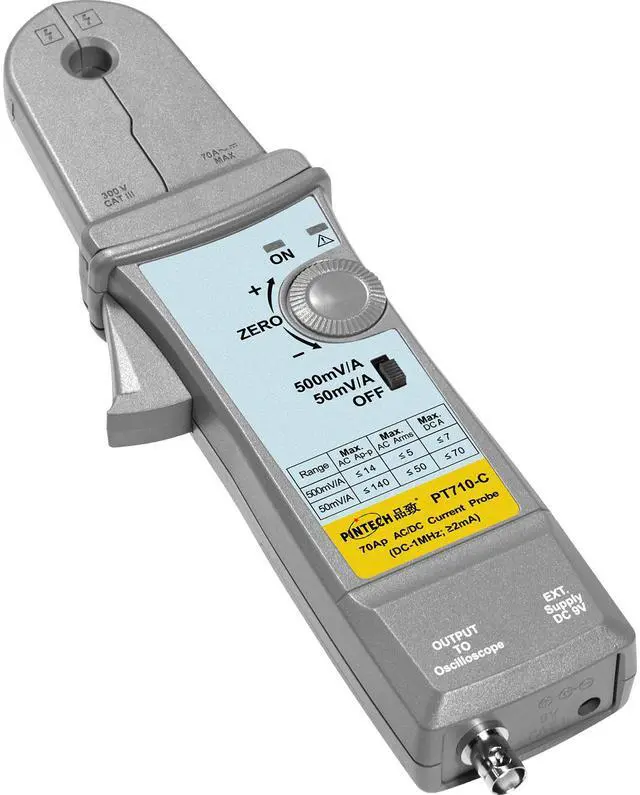

PINTECH Oscilloscope Probe AC/DC Current Probes, 1MHz, 20mA to 140A DC, Multimeter Current Clamp Meter with BNC Connector, PT710-C
- Test Range: PINTECH PT710-C current probe meter measure AC currents up to 140A, DC current up to 70A. Maximum working voltage up to 300V.
- Great Sensitivity: The multimeter probe's maximum sensitivity is 2mA. Our probe's Bandwidths is 1MHz.
- Widely Used: The current probe features with standard BNC interface, compatible with all oscilloscopes. The ac/dc current probe also includes an adapter to connect to a multimeter.
- Convenient Use: Current probe meter is small and exquisite, featuring with the split design, easy to carry and use.
- Package Included: PT710-C Current Probe x 1, Adaptors x 1, BNC Cable x 1, Adapter x 1, Manual x 1.
+
+
Overview
Specs
Reviews
Any questions? Ask CelesteSM will help you find out quickly.
Try me now

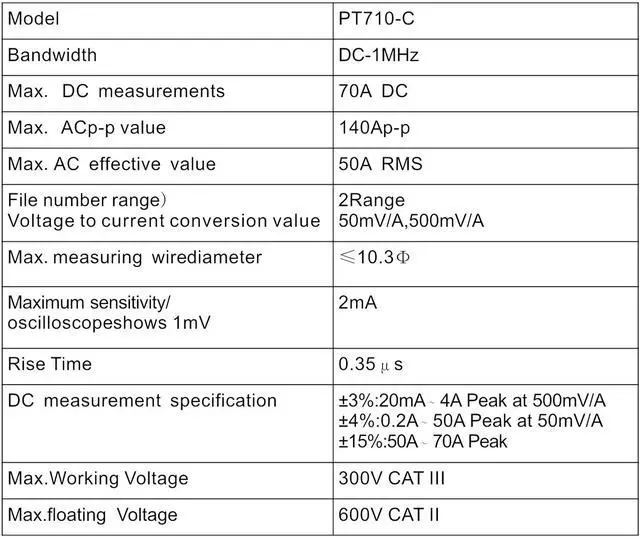

MODEL: PT710-C
Bandwidth (-3dB): DC-1MHz
Max. ACp-p value: 140Ap-p
Mac DC Current: 70A
Max AC Effective Value: 50A RMS
Range Gears: 2 Ranges
Voltage and Current Conversion Values: 50mV/A, 500mV/A
Maximum Diameter of Measuring Wire: 10.3mm
Maximum Sensitivity: 2mA
Rise Time:0.35 s
Measurement Accuracy: ±3%: 20mA~14Apeak at 500mV/A; ±4%: 0.2A~50Apeak at 50mV/A; ±15%: 50A~70Apeak at 50mV/AA
Maximum Working Voltage: 300V CAT III
Maximum Floating Voltage:600V CAT II
Weight: 260g/0.57lb
Size: 262 x 81 x 36 mm
Warranty & Returns
Warranty, Returns, And Additional Information
Warranty
- Please contact the Seller directly for warranty information. Warranty information may also be found on the Manufacturer's website.
- CONTACT
Return Policies
- Return for refund within: 30 days
- Return for replacement within: 30 days
- This item is covered by GUANGZHOU PINTECH CO LTD Return Policy
Manufacturer Contact Info
- For a directory of all our manufacturers, please click below.
- Manufacturers Directory
LOADING...
The PINTECH PT710-C is a compact AC/DC current probe for oscilloscopes and multimeters, designed for technicians, electronics labs, and field users who need to measure current from 20mA up to 140A AC or 70A DC with a standard BNC connection.
Recommended For
- Electronics engineers and bench technicians who need to view AC and DC current waveforms on an oscilloscope without inserting a shunt, especially for power rails, motor drives, and general troubleshooting below the probe’s 300 V working limit.
- Users diagnosing switching power supplies, inverters, and other low-to-mid-frequency power electronics who want current shape and timing data, and whose signals fit within roughly 1 MHz probe bandwidth rather than RF-level analysis.
- Field or lab users who want one clamp-style accessory that can feed either an oscilloscope through BNC or a multimeter through the included adapter, instead of carrying separate current accessories.
- Repair and validation workflows where non-contact current measurement matters more than top-end metrology, such as checking startup current, current ripple, or load behavior without breaking the circuit.
Spec Summary
| Attribute | Value |
|---|---|
| Best For | Electrical testing and measuring tasks that require a handheld current probe for bench or field use |
| Model Identifiers | PINTECH PT710-C current probe |
| Type And Category | Electrical Testing & Measuring device |
| Measurement Accuracy | ±3% accuracy for measured signals |
| Physical And Mechanical | Compact dimensions 262 x 81 x 36 mm, suitable for portable/handheld use |
| Standards And Certifications | CE certified |
| Selling Unit | Sold individually (each) |
