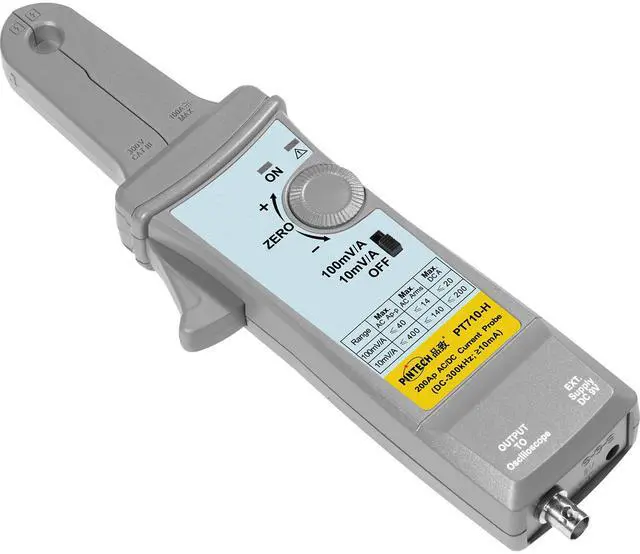

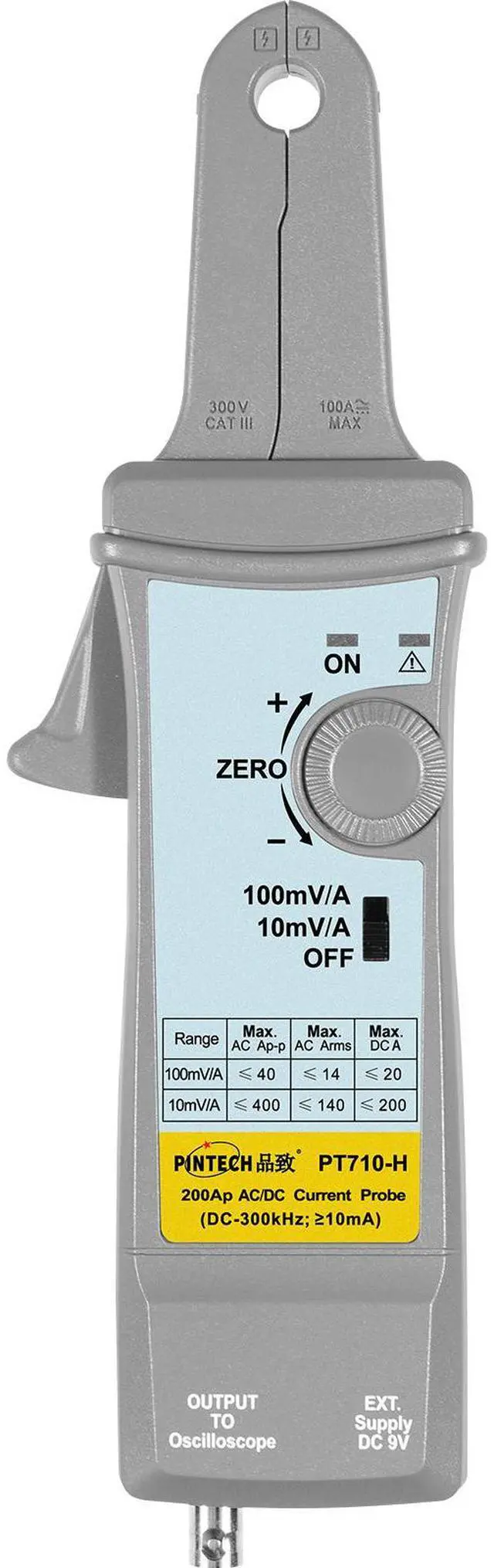

PINTECH Oscilloscope Probe AC/DC Current Probes, 400Ap-p, 300kHz, Multimeter Current Clamp Meter with BNC Connector, PT710-H
- Test Range: PINTECH current probe meter measure AC currents up to 400A, DC current up to 200A. Maximum working voltage up to 300V.
- Great Sensitivity: The multimeter probe's maximum sensitivity is 10mA. Our probe's Bandwidths up to 300kHz.
- Widely Used: The current probe features with standard BNC interface, compatible with all oscilloscopes. The ac/dc current probe also includes an adapter to connect to a multimeter.
- Updated: This current probe can measure higher current, which is updated version of PT710-A. The ac/dc current clamp also features with overload display function.
- Package Included: PT710-H Current Probe x 1, Adaptors x 1, BNC Cable x 1, Adapter x 1, Manual x 1.
+
+
Overview
Specs
Reviews
Any questions? Ask CelesteSM will help you find out quickly.
Try me now

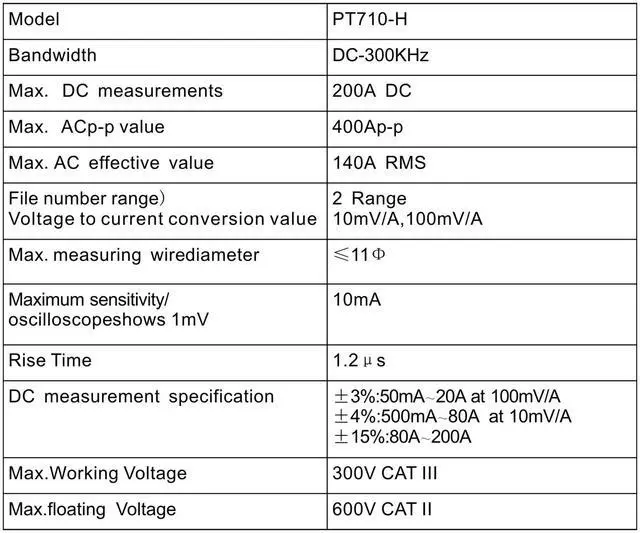

MODEL: PT710-H
Bandwidth (-3dB): DC-300kHZ
Max. ACp-p value: 400Ap-p
Mac DC Current: 200A
Max AC Effective Value: 140A RMS
Range Gears: 2 Ranges
Voltage and Current Conversion Values: 10mV/A, 100mV/A
Maximum Diameter of Measuring Wire: 11mm
Maximum Sensitivity: 10mA
Rise Time:1.2 s
Measurement Accuracy: ±3%: 50mA~20Apeak at 100mV/A; ±4%: 500mA~80Apeak at 10mV/A; ±15%: 80A~200Apeak at 10mV/A
Maximum Working Voltage: 300V CAT III
Maximum Floating Voltage:600V CAT II
Weight: 260g/0.57lb
Size: 280 x 70 x 32 mm
Warranty & Returns
Warranty, Returns, And Additional Information
Warranty
- Please contact the Seller directly for warranty information. Warranty information may also be found on the Manufacturer's website.
- CONTACT
Return Policies
- Return for refund within: 30 days
- Return for replacement within: 30 days
- This item is covered by GUANGZHOU PINTECH CO LTD Return Policy
Manufacturer Contact Info
- For a directory of all our manufacturers, please click below.
- Manufacturers Directory
LOADING...
The PINTECH PT710-H is an AC/DC current probe for oscilloscopes and multimeters, built for technicians, engineers, and electronics users who need to measure up to 400A AC or 200A DC with a standard BNC connection and up to 300kHz bandwidth.
Recommended For
- Engineers or technicians troubleshooting power electronics, inverters, motor drives, or DC supplies who need to view AC and DC current waveforms on an oscilloscope without inserting a shunt.
- Bench users who already work with a standard oscilloscope and want a clamp-style current probe with BNC output for faster current waveform checks on individual conductors.
- Users measuring medium-to-high current circuits where current range matters more than extreme precision, such as validating load current, startup surges, or general waveform shape up to hundreds of amps peak-to-peak.
- Repair labs and advanced hobbyists working on SMPS, battery systems, or embedded power stages who need DC-capable current probing and see 300 kHz-class bandwidth as sufficient for lower-frequency power analysis.
Spec Summary
| Attribute | Value |
|---|---|
| Best For | Technicians and engineers performing electrical testing and measuring tasks |
| Model Identifiers | PINTECH PT710-H |
| Product Type | Electrical Testing & Measuring device suited for test and measurement workflows |
| Accuracy And Compliance | ±3% measurement accuracy; CE certified |
| Physical And Packaging | Dimensions 280×70×32 mm; sold individually |
