Main image of Leakage Current Tester clamp Meter CEM DT-9812 68mm Big jaw Size 1000A AC Leakage Current Tester clamp Meter with Peak Hold Function

Alt view image 2 of 6 - Leakage Current Tester clamp Meter CEM DT-9812 68mm Big jaw Size 1000A AC Leakage Current Tester clamp Meter with Peak Hold Function

Alt view image 3 of 6 - Leakage Current Tester clamp Meter CEM DT-9812 68mm Big jaw Size 1000A AC Leakage Current Tester clamp Meter with Peak Hold Function

Alt view image 4 of 6 - Leakage Current Tester clamp Meter CEM DT-9812 68mm Big jaw Size 1000A AC Leakage Current Tester clamp Meter with Peak Hold Function

Alt view image 5 of 6 - Leakage Current Tester clamp Meter CEM DT-9812 68mm Big jaw Size 1000A AC Leakage Current Tester clamp Meter with Peak Hold Function

Alt view image 6 of 6 - Leakage Current Tester clamp Meter CEM DT-9812 68mm Big jaw Size 1000A AC Leakage Current Tester clamp Meter with Peak Hold Function

Shop All Zeskit Products | Visit Zhiyi Technology Store

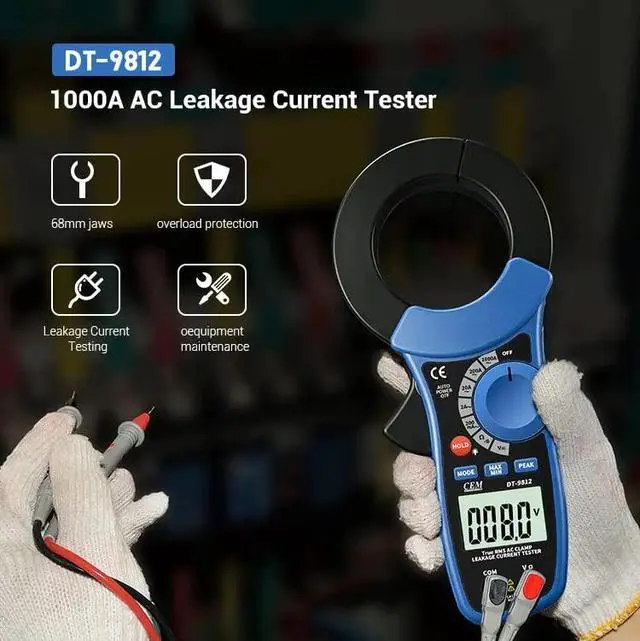

Leakage Current Tester clamp Meter CEM DT-9812 68mm Big jaw Size 1000A AC Leakage Current Tester clamp Meter with Peak Hold Function

Large tranceformer jaws of 68mm diameter makes it possible to clamp on all three or four wires (3 phases) together for leakage current measurement.

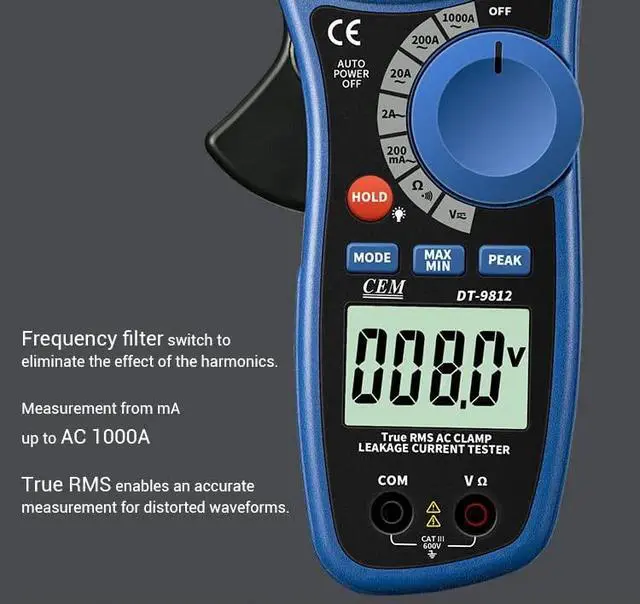

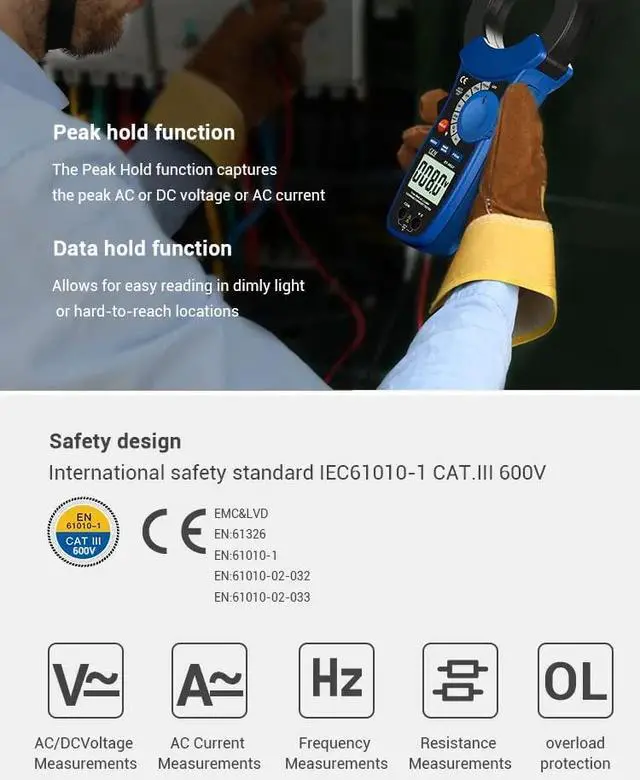

Frequency filter switch to eliminate the effect of the harmonics. Measurement from mA up to AC 1000A.True RMS enables an accurate measurement for distorted waveforms. Peak hold function

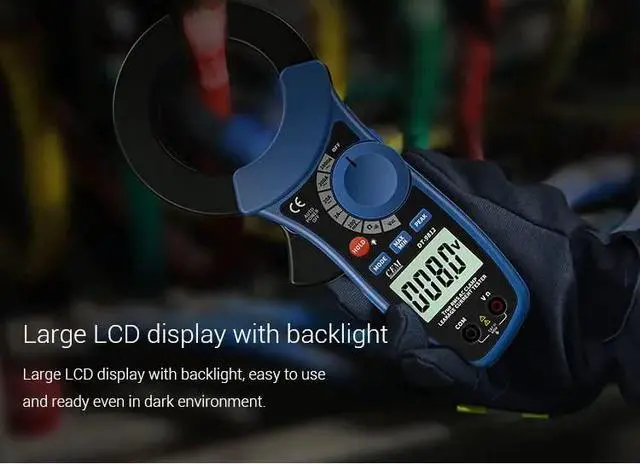

Data hold function: Allows for easy reading in dimly light or hard-to-reach locations Large LCD display with backlight International safety standard IEC61010-1 CAT.III 600V

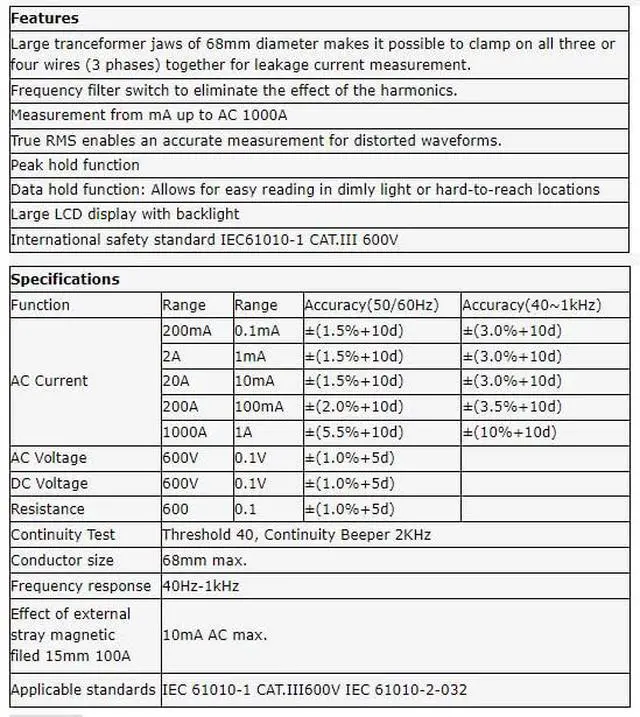

Model Number: DT-9812 Display Type: Digital Only Measuring Current Range: 200mA 2A 20A 200A 1000A Measuring Voltage Range: 0-600V Dimensions: 250mm x 113mm x 45mm Weight: 490g Jaw Caliber: 68mm max Color: Blue and black Name: AC Digital Clamp Meter Certificate: CE CAT.III600V RoHS Accuracy: 2.5% + 8d Counts: 2000counts Standard: CE IEC61010-1 CAT.III 600V Data hold: yes Peak hold: yes

Overview

Specs

Reviews

Any questions? Our AI beta will help you find out quickly.

Try me now

Large tranceformer jaws of 68mm diameter makes it possible to clamp on all three or four wires (3 phases) together for leakage current measurement.. Frequency filter switch to eliminate the effect of the harmonics. Measurement from mA up to AC 1000A. True RMS enables an accurate measurement for distorted waveforms. Peak hold function.
Data hold function: Allows for easy reading in dimly light or hard-to-reach locations Large LCD display with backlight International safety standard IEC61010-1 CAT. III 600V.
Model Number: DT-9812
Display Type: Digital Only Measuring
Current Range: 200mA 2A 20A 200A 1000A Measuring
Voltage Range: 0-600V
Dimensions: 250mm x 113mm x 45mm
Weight: 490g
Jaw Caliber: 68mm max
Color: Blue and black
Name: AC
Digital Clamp Meter Certificate: CE CAT.
III600V RoHS Accuracy: 2.5 % + 8d
Counts: 2000counts
Standard: CE IEC61010-1 CAT.
III 600V Data hold: yes
Peak hold: yes
