More Features:
- Data Hold

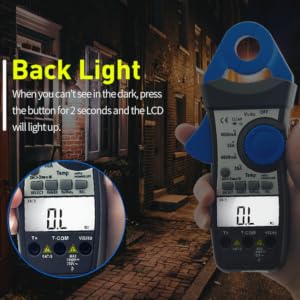

- Backlight LCD
- Auto Zero Out
- Auto Power OFF
- 0.83" Clamp Size
- Continuity Buzzer
- Auto/Manual Range
- Low Battery Indicator
- Over Range Indication

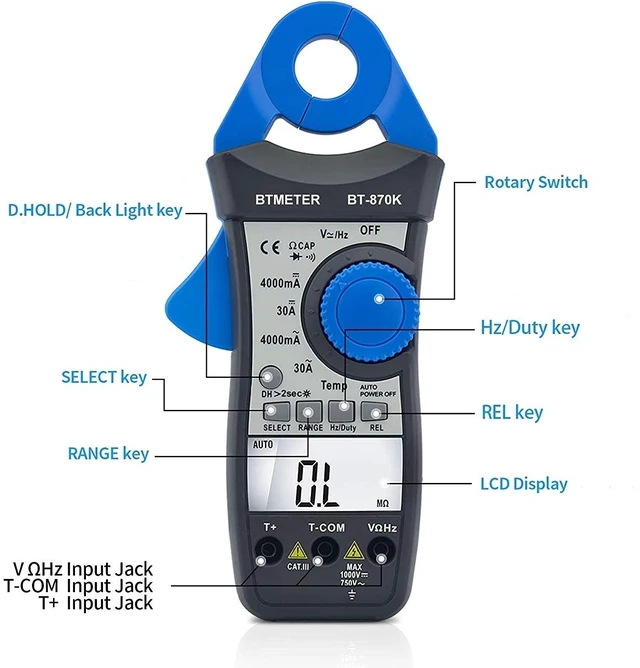

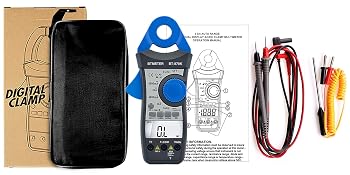

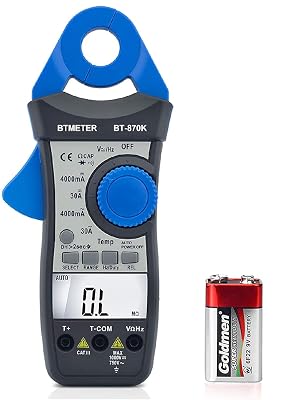

BTMETER BT-870K Digital Clamp Multimeter
All purposes avometer for household and industrial applications
- BTMETER multitester is professionally for electrical troubleshooting problem, HVAC systems, circuit property measurement, automotive repair and mainteance, etc.
- Complied with IEC1010, Double Insulation, Pollution Degree 2 and CAT ?, BT-870K clamp-on meter can safely and easily meaure DC & AC voltage, current, resistance, capacitance, frequency, temperature as well as diode and audible continuity test.

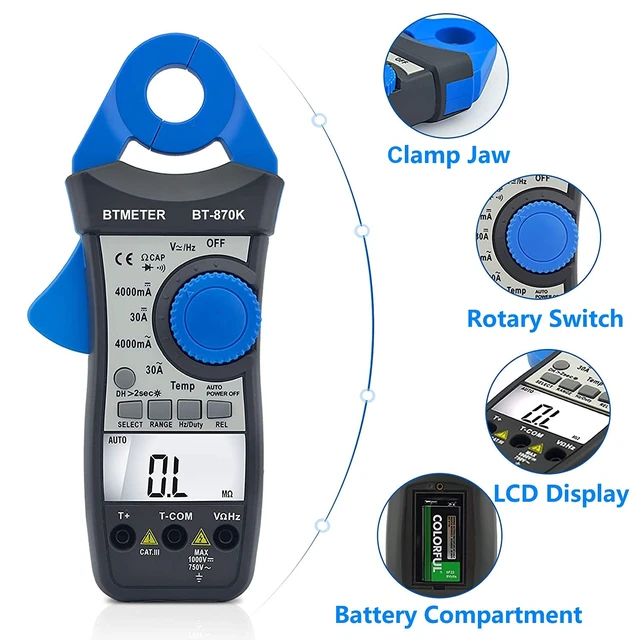

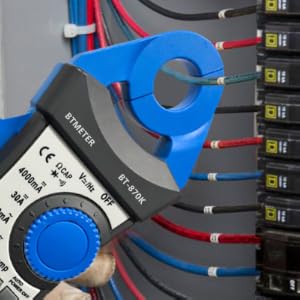

Jaw Design
The jaw with large size of 0.83" can measure AC DC current in a conductor. No need to interupt circuit or strip any wires.
Accurate Measurement
Easily test DC & AC volt, ampere, Ohm, capacitance, Hz, temp as well as diode and audible continuity test in high degree of accuracy.
Auto Functions
Take advantage of auto functions: auto shutdown, auto range selection, auto zeroing. Suitable for both professionals, DIYers.
Wide Applications
Combines loads of functions in one, works as voltmeter, ammeter, ohmmeter, temperature tester in automotive repair and maintenance, househld troubleshooting, industries, etc.
Specifications

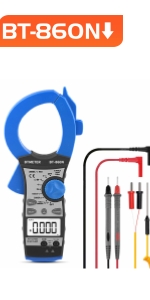

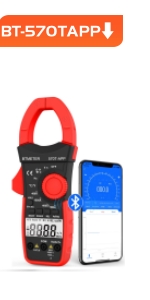

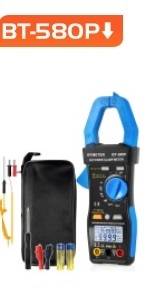

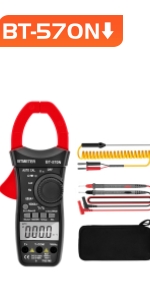

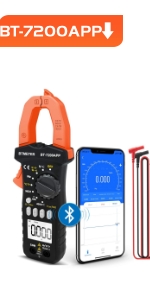

 Bluetooth Clamp Multi Meter BT-7200APP |  Inrush Current Clamp Multimeter BT-570N |  Bluetooth Clamp Multimeter BT-570TAPP |  3-Phase Power Clamp Multimeter BT-580P |  30A Clamp Meter BT-870K |  3000A Amp Clamp Meter BT-860N | |
|---|---|---|---|---|---|---|
| Customer Reviews | — | — | — | — | — | — |
| Price | — | — | — | — | — | — |
| Max Display | 6000 Counts | 6000 Counts | 4000 Counts | 9999 Counts | 3999 Counts | 6000 Counts |
| DC Voltage | 600mV / 6V / 60V / 600V | 600mV / 6V / 60V / 600V / 1000V | 400mV /4V /40V/400V/1000V | 999.9mV /9.999V /99.99V/600V | 400mV /4V /40V/400V/1000V | 600mV /6V /60V /600V/1000V |
| AC Voltage | 6V/60V/ 600V | 600mV /6V /60V/600V/750V | 4V /40V /400V /750V | 999.9mV /9.999V /99.99V/600V | 400mV /4V /40V/400V/750V | 600mV / 6V / 60V/600V/750V |
| DC Current | 60A/400A | 600A/1000A | 400A/1000A | AC/DC µA Trms: 99.99µA/999.9µA | 4000mA~30A | 600A/3000A |
| AC Current | 60A/400A | 600A/1000A | 400A/1000A | 99.99A/999.9A | 4000mA~30A | 600A/3000A |
| Resistance | 600O /6KO /60KO/ 600KO /6MO /60MO | 600O/6KO/60KO/400KO/6MO/60MO | 400O/4KO/40KO/400KO/4MO/40MO | 999.9?/9.999K?/99.99K?/999.9K?/9.999M?/99.99M? | 400O/4KO/40KO/400KO/4MO/40MO | 600O/6KO /60KO /600KO/6MO/60MO |
| Capacitance | 6nF~60mF | 9.999nF~99.99mF | 4nF~200µF | 10.00µF~7000.0µF | 51.2nF~100µF | 9.999nF~99.99mF |
| Frequency | 9.999Hz ~ 9.999MHz | 9.999Hz ~ 9.999MHz | 9.999Hz ~ 9.999MHz | 40Hz~1KHz | 51.2Hz~51.2kHz | 9.999Hz ~ 9.999MHz |
| Temperature | -4°F~1832°F | -4°F~1832°F | -4°F~1832°F | -58°F to 1000°F | -4°F to 1832°F | -4°F to 1832°F |
| More Features | True RMS; Bluetooth connectable; Remote monitor and data logging | Inrush Current Measurement; TRMS; Continuity Buzzer | Bluetooth connectable; Remote monitor and data logging | 1f~3f Test; Dual Display; Inrush Current; Power Factor; Phase Angle; Phase Rotation Test; 1f/3f Active Power; 1f/3f Apparent Power; 1f/3f Reactive Power; | Overload protection; Continuity Buzzer; Duty cycle | True RMS; Continuity Buzzer; Inrush Current Measurement; Overload Indicator & Protection; |
Precision at your Fingertips
We BTMETER are dedicated to designing and manufacturing high-quality instrument & device.
Our product portfolio includes industrial thermometer gun, multimeter, light meter, LED stroboscope and kinds of other precision instruments designed to meet diverse needs. Whether you need it for residential maintain, industrial troubleshoot, or DIY making, BTMETER provides a device that precisely matches your needs.
BTMETER Digital Multimeter
Clamp Meter with Bluetooth
Clamp Meter with Bluetooth
BTMETER Digital Light Meter
Thermal Camera
Industrial Thermometer Gun
3 Phase Power Clamp Meter 580P
Digital Megohmmeter 6688B

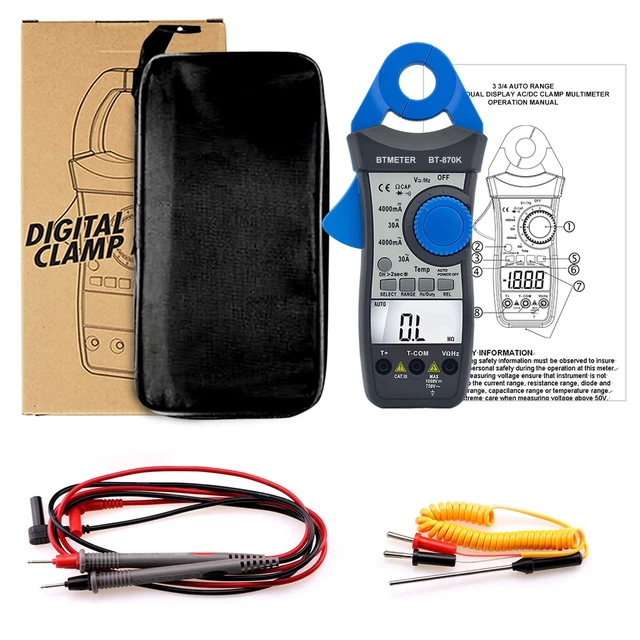

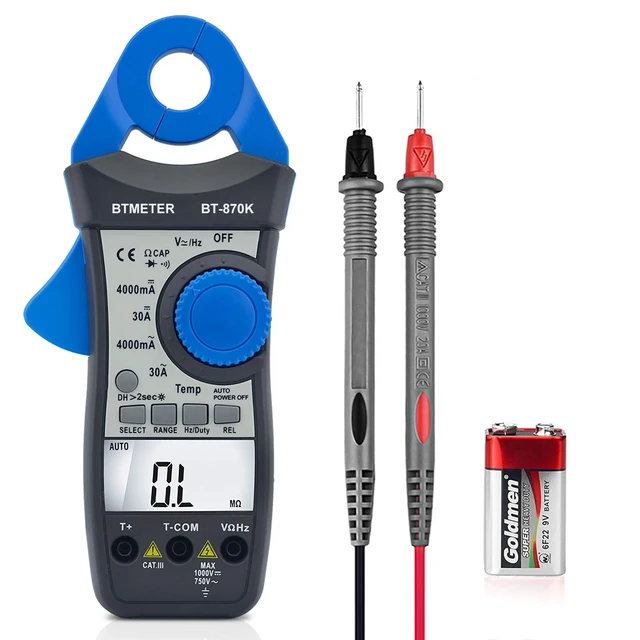

BTMETER BT-870K Digital Clamp Multimeter
More Features:
- Data Hold
- Backlight LCD
- Auto Zero Out
- Auto Power OFF
- 0.83" Clamp Size
- Continuity Buzzer
- Auto/Manual Range
- Low Battery Indicator
- Over Range Indication
All purposes avometer for household and industrial applications
- BTMETER multitester is professionally for electrical troubleshooting problem, HVAC systems, circuit property measurement, automotive repair and mainteance, etc.
- Complied with IEC1010, Double Insulation, Pollution Degree 2 and CAT ?, BT-870K clamp-on meter can safely and easily meaure DC & AC voltage, current, resistance, capacitance, frequency, temperature as well as diode and audible continuity test.
AC / DC Voltage
Measuring DC volts up to 1000V and AC volt 750V. Get quick and accurate readings. Backlight function ensures easy visibility even in dim or dark conditions.

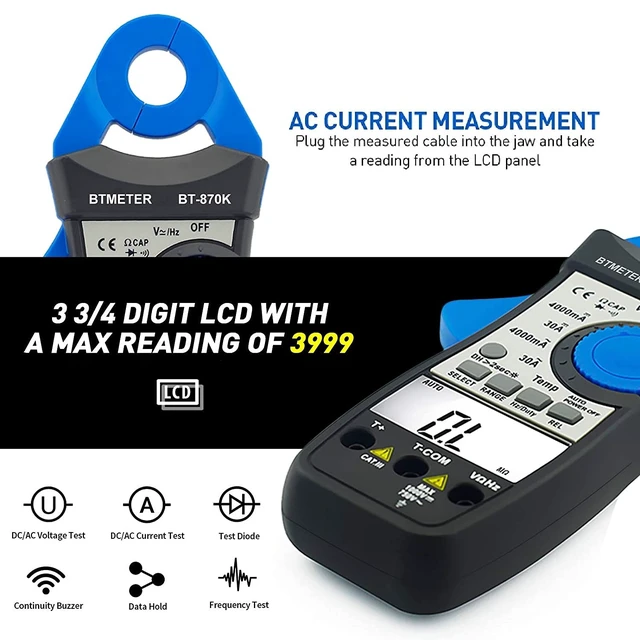

AC / DC Current
Easy clamp control enables you to safely measure both AC & DC current ranging1mA~30A in one conductor, without interrupting circuit. Press "REL" to zero out before measuring.

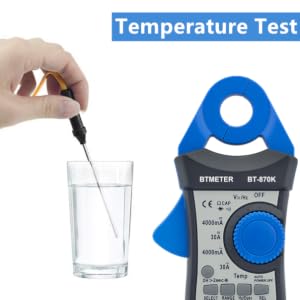

Temperature Test
Comes with thermocouple probe to start temperature measurement. Carefully put the temperature sensor under measured object, record stable readings on LCD.

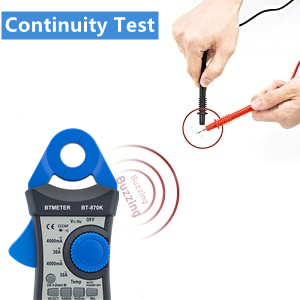

Audible Continuity
Connect tests leads to two points on the circuit under tests. Built-in buzzer will BEEP continuously if resistance is less than 50O to ensure safe and correct connection.

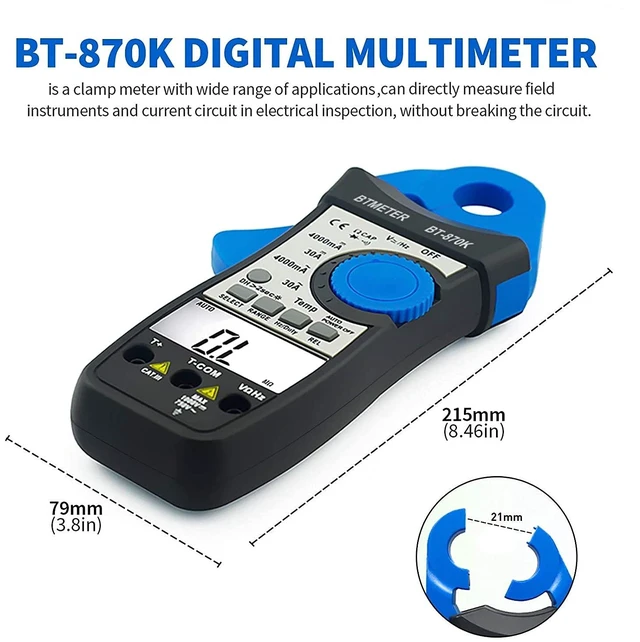

Jaw Design
The jaw with large size of 0.83" can measure AC DC current in a conductor. No need to interupt circuit or strip any wires.
Accurate Measurement
Easily test DC & AC volt, ampere, Ohm, capacitance, Hz, temp as well as diode and audible continuity test in high degree of accuracy.
Auto Functions
Take advantage of auto functions: auto shutdown, auto range selection, auto zeroing. Suitable for both professionals, DIYers.

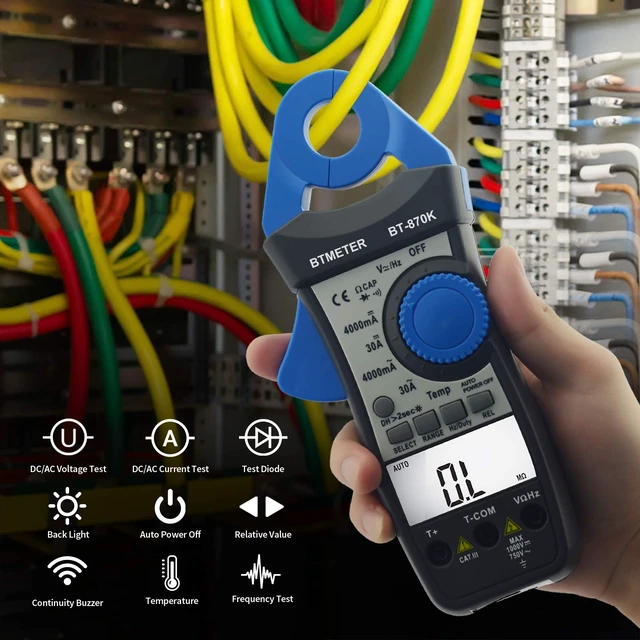

Wide Applications
Combines loads of functions in one, works as voltmeter, ammeter, ohmmeter, temperature tester in automotive repair and maintenance, househld troubleshooting, industries, etc.
Specifications
| DC Voltage | Resolution: 400mV/4V/40V/400V/1000V:0.1mV/1mV/10mV/100mV/1V |
| (0.1mV~1000V) | Accuracy:400mV: 1.2% of rd g+5digit; 4V/40V/400V: ±(0.8% + 5 digits); 1000V: ±(1.5 % + 5 digits) |
| AC Voltage | Resolution:400mA/4V/40V/400V/750V:0.1mV/1mV/10mV/100mV/1V |
| (0.1mV~750V) | Accuracy: 400mA:±(2.5% + 15 digits) ; 4V/40V/400V:±(1.2% + 15 digits) 750V:±(2.5% + 15 digits) |
| DC & AC Current | Resolution:400mA/30A:1mA/10mA |
| (1mA~30A) | Accuracy:400mA:±(3.5% + 10 digits); 30A:±(3.0% + 10 digits) |
| Resistance | Resolution:400O/4kO/40kO/400kO/4MO/40MO:0.1O/1O/10O/100O/1KO/10KO |
| (0.1O~10kO) | Accuracy:400O:±(1.8% + 20 digits) 4KO/40KO/400KO/4MO:±(1.2 % + 10 digits) 40MO:±(2.0% + 20 digits) |
| Capacitance | Resolution:51.2nF/512nF/5.12µF/51.2µF/100µF:10pF/100pF/1nF/10nF/100nF |
| (10pF~100µF) | Accuracy:51.2nF:±(3.5% + 10 digits); 512nF/5.12µF/51.2µF:±(2.5% + 10 digits) 100µF±(3.5% + 10 digits) |
| Temperature | Resolution:1? |
| (-20~1000?) | Accuracy:-20~150?: 3?+ 2 ; 150~300?:± ( 3% + 2digits ) ;300~1000?:± ( 3.5% + 10digits) |
| Frequency | Resolution:51.2Hz/512Hz/5.12kHz/51.2kHz:0.01Hz/0.1Hz/1Hz/10Hz |
| (0.01Hz~5.12MHz) | Accuracy: ± (0.5% + 5 digits) |

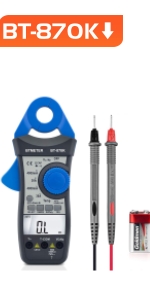

Bluetooth Clamp Multi Meter BT-7200APP | Inrush Current Clamp Multimeter BT-570N | Bluetooth Clamp Multimeter BT-570TAPP | 3-Phase Power Clamp Multimeter BT-580P | 30A Clamp Meter BT-870K | 3000A Amp Clamp Meter BT-860N | |
|---|---|---|---|---|---|---|
| Customer Reviews | — | — | — | — | — | — |
| Price | — | — | — | — | — | — |
| Max Display | 6000 Counts | 6000 Counts | 4000 Counts | 9999 Counts | 3999 Counts | 6000 Counts |
| DC Voltage | 600mV / 6V / 60V / 600V | 600mV / 6V / 60V / 600V / 1000V | 400mV /4V /40V/400V/1000V | 999.9mV /9.999V /99.99V/600V | 400mV /4V /40V/400V/1000V | 600mV /6V /60V /600V/1000V |
| AC Voltage | 6V/60V/ 600V | 600mV /6V /60V/600V/750V | 4V /40V /400V /750V | 999.9mV /9.999V /99.99V/600V | 400mV /4V /40V/400V/750V | 600mV / 6V / 60V/600V/750V |
| DC Current | 60A/400A | 600A/1000A | 400A/1000A | AC/DC µA Trms: 99.99µA/999.9µA | 4000mA~30A | 600A/3000A |
| AC Current | 60A/400A | 600A/1000A | 400A/1000A | 99.99A/999.9A | 4000mA~30A | 600A/3000A |
| Resistance | 600O /6KO /60KO/ 600KO /6MO /60MO | 600O/6KO/60KO/400KO/6MO/60MO | 400O/4KO/40KO/400KO/4MO/40MO | 999.9?/9.999K?/99.99K?/999.9K?/9.999M?/99.99M? | 400O/4KO/40KO/400KO/4MO/40MO | 600O/6KO /60KO /600KO/6MO/60MO |
| Capacitance | 6nF~60mF | 9.999nF~99.99mF | 4nF~200µF | 10.00µF~7000.0µF | 51.2nF~100µF | 9.999nF~99.99mF |
| Frequency | 9.999Hz ~ 9.999MHz | 9.999Hz ~ 9.999MHz | 9.999Hz ~ 9.999MHz | 40Hz~1KHz | 51.2Hz~51.2kHz | 9.999Hz ~ 9.999MHz |
| Temperature | -4°F~1832°F | -4°F~1832°F | -4°F~1832°F | -58°F to 1000°F | -4°F to 1832°F | -4°F to 1832°F |
| More Features | True RMS; Bluetooth connectable; Remote monitor and data logging | Inrush Current Measurement; TRMS; Continuity Buzzer | Bluetooth connectable; Remote monitor and data logging | 1f~3f Test; Dual Display; Inrush Current; Power Factor; Phase Angle; Phase Rotation Test; 1f/3f Active Power; 1f/3f Apparent Power; 1f/3f Reactive Power; | Overload protection; Continuity Buzzer; Duty cycle | True RMS; Continuity Buzzer; Inrush Current Measurement; Overload Indicator & Protection; |
