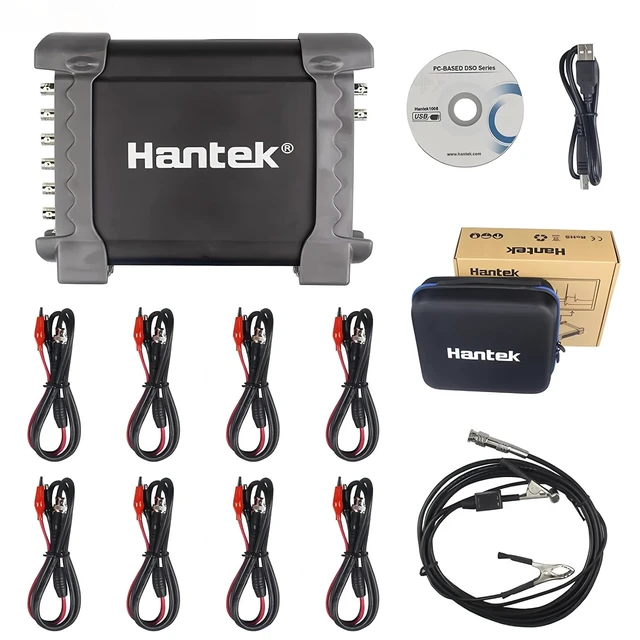

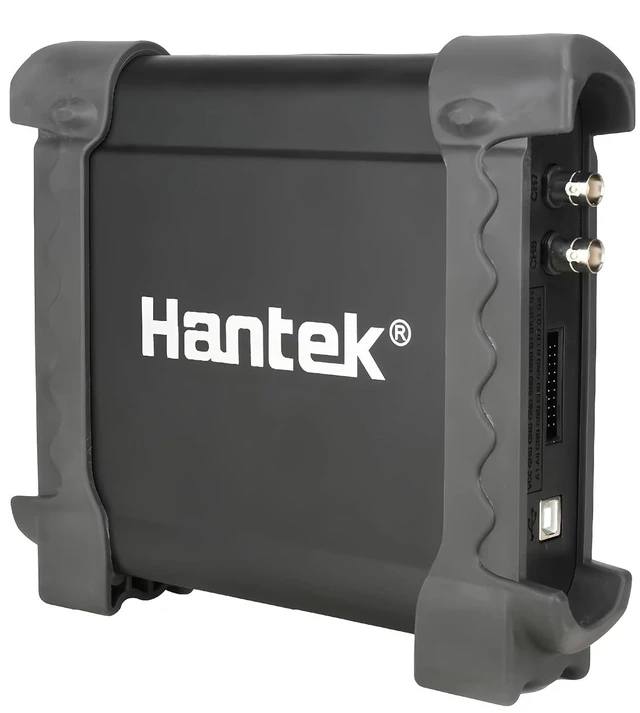

PC USB 8CH Automotive Diagnostic Digital Oscilloscope/DAQ/Programmable Generator

The Hantek 1008C is with 3main functions:

1.vehicle diagnosis,

2. oscilloscope;

3. signal generator,

including 80 types of vehicle diagnosis function;

1. Save the current waveform and generate pictures;
2. Storage location is optional and easy to find.

1. Call out the quick guide column with one button;
2. There are special vedio guide for each vehicle diagnosis function, including wiring method, adjustment method, reference waveform etc. ;
3. And it is supported to be checked through scanning the QR code.

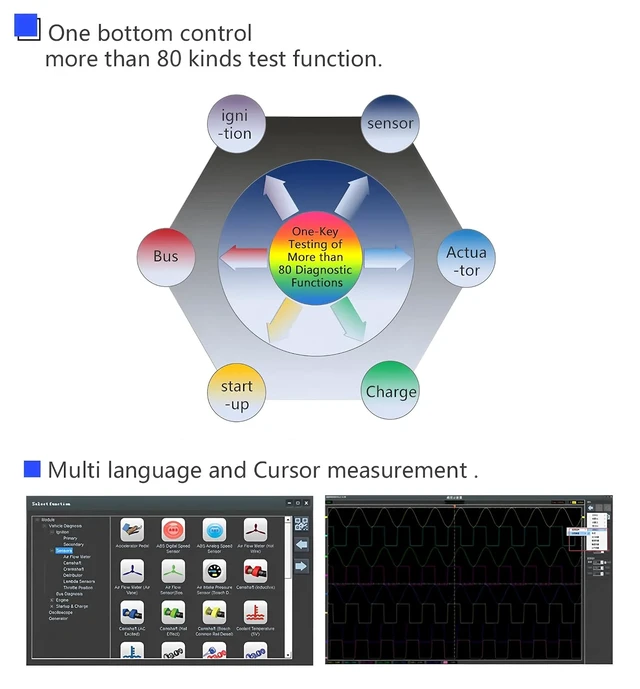

1. 20 types of automatic measurement method and 80 types of standard reference waveform inside can be called out or close with one button;
2. Also the user can save the waveform as REF format and call out again;
3. Convenient and visual to read out the result and compare the waveform.

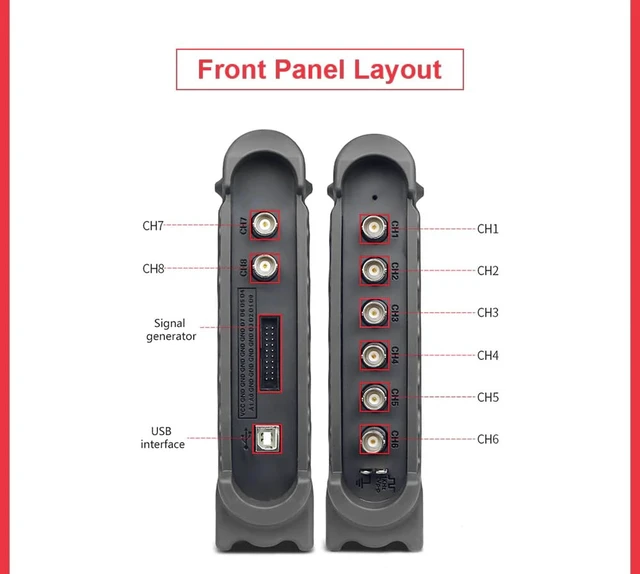

1. 8CH signal can be measured simultaneously;
2. The measurement voltage of each channel can be adjusted independently;
3. The user can choose to open or close each channel.

1. The diagnosis result can be saved as the format of txt, csv, rfc, xls, doc, jpg and etc. It is convenient to be checked and compared later;
2. The result can be printed with one button and generate diagnosis report which is easy to be saved and recorded;
3. Supports to record and replay the waveform. The waveform can be save into the computer hard disk and easy to read. There is no limit to the record time which can long-time measure and record the waveform for troubleshooting.

1. Supports 4 types of cursor measurement mode -cross,track, horizontal, and vertical.It's easy to read out the time and voltage of irregular signal.

1. Installs the PC software and start to use without any other drivers;
2. Supports WIN XP/7/8/10;
3. USB2.0 power supply + communication interface, plug and play, and support hot plugging.

1. Vehicle Diagnostic Function

1. Ignition/Secondary

1. Sensors

Air Flow Meter/Camshaft/Crankshaft/Distributor/Lambda Sensors/Throttle Position

1. Bus Diagnosis

CAN Bus/ LIN Bus

1. Engine

Petrol/Diesel/etc.

1. Startup & Charge

Charging Circuits/relative compression petrol/starting voltage drop

1. Analog Channel: 8
2. Input Impedance: Resistance: 1M
3. Input Sensitivity: 10mV/div to 5V/div
4. Input Coupling: DC
5. Resolution: 12 bits
6. Memory Depth: 4K
7. Real-Time Sampling Rate: 2.4MSa/s
8. Time BaseRange: 1ns/div to 20000s/div(1-2-5sequences)
9. Time Base Precision: ±50ppm
10. Trigger Source: CH1, CH2,CH3,CH4, CH5, CH6,CH7,CH8

1. Channel: 8CH
2. Ouput level: LVTTL
3. Frequency Range: 0-250kHz
