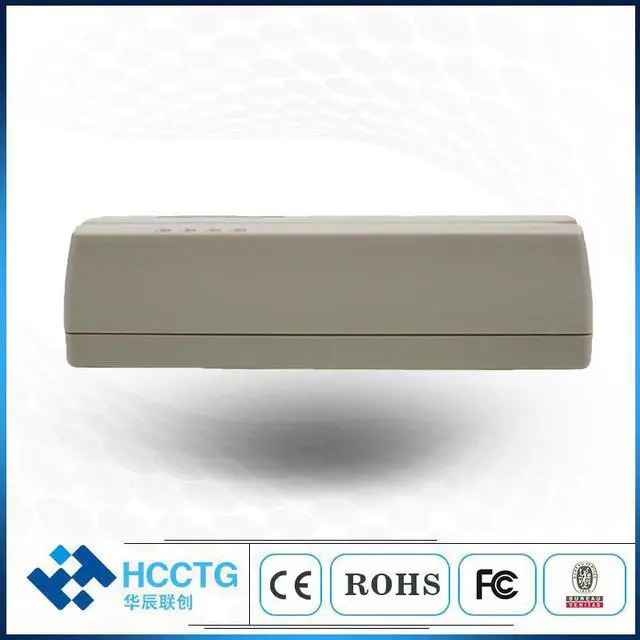

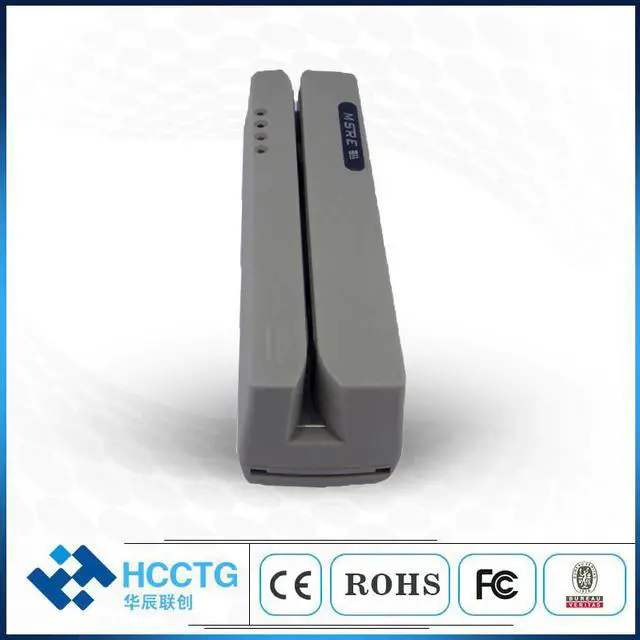

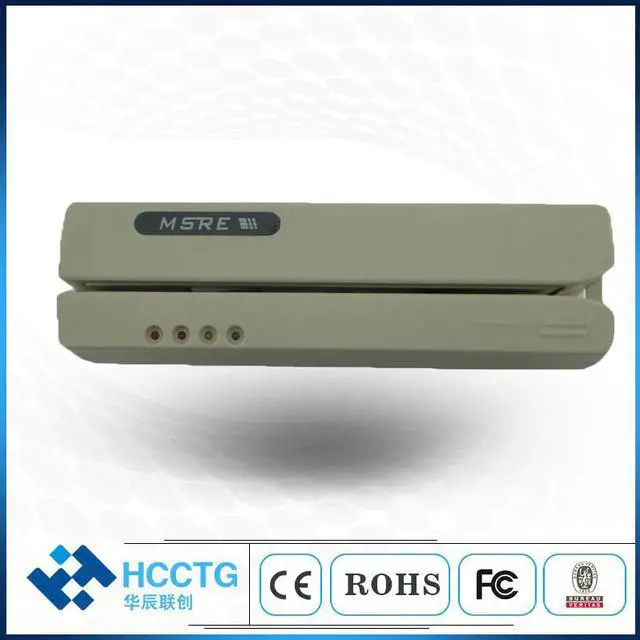

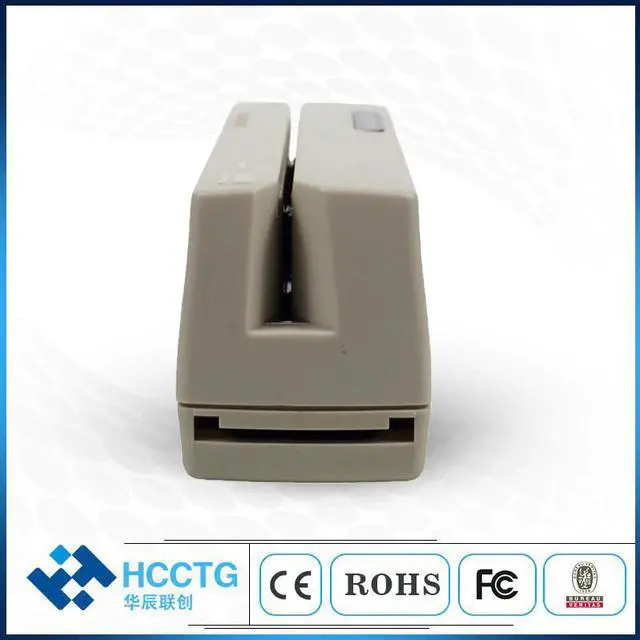

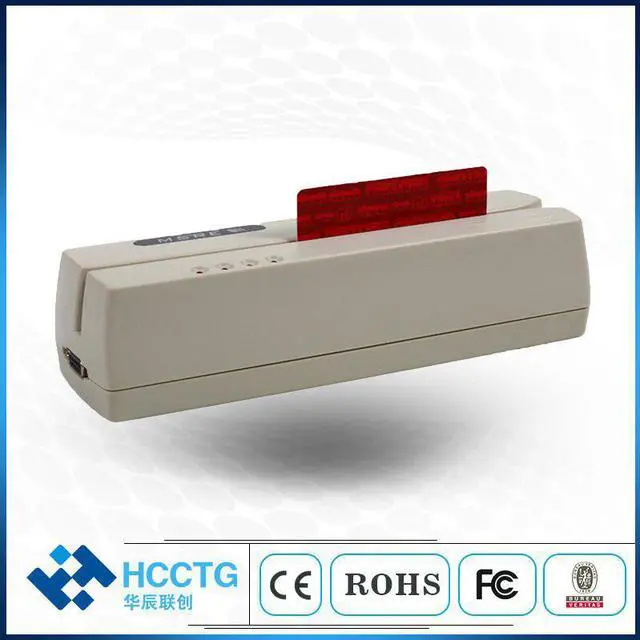

Strip Reader/Writer Series Compatible with MSR206 HCC206

Strip Reader/Writer Series Compatible with MSR206 HCC206

General

l  Manual Swipe Card Reader/Writer HCC206

l  Series is designed to offer a card reading/writing

l  Solution for ISO 7811-6 formats

l  It reads and writes up to 3 tracks of data, e.g. decoding/encoding and verifying up to 3 tracks of data simultaneously

l  Provides a standard RS-232 interface to communicate with a host system or other terminal computers

l

Multiple Application

Manual Swipe Card Reader/Writer HCC206

Series is ideal for credit card verification and various card related applications

Robust Construction

The HCC206 is manufactured at our ISO 9001-2000 certified factory

Feature

l  Reading/writing stripe cards complies with ISO 7811 / 1~6 formats

l  Manual Swipe to read and/or write cards with PC standard RS-232 interface

l  Read/Write High and Low Coercive force of stripe (300~4000Oe)

l  5~35ips operational swipe speed of writing data

l  5~55ips operational swipe speed of reading data

l  +24VDC+/-10%, 2.0A Max., external power adapter attached

l  Writing and verifying data on single, dual, or triple track in one swipe

l  Programming software included for various read/write applications

l  Program software for DOS and Windows 98/Me

l  High/Low Coercivity encoding circuitry selectable on screen

l  Programmable leading bit, raw data, DMV/AAMVA, and user defined format

l  Compact size with dimensions of 210(L) x 62(W) x65(H) mm

Specification

Electrical

Operating voltage

24VDC +/- 5%

Consumption

Power Supply

Communication
