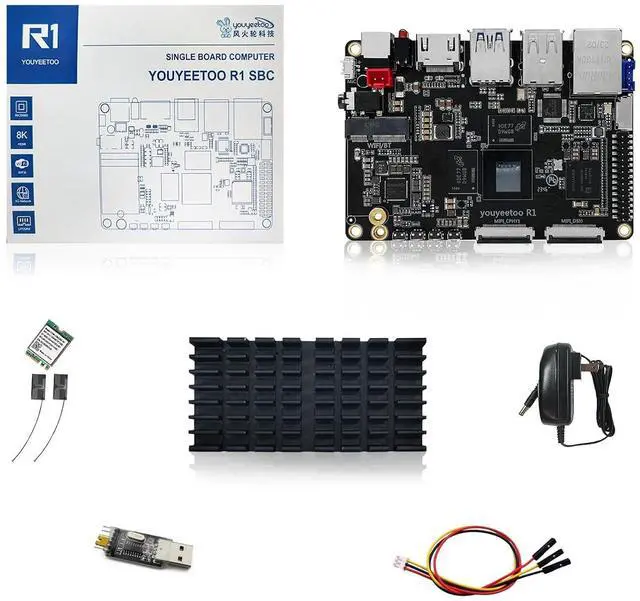

R1 WiFi 6 Single Board Computer -Rockchip RK3588S -6 Tops NPU & 8K Display -Support HDMI 2.1, SATA 3.0, PCIe 2.0 SSD, USB Host x5, Onboard NFC -AIoT Control/NAS (4GB RAM+32GB eMMC Kits)
- The youyeetoo R1 is a Single Board Computer (SBC) designed by youyeetoo for the AIOT (AI of Things) market,supporting Debian 11 and Android systems, with features such as 5 USB interfaces, SATA 3.0, PCIe 2.0 interfaces, and support for 8K@60Hz video output.Feel free to ask a questions by click "youyeetoo" or mail am2#youyeetoo.com(# >>>@); [Online Wiki and Forum] We provide direct and effective support to our customers through the creation of a wiki and community. Through our community, you can learn about and give feedback on our products. We believe that "Talk is cheap. Show me the code." is the best annotation. Link:wiki.youyeetoo.com/en/r1, forum.youyeetoo.com; [RK3588s] The R1 powered by the RK3588s octa-core 64-bit processor from Rockchip, built on an 8nm process, with a high clock speed of up to 2.4GHz. It integrates an ARM Mali-G610 MP4 GPU and features a built-in NPU (Neural Processing Unit) with 6 TOPS (Trillions of Operations Per Second) of AI computing power.; [Interface] Including Gigabit Ethernet, HDMI output (supports 8K), Type-C, M.2 PCIe2.0, dual MIPI cameras and screens, 3 * USB2.0, 1 * USB3.0, 4 * UART serial port, 2 * I2C, GPIO * 7, SPI * 1, ADC * 2, CAN * 1 and other common interfaces for the AIOT; [NFC] The most distinctive feature is that the R1 SBC is also equipped with an NFC chip. You can use a mobile phone (android/IOS) to touch the motherboard to transfer data to each other, the youyeetoo team provides application example tutorials.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Product description Technical specifications CPU Rockchip RK3588S (8nm LP process) 8-core 64-bit4xCortex-A76 and 4xCortex-A55Up to 2.4GH z frequency GPU ARM Mali-G610 MP4 Odin GPU Compatible with OpenGL ES 1.1 / 2.0 / 3.1 / 3.2 OpenCL 1.1, 1.2, 2.0 Vulkan 1.11. 2 450 GFLOPS 3D and 2D graphics engine NPU Built-in AI accelerator NPU with up to 6 TOPS, supports INT4/INT8/INT16 mixed operation (TensorFlow/MXNet/PyTorch/Caffe RKNN support ) RAM LPDDR4 4GB/8GB/16GB/32GB (option)
Storage eMMC: 32G/64G/128G/256GB (option) M. 2 slot (BOTTOM) M-Key @NVMe
SSD (PCIe) 2242ps: The speed is PCIe 2.0 @SATA 3.0 SSD m. 2 2242 MicroSD (TF) Card Slot Network EthernetRJ45 10/100/1000Mbps
Ethernet Wireless: M. 2(E-Key) Socket Expansion Slot
1. Wi-Fi5+BT 5.0 module (RTL8822CE) default driver 2. WI-FI6+BT 5.2 dual-band WiFi+BT module 4G LTE M. 2(M-Key)Socket Expansion Slot (default driver for EC20/EC25 4G LTE Data) (Need a 4G adapter board) VPU video Codec
Video decoding: 8K@60fps H. 265/H. 264/VP9/AVS2 8K@30fps H. 264 AVC/MVC 4K@60fps AV1 1080P@60fps MPEG-2/-1/VC-1/VP8
Video encoding: 8K@30fps H. 265 / H. 264 encoding (Up to 32-channel 1080P@30fps decoding + 16-channel 1080P@30fps encoding) Display Multi screen)
HDMI: 1 x HDMI 2.1 (8K@60Hz or 4K@120Hz) MIPI FPC2 x MIPI-DSI (DSI0/DSI1 4K@60Hz) default driver the MIPI7LCD (1024 * 600 LCD touch screen)
DP: 1 x Type C for DP 1.4 (8K@30Hz) Camera MIPI FPC slots 2 x MIPI CSI 4 lane (MIPI_CPHY0/MIPI_CPHY1) USB USB-A USB 2.0 * 2 (Limit 500mA) USB-A USB 3.0 * 1 (Limit 1A)
USB-C: TypeC * 1USB 3.1 OTG / DP 1.4L imit 2A USB socketUSB 2.0 * 14 pin header: PH-4A 2.0 mm Audio Output 1. 3.5 mm audio jack x 1 (with mic) 2. HDMI audio output 3. 4 pin headerJ368R/L/GND/MIC headerSH 1.25 mm (The signal is parallel to the 3.5 audio jack) Audio Input 1. 1. Microphone x1 (On board ) 2. MIC socket2pin header for MIC 3.3V 1.25 mm SH 1.25 3. 3. MIC in 3.5 mm audio jack M. 2 Socket M. 2-1 (BOTTOM) 2242 M-keyPCle Gen 2.0 lane 2 @support NVME SSD/SATA SSD @support 4G LTE (need M. 2 to MiniPCIE adapter board) M. 2-2 (TOP) 2230 E-keySupport moduleWIFI5+BT 5.0 / WIFI6+BT 5.2 30PIN Socket(PH 2.0 mm)
I2C: I2C * 3 (I2C1I2C3I2C7) default 3.3V UARTUART * 3 (UART5UART7UART9) default 3.3V CANCAN * 1 need CAN conversion board PWMPWM * 1 (PWM7)
ADC: ADC * 2 (ADC3ADC4)
GPIO: GPIO pin * 7 default 3.3V support 1.8V (need change BIOS) (GPIO1_A7/GPIO1_A4/GPIO1_D5/GPIO2_A6/GPIO1_B1/GPIO0_B0/GPIO0_A0)
VCC: VCC * 2 (VCC3v3VCC5v)
SPI(pin: 14, 16, 19, 21, 23) Reuses I2C7 and UART9 Debug port Debug UART * 1 UART2 3P SH 1.25 LED light LED * 2 red/green4 Pin out socket, parallelProgrammable
Button key * 4: Boot/Reset /Recovery /Power
Power DC jeck: 12V 5.5 x 2.1 mm12V3A
Pin socket red: 2Pin 2.54 pitch RTC RTC Button battery socket 2Pin 1.25 mm SH 1.25 Size 100 x 69.3 mm NFC NFC near field communication, Connect an external antenna, you can Data transfer with mobile phone, android/iOS support HDMI IN Maximum Support 4K@60Hz (YUV420 ) (option) Adapter board to the MIPI-CSI port RK628D OS Support Android 13(kernel 5.10 ) Debian 11(kernel 5.10 ) Ubuntu 22.04 (kernel 5.10 ) Linux Buildroot(kernel 5.10 ) OpenHarmony( 4.0 )
Storage eMMC: 32G/64G/128G/256GB (option) M. 2 slot (BOTTOM) M-Key @NVMe
SSD (PCIe) 2242ps: The speed is PCIe 2.0 @SATA 3.0 SSD m. 2 2242 MicroSD (TF) Card Slot Network EthernetRJ45 10/100/1000Mbps
Ethernet Wireless: M. 2(E-Key) Socket Expansion Slot
1. Wi-Fi5+BT 5.0 module (RTL8822CE) default driver 2. WI-FI6+BT 5.2 dual-band WiFi+BT module 4G LTE M. 2(M-Key)Socket Expansion Slot (default driver for EC20/EC25 4G LTE Data) (Need a 4G adapter board) VPU video Codec
Video decoding: 8K@60fps H. 265/H. 264/VP9/AVS2 8K@30fps H. 264 AVC/MVC 4K@60fps AV1 1080P@60fps MPEG-2/-1/VC-1/VP8
Video encoding: 8K@30fps H. 265 / H. 264 encoding (Up to 32-channel 1080P@30fps decoding + 16-channel 1080P@30fps encoding) Display Multi screen)
HDMI: 1 x HDMI 2.1 (8K@60Hz or 4K@120Hz) MIPI FPC2 x MIPI-DSI (DSI0/DSI1 4K@60Hz) default driver the MIPI7LCD (1024 * 600 LCD touch screen)
DP: 1 x Type C for DP 1.4 (8K@30Hz) Camera MIPI FPC slots 2 x MIPI CSI 4 lane (MIPI_CPHY0/MIPI_CPHY1) USB USB-A USB 2.0 * 2 (Limit 500mA) USB-A USB 3.0 * 1 (Limit 1A)
USB-C: TypeC * 1USB 3.1 OTG / DP 1.4L imit 2A USB socketUSB 2.0 * 14 pin header: PH-4A 2.0 mm Audio Output 1. 3.5 mm audio jack x 1 (with mic) 2. HDMI audio output 3. 4 pin headerJ368R/L/GND/MIC headerSH 1.25 mm (The signal is parallel to the 3.5 audio jack) Audio Input 1. 1. Microphone x1 (On board ) 2. MIC socket2pin header for MIC 3.3V 1.25 mm SH 1.25 3. 3. MIC in 3.5 mm audio jack M. 2 Socket M. 2-1 (BOTTOM) 2242 M-keyPCle Gen 2.0 lane 2 @support NVME SSD/SATA SSD @support 4G LTE (need M. 2 to MiniPCIE adapter board) M. 2-2 (TOP) 2230 E-keySupport moduleWIFI5+BT 5.0 / WIFI6+BT 5.2 30PIN Socket(PH 2.0 mm)
I2C: I2C * 3 (I2C1I2C3I2C7) default 3.3V UARTUART * 3 (UART5UART7UART9) default 3.3V CANCAN * 1 need CAN conversion board PWMPWM * 1 (PWM7)
ADC: ADC * 2 (ADC3ADC4)
GPIO: GPIO pin * 7 default 3.3V support 1.8V (need change BIOS) (GPIO1_A7/GPIO1_A4/GPIO1_D5/GPIO2_A6/GPIO1_B1/GPIO0_B0/GPIO0_A0)
VCC: VCC * 2 (VCC3v3VCC5v)
SPI(pin: 14, 16, 19, 21, 23) Reuses I2C7 and UART9 Debug port Debug UART * 1 UART2 3P SH 1.25 LED light LED * 2 red/green4 Pin out socket, parallelProgrammable
Button key * 4: Boot/Reset /Recovery /Power
Power DC jeck: 12V 5.5 x 2.1 mm12V3A
Pin socket red: 2Pin 2.54 pitch RTC RTC Button battery socket 2Pin 1.25 mm SH 1.25 Size 100 x 69.3 mm NFC NFC near field communication, Connect an external antenna, you can Data transfer with mobile phone, android/iOS support HDMI IN Maximum Support 4K@60Hz (YUV420 ) (option) Adapter board to the MIPI-CSI port RK628D OS Support Android 13(kernel 5.10 ) Debian 11(kernel 5.10 ) Ubuntu 22.04 (kernel 5.10 ) Linux Buildroot(kernel 5.10 ) OpenHarmony( 4.0 )
