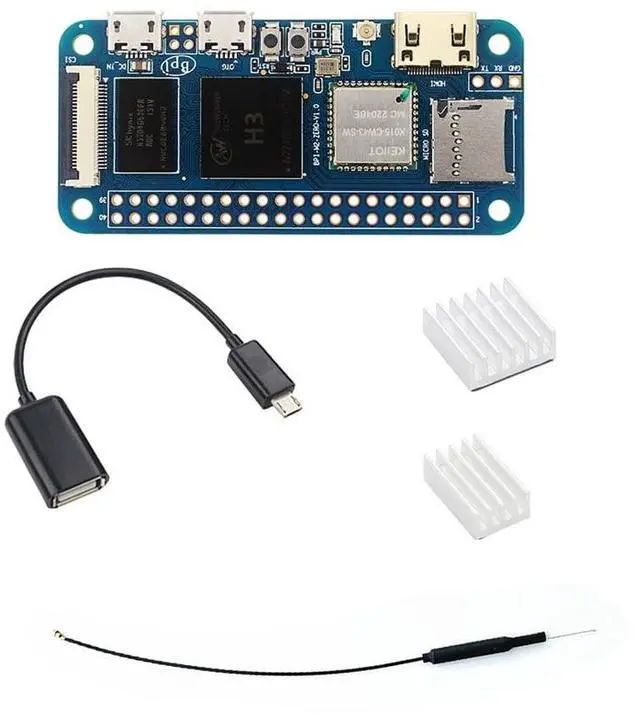

Banana pi M2 Zero Open Source Singal Board Computer, 512MB SDRAM Mini HDMI onboard WiFi (AP6212) & Bluetooth, Support Raspbian Android Armbian RetroPie Ubuntu (Heat Sink Set)
- The BPI M2 Zero has similar ports and features to the Raspberry Pi Zero W, but with a more powerful processor. Support Raspbian Stretch, kernel 4.4.; The BPI M2 use Quad Core ARM Cortex A7 CPU H3, 512MB SDRAM.; The BPI M2 come with WiFi (AP6212) & Bluetooth onboard.; Mini HDMI.40 Pin Raspberry Pi-compatible GPIO, including UART, SPI, I2C, etc.; When you power on, please pay attention to prevent static electricity damage and use the correct power supply voltage 5V 2A to input the mirco usb port of the DC input.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Product description Important Reminder This is BPI M2/P2 zero, not Raspberry Pi zero. M2 zero can only use the raspbian system provided by BPI. The Banana Pi M2 Zero is an ultra compact single board computer which measures only 60mm*30mm. Its external interfaces are the same as the Raspberry Pi Zero W, and it will fit almost all cases and accessories for the Zero W. It uses the quad-core Cortex A7 Allwinner H3(option H2+ H5) processor, with 512MB RAM. Its ideal for light-weight systems and space-limited applications. Like other members of the Banana Pi family, it supports both Linux and Android operating systems.
Haredware Spec: CPU H3 Quad-core Cortex-A7 H265/HEVC 1080P GPU Mali400MP2 GPU @600MHz, Supports OpenGL ES 2.0 Memory (SDRAM) 512M DDR3 (shared with GPU) Onboard Storage TF card (Max. 64GB) Onboard Network NOPE (but can extension with PIN define) Onboard WIFI SDIO AP6212option AP6181AP6335 Video decoding 1080p@60fps, H. 264 Video encoding 1080p@30fps, H. 264 Video input A CSI input connector Camera Video Outputs mini HDMI 1.4, 1080P@30fps, DHCP Audio Output Mini HDMI Power Source Micro USB with 5V/2A USB 2.0 Ports one USB 2.0 OTG Buttons Power Button, Reset Button Low-level peripherals 40 Pins Header, compatible with Raspberry Pi 3 uart GPIO (1x3) pin UART, ground
Supported OS Android: ( Android 4.4, kernel 3.4 )
Linux: ( Debian 9, Rasbian Stretch, Ubuntu 16.04 Mate Desktop and Ubuntu 16.04 Server, base on kernel 4.4 ) Banana pi M2 Zero Raspberry Pi Zero 2 W Add to Cart Buying Options Customer Reviews 3.4 out of 5 stars 7 4.1 out of 5 stars 35 Price $ 19.99 $19. 99 no data CPU H3 Quad-core Cortex-A7 H265/HEVC 1080P Broadcom BCM2835 32 Bit 1 GHz ARM1176JZF-S single-core GPU Mali400MP2 GPU @600MHz, Supports OpenGL ES 2.0 VideoCore IV Memory (SDRAM) 512M DDR3 (shared with GPU) 512 MB DDR2 TF card (Max. 64GB) Onboard WIFI SDIO AP6212option AP6181AP6335 802.11 n wireless, Bluetooth 4.1 Video decoding 1080p@60fps, H. 264 Video encoding 1080p@30fps, H. 264 1080p30 H. 264/MPEG-4 AVC high-profile decoder and encoder Video input A CSI input connector Camera CSI camera connector Video Outputs mini HDMI 1.4, 1080P@30fps, DHCP Mini HDMI and USB On-The-Go ports Supported OS Android/Linux Linux Product size(65mm × 30mm) M2 zero Only Board M2 zero Metal Case Bundle M2 zero Heat Sink Bundle P2 zero with Heat Sink P2 zero POE Bundle P2 zero Case Bundle Buying Options Buying Options Add to Cart Buying Options Buying Options Buying Options Customer Reviews 3.7 out of 5 stars 18 4.2 out of 5 stars 3 3.4 out of 5 stars 7 Price no data no data $ 19.99 $19.
99 no data no data no data Onboard Network no data no data NOPE (but can extension with PIN define) 100M LAN no data no data PoE power no data no data NOPE support no data no data Onboard flash no data no data NOPE 8G eMMC no data no data HardWare Specification of Banana pi BPI-P2 Zero VS BPI-M2 zero VS Raspberry Pi Zero W
Support Support: support @youyeetoo. com
Communication and customized consulting: even @youyeetoo.
com Whatsapp: +86 150 1406 1350
Forum: forum. youyeetoo. com (Recommend) If you need support or bulk inquiries, please also contact me.
Haredware Spec: CPU H3 Quad-core Cortex-A7 H265/HEVC 1080P GPU Mali400MP2 GPU @600MHz, Supports OpenGL ES 2.0 Memory (SDRAM) 512M DDR3 (shared with GPU) Onboard Storage TF card (Max. 64GB) Onboard Network NOPE (but can extension with PIN define) Onboard WIFI SDIO AP6212option AP6181AP6335 Video decoding 1080p@60fps, H. 264 Video encoding 1080p@30fps, H. 264 Video input A CSI input connector Camera Video Outputs mini HDMI 1.4, 1080P@30fps, DHCP Audio Output Mini HDMI Power Source Micro USB with 5V/2A USB 2.0 Ports one USB 2.0 OTG Buttons Power Button, Reset Button Low-level peripherals 40 Pins Header, compatible with Raspberry Pi 3 uart GPIO (1x3) pin UART, ground
Supported OS Android: ( Android 4.4, kernel 3.4 )
Linux: ( Debian 9, Rasbian Stretch, Ubuntu 16.04 Mate Desktop and Ubuntu 16.04 Server, base on kernel 4.4 ) Banana pi M2 Zero Raspberry Pi Zero 2 W Add to Cart Buying Options Customer Reviews 3.4 out of 5 stars 7 4.1 out of 5 stars 35 Price $ 19.99 $19. 99 no data CPU H3 Quad-core Cortex-A7 H265/HEVC 1080P Broadcom BCM2835 32 Bit 1 GHz ARM1176JZF-S single-core GPU Mali400MP2 GPU @600MHz, Supports OpenGL ES 2.0 VideoCore IV Memory (SDRAM) 512M DDR3 (shared with GPU) 512 MB DDR2 TF card (Max. 64GB) Onboard WIFI SDIO AP6212option AP6181AP6335 802.11 n wireless, Bluetooth 4.1 Video decoding 1080p@60fps, H. 264 Video encoding 1080p@30fps, H. 264 1080p30 H. 264/MPEG-4 AVC high-profile decoder and encoder Video input A CSI input connector Camera CSI camera connector Video Outputs mini HDMI 1.4, 1080P@30fps, DHCP Mini HDMI and USB On-The-Go ports Supported OS Android/Linux Linux Product size(65mm × 30mm) M2 zero Only Board M2 zero Metal Case Bundle M2 zero Heat Sink Bundle P2 zero with Heat Sink P2 zero POE Bundle P2 zero Case Bundle Buying Options Buying Options Add to Cart Buying Options Buying Options Buying Options Customer Reviews 3.7 out of 5 stars 18 4.2 out of 5 stars 3 3.4 out of 5 stars 7 Price no data no data $ 19.99 $19.
99 no data no data no data Onboard Network no data no data NOPE (but can extension with PIN define) 100M LAN no data no data PoE power no data no data NOPE support no data no data Onboard flash no data no data NOPE 8G eMMC no data no data HardWare Specification of Banana pi BPI-P2 Zero VS BPI-M2 zero VS Raspberry Pi Zero W
Support Support: support @youyeetoo. com
Communication and customized consulting: even @youyeetoo.
com Whatsapp: +86 150 1406 1350
Forum: forum. youyeetoo. com (Recommend) If you need support or bulk inquiries, please also contact me.
