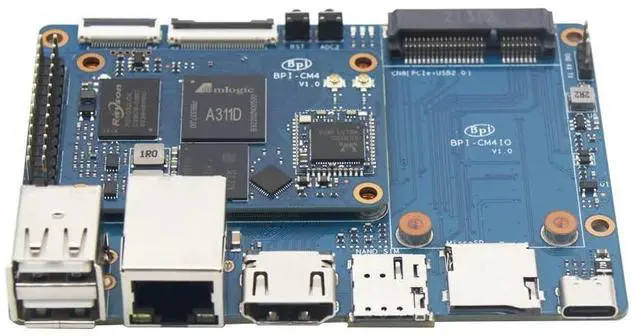

Banana Pi BPI-CM4,Raspberry Pi CM Compatible, Amlogic A311D Quad Core ARM Cortex-A73, 4G LPDDR4 16G eMMC Onboard WIFI5,Minipcie 26PIN Run Android Armbian Linux (BPI-CM4 + BPI-CM4IO)
- BPI-CM4 Amlogic based on A311D Quad core ARM Cortex-A73 and dual core ARM Cortex-A53 CPU ,ARM G52 MP4(6EE) GPU;NPU for AI :Next generation, deep-neural-network applications, at 5.0 TOPS;4GB LPDDR4 RAM;16GB eMMC flash (Max 128G); [Few incompatible compatible] BPI-CM4 is a computer module with Amlogic A311D, same size as Raspberry Pi CM4 module ,it also features the same connection pins, which means that it should work with carrier boards designed for the Raspberry Pi CM4 for A311D chip PIN limited . just support 1 HDMI ,1 CSI and 1 DSI , Raspberry Pi support 2 HDMI ,2 CSI and 2 DSI , Other is Pin2Pin . you can use Raspberry Pi CM4 baseboard.; BPI-CM4 provides the carrier board for BPI-CM4IO, which can be used with the carrier board to complete the development of the base board. It also supports the universal Raspberry Pi CM4 module expansion board, which can replace the Raspberry Pi CM4 to some extent.; The system supports Ubuntu 20.04 mate and server, Armbian 23.02, Debian10. Open source .you can build your own CM4 .and reviews:http(s)://github.com/geerlingguy/sbc-reviews/issues/11; [WIKI] http(s)://wiki.banana-pi.org/Banana_Pi_BPI-CM4#System_image; any question click "youyeetoo tech " to ask or mail am2atyouyeetoo.com(at>>>@)
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
ROM Capacity: 16GB
Memory Capacity: 4GB
Model Number: BPI-CM4
Origin: Mainland
China Certification: CE, FCC, RoHS Banana Pi BPI-CM4 is a computer module with Amlogic A311D, same size as Raspberry Pi CM4 module, it also features the same connection pins, which means that it should work with carrier boards designed for the Raspberry Pi CM4 for A311D chip PIN limited. just support 1 HDMI, 1 CSI and 1 DSI, Raspberry Pi support 2 HDMI, 2 CSI and 2 DSI, Other is Pin2Pin. you can use Raspberry Pi CM4 baseboard. Same sixe as RPI CM4 The BPI-CM4 computer module is exactly the same size as the raspberry PI CM4, and adopts the same interface, You can use the universal raspberry PI CM4 module expansion board
Noted: [Few incompatible compatible] It is compared with Raspberry Pi CM4 computing module, because the use of different chips, the function is not 100% compatible, the red box means not supported, the other is PIN2PIN Features Amlogic A311D Quad core ARM Cortex-A73 and dual core ARM Cortex-A53 CPU, ARM G52 MP4 (6EE) GPU NPU for
AI: Next generation, deep-neural-network applications, at 5.0 TOPS 4GB LPDDR4 RAM 16GB eMMC flash (Max 128G) support MIPI DSI Camera interface support MIPI CSI Screen interface Minipcie HDMI output 26 PIN GPIO Onboard WIFI 5 RTL8822CS support Android and Linux system.
Shipping List: BPI-CM4 x1 or BPI-CM4 x1 + BPI-CM4IO x1 If you have any questions, you can also leave a message. At the same time, we have a research and development team that can provide customized services. Support support @ youyeetoo. com, forum @youyeetoo. com
Communication and customized consulting: am2 @ youyeetoo. com
Memory Capacity: 4GB
Model Number: BPI-CM4
Origin: Mainland
China Certification: CE, FCC, RoHS Banana Pi BPI-CM4 is a computer module with Amlogic A311D, same size as Raspberry Pi CM4 module, it also features the same connection pins, which means that it should work with carrier boards designed for the Raspberry Pi CM4 for A311D chip PIN limited. just support 1 HDMI, 1 CSI and 1 DSI, Raspberry Pi support 2 HDMI, 2 CSI and 2 DSI, Other is Pin2Pin. you can use Raspberry Pi CM4 baseboard. Same sixe as RPI CM4 The BPI-CM4 computer module is exactly the same size as the raspberry PI CM4, and adopts the same interface, You can use the universal raspberry PI CM4 module expansion board
Noted: [Few incompatible compatible] It is compared with Raspberry Pi CM4 computing module, because the use of different chips, the function is not 100% compatible, the red box means not supported, the other is PIN2PIN Features Amlogic A311D Quad core ARM Cortex-A73 and dual core ARM Cortex-A53 CPU, ARM G52 MP4 (6EE) GPU NPU for
AI: Next generation, deep-neural-network applications, at 5.0 TOPS 4GB LPDDR4 RAM 16GB eMMC flash (Max 128G) support MIPI DSI Camera interface support MIPI CSI Screen interface Minipcie HDMI output 26 PIN GPIO Onboard WIFI 5 RTL8822CS support Android and Linux system.
Shipping List: BPI-CM4 x1 or BPI-CM4 x1 + BPI-CM4IO x1 If you have any questions, you can also leave a message. At the same time, we have a research and development team that can provide customized services. Support support @ youyeetoo. com, forum @youyeetoo. com
Communication and customized consulting: am2 @ youyeetoo. com
