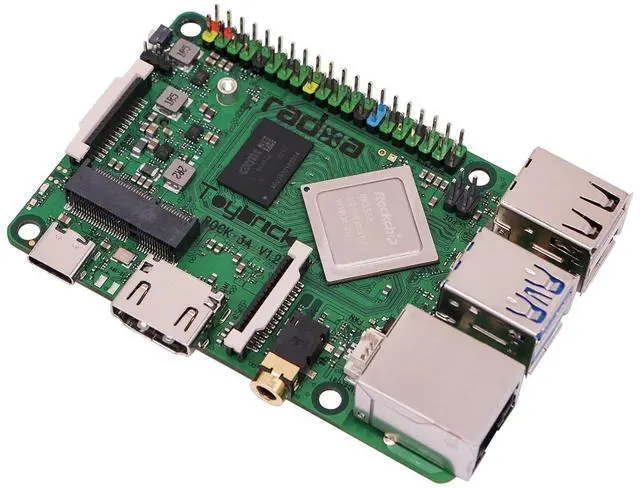

Rock 3 Model A SBC Rockchip RK3568 Quad-core Cortex-A55 Processor Brings M.2 Slots for NVMe SSD, WiFi 6 to Raspberry Pi Form Factor (8G Version)

Product description ROCK3 Model A ROCK3 is a series of Rockchip RK3566/RK3568 based SBC (Single Board Computer). It can run android or some Linux distributions. ROCK3 series features a quad core Cortex-A55 ARM processor, 32bit 3200Mb/s LPDDR4, up to 4K@60 HDMI, MIPI DSI, MIPI CSI, 3.5 mm jack with mic, USB Port, GbE LAN, PCIe 3.0, PCIe 2.0, 40-pin color expansion header, RTC. Also, ROCK3 supports USB PD and QC powering. ROCK 3A Product Defect Notice [Batch 2022-04-22/2022-06-15]--- 2022.08. 08 radxa told us that they had a problem with the power IC on their board, here
is their announcement: [forum] forum. radxa.
com/t/rock-3a-product-defect-notice-batch-2022-04-22-2022-06-15/11088 Radxa Sloutions: For ROCK 3A users who have purchased the affected products, we offer three solutions to remedy the situation: Free IP2315 IC for DIY users to self-repair R_eplace / r_efund the affected board through our distributor Free power adapter to provide the required power for those ROCK 3A We custom ordered a batch of 12V/2A USB-C power adapters from our supplier in very short notice. These special power adapters output 12V only without negotiation, and can support the high load operation of all peripherals connected to ROCK 3A. We will provide the matching adapter plug for the different countries. If you have any questions, please
contact me: charles @ youyeetoo. com ROCK 3 model A

Specifications

CPU Rockchip RK3568>> quad-core Cortex A55 processor at up to 2GHz GPU Mali G52 GPU, 0.8TOPS NPU Memory 2GB, 4GB, 8GB LPDDR4 3200Mb/s, up to 1560MHz Storage Pluggable eMMC module /M. 2 M key socket for NVMe with PCIe 3.0 x2 lanes /MicroSD card slot Video Output HDMI 2.0 port up to 4Kp60/1x MIPI DSI connector Audio 3.5 mm audio jack, digital audio via HDMI Camera 1x MIPI CSI connector Connectivity Gigabit Ethernet with PoE support - M. 2 E key for connectivity with PCIe 2.0 x1/SDIO/UART, including support for WiFi 6 cards USB 2x USB 2.0 ports, 2x USB 3.0 (1x OTG+1x HOST) ports both configurable in SATA mode with a SATA breakout cable Expansion Color-coded 40-pin GPIO header mostly compatible with ROCK Pi 4 and Raspberry Pi 3/4 Misc RTC with connector for backup battery Power Supply Via USB-C port with QC/PD power support through a new generation QC/PD protocol IC OS Debain / Ubuntu / Third Party Images (3) Dimensions 85 x 54 mm
Development Prepare: 1. SD card, at least 16GB
2. Type-C 18W QC power. 3. HDMI cable and display or USB-TTL serial
Noted: 40-pin
expansion header: Pin6 GND, Pin8 UART2_TXD, Pin10 UART2_RXD ROCK 3A will boot with the green power Led on. And after a while, the another blue Led starts blinking. If you need support or bulk inquiries, please
contact me: charles @ youyeetoo. com Follow-up preparations for the Starter Package, Standard Package, and Advanced Package. The ROCK 3A is powered by Type-C port and has a wide range of input voltage, from 9V to 21V. The ROCK 3A supports USB Type-C PD 2.0 with 9V/2A, 12V/2A, 15V/2A and 20V/2A. Besides, the Pi supports QC 3.0 / 2.0 with 9V/2A and 12V/ 1.5A. The Type-C cable you using needs to support data communication. We call it USB Type-C charging data cable. The voltage of external power is DC 12V. ROCK Pi 23W PoE HAT could power on ROCK 3A. EMMC Compatible with
ROCK PI 4 emmc module: ASIN B08LPG3K19 GPIO ROCK 3A supports libmraa GPIO library, libmraa support C/ C++/java/ javascript/python How to use, you can refer to the library for examples: github. com/eclipse/mraa/tree/master/examples 32G EMMC with adapter Only 32G emmc Buying Options Buying Options Customer Reviews 4.3 out of 5 stars 12 5.0 out of 5 stars 3 Storage 32GB 32GB
