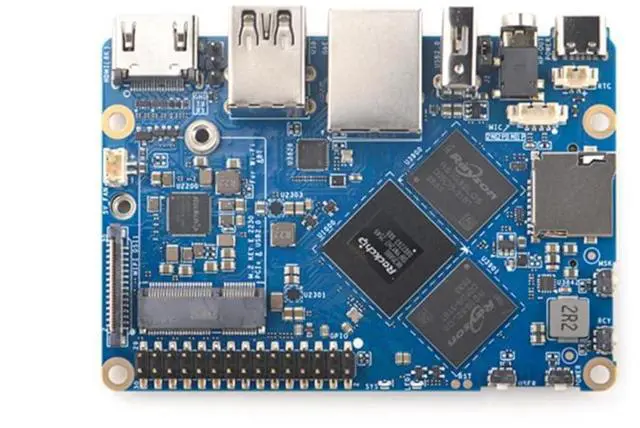

FriendlyElec NanoPi M6V2 RK3588S SBC, 8K LPDDR5 8GB RAM Bare Board | Octa-Core ARM, 6 TOPS NPU, Mali-G610 GPU, HDMI 2.1, M.2 NVMe & WiFi Slots, 30-Pin GPIO, Ubuntu & Android 14
- OCTA-CORE RK3588S PROCESSOR WITH 6 TOPS AI ENGINE The FriendlyElec NanoPi M6V2 is powered by the Rockchip RK3588S SoC, featuring four ARM Cortex-A76 cores clocked at up to 2.4GHz and four ARM Cortex-A55 cores at up to 1.8GHz in a 64-bit architecture. The integrated Mali-G610 MC4 GPU supports OpenGL ES, OpenCL, and Vulkan graphics APIs. The built-in 6 TOPS NPU handles INT4, INT8, INT16, and FP16 operations for on-device neural network inference and machine learning workloads at the edge.; 8K VIDEO OUTPUT WITH HDMI 2.1 AND DUAL MIPI-DSI DISPLAYS The NanoPi M6V2 delivers up to 8K@60Hz video through a full-size HDMI 2.1 port, with two additional 4-lane MIPI-DSI display interfaces for multi-screen embedded setups. A 4-lane MIPI-CSI camera connector supports external vision modules. The onboard VPU decodes 8K@60fps H.265, 8K@30fps H.264, and 4K@60fps AV1 streams and supports 8K hardware encoding for media playback and digital signage applications.; DUAL M.2 SLOTS FOR NVMe STORAGE AND WIFI EXPANSION The NanoPi M6V2 includes an M.2 M-Key 2280 slot (PCIe 2.1 x1) for NVMe SSD storage and an M.2 E-Key 2230 slot (PCIe 2.1 x1 + USB 2.0) for optional WiFi and Bluetooth modules with pre-loaded driver support. LPDDR5 memory is configurable in 4GB, 16GB, and 32GB options running at 2400MHz. Additional storage comes from an onboard eMMC socket and a MicroSD card slot supporting SDR104 high-speed mode. Built-in AES hardware encryption accelerates secure data processing.; COMPREHENSIVE LI
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
The FriendlyElec NanoPi M6V2 combines the octa-core RK3588S SoC with 6 TOPS NPU, 8K video, and on-device AI in a compact 62x90mm, 51g board.
SPECIFICATIONS Processor: RK3588S 4xA76@ 2.4GH z+4xA55@ 1.8GH z |
GPU: Mali-G610
MC4 NPU: 6 TOPS |
VPU: 8K@60fps H. 265/AV1 decode, 8K encode
Memory: LPDDR5 2400MHz (4/16/32GB) |
Storage: eMMC+MicroSD+M.
2 NVMe Display: HDMI 2.1 8K@60Hz+2x MIPI-DSI |
Camera: 1x
MIPI-CSI Network: Gigabit
Ethernet | USB: 1x 3.0 +2x 2.0 +USB-C PD (6-20V, 65W rec. )
Wireless: M. 2 E-Key 2230 (PCIe 2.1 x1+USB 2.0 ) |
GPIO: 30-pin+Debug
UART OS: Ubuntu 22/24, Debian 12/13, Android 14, Proxmox VE 8.2, OMV 8, FriendlyWrt, Alpine, Buildroot (Linux 6.1 LTS +
Docker) Audio: 3.5 mm+4-pin mic |
Size: 62x90x 1.6 mm/51g (bare) 68x 94.5 x30mm/242g (kit)
Temp: 0-70C | RTC socket, 5V fan, IR receiver, AES encryption
IDEAL FOR Edge AI: 6 TOPS NPU for on-device object detection with no cloud latency.
Home Server: M. 2 NVMe + Docker runs Jellyfin, Nextcloud, Home Assistant at once.
Digital Signage: Android 14 TV + 8K HDMI 2.1 + 0-70C industrial-grade reliability.
IN THE BOX Bare Board: 1x NanoPi M6V2 |
Metal Kit: board + enclosure (242g)
Optional: LCD kit, IMX415 camera, WiFi/BT module, NVMe SSD, RTC battery, fan, 65W
PSU FREQUENTLY ASKED QUESTIONS Q: What OS and apps can this run?
A: Ubuntu 22/24, Debian 12/13, Android 14 TV/Tablet, Proxmox VE, OMV, FriendlyWrt, Alpine, Buildroot (Linux 6.1 LTS). Home Assistant, Jellyfin, Nextcloud via Docker. 4GB min; 16GB+ for multi-service hosting.
SPECIFICATIONS Processor: RK3588S 4xA76@ 2.4GH z+4xA55@ 1.8GH z |
GPU: Mali-G610
MC4 NPU: 6 TOPS |
VPU: 8K@60fps H. 265/AV1 decode, 8K encode
Memory: LPDDR5 2400MHz (4/16/32GB) |
Storage: eMMC+MicroSD+M.
2 NVMe Display: HDMI 2.1 8K@60Hz+2x MIPI-DSI |
Camera: 1x
MIPI-CSI Network: Gigabit
Ethernet | USB: 1x 3.0 +2x 2.0 +USB-C PD (6-20V, 65W rec. )
Wireless: M. 2 E-Key 2230 (PCIe 2.1 x1+USB 2.0 ) |
GPIO: 30-pin+Debug
UART OS: Ubuntu 22/24, Debian 12/13, Android 14, Proxmox VE 8.2, OMV 8, FriendlyWrt, Alpine, Buildroot (Linux 6.1 LTS +
Docker) Audio: 3.5 mm+4-pin mic |
Size: 62x90x 1.6 mm/51g (bare) 68x 94.5 x30mm/242g (kit)
Temp: 0-70C | RTC socket, 5V fan, IR receiver, AES encryption
IDEAL FOR Edge AI: 6 TOPS NPU for on-device object detection with no cloud latency.
Home Server: M. 2 NVMe + Docker runs Jellyfin, Nextcloud, Home Assistant at once.
Digital Signage: Android 14 TV + 8K HDMI 2.1 + 0-70C industrial-grade reliability.
IN THE BOX Bare Board: 1x NanoPi M6V2 |
Metal Kit: board + enclosure (242g)
Optional: LCD kit, IMX415 camera, WiFi/BT module, NVMe SSD, RTC battery, fan, 65W
PSU FREQUENTLY ASKED QUESTIONS Q: What OS and apps can this run?
A: Ubuntu 22/24, Debian 12/13, Android 14 TV/Tablet, Proxmox VE, OMV, FriendlyWrt, Alpine, Buildroot (Linux 6.1 LTS). Home Assistant, Jellyfin, Nextcloud via Docker. 4GB min; 16GB+ for multi-service hosting.
