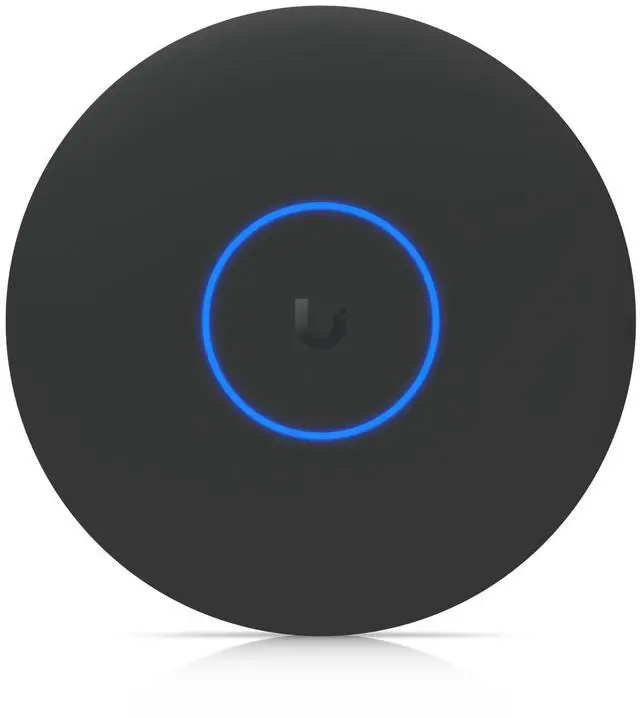

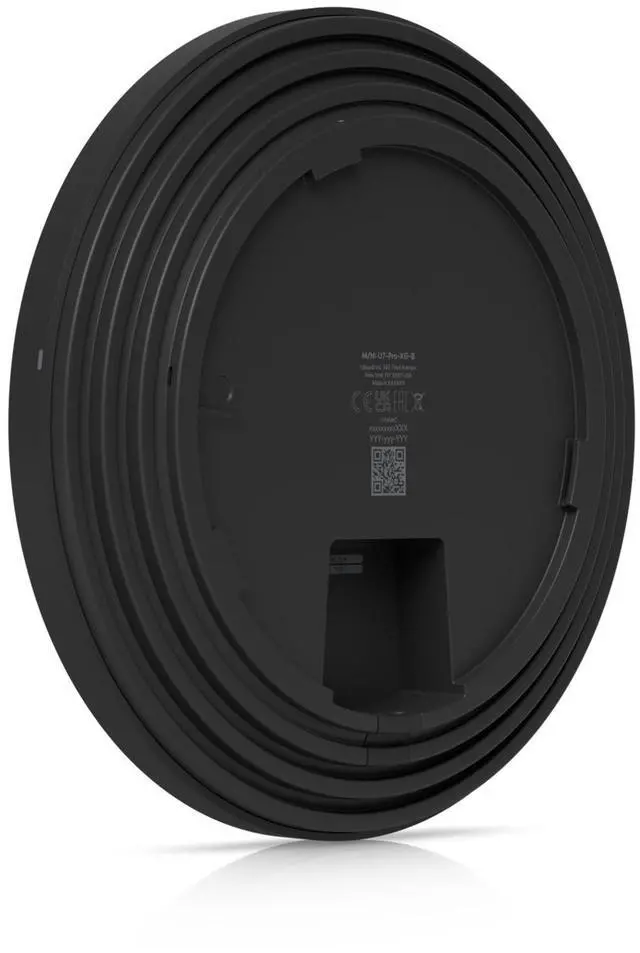

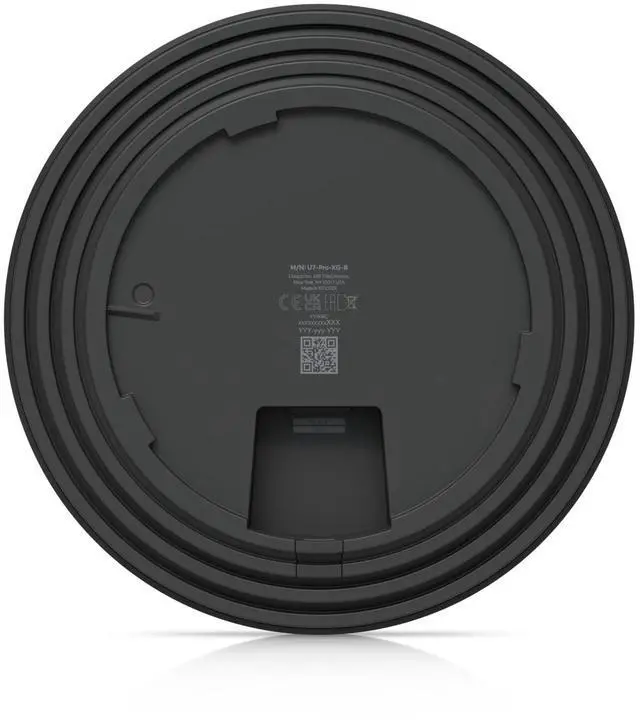

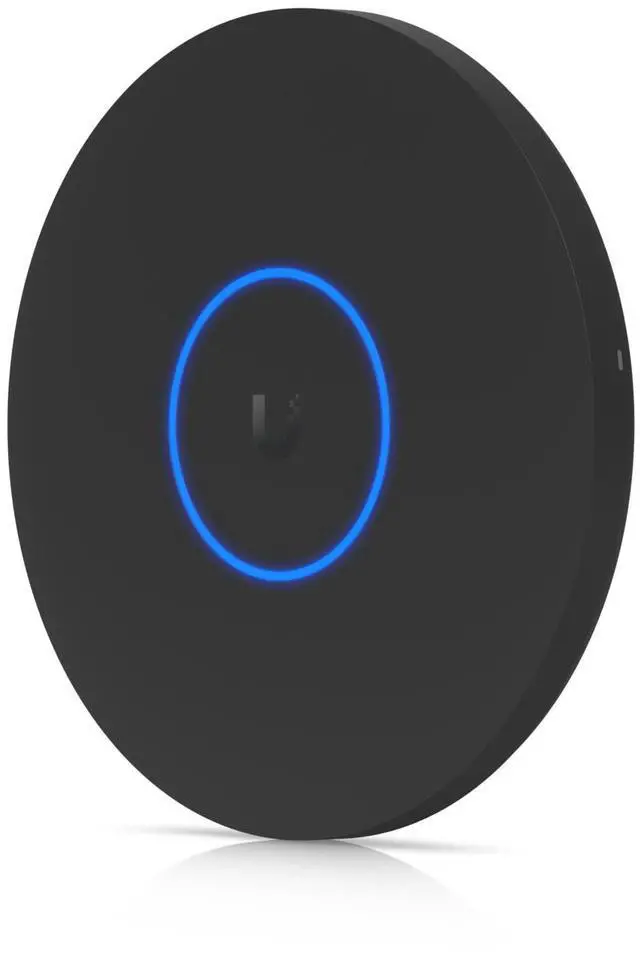

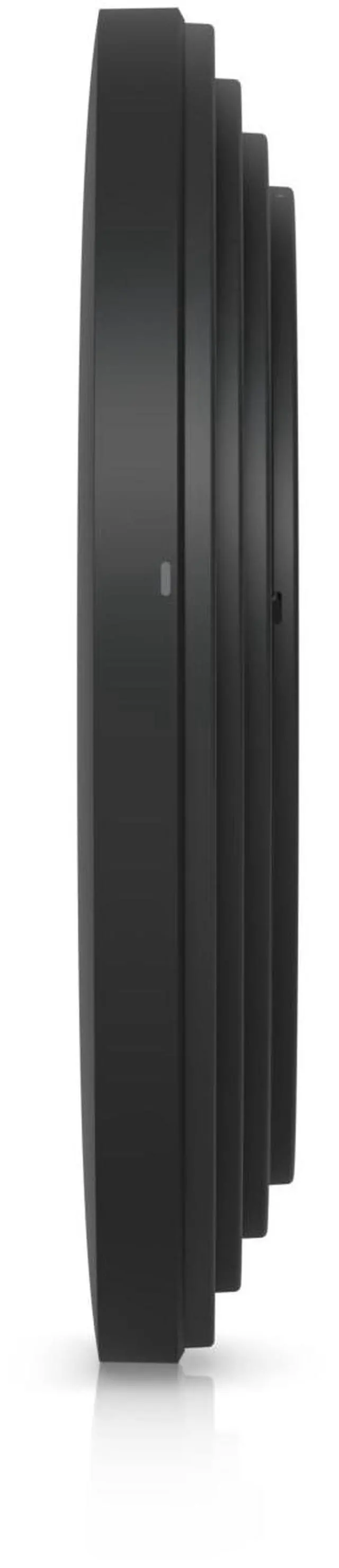

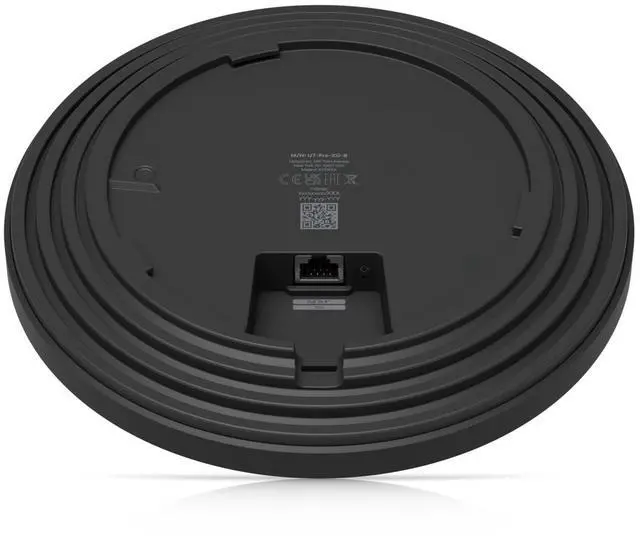

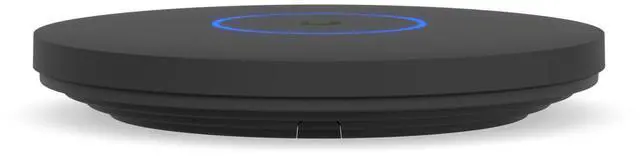

Ubiquiti U7 Pro XG, Ceiling-mounted 6-stream WiFi 7 Access Point, Black (U7-Pro-XG-B)
- Ceiling-mounted 6-stream WiFi 7 AP with 10/5/2.5/1 GbE support.
- WiFi Standard: WiFi 7
- Max Client Count: 300+
- Uplink: 10GbE
+
+
Overview
Specs
Reviews
See all Q & A
Any questions? Ask CelesteSM will help you find out quickly.
Try me now
Dimensions: Ø206 x 32.5 mm (Ø 8.1 x 1.3" )
WiFi Standard: WiFi 7
Spatial Streams: 6
Coverage Area: 140 m² (1, 500 ft²)
Max.
Client Count: 300+
Uplink: 10 GbE
Mounting: Ceiling, Wall (Lite Mount Included)
Power Method: PoE+
6 GHz: 2 x 2 (DL/UL MU-MIMO)
5 GHz: 2 x 2 (DL/UL MU-MIMO)
2.4 GHz: 2 x 2 (DL/UL MU-MIMO)
6 GHz: 5.8 Gbps (BW320)
5 GHz: 4.3 Gbps (BW240)
2.4 GHz: 688 Mbps (BW40)
6 GHz: 6 dBi
5 GHz: 5 dBi
2.4 GHz: 4 dBi
802.11 be (WiFi 7): 6
GHz: 7.3 Mbps to 5.8 Gbps (MCS0 - MCS13 NSS1/2, EHT 20/40/80/160/320)
802.11 ax (WiFi 6): 7.3 Mbps to 2.4 Gbps (MCS0 - MCS11 NSS1/2, HE 20/40/80/160)
802.11 ac (WiFi 5): 6.5 Mbps to 1.7G bps (MCS0 - MCS9 NSS1/2, VHT 20/40/80/160)
802.11 n: 6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40)
Wireless Meshing: Yes
Band Steering: Yes
802.11 v BSS Transition Management: Yes
802.11 r Fast Roaming: Yes
802.11 k Radio Resource Management: Yes
Advanced Radio Management: Yes
Passpoint (Hotspot 2.0 ): Yes
Captive Hotspot Portal: Yes
Custom Branding Landing Page: Yes
Max.
Power Consumption: 22W
Supported Voltage Range: 42.557V DC
Networking Interface: (1) 10 GbE RJ45 port
Weight: 750 g ( 1.7 lb)
Management: Ethernet
Enclosure Material: UV-stabilized polycarbonate, aluminum alloy
Mount Material: Stainless steel (SUS304), galvanized steel (SGCC)
WiFi Standard: WiFi 7
Spatial Streams: 6
Coverage Area: 140 m² (1, 500 ft²)
Max.
Client Count: 300+
Uplink: 10 GbE
Mounting: Ceiling, Wall (Lite Mount Included)
Power Method: PoE+
6 GHz: 2 x 2 (DL/UL MU-MIMO)
5 GHz: 2 x 2 (DL/UL MU-MIMO)
2.4 GHz: 2 x 2 (DL/UL MU-MIMO)
6 GHz: 5.8 Gbps (BW320)
5 GHz: 4.3 Gbps (BW240)
2.4 GHz: 688 Mbps (BW40)
6 GHz: 6 dBi
5 GHz: 5 dBi
2.4 GHz: 4 dBi
802.11 be (WiFi 7): 6
GHz: 7.3 Mbps to 5.8 Gbps (MCS0 - MCS13 NSS1/2, EHT 20/40/80/160/320)
802.11 ax (WiFi 6): 7.3 Mbps to 2.4 Gbps (MCS0 - MCS11 NSS1/2, HE 20/40/80/160)
802.11 ac (WiFi 5): 6.5 Mbps to 1.7G bps (MCS0 - MCS9 NSS1/2, VHT 20/40/80/160)
802.11 n: 6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40)
Wireless Meshing: Yes
Band Steering: Yes
802.11 v BSS Transition Management: Yes
802.11 r Fast Roaming: Yes
802.11 k Radio Resource Management: Yes
Advanced Radio Management: Yes
Passpoint (Hotspot 2.0 ): Yes
Captive Hotspot Portal: Yes
Custom Branding Landing Page: Yes
Max.
Power Consumption: 22W
Supported Voltage Range: 42.557V DC
Networking Interface: (1) 10 GbE RJ45 port
Weight: 750 g ( 1.7 lb)
Management: Ethernet
Enclosure Material: UV-stabilized polycarbonate, aluminum alloy
Mount Material: Stainless steel (SUS304), galvanized steel (SGCC)
