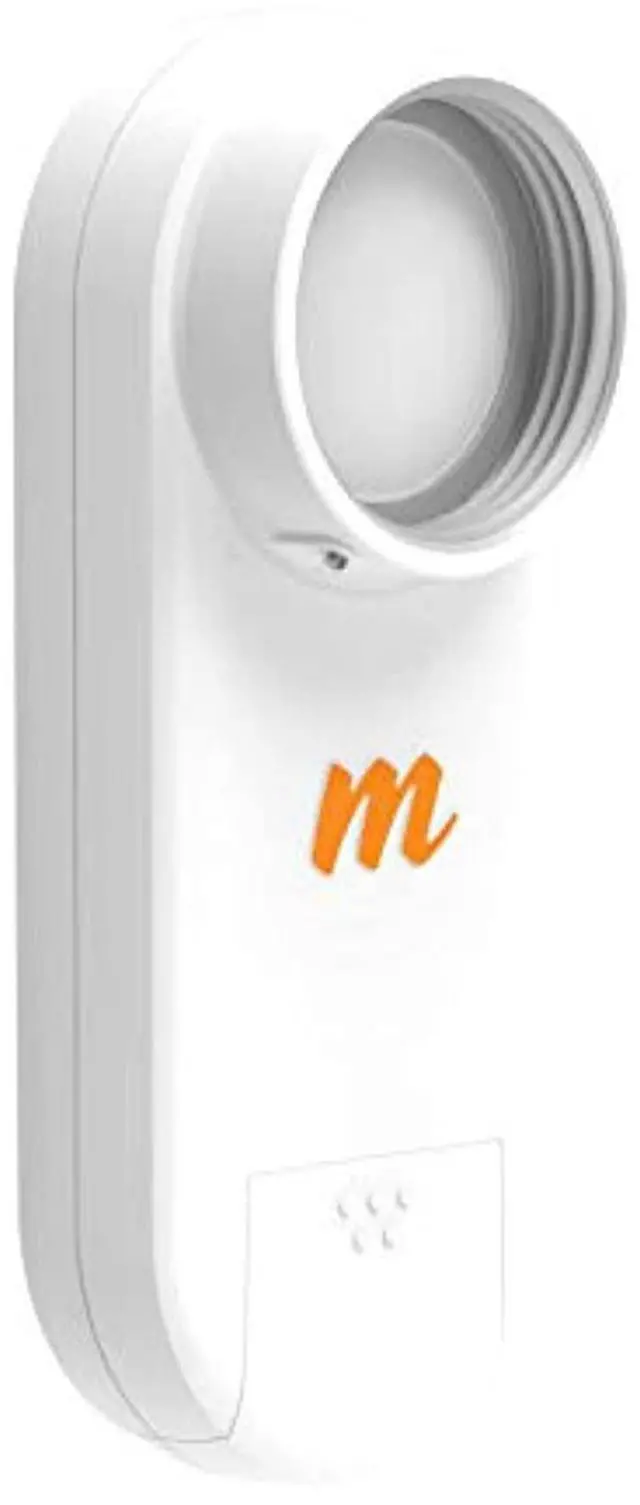

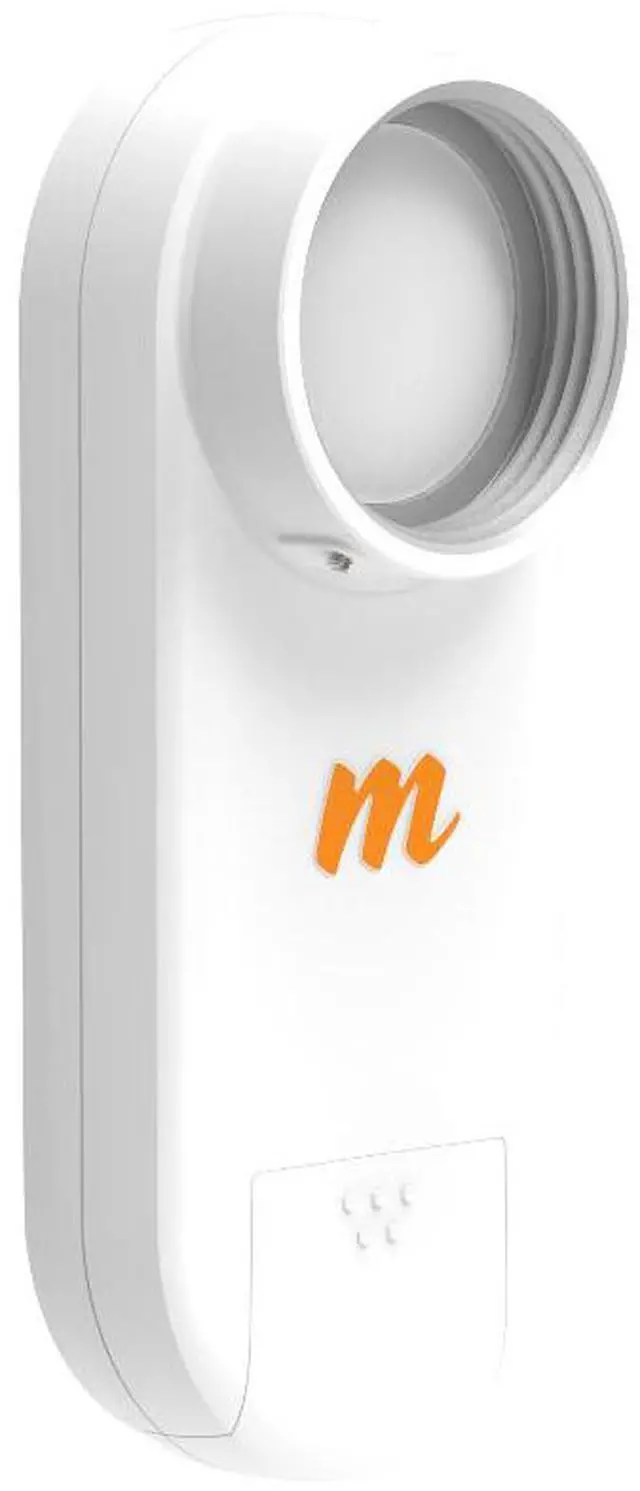

Mimosa Networks C5x 4.9-6.4GHz 8dBi Radio for PTMP/PTP Speeds above 100Mbps

Mimosa C5x, 8 dBi Modular Radio The Mimosa C5x, 8 dBi Modular Radio is the industry’s most versatile, modular, radio solution with five gain options (8, 12, 16, 20 and 25 dBi). The ultra-rugged solution provides frequency operation from 5.725 – 5.825 GHz, with best-in-class noise immunity. Delivering the ultimate in flexibility and value, the C5x is the go-to solution for 5 GHz deployments. The C5x can be used in PTMP mode with speeds of up to 500 Mbps, or PTP mode with speeds of up to 700 Mbps.

Operation mode: PTMP 500 Mbps PTP 700
Mbps Frequency: 4900-6400 MHz.
Gain: 8 d Bi (native). 12–25 d Bi (with antennas).
Maximum output power: 27 d
Bm IP rating: IP55
Power consumption: 12.9 W max. Requires Po E adapter ( POE-48 V) C5x CLIENT/ BACKHAUL Modular & Flexible The Mimosa C5x is the industry’s most versatile, integrated radio with four modular twist-on antenna options. The ultra-rugged solution provides extended frequency operation from 4.9 - 6.4 GHz, with best in class noise immunity. Delivering the ultimate in flexibility and cost efficiency, the C5x is the go-to PTP or PTMP solution for 5 GHz A N5- X12 12 d Bi 29 d B F/ B 27 d B F/ S N5- X16 16 d Bi 50 d B F/ B 43 d B F/ S N5- X20 20 d Bi 35 d B F/ B 37 d B F/ S N5- X25 25 d Bi 40 d B F/ B >45 d B F/ S APPLICATIONS Broadband Service Provider Public Safety Networks Enterprise & Campus Connectivity Multipoint Distribution for Security Smart Cities & Wi Fi UPGRADEABLE Ultimate Flexibility Out of the box, the entry level C5x can be used in PTMP or PTP mode with speeds of up to 700 Mbps. A FLEXIBLE Incredible RF Performance Encased in metal and leveraging custom-designed horn and Cassegrain antennas, the C5x reduces localized noise and provides immunity from interference with breakthrough front-to-back and front-to-side performance.

Each antenna in the N5- X family is optimized to isolate noise with incredible sidelobe rejection. WIDEBAND Extended Frequency To escape the noise, the C5x lets you take advantage of both 4.9 GHz public safety applications and licensed frequencies up to 6.4 GHz, where allowed by local regulations. The custom-designed N5- X modular antennas are specifically optimized for C5x extended frequency support. DESIGNED Ultra Rugged The C5x, with its die-cast aluminum metal enclosure, dual-pole mounts and industrial-grade, twist-on antenna options, is optimized to reduce noise, withstand the outdoor elements and stay mounted in extreme weather.
