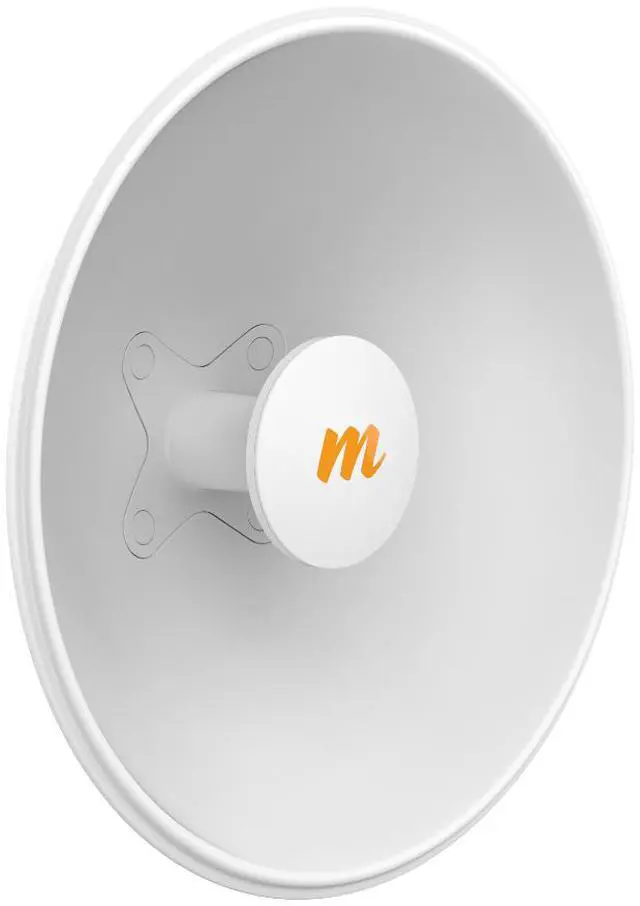

Mimosa Networks - N5-X25-2 - Mimosa N5-X25 twist-on, 4.96.4 GHz, 25 dBi, Dual-slant 45, Dish Antenna (2-pack)

Mimosa N5-X25 (2-pack) Mimosa N5-X25 twist-on, 4.9–6.4 GHz, 25 dBi, Dual-slant 45º, Dish Antenna The Mimosa C5x is the industry’s most versatile, modular, radio solution with five gain options (8, 12, 16, 20 and 25 dBi). The ultra-rugged solution provides extended frequency operation from 4.9–6.4 GHz, with best-in-class noise immunity. Delivering the ultimate in flexibility and value, the C5x is the go-to solution for 5 GHz deployments. Out of the box, the C5x can be used in PTMP mode, with Ethernet link speeds of up to 100 Mbps. With the purchase of a PTMP speed feature key, speeds of up to 500 Mbps will be unlocked in PTMP mode. In order to unlock and utilize PTP mode, with speeds of up to 700 Mbps, a PTP feature key must be purchased. Integrated Radio with Modular Antenna Options The C5x radio’s native 8 dBi gain can be increased to 12, 16, 20 or 25 dBi using Mimosa’s modular, N5-X, twist-on antennas, offering the ease and simplicity of integrated radios, but with so much more flexibility. Incredible RF Performance Available with either Cassegrain or horn antenna options, the C5x reduces localized noise and provides immunity from interference with breakthrough front-to-back and front-to-side performance. Each antenna in the N5-X family is optimized to isolate noise with incredible sidelobe rejection. Ultra Rugged The C5x, with its die-cast aluminum metal enclosure, dual pole mounts, and industrial-grade twist-on antenna options, is custom-engineered to reduce noise, withstand the outdoor elements and stay mounted in harsh wind and extreme weather. Extended Frequency 4.9–6.4 GHz To escape the noise, the C5x lets you take advantage of licensed frequencies from 4.9 GHz up to 6.4 GHz, where allowed by local regulations, including the public safety band in the US. The custom-designed N5-X modular antennas are specifically optimized for C5x extended frequency support. Applications: Broadband service providers Public safety and first responders Enterprise and campus building interconnecting Multipoint distribution for WiFi, video security and Smart Cities Features: Gigabit Ethernet: 10/100/1000-Base-T 1x, Radius provisioning, COA, DM (from A5); 128-bit AES with hardware acceleration VLANs: Per subscriber, VLAN, Q-in-Q, triple tagging, management VLAN QoS: Supports 4 pre-configured QoS levels Specifications Mimosa N5-X25 Product N5-X12 (dish) Gain 25 dBi Polarization Dual-slant 45º Beamwidth, Symmetric (3 dB) 8 dB Front-to-Back Ratio (min) 40 dB Front-to-Side Ratio (min) > 45 dB Weight of C5x + Antenna TBD Dimensions Diameter: 429 mm (16.89”) Depth: 116 mm (4.57”) Mount Mimosa N5-X twist-on Wind Survivability 200 km/h (125 mph) Wind Loading TBD Max Throughput PTP: 700 Mbps IP (866 PHY) (requires PTP feature key) PTMP: 500 Mbps IP (866 PHY) (requires PTMP speed feature key to go faster than 100BASE-T) Wireless Protocols Mimosa SRS; WiFi Interop Modes PTP Backhaul (requires feature key); PTMP Client Radio MIMO and Modulation 2x2:2 MIMO OFDM, up to 256 QAM Bandwidth 20/40/80 MHz channels, tunable to 5 MHz increments for Mimosa SRS and WiFi Interop mode Frequency Range PTP/PTMP: 4900–6400 MHz (restricted by country of operation) Max Output Power 27 dBm Sensitivity (MCS0) -87 dBm @ 80 MHz -90 dBm @ 40 MHz -93 dBm @ 20 MHz Power Max Power Consumption 9.2 W average; 12.9 W max System Power Method Passive POE (24-56 VDC PoE Power Supply Passive POE compliant, 24-56 V Power over Ethernet supply (not included) Physical Dimensions Height: 175 mm (6.89”) Width: 70 mm (2.75”) Depth: 61 mm (2.40”) Weight 0.4 kg (0.89 lbs) RF Connector Type Mimosa N5-X twist-on Enclosure Characteristics Outdoor, die-cast aluminum, UV stabilized paint Mounting Dual attached pole mount straps Grounding Ground lug Wind Survivability 200 km/h (125 mph) Environmental Outdoor Ingress Protection Rating IP55 Operating Temperature -40°C to +55°C (-40°F to 131°F) Operating Humidity 5 to 100% condensing Operating Altitude
