Cambium Networks - PL-E500INTA-US - cnPilot Enterprise E500 Outdoor 802.11ac 2x2 MIMO Dual Band Gigabit Access Point

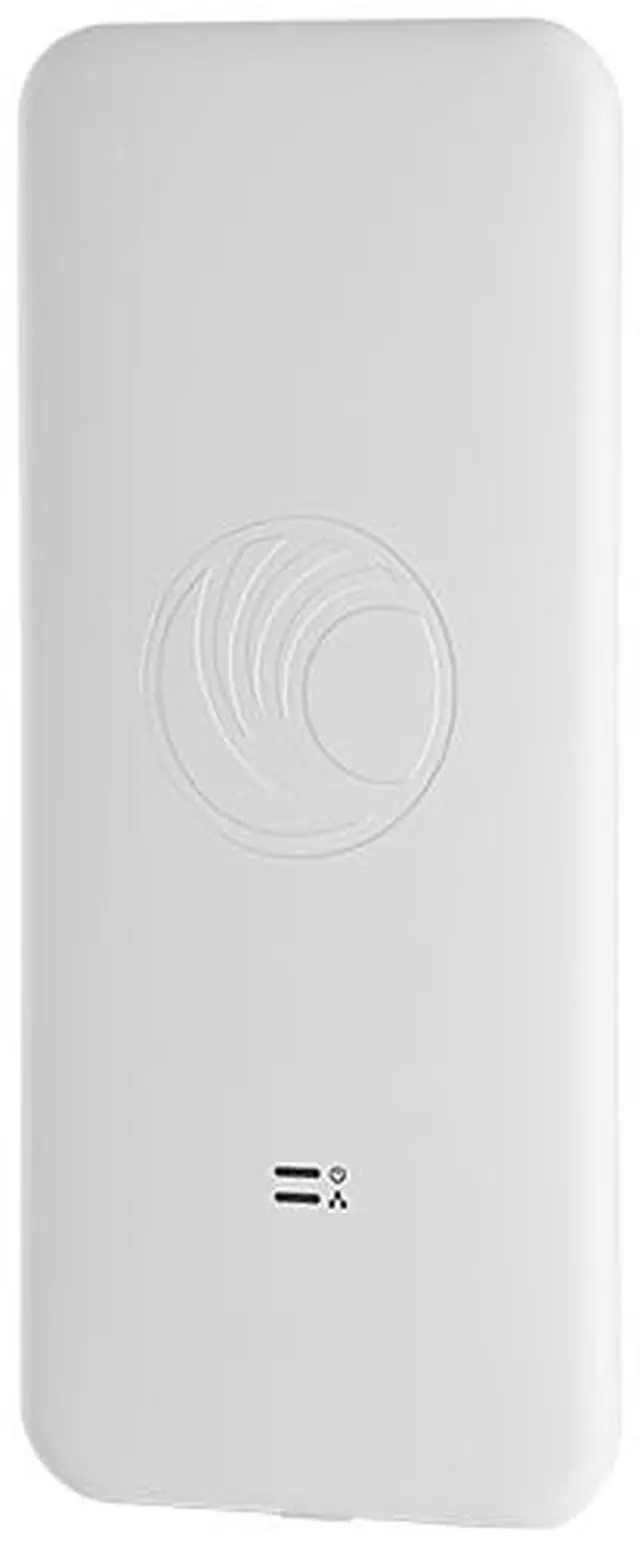

Cambium cnPilot™ E500 Outdoor Access Point
Cambium's cnPilot E500 Outdoor Access Point is for Enterprise campuses, Public WiFi, Hospitality, Educational institutions, Industrial campuses or just about any demanding outdoor environment requiring cost-effective, controller managed WLAN Access superiority - Supporting 256 max concurrent client associations, up to 16 SSI
Ds, WPA-2 encryption, Dynamic VLA
Ns, DFS channels, Access control lists (ACL), and more, the zero touch provisioned 802.11 ac E500 is the essential workhorse for demanding high density outdoor WiFi networks
High performance WiFi network - All cnPilot’s Enterprise Access Points (APs), including the E500 series support features like controller-less roaming, automatic channel scanning (ACS), band steering, pre-set scheduling of SSI
Ds RADIUS based dynamic rate limiting per SSID and more – all needed essential features for real world WiFi deployment
Mesh Rapidly setup multiple E500 APs via a mesh network with ability to dedicate one radio (for example 5 GHz) for mesh backhaul and use the other radio ( 2.4 GHz) for client access
Flexible Backhaul - All E500 APs come with two Gigabit Ethernet ports and the ability to configure one of the ports asPoE out – perfect for powering on any standard 802.3 af equipment. When paired with Cambium’s PMP450 or ePMP™ backhaul subscriber modules (SMs), the E500 can also drive power to the backhaul module eliminating the need for a second power line
Resilience - Dual on-board Active/Standby memory banks ensure the E500 can store two versions of the software and if needed fall back to a working operational software, reducing the likelihood of site visits and increasing network up-time. Specifications PL-E500INTA-US Frequency Bands 2.4
GHz: 2.4 - 2.4835 GHz (Channels 1-13 ETSI/CE; Channels 1-11 US); 5
GHz: 5.15 - 5.85 GHz SSID Security WPA-2 ( 802.11 i): WPA2-Enterprise ( 802.1 x/EAP) & WPA2-Preshared-keys, Open Max SSI
Ds 16 Max Concurrent Clients 256 Max Range (Client) 213 m (700 ft); Actual range will vary based on local RF conditions and client capability Max Range (Mesh) 2.4
GHz: 3, 000 m (9840 ft); 5
GHz: 1500 m (4900 ft) Max Data Rates 1.01 Gbps Ethernet Ports Dual Gigabit Ethernet ports (2 x 10/100/1000Base-T) Antenna Dual polarized, 2x2 MIMO, Integrated Omni (360°) antenna Antenna Gain 5 dBi Power Supply 56V / 30W Gigabit passive PoE injector
PoE Out: Aux port capable of 802.3 af Power out or Canopy power (for supported Cambium ePMP or PMP 450 SMs) Transmit Power 29dBm @ 2.4 GHz; 28dBm @ 5 GHz
Power Consumed Typical: 8W /
Max: 12.95W (no auxiliary device connected) Dimensions 30 x 20.4 x 6.5 cm ( 11.8 x 8 x 2.56 in)
Weight: Without bracket 881 g ( 0.88
Kg); with bracket: 1063 g ( 1.06 Kg) Operating Temperature -30°C to +60*deg; F (-22°F to +140°F) Mounting Options Pole mount bracket (included) or wall-mount (with included bracket or without) LTE Co-Existence Special filter for rejecting interference on 2.4 GHz from adjacent LTE bands 38, 40 Physical Security Kensington Lock bracket Visual Status Two (2) multi-color LEDs indicating Access Point & cnMaestro connectivity status
