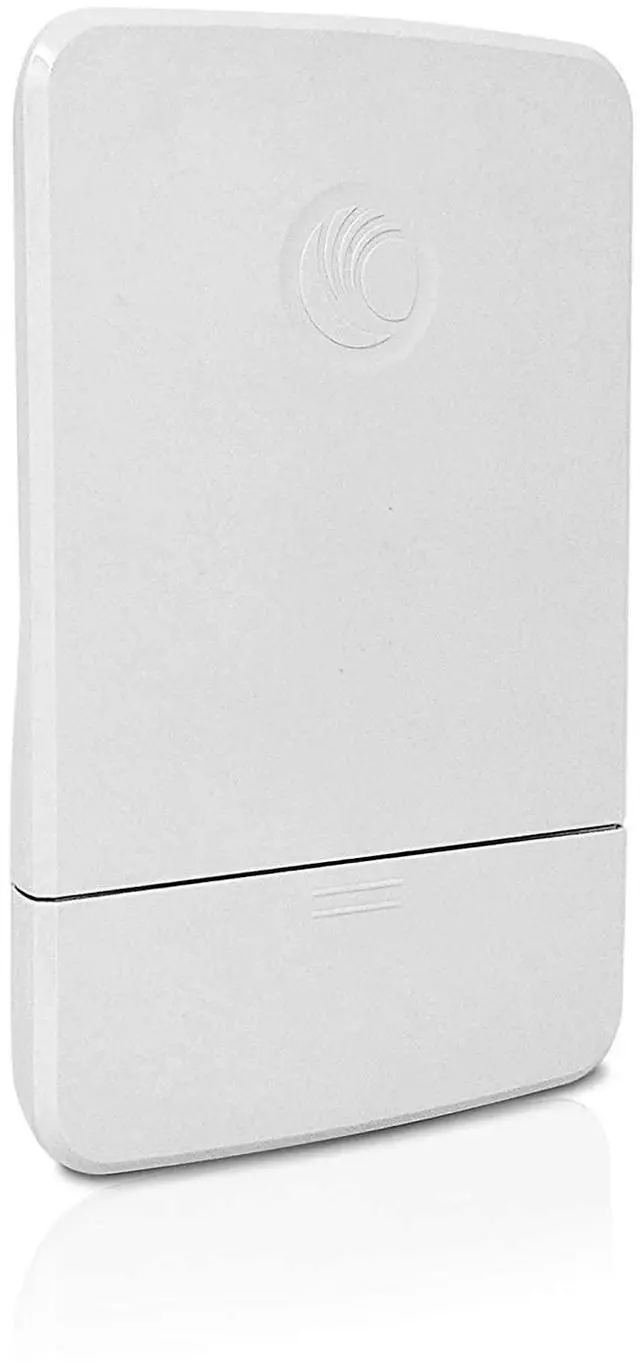

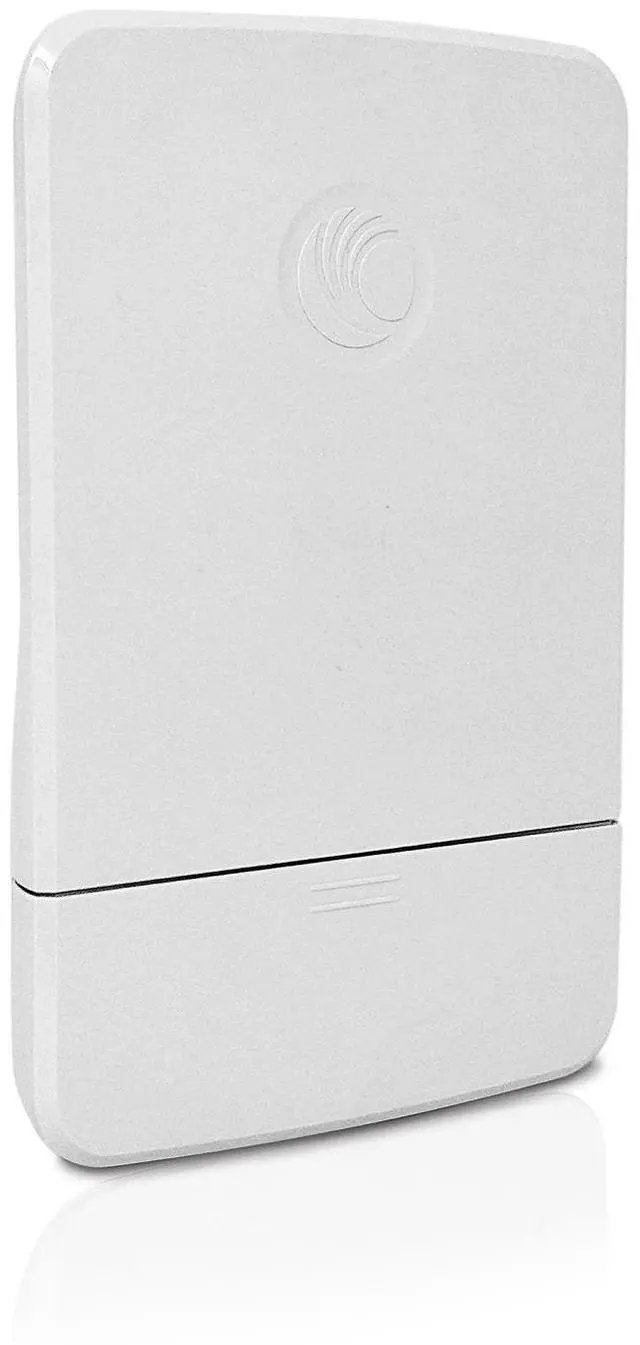

Cambium Networks - C058900C701A - ePMP Force 300-13, 5GHz Subscriber Module with 13 dBi Integrated Antenna, FCC. US

ePMP[tm] Force 300-13Wireless service providers and enterprises around the globe are challenged to deliver reliable connectivity in overcrowded RF environments. As spectrum increasingly becomes a scarce commodity, finding the right broadband connectivity solution is vital for all low and high-density deployments. Cambium Networks resolves this challenge with a breakthrough technology solution that delivers superior performance, resiliency and reach in the most congested environments. Combining the latest 802. llac Wave 2 technology and the field proven scalable performance of ePMP, the Force 300-13 delivers up to 600 Mbps of capacity. The Force 300-13 is a powerful yet affordable subscriber module compatible with the ePMP 3000 Access Point and using the forward compatibility features alsointeroperates with the ePMP 2000 to ease the migration into the 802.

llac Wave 2 Force 300-13 has a 13 dBi integrated antenna with a narrow: * Cambium Networks' ePMP Force 300-13 is designed to operate in high interference environments and provides superior throughput up to 600 Mbps of real user data. * The ePMP Force 300-13 supports channel sizes from 20 MHz up to 80 MHz and modulations up to 256QAM. * The ePMP Force 300-13 supports real time spectrum monitoring without degradation in throughput. * Configurable modes of operation ensure robust adaptivity to both symmetrical and asymmetrical traffic while providing high performance and round-trip latency as low as 3-5 ms. * QoS management offers outstanding quality for triple play services - VoIP, video, and data - and provides three levels of traffic priority. * The integrated 13 dBi panel antenna has a small form factor and provides excellent range. Refer to Cambium Networks LINK
Planner[tm] for estimating capacity and availability. * Installations are quick and reliable supporting both pole and wall mounting.
Product

Specifications

: Channel
Spacing: Configurable in 5MHz increments
Frequency Range: Wide Band Operation 4910MHz - 5970MHz (Note: Allowable frequencies and bands are dictated by individual country regulations. )
Channel Width: 20 / 40 / 80 MAC (Media
Access Control) Layer: Cambium
Proprietary Physical Layer: 802.11 ac Wave 2 (2x2 MIMO/OFDM)
Ethernet Interfaced: 10/100/1000 BaseT, Compatible with Cambium PoE & Standard PoE pinouts
Protocols Used: IPv4/IPv6 (Dual Stack), UDP, TCP, ICMP, SNM
Pv2c, NTP, STP, IGMP, SSH 1Q with 802.1 p priority
ARQ: Yes Nominal Receive Sensitivity (w/FEC) @ 20MHz
Channel: MCS0= -89 dBm MCS8 (256 QAM -3/4)= -68dBm (per chain) Nominal Receive Sensitivity (w/FEC) @ 40MHz
Channel: MCS0= -87 dBm MCS8 (256 QAM -3/4)= -68dBm (per chain) Nominal Receive Sensitivity (w/FEC) @ 80MHz
Channel: MCS0= -84 dBm MCS8 (256 QAM -3/4)= -68dBm (per chain)
Modulation Levels (Adaptive): MCS0 (BPSK) to MCS9 (256 Qam -5/6)
Transmit Power Range: 0 to +28 dBm (combined up to the regional EIPR limit) (1 dB interval)
Surge Suppression: 1 Joule Integrated (C000000L065A - 30V Gigabit surge suppressor is recommended for optimum protection)
Environmental: IP55
Temperature: -30°C to +60°C (-22°F to +140°F)
Weight: 0.48 kg ( 1.05 lbs. ) (includes integrated mounting bracket)
Wind Survival: 180 km/hour (112 mi/hour) Dimensions (Dia x
Depth): 13.0 x 20.3 x 5.40 cm ( 5.1 x 8.0 x 2.1 inches)
Pole Diameter Range: 1 1.6 in ( 2.5 4.1 cm) with included clamp; up to 2.25 in ( 5.7 cm) with larger clamp
Power Consumption: 12 Watts
Input Voltage: Passive POE (30 VDC Nominal); 14-30 VDC range
Encryption: 128-bit AES (CCMP mode)
FCCID: Z8H89FT0048
Industry Canada Cert: 109W-0048
CE: EN 301 893 V 2.1. 1 ( 5.4 GHz), EN 302 502 V 2.1. 1 ( 5.8 GHz)**
Frequency Range: 4.9 5.970 MHz
Antenna Type: Panel
Peak Gain: 13 dBi 3dB
Beam-width- Azimuth: 30 degrees 3dB Beam-width -
Elevation: 28 degrees
Product Includes: (1) Force 300-13 Antenna (1) Mounting Bracket (1) User Manual
