RF Elements HG3-CC-S60 5GHz Symmetrical Horn Carrier Class 60°

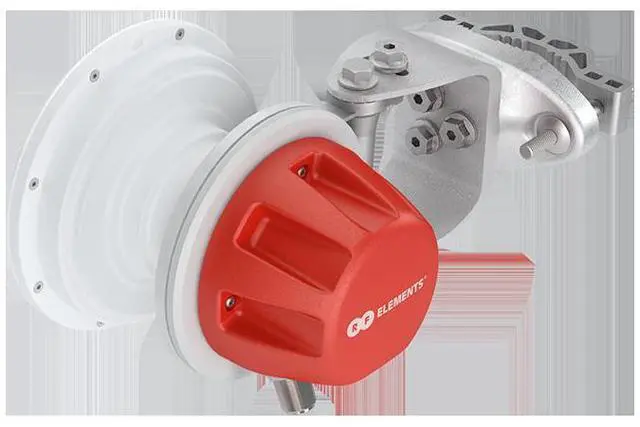

The RF elements 60 Degree Gen2 Carrier Class Symmetrical Horn Antenna offers unique RF performance in a compact package. Scalar horn antennas have symmetrical main beam with identical beam width in Vertical and Horizontal plane. Exceptionally small side lobes ensure remarkable interference suppression. The RF elements HG3-CC-S60 Gen2 Antenna is ideal for coverage of areas with clients close to the installation site, where null zone issues exist. High density AP clusters and radio co-location is made possible due to the unique radiation pattern and compact size. The RF Elements Symmetrical Horn CC Antenna Gen2 features multiple improvements of RF performance and design, namely, optically lighter body and significantly improved bracket.

Radome is made of more resistant material, and all of HG3-CC Gen2 antennas use only two radome sizes. The RF elements 60 Degree Gen2 Carrier Class Symmetrical Horn Antenna offers unique RF performance in a compact package. Scalar horn antennas have symmetrical main beam with identical beam width in Vertical and Horizontal plane. Exceptionally small side lobes ensure remarkable interference suppression. The RF elements HG3-CC-S60 Gen2 Antenna is ideal for coverage of areas with clients close to the installation site, where null zone issues exist. High density AP clusters and radio co-location is made possible due to the unique radiation pattern and compact size.

The RF elements Symmetrical Horn CC Antenna Gen2 features multiple improvements of RF performance and design, namely, optically lighter body and significantly improved bracket. Radome is made of more resistant material, and all of HG3-CC Gen2 antennas use only two radome sizes. The RF elements 60 Degree Gen2 Carrier Class Symmetrical Horn Antenna is equipped with N-female connectors.
Product Features Radio Connection: 2x N Female Bulkhead
Connector Antenna Type: Horn
Materials: UV Resistant Polycarbonate, Polypropylene, Aluminum, Zinc, Stainless
Steel Environmental: IP55
Flame Rating: UL 94 HB Pole
Mounting Diameter: 30-80mm (RF Elements recommends as close as possible to 80mm)
Temperature: -30°C to +55°C (-22°F to +131°F)
Wind Survival: 160
Km/Hour Wind Loading: 22 N at 160
Km/Hour Mechanical Tilt: ±25° Product

Specifications

Frequency Range: 5180 - 6400
MHz Gain: 13.2 dBi Azimuth
Beam Width -3dB: H 41° / V 41° Elevation
Beam Width -3dB: H 41° / V 41° Azimuth
Beam Width -6dB: H 60° / V 60° Elevation
Beam Width -6dB: H 60° / V 60°
Front-to-Back Ratio: 32 dB VSWR Max 5180-5850
MHz: 1.6 VSWR Max 5850-6400
MHz: 1.6
Beam Efficiency: 90%
Polarization: Double Linear H +
V Impedance: 50 Ohm Product Includes (1) Symmetrical Horn-Carrier Class Body (1) Symmetrical Horn-Carrier Class Bracket (2) M8 x 75mm Screw Product Documentation HG3-CC-S60 Data Sheet HG3-CC-S60 Installation Guide
