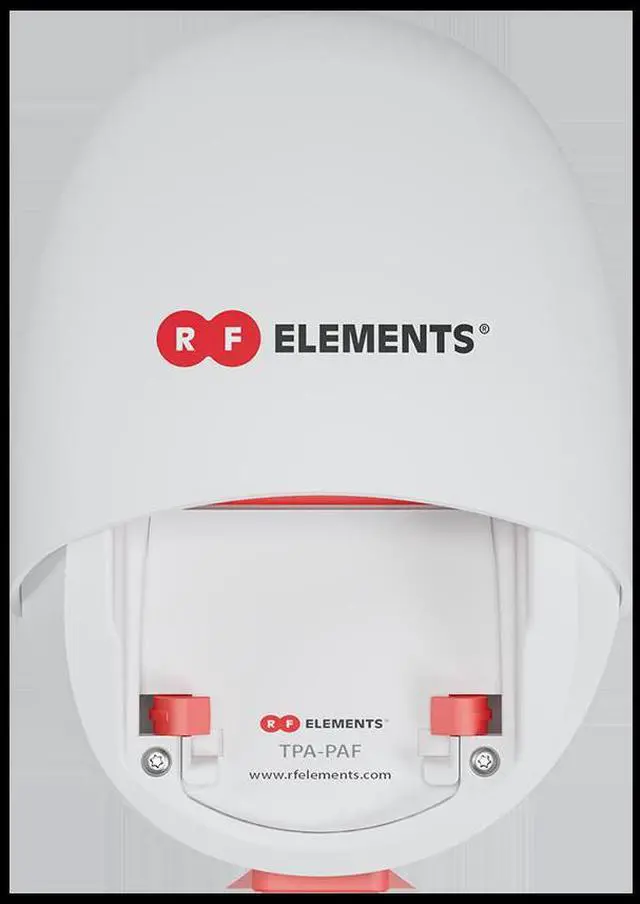

RF Elements TPA-PAF TP Adapt-Rocket Prism 5AC and AF-5X

The RF elements TPA-PAF makes The RF elements TPA-PAF makes LTU Rocket, Rocket Prism 5AC, Rocket Prism 5AC Gen2, airFiber 5X and airFiber 5XHD compatible with any TwistPort antenna. TPA-PAF contains well protected space for GPS antenna that comes with UBNT Radios. Connecting and disconnecting the radio from the TwistPort Adaptor is very simple and requires no tools.
Product Features Antenna Connection: TwistPort- Quick Locking Waveguide Port Radio Connection: 2x Slide-On RPSMA and 1x SMA for GPS Materials Insert- Aluminum Alloy Adapter- UV stabilized and weather-resistant
ABS Plastic Flame Rating: UL 94
HB Temperature: -40°C to +60°C(-40°F to +140°F)
Wind Survival: 160 Km/H
Product

Specifications

Frequency Range: 5180-6400
MHz Polarization: Dual Linear H +
V VSWR Max: 1.8
Impedance: 50 Ohm Compatible Wireless Platforms RF Elements- Any TwistPort
Antenna Ubiquiti Networks: LTU Rocket, Rocket Prism 5AC, Rocket Prism 5AC Gen2, airFiber 5X, airFiber 5XHD Product Includes (1) TwistPort Adapter (1) AF5X and LTU Mount Adapter Product Documentation TPA-PAF Data Sheet TPA-PAF User Guide

Specifications

TPA-PAF Antenna Connection TwistPort - Quick Locking Waveguide Port Radio Connection 2x Slide-On RP-SMA and 1x RP-SMA for GPS Materials Insert - Aluminium Alloy Adaptor - UV stabilized and weather resistant ABS plastic Flame Rating UL 94 HB Temperature -40°C to +60°C (-40°F to +140°F) Wind Survival 160 km/h Weight 0.34 Kg / 0.75 lbs single unit 0.52 Kg / 1.14 lbs single unit incl. package 11.2 Kg / 24.7 lbs carton (20 units) PERFORMANCE Frequency Range 5180 - 6400 MHz Polarization Dual Linear H + V VSWR Max 1.8 Impedance 50 Ohm COMPATIBLE WIRELESS PLATFORMS RF elements® any TwistPort Antenna Ubiquiti Networks® Rocket® Prism 5AC, Rocket® Prism 5AC Gen2 airFiber® 5X, airFiber® 5X-HD
