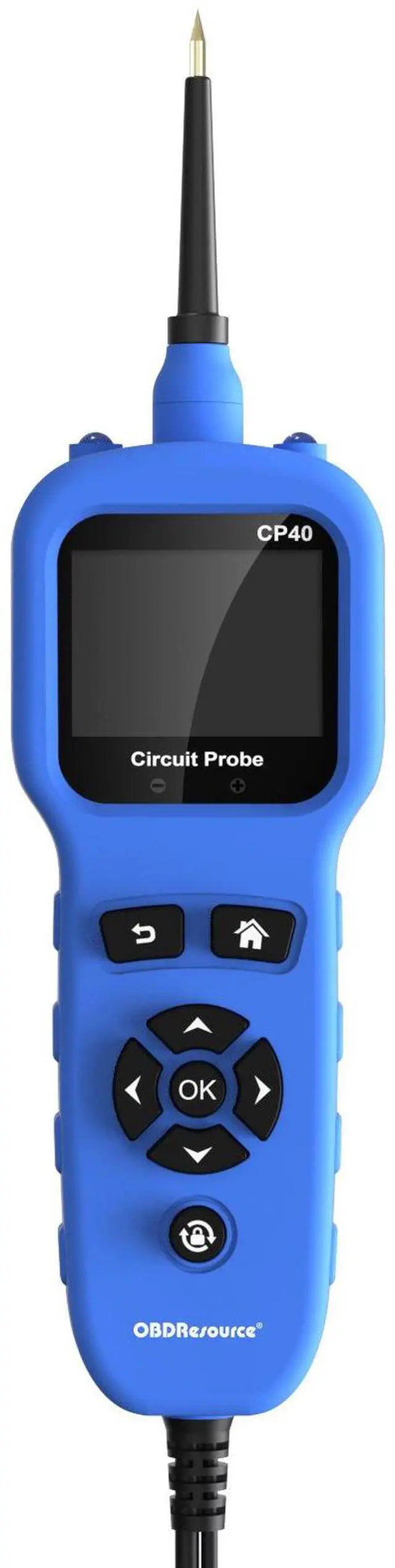

CP40 Automotive Circuit Tester - Specialized for ProbCircut 12V/24V 4-in-1 Application
- Advantages
- CP40 is a comprehensive repair tool launched by our company in 2024, integrating functions such as automotive wiring test, fuel injector test, automotive multimeter, oscilloscope, and professional battery tester. This product offers high testing accuracy and fast response speed, making it suitable for various complex repair scenarios. Among them, the data acquisition and simulation of fuel injectors provide a convenient and user-friendly experience in repairing fuel injectors.
- Application

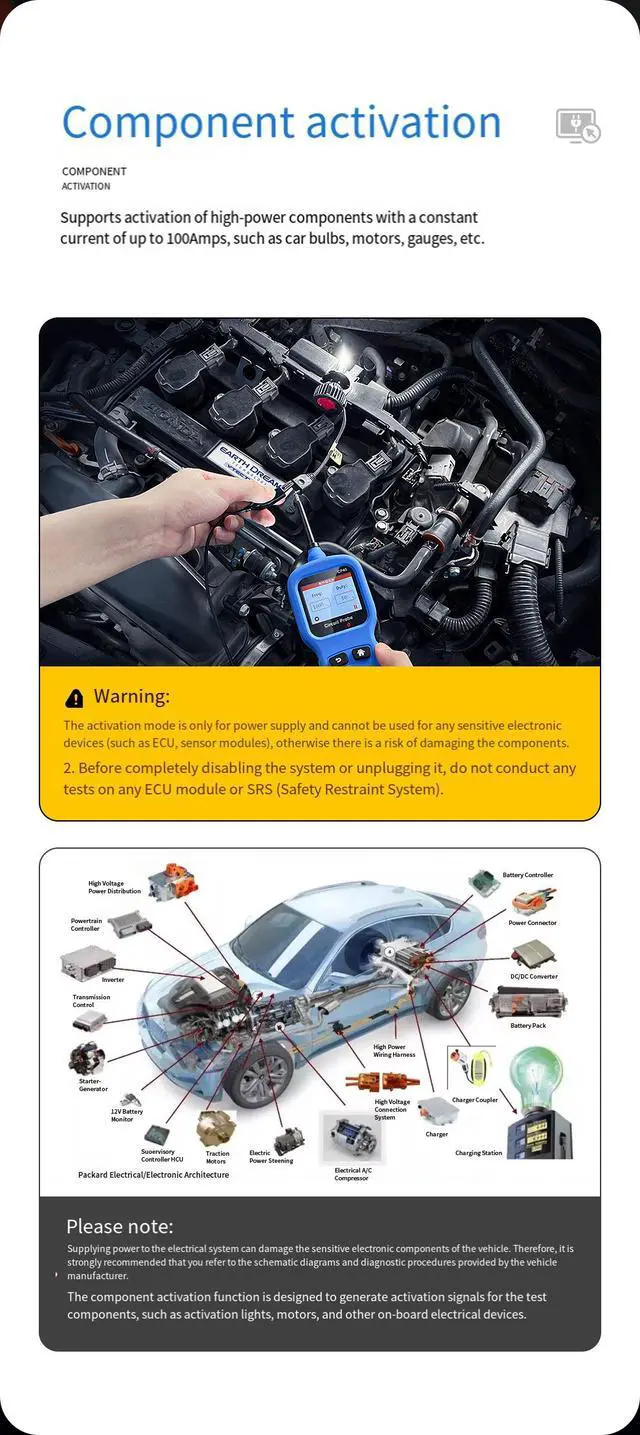

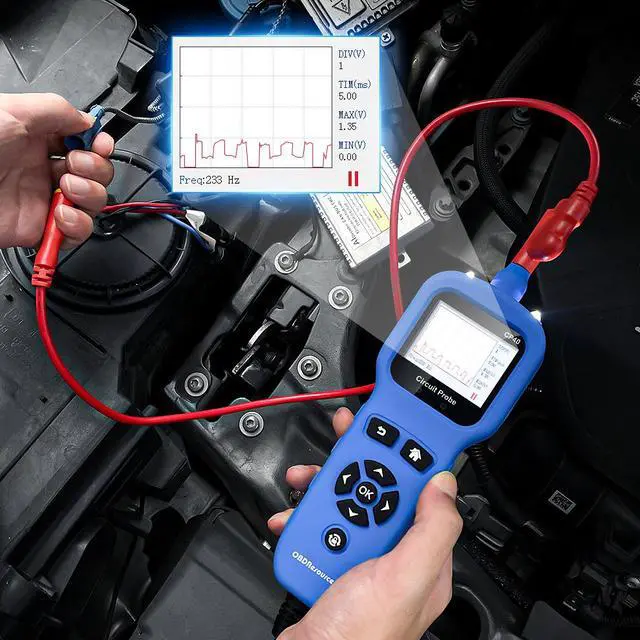

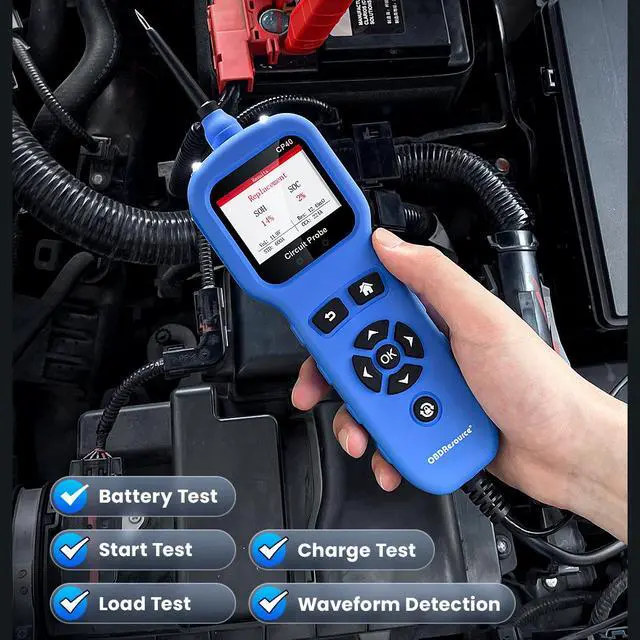

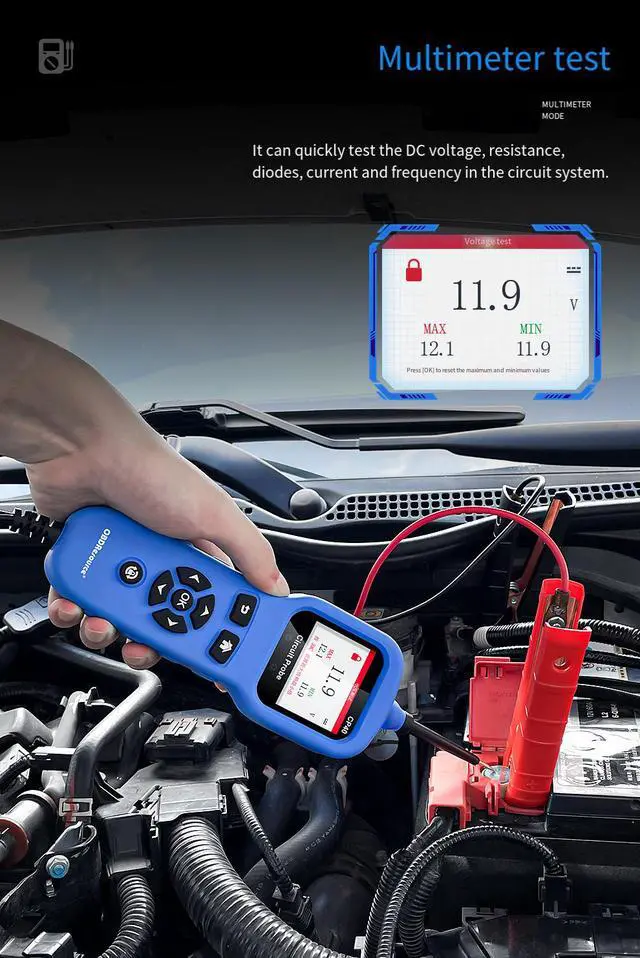

- The product is widely applied in the following maintenance scenarios: automotive wiring repair, activation of automotive components, component testing, sending pulse signals, fuel injector repair, automotive battery testing, measurement of resistance and voltage, diodes, and collection and display of automotive waveforms.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Technical Specifications
Minimum supply voltage: 8VDC
Maximum supply voltage: 32VDC
Voltage testing range: 0 - 80VDC
Voltage accuracy: 0.1V
Probe tip impedance to ground: 4.7M
Resistance testing range: 0.1M (Note: Error value should be taken into account when the value is greater than 200K)
Frequency testing range: 5Hz - 20KHz
Scope's highest sampling rate: 1M Hz
Scope's highest monitoring frequency: 20K Hz

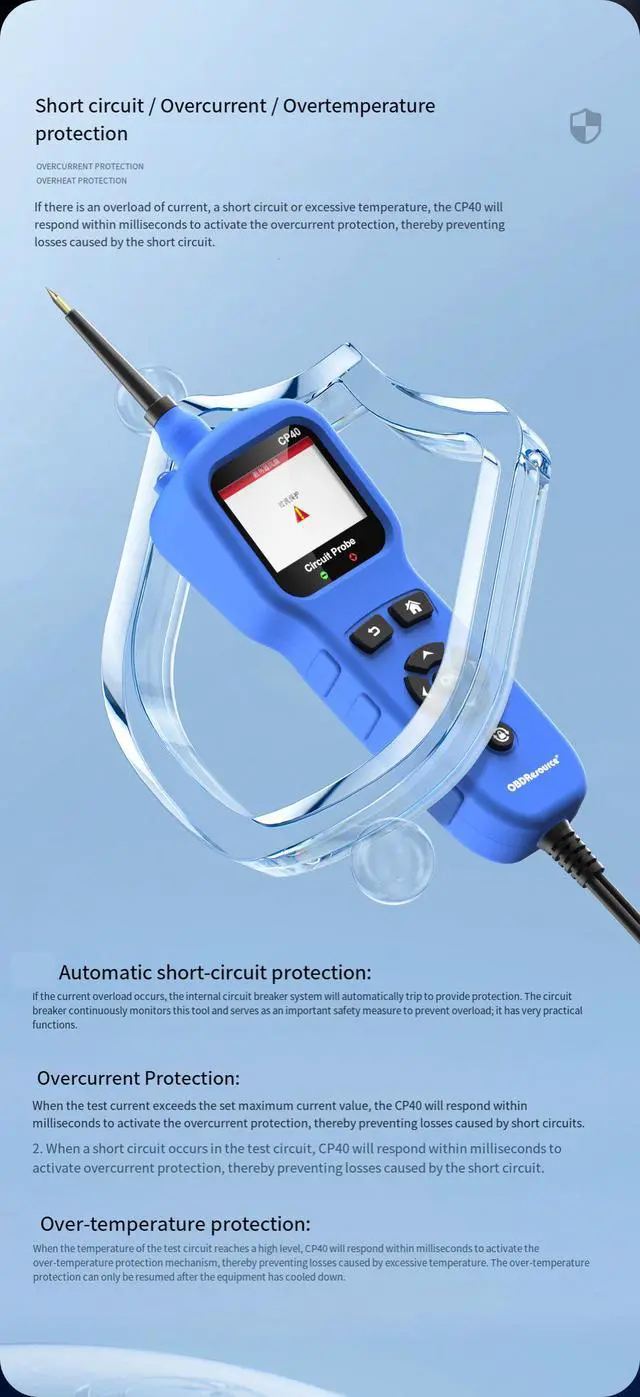

Circuit breaker: 8A thermal - self-recovery
Automatic short-circuit protection response time: 0.01ms
Screen size: 2.4 inches

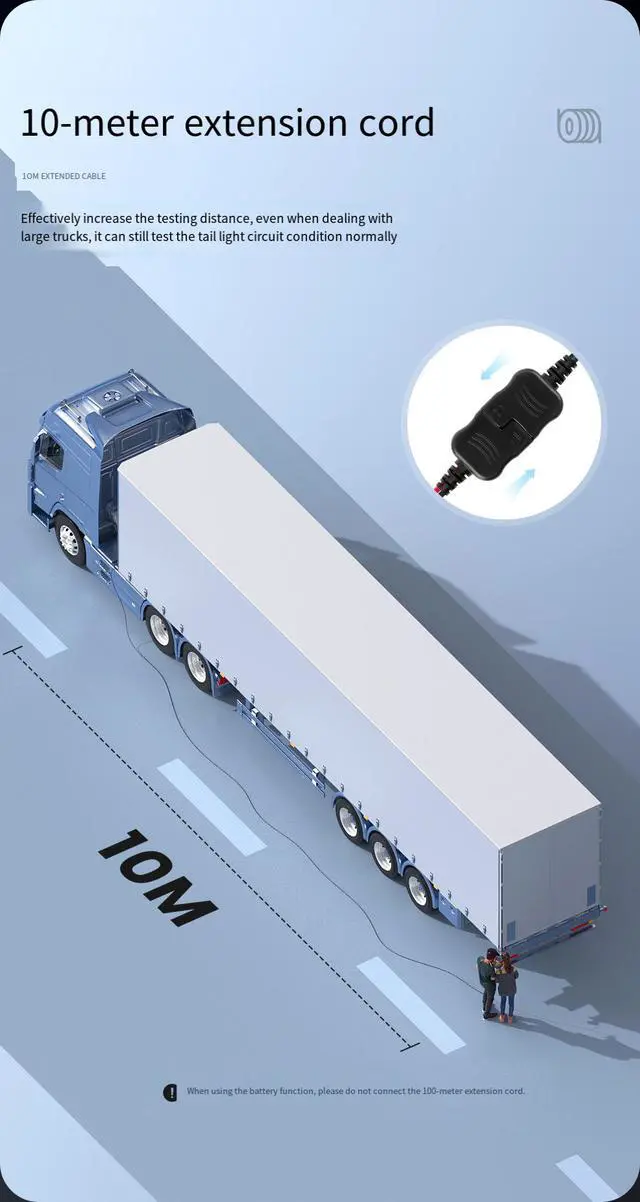

Extension cable size: 10 meters
