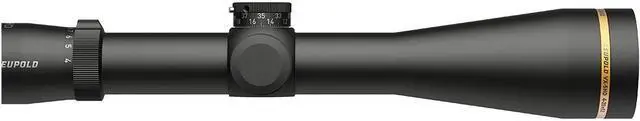

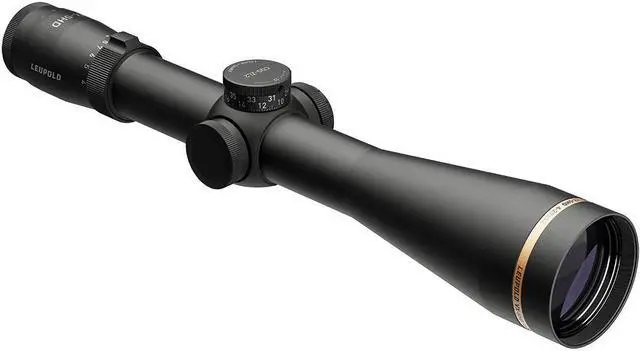

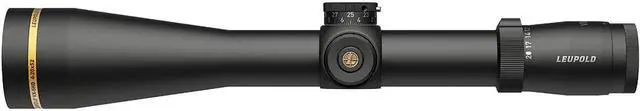

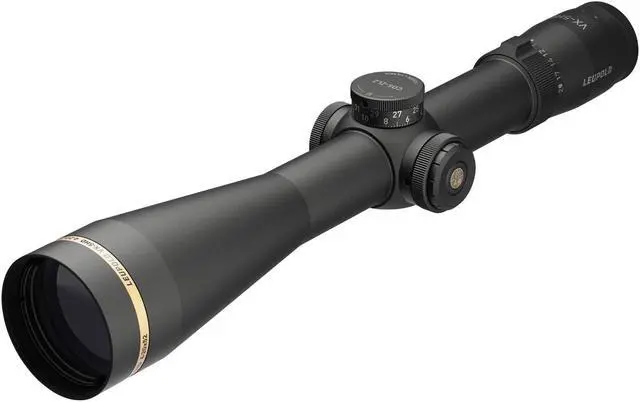

Leupold VX-5HD 4-20X52mm CDS-ZL2 Side Focus Firedot Duplex Rifle Scope 178166

The Leupold VX-5HD 4-20x52mm may just be that sweet spot youve been looking for in magnification ranges. Low enough magnification to get the job done in densely wooded areas, but with the horsepower at the top-end to make accurate shots at extreme distances. Plus, the low-profile CDS-ZL2 provides precise adjustments with the security of a push-button lock and two revolutions of adjustment.

The VX-5HD defines relentless versatility. Its wide magnification ranges give hunters and shooters the ability to adapt to any environment. Built around Leupolds Professional-Grade Optical System, it offers unmatched light transmission thats designed to outperform in the most challenging lighting conditions. Its industry leading glare reduction provides a clear image in harsh, direct light, while the resolution and clarity will meet the demands of any professional guide or shooter in the field.

As the lightest, most rugged 5:1 riflescope in its class, your VX-5HD will never slow you down. And like all Leupold® riflescopes, its designed, machined, and assembled in the USA and guaranteed for life.

5:1 Zoom Ratio A versatile 5:1 zoom ratio gives you 5 times more magnification at high power than at low power (model magnification ranges may be available in powers of 5x: 1-5, 2-10, 3-15, 4-20, etc. ), so you can adjust your magnification to find the perfect balance between magnification and field of view for any situation. The larger the zoom ratio, the more versatile one scope can be.
High-definition, calcium-fluoride lenses ensure incredible clarity at all magnification levels.
Guard-ion is a hydrophobic lens coating that sheds dirt and water for a maintenance-free, clear, crisp image.

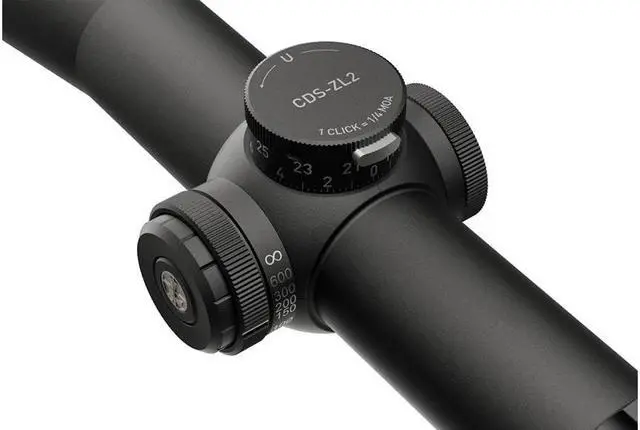

The CDS-ZL2 (ZeroLock 2) provides two revolutions of elevation adjustment while eliminating accidental dial movement with the push-button ZeroLock system. It also features Leupolds award-winning Custom Dial System® (CDS®), which allows shooters to order a laser-marked bullet-drop dial to match their exact ballistics and conditions.
Side Focus The side focus adjusts the scopes parallax, making the reticle clearer and have less perceived movement when youre shooting at different distances.
Illuminated This scopes comes with an illuminated reticle, which can help you get on target faster in low-light situations.
Motion Sensor Technology (MST) extends battery life by automatically deactivating illuminated reticles after five minutes of inactivity and then reactivates instantly as soon as movement is detected.
Waterproof, Fogproof, & Shockproof
Leupold VX-5HD 4-20x52mm SPECIFICATIONS:
Finish Matte
Adjustable Objective No
Side Focus Yes
Reticle Focal Plane Second Focal Plane
Elevation Adjustment Type CDS-ZL2
Zero Stop Yes
Locking Dial Yes
Zero Lock Dial Yes
Revolution Indicator Yes
Rezero Type Set Screw
Windage Adjustment Type Pop-Up Rezero
Custom Dial System (CDS) Yes
Custom Dial Compatible Yes
BDC Dial Included No
Reticle Illum. FireDot Duplex
Light Management System Professional-Grade Optical System
Battery Type CR2032
Switch Type Push Button
Illuminated No
Nightvision Compatible Illumination No
Daylight Bright Illumination Yes
Motion Sensor Technology (MST) Yes
Electronic Reticle Level No
Guard-ion Lens Coating No
Weight (oz) 23.3
Elevation Adjustment Value per Click 1/4MOA
Elevation Adjustment Range (MOA) 75
Elevation Adjustment Range (MIL) 22
Elevation Adjustment Range (cm @ 100m) 218
Elevation Adjustment Per Revolution 20 MOA
Elevation Dial Travel Limit 38MOA
Windage Adjustment Value per Click 1/4MOA
Windage Adjustment Range (MOA) 75
Windage Adjustment Range (MIL) 22
Windage Adjustment Range (cm @ 100m) 218
Windage Adjustment Per Revolution 15 MOA
Magnification Max 20
Magnification Min 4
Objective Lens Diameter (mm) 52
Linear FOV Low Mag (ft@100yds) 28.4
Linear FOV High Mag (ft@100yds) 7.7
Angular FOV Low Mag (Degrees) 5.4
Angular FOV High Mag (Degrees) 1.5
Eye Relief Low Mag (in) 3.7
Eye Relief High Mag (in) 3.8
Minimum Parallax-Free Distance (yd) 50
Battery Life (hr), Low Intensity 1600
Battery Life (hr), Medium Intensity 1000
Battery Life (hr), High Intensity 300
Number of Illum Settings 8
