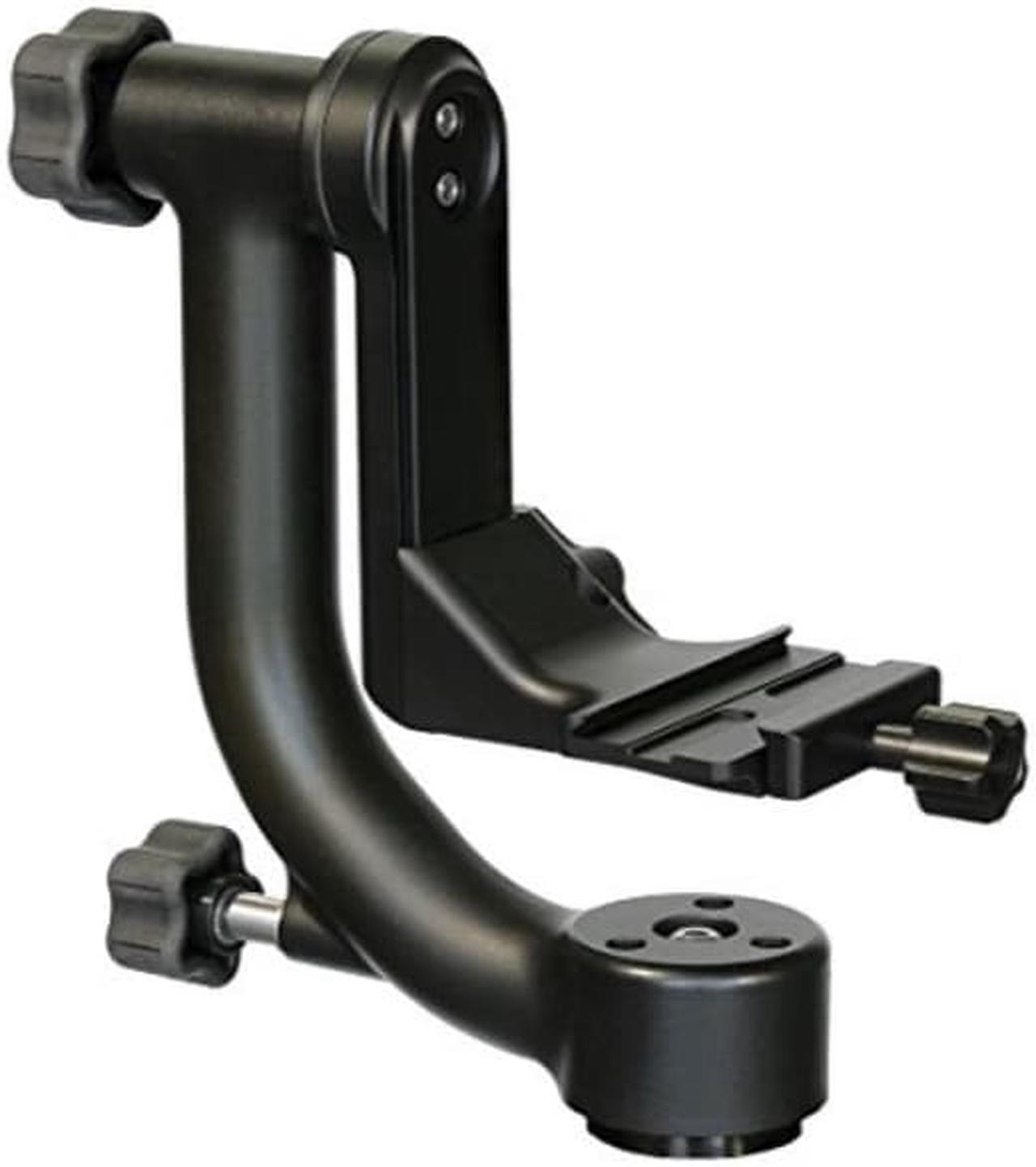

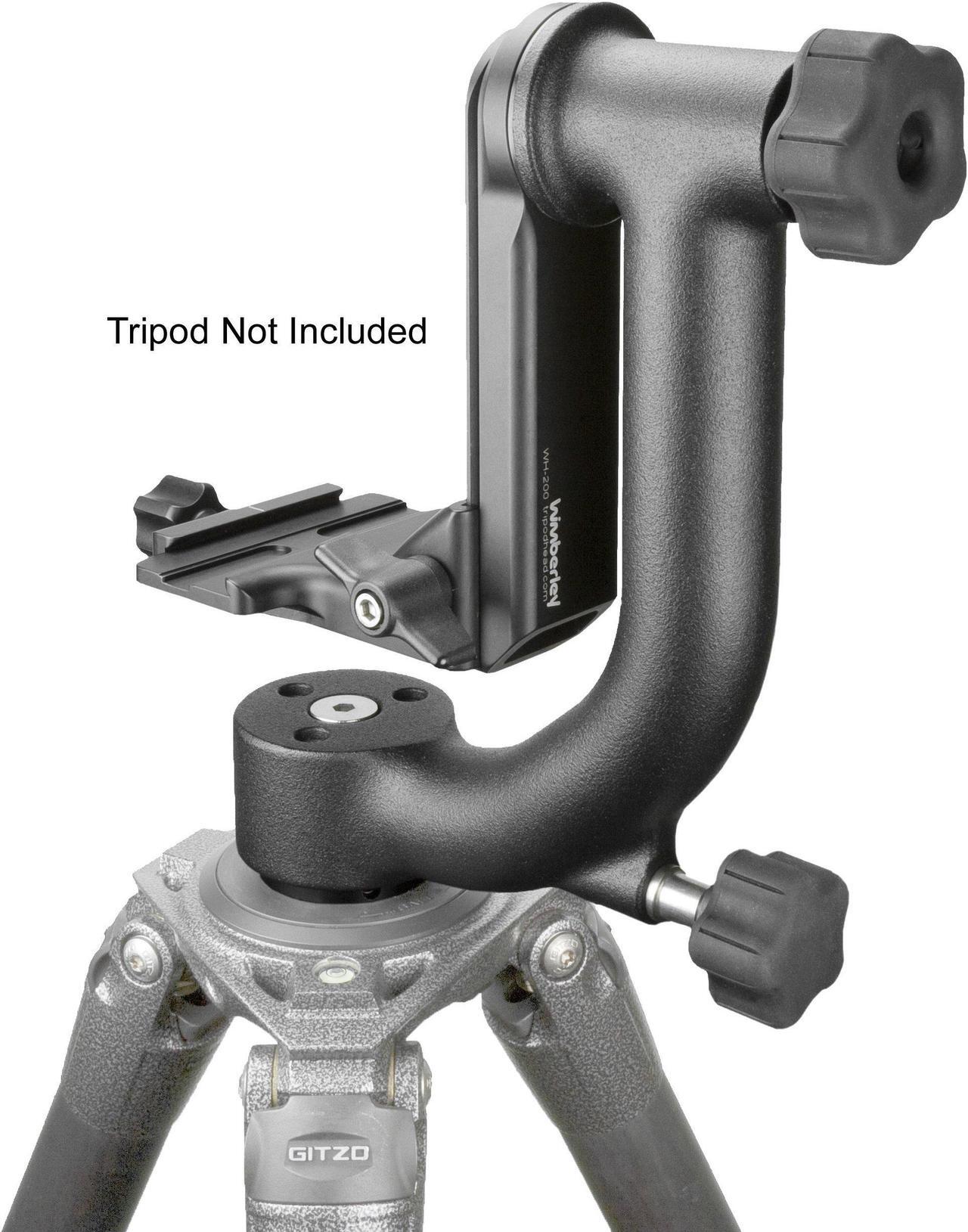

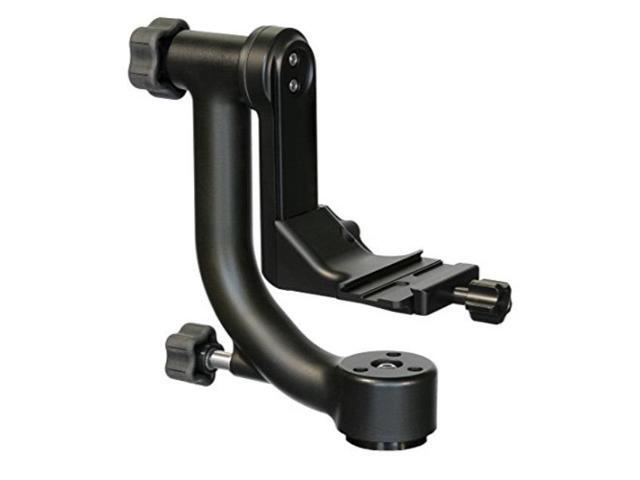

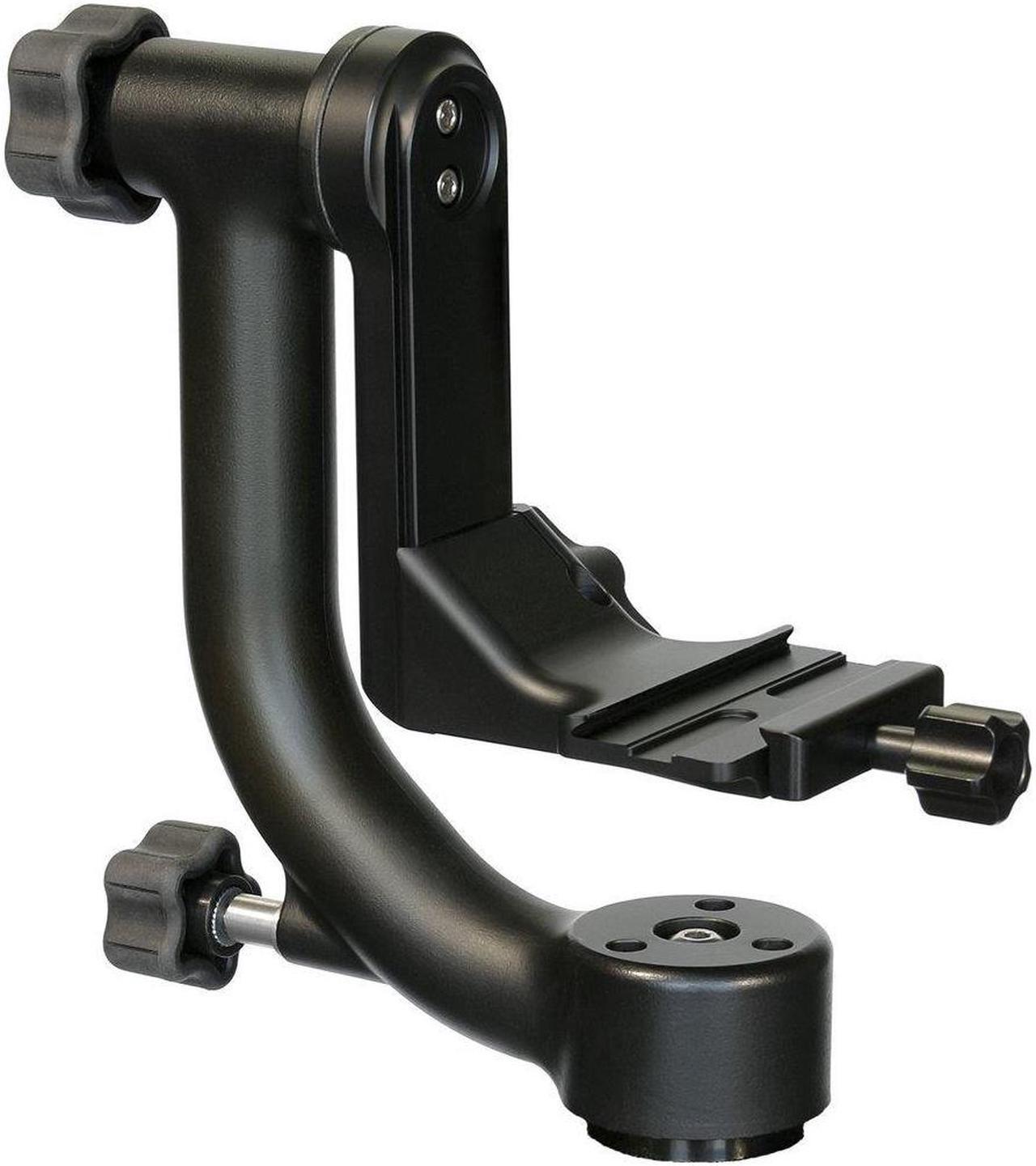

Wimberley WH-200 Gimbal Tripod Head II with Quick Release Base #WH200

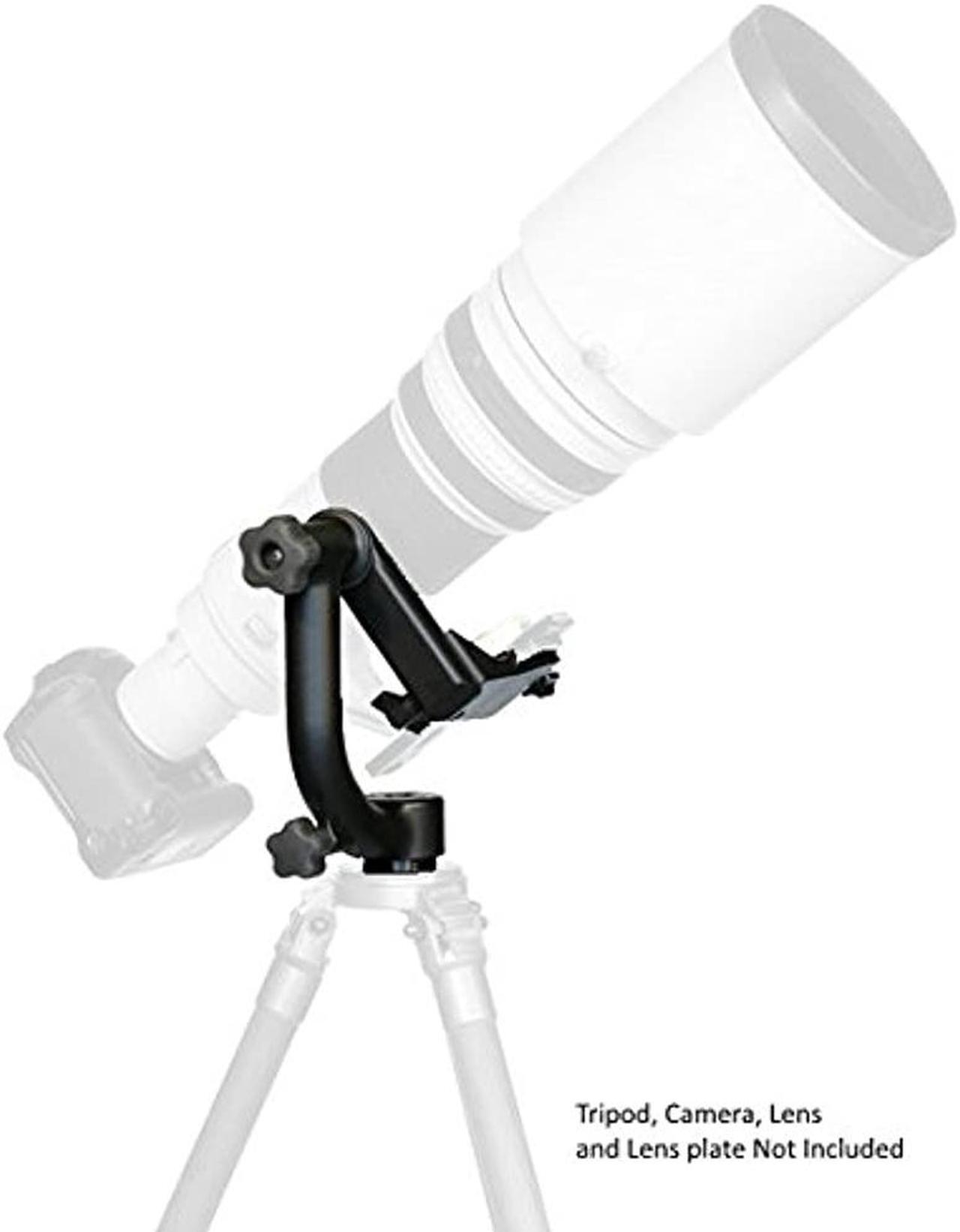

Note: The WH-200 has a built-in Arca-Swiss style quick-release clamp. It is not available in a non-quick-release model. In order to use the head, your lens must be equipped with an Arca-Swiss style lens plate. The Wimberley Head is a specialized tripod head for telephoto lenses. Its gimbal-type design allows you to rotate your lens around its center of gravity and thus easily manipulate very large lenses. Since its introduction in 1991, the Wimberley Head has become the industry standard for serious nature photographers. Design Improvements for Version IIThe Wimberley Head Version II offers the same stiffness, capacity, and fluid movement of the old version in a more compact and lightweight package (it is one pound lighter and about two inches shorter). The heads redesigned panning base has zero play, and the pan locking knob has been moved to the side of the head, thus allowing the user to easily operate both knobs with the same hand. New lobed soft-touch knobs provide a more comfortable grip and perform better when using gloves. In addition to the above improvements, Wimberley has examined all aspects of the head, tightening tolerances, improving friction materials and so forth.

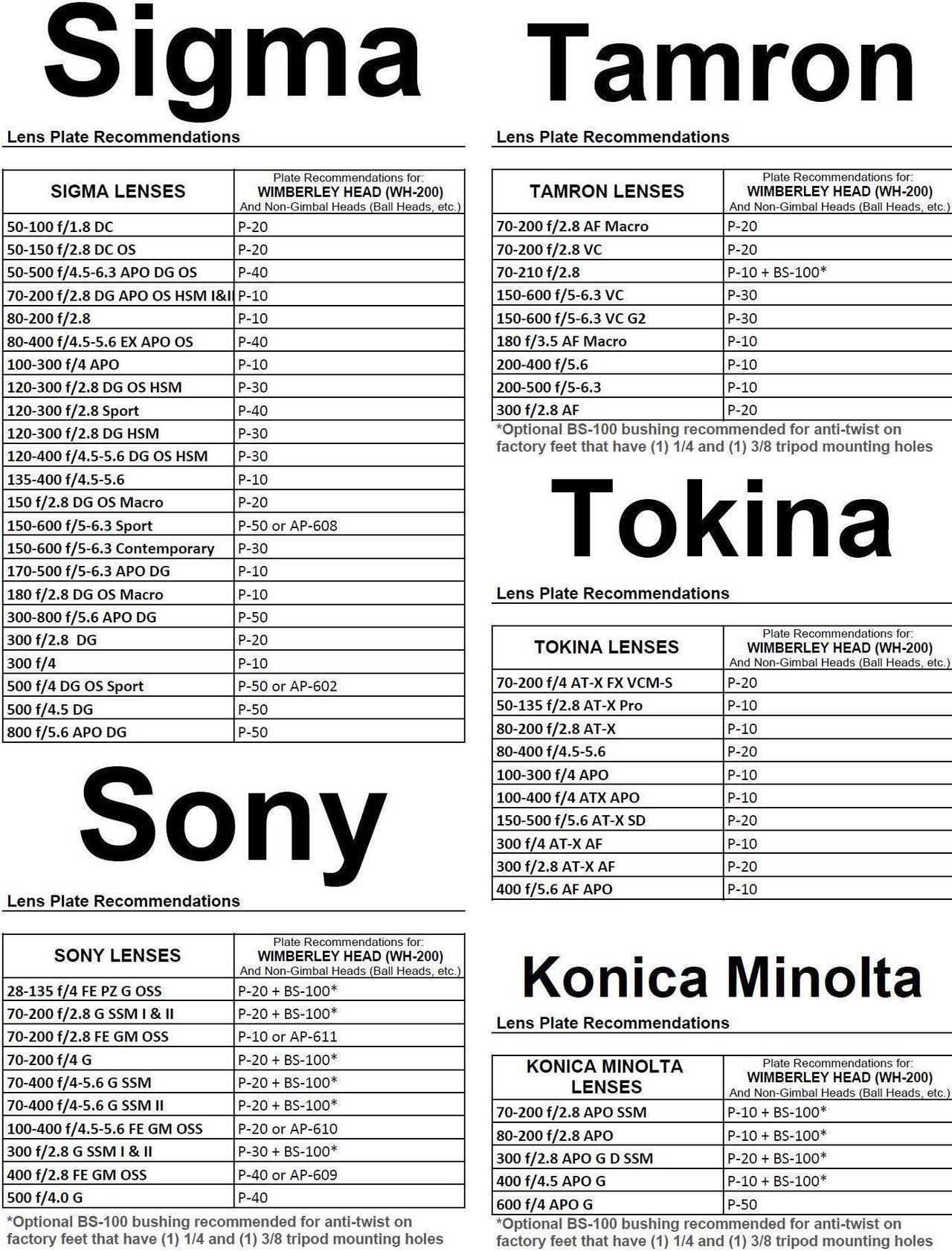

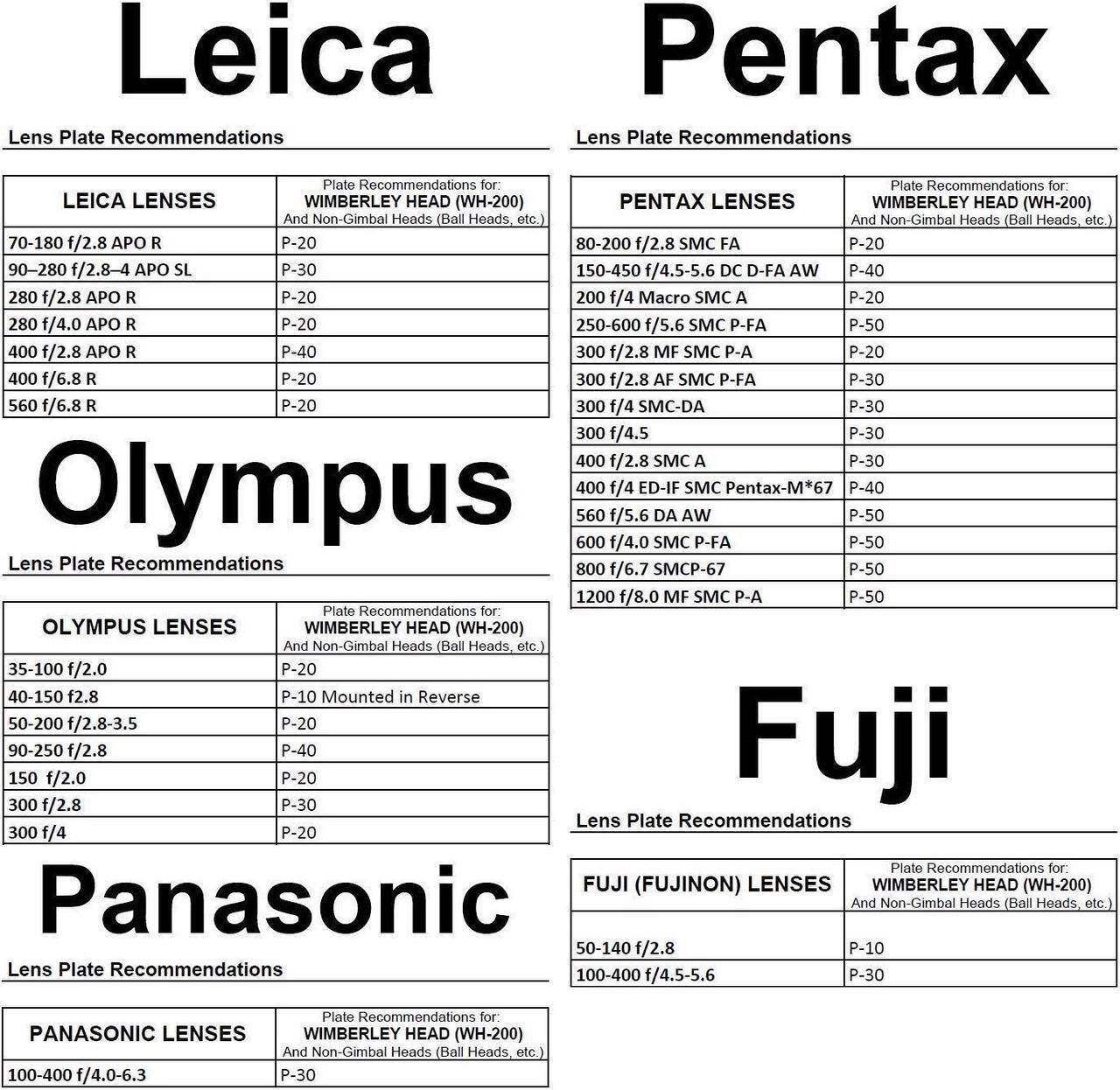

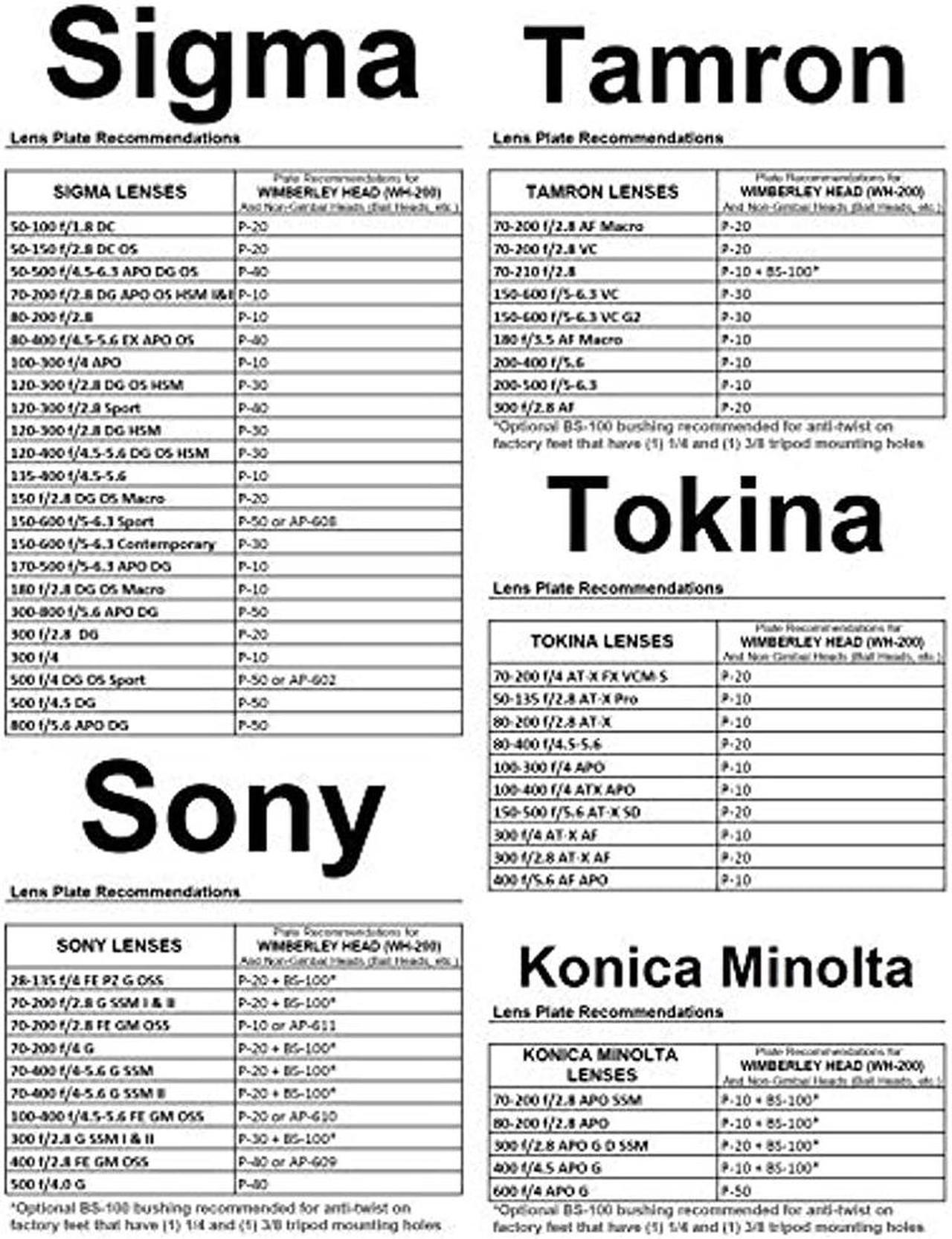

Our goal has been to make this head functionally and aesthetically better in every way than the old version and competing products. CompatibilityLens CompatibilityThe Wimberley Head Version II will adjust to fit virtually any telephoto lens with a rotation collar. It is ideally suited for large lenses (300mm f/ 2.8 or bigger).   The following lenses require special consideration:

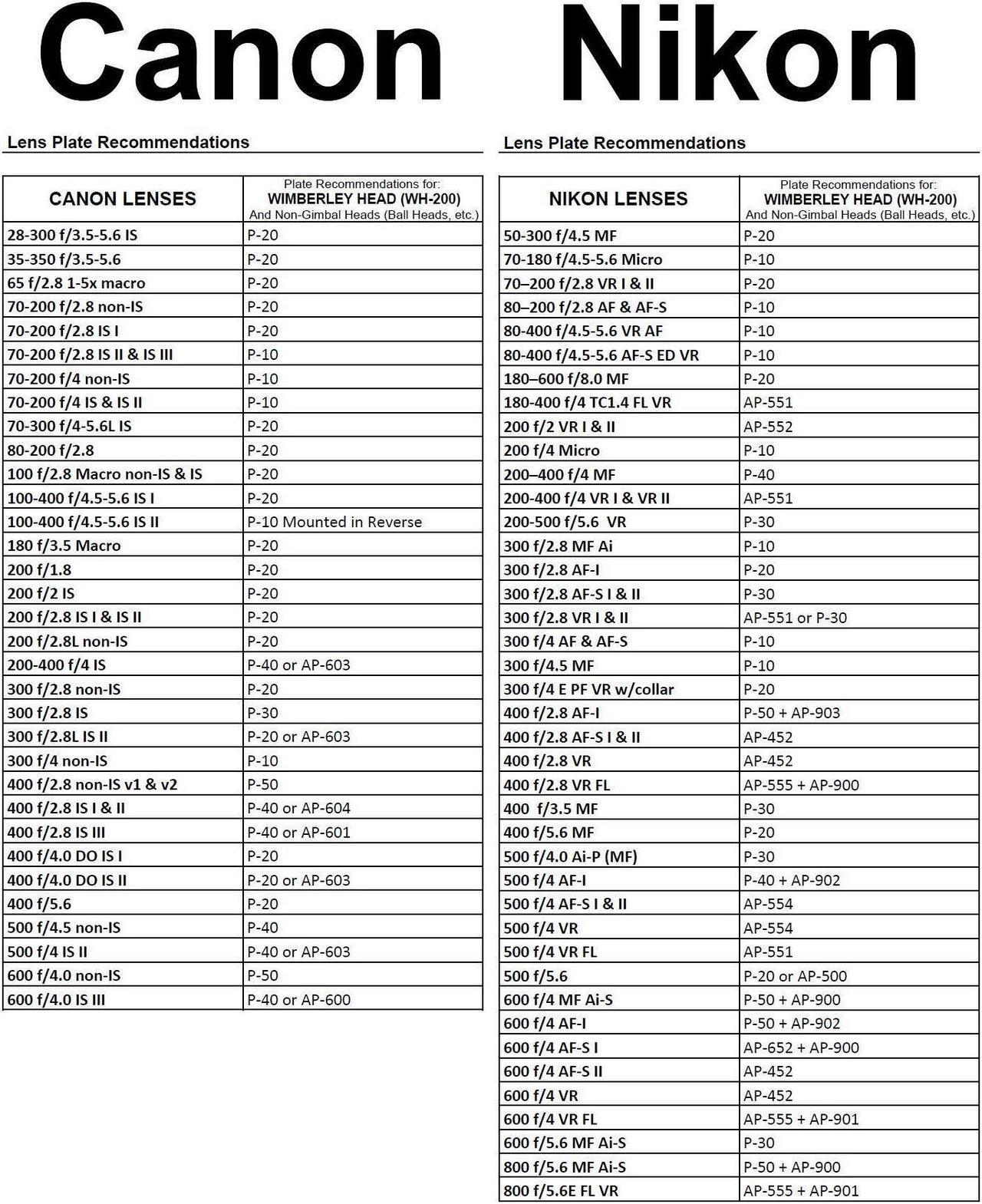

Lens: Nikon 600 mm f/4 AF-S version I - AP-652 Replacement FootNikon 600mm f/4 AF-S version II - AP-452 Replacement FootNikon 400mm f/ 2.8 AF-S version I - AP-452 Replacement FootNikon 400mm f/ 2.8 AF-S version II - AP-452 Replacement FootQuick-Release SpecificationThe Wimberley Head Version II has a built-in, Arca-Swiss style quick-release clamp; It is not available in a non-quick-release model. In order to use the head, your lens must be equipped with an Arca-Swiss style lens plate.

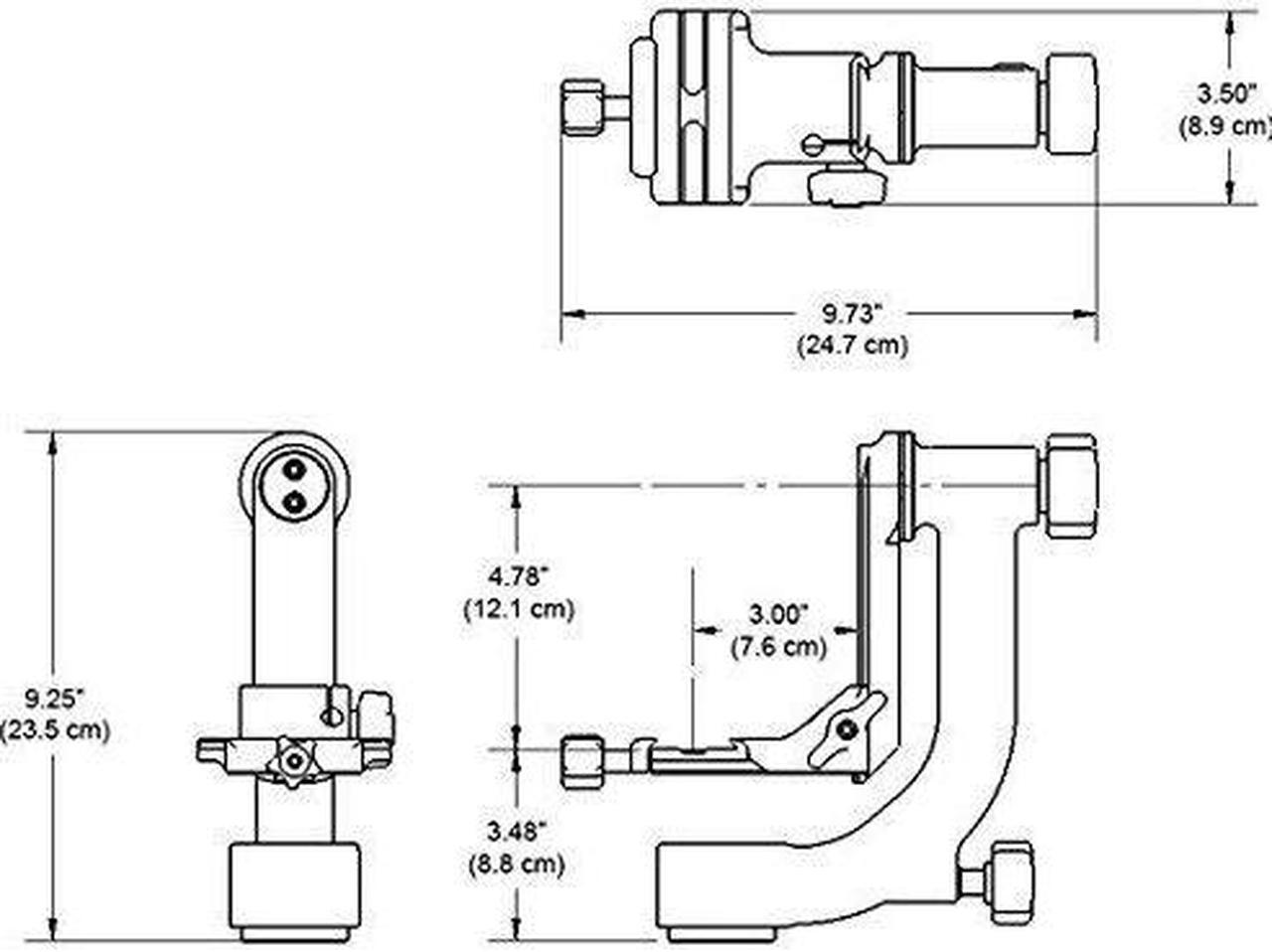

Specifications: Weight (lbs)       3.15 lbMax.
Dimensions      Height: 9.28"W
idth: 3.50"D
epth: 9.87"D edicated Flash Module      M-9 or (M-5 + FA-9)Quick-Release Type      Arca-Swiss (Built-in)
