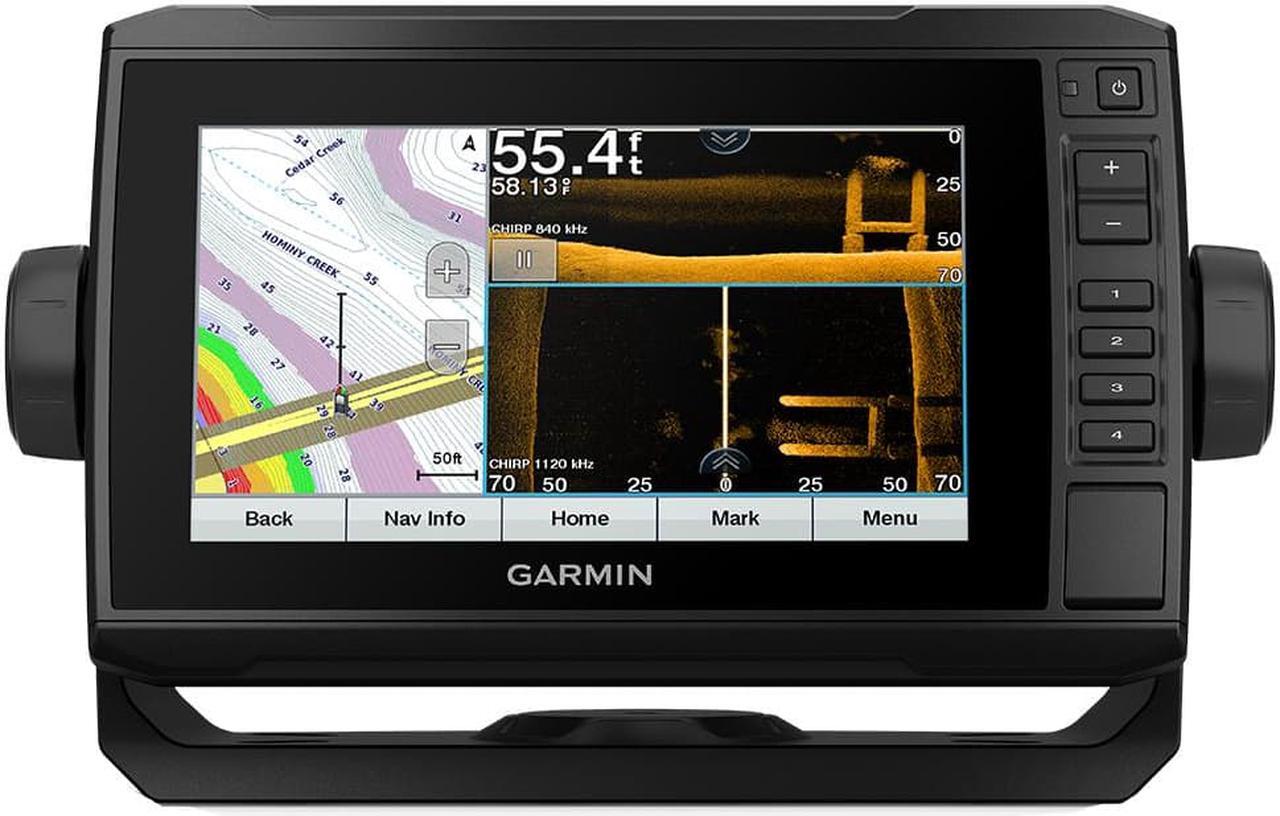

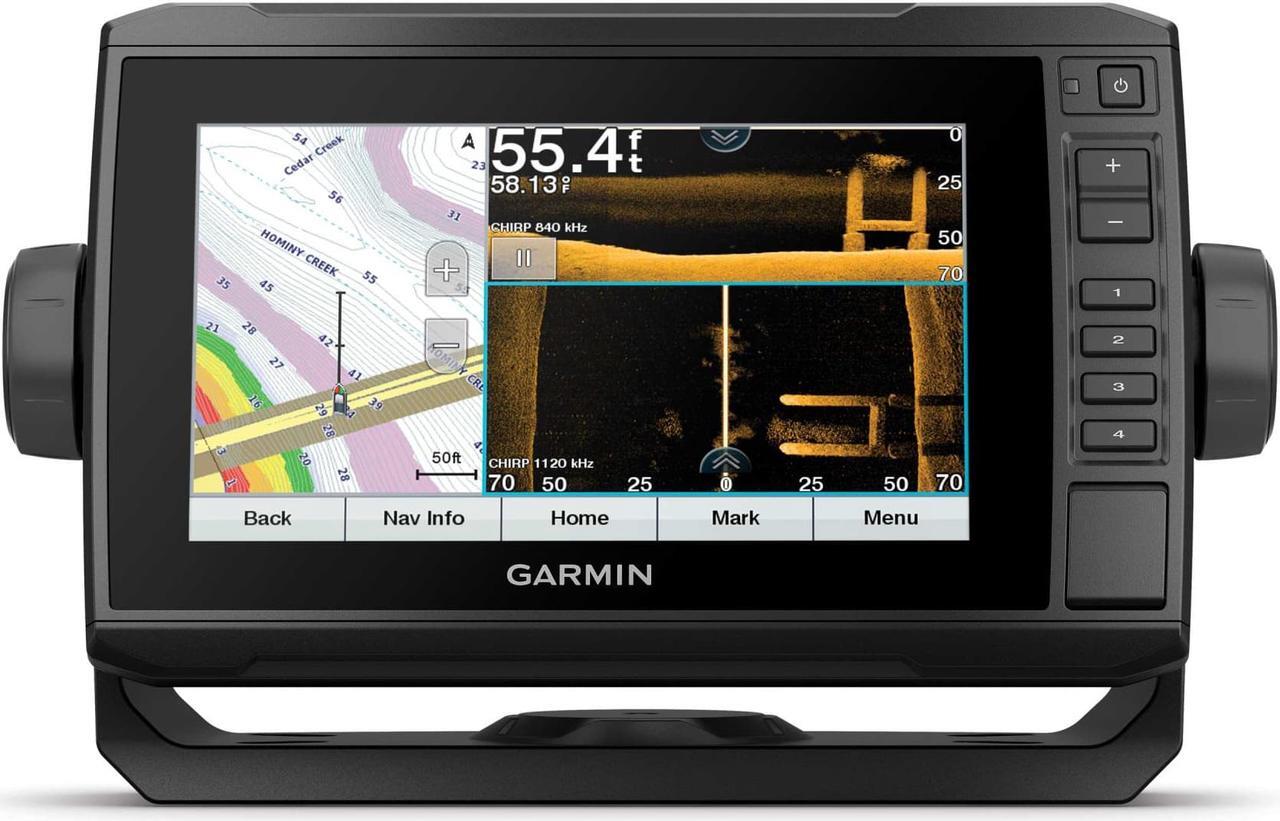

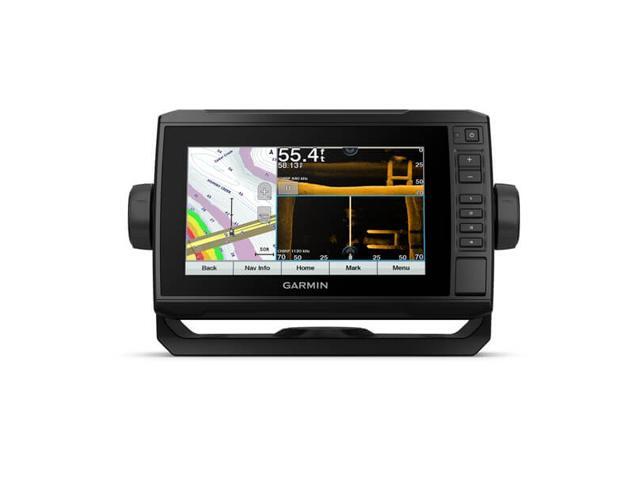

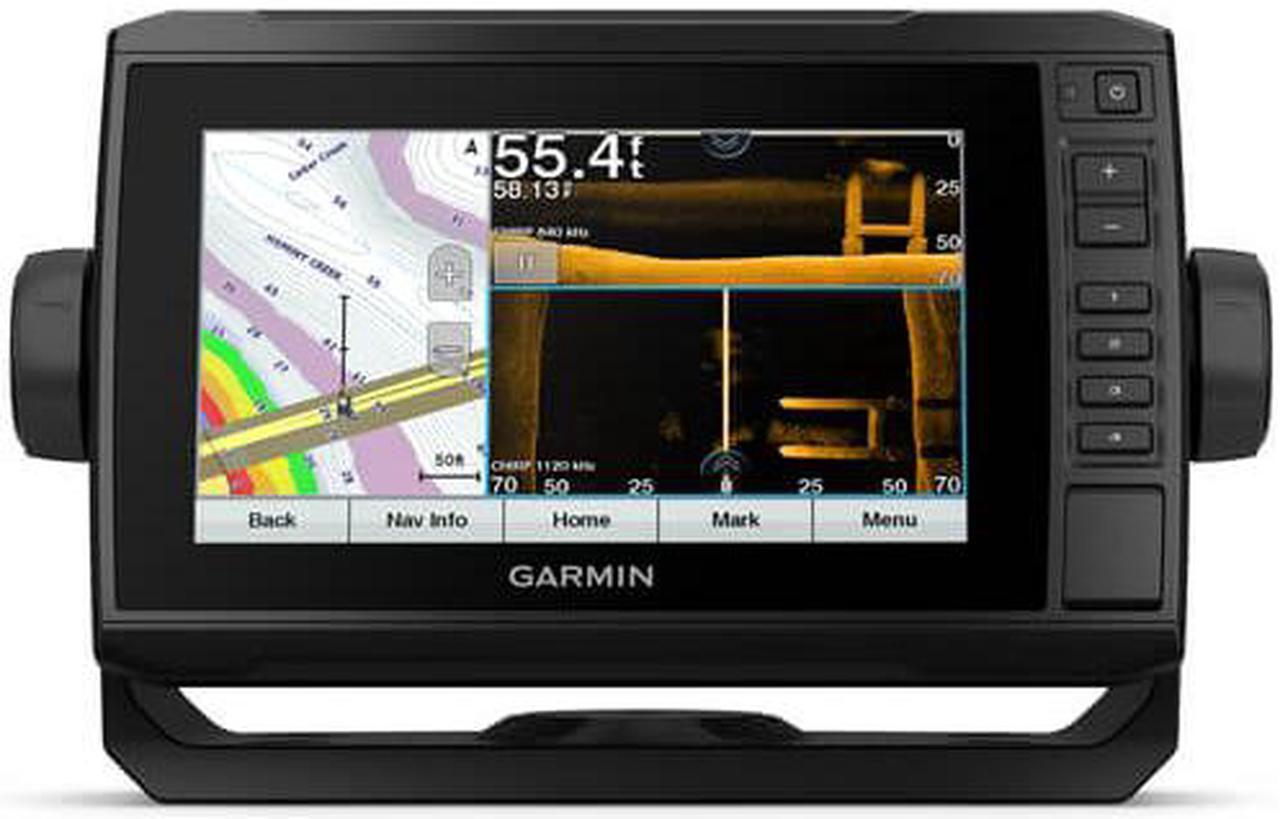

GARMIN ECHOMAP 73SV UHD COMBO US LAKEVU G3 WITHOUT TRANSDUCER

GARMIN ECHOMAP 73SV UHD COMBO US LAKEVU G3 WITHOUT TRANSDUCERGarmin ECHOMAP 2020 UHD 73SVCombo US Lakevu g3 without
TransducerModel: 010-02338-00See below and around your boat in incredible detail with optional transducerNavigate any waters with preloaded LakeV g3 inland mapsShare data with other devices on your network (7 and 9 models only) Manage your marine experience from nearly anywhereControl the most powerful trolling motor availableCreate your own maps on the fly and tailor them to fit your needsThe sunlight-readable 7 touchscreen chartplotter features a quick-release bail mount, and the transducer bundle adds Ultra High-Definition scanning sonar and CHIRP traditional sonar. This chartplotter supports a variety of Garmin transducers (sold separately), including the Panoptix LiveScope scanning sonar system, which lets you see all around your boat in real time. Select the transducer bundle to add a GT54 transducer for Ultra High-Definition ClearV and SideV scanning sonars, which show you crystal-clear images below and around your boat. Plus, you get Garmin high wide CHIRP traditional sonar for remarkable target separation. Experience unparalleled coverage and detail with preloaded LakeV g3 inland maps featuring integrated Navionics data. Maps cover more than 17, 000 lakes with up to 1 contours. Create personalized fishing maps on-screen with 1 contours. Keep the data to yourself, or share it with the Quickdraw Community on Garmin Connect.

If you have multiple compatible ECHOMAP UHD or ECHOMAP Ultra devices on your boat, you can share information such as sonar, user data and charts among them (7 and 9 models only). Connect to autopilots, digital switching, weather, FUSION-Link audio system, media, VHF, AIS and more from one screen. Built-in Wi-Fi connectivity pairs with the free all-in-one mobile app for access to the OneChart feature, smart notifications1, software updates, Garmin Quickdraw Community data and more. Take control of the most powerful and efficient trolling motor available2, route it to waypoints, follow tracks and more from the screen of your chartplotter. SpecificationsGeneralPhysical dimensions 9.8 x 5.5 x 2.0 (25 x 13.9 x 5.1 cm)Display size 6.1 x 3.4; 7.0 diagonal ( 15.5 x 8.6 cm; 17.8 cm diagonal)Display resolution400 x 800 pixelsDisplay typeWVGA displayWeight 1.7 lbs. ( 0.77 kg)Water RatingIPX7Power consumption15WAntennaInternal or external over NMEA 2000Mounting optionsBail or flushReceiver5 HzGarmin Marine Network ports1 Panoptix portMaps & MemoryPreloaded mapsLakeV g3 (inland maps) Accepts data cards1 microSD card; 32 GB maximum sizeWaypoints5, 000Routes100Track log50, 000 points; 50 saved tracksOutdoor Recreation FeaturesTide tablesYesChartplotter FeaturesGarmin Sonar compatibleYesSupports AIS (tracks target ships position) YesSupports DSC (displays position data from DSC-capable VHF radio)YesGCV Black Box sonar supportYesActiveCaptain compatibleYesSailing FeaturesYesSonar Features & SpecificationsDual-frequency (50/200 kHz) sonar capableYesDual-beam (77/200 kHz) sonar capableYesTransmit power500 W (RMS) / 4, 000 W (peak to peak) CHIRP sonar technologyYes (Built-in)ClearVYes with CHIRP (built-in)SideVYes with CHIRP (built-in)Maximum depth2, 300 ft @ 77 kHz, freshwaterBottom lock (shows return from the bottom up) YesWater temperature log and graphYesSonar recordingYesSonar history rewindYesConnectionsNMEA 2000 compatibleYesTransducer pin numbers12NMEA 0183 input ports1NMEA 0183 output ports1Video input portsNoneVideo output portsNoneWireless connectivityYesWhat's in the

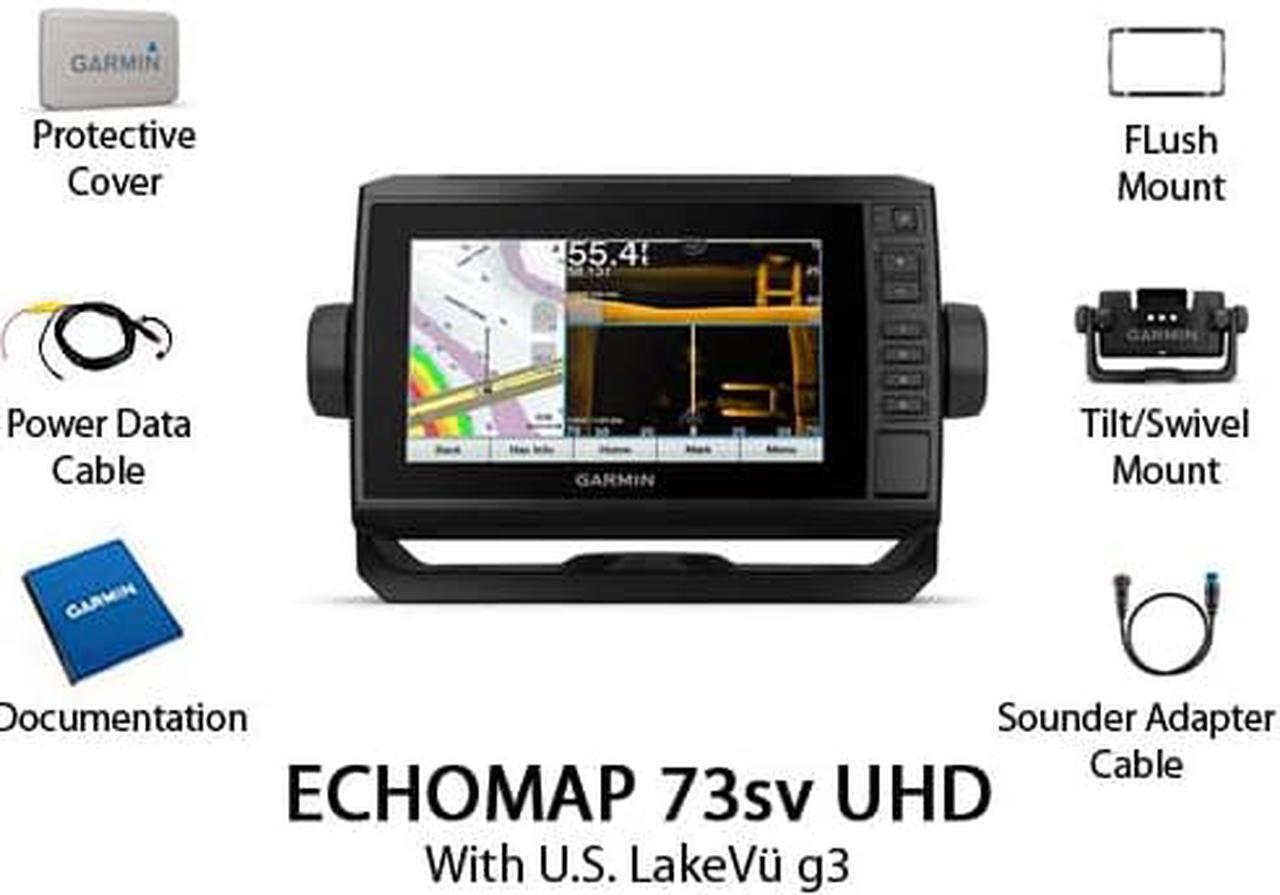

Box: ECHOMAP UHD 73sv with LakeV g3 for U. S. 8-pin transducer to 12-pin sounder adapter cablePower/data cableTilt/swivel mount with quick release cradleFlush mountProtective coverHardwareDocumentationWARNING: Cancer and Reproductive Harm - www. P65Warnings. ca. gov.
