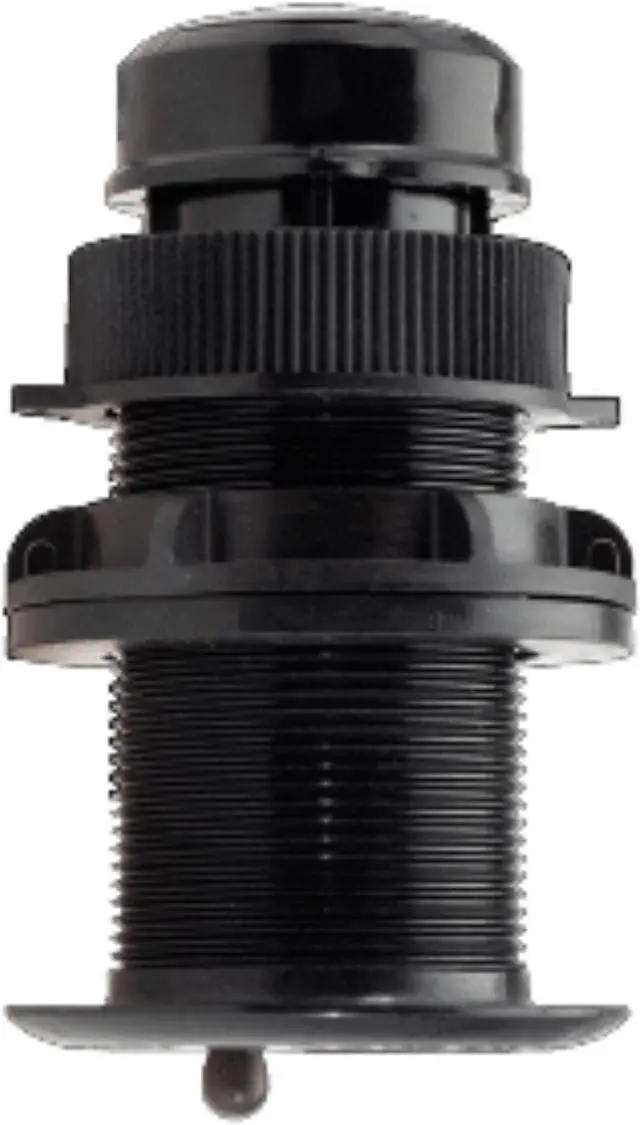

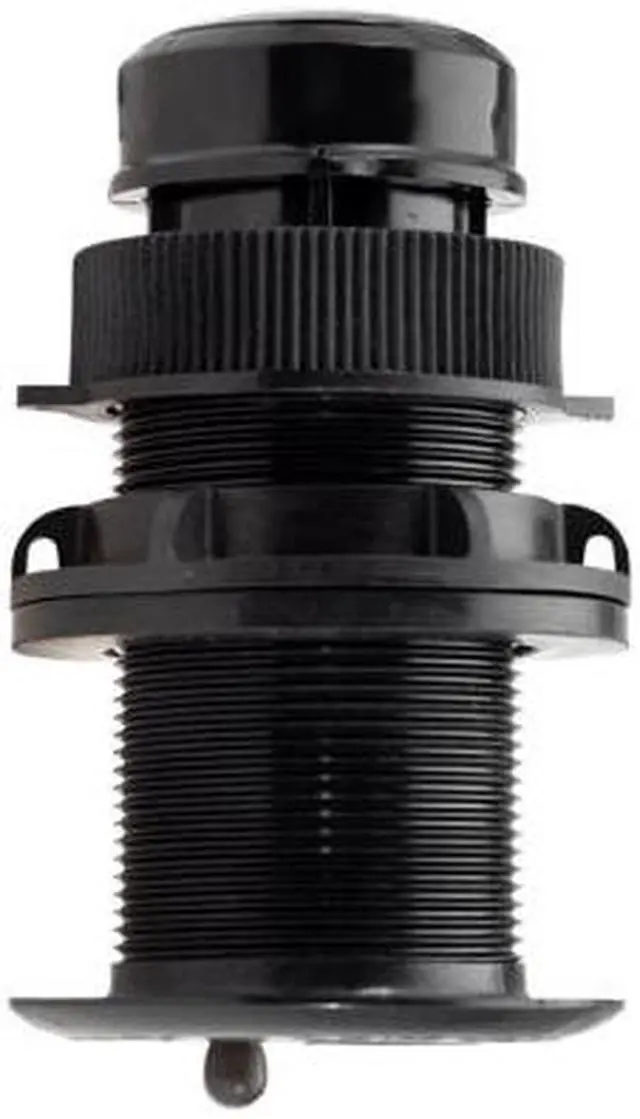

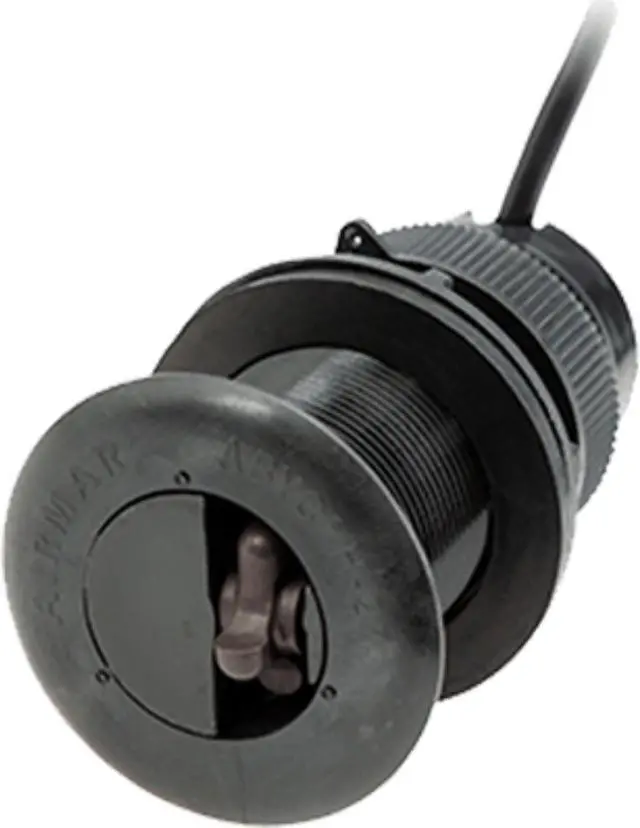

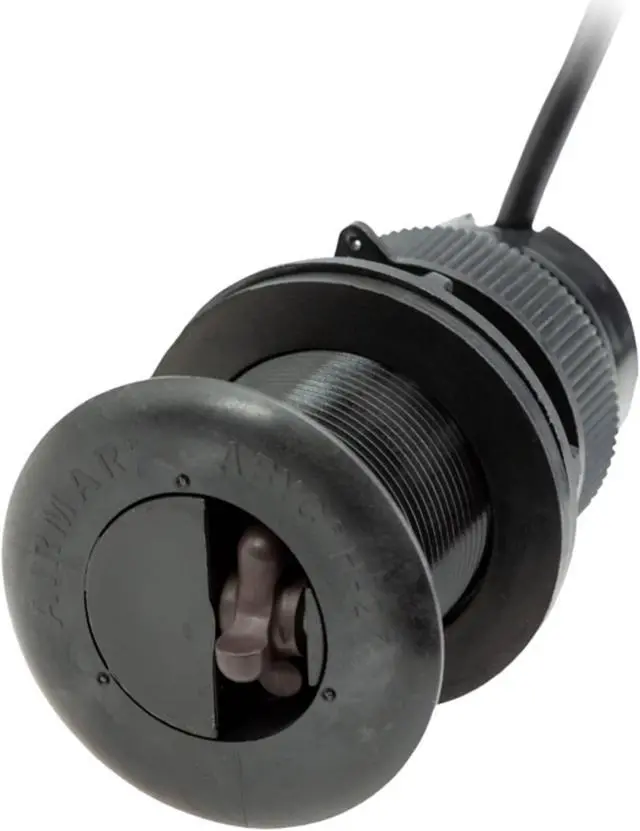

GARMIN 010-11051-20 DST810 AIRMAR SMART TRANSDUCER PLASTIC THRU HULL

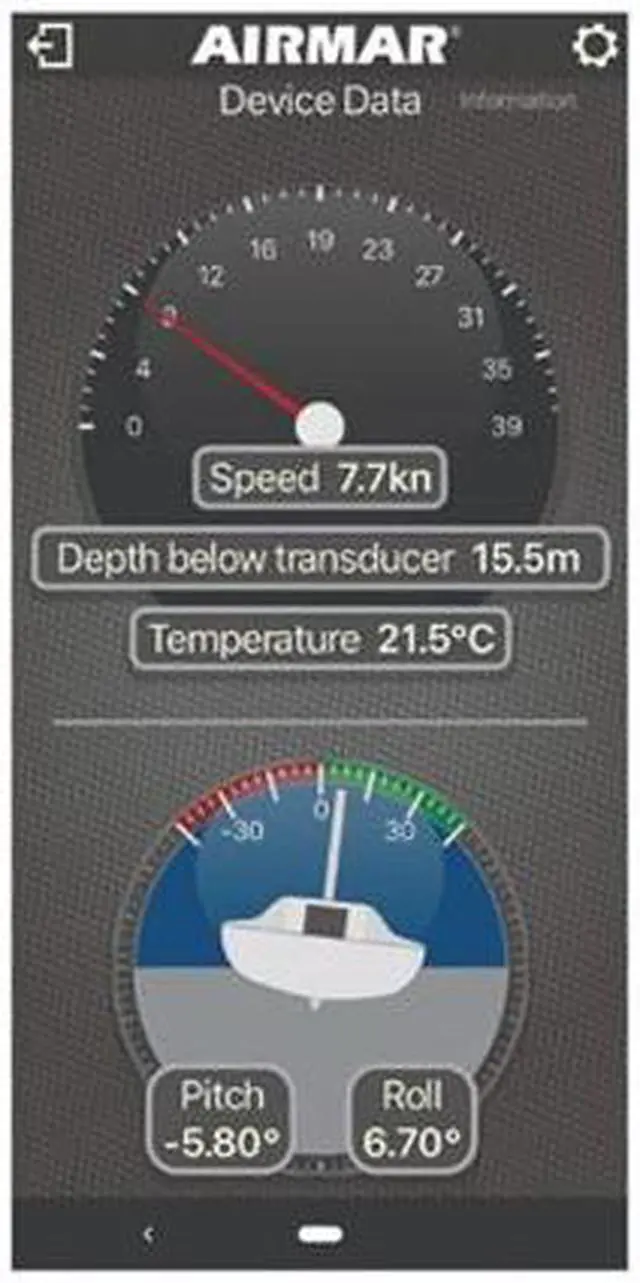

GARMIN 010-11051-20 DST810 AIRMAR SMART TRANSDUCER PLASTIC THRU HULLGarmin DST810 Smart TransducerModel: 010-11051-205 Hz speed output (5X per second) for visibly smoother speed-through-water reporting and faster data for better decision makingIntegrated attitude sensor for heel and trim benefits sailing and power boatsWireless connectivity to Airmar's CAST App has new user-friendly benefits: Calibrate the DST810 in a simple, intuitive way regardless of the instrument brand or model that is on boardConduct basic and advanced heel-compensated speed calibrations for improved speed-through-water outputs across the speed rangeAdvanced Speed Calibration allows for manual speed entries for multiple heel angles and up to 10 speeds, formerly only possible through expensive PC softwareEnable and disable PGNs and set offset and output ratesFor a product to be considered breakthrough, it has to vastly change conventional behavior and enhance abilities. The new DST810 Smart Multisensor, together with Airmar's CAST App, is the convergence of advanced hull data, matched with a simple and reliable way to calibrate accurate speed via a wireless device. This changes how boaters receive and deliver information to get greater performance from their hull. It is a simple, consistent way to calibrate speed-through-water regardless of what display system is on board. The DST810 and Airmar CAST App deliver capabilities that until now, were only available through expensive PC based software. Besides water temperature, depth and newly upgraded 5 Hz (5X per second) speed-through-water output, the DST810 features an integrated attitude sensor for heel and trim data.

This information, combined with Airmars powerful and simple CAST App, makes heel-compensated speed calibration across multiple heel angles and speed ranges both fast and intuitive, and is independent of the onboard instruments. All speed calibrations and NMEA configurations are stored in the DST810 sensornot in the displays. SpecificationsAcoustic WindowUrethaneHull DeadriseUp to 22Data
Update RateDepth: 1X/secondAttitude Accuracy+/ 1 nominal after sensor calibrationDepth Frequency235 kHzMinimum Depth Range 0.5 m ( 1.6 ')Maximum Depth RangeUp to 100 m (330')NMEA 2000Speed RangeUp to 45 knotsPressure Rating3 m (10')Pulse Rate20, 000 p/nm* ( 5.6 Hz per knot)*p/nm = pulses per nautical mileSupply Voltage9 VDC to 16 VDCper NMEA 2000Supply Current<200 mAper NMEA 2000Wireless ProtocolBluetooth Low Energy (BLE) Wireless RangeUp to 30 feet depending on mount locationStandard Cable Length6 m (20') DeviceNetNMEA 2000Temperature Sensor Accuracy 0.5C ( 1.8F )Temperature Sensor Range-10C to 40C (14F to 104F) NMEA 2000
Load Equivalency Number (LEN) 3WARNING: Cancer and Reproductive Harm - www. P65Warnings. ca. gov.
