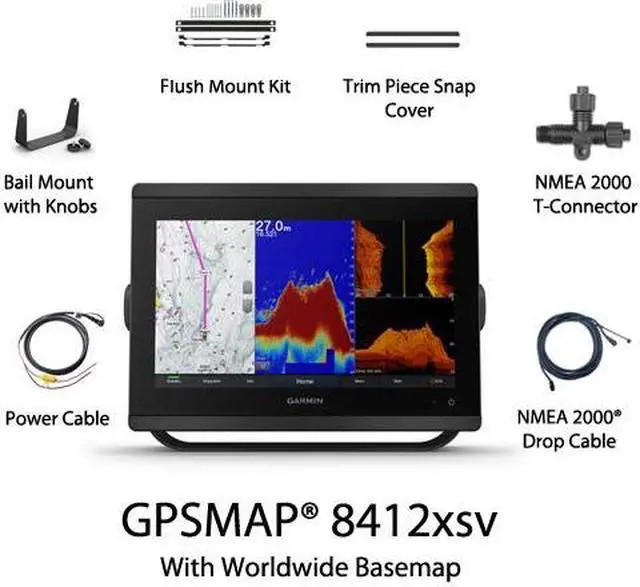

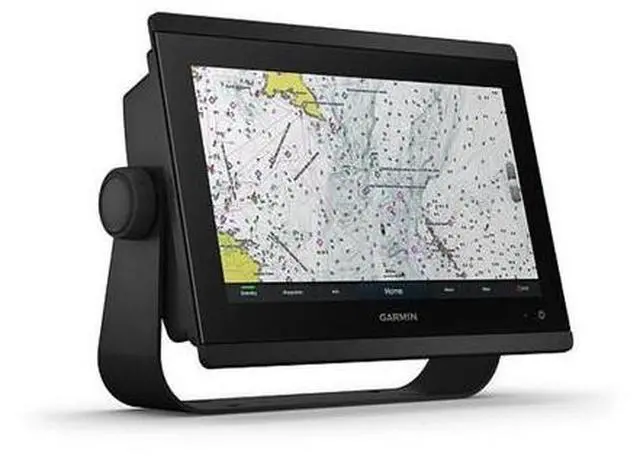

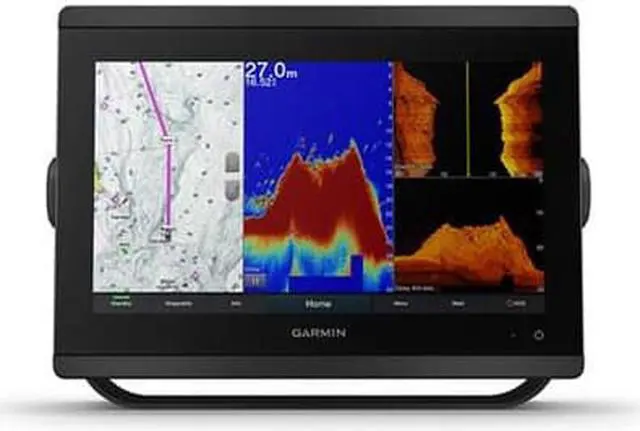

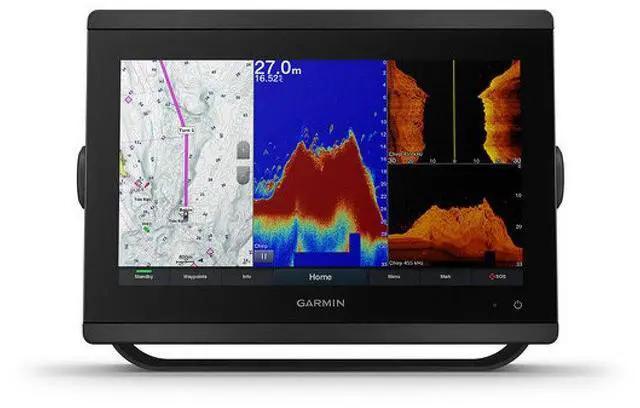

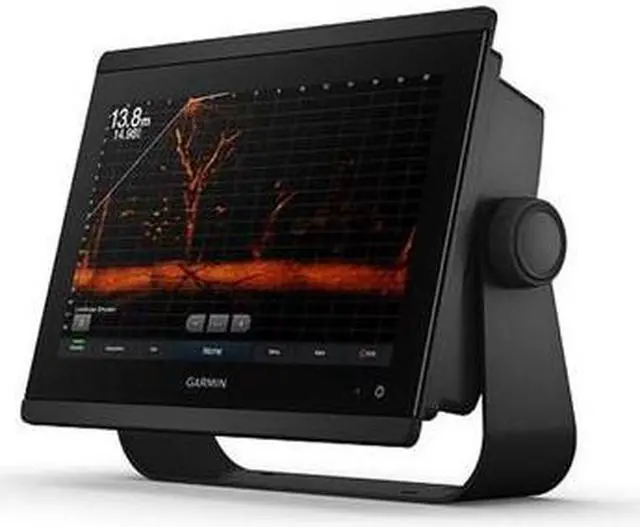

Garmin GPSMAP 8412xsv Chartplotter With Sonar

Garmin GPSMAP 8412xsvBrand NewIncludes One Year WarrantyProduct # 010-02092-02


The Garmin GPSMAP 8412xsv chartplotter with 12" full HD screen with touch control is sunlight-readable. The device provides standard USB touch output for use as a touchscreen monitor for Windows® and Mac® operating systems. Supported sailing features include laylines, enhanced wind rose, heading and course-over-ground lines, true wind data fields and tide/current/time slider. Racing features include pre-race guidance and layline data fields. Gauge displays show true and apparent wind angle, set and drift, true or apparent wind speed, horizontal or vertical graphs.


The GPSMAP 8412xsv features 10 Hz GPS/GLONASS/Galileo reciever that refreshes position and heading 10 times per second. The device comes with a CHIRP ClearV? and CHIRP SideV? scanning sonars plus built-in support for Ultra High-Definition scanning sonar and is fully network capable with NMEA 2000? connectivity and the Garmin Marine Network. The device is IPX6 and IPX7 waterproof and has an antenna.


GPSMAP 8412xsv Features:



Chartplotter With Worldwide Basemap
WiFi
CHIRP Sonar Technology
CHIRP ClearV? & SideV? Scanning Sonars
Supports AIS
Supports DSC
Supports FUSION-Link™ Entertainment System
Frequencies Supported:
- Traditional: 50/200, 77/200, 83/200
- Single Channel CHIRP: 40-250
- Dual Channel CHIRP: 40-250
- SideV?
/ClearV?: CHIRP 260/455/800
- Ultra High-Definition ClearV?: 0.8 MHz (800 kHz), CHIRP
range: 760-880 kHz
- Ultra High-Definition SideV?: 1.2 MHz (1, 200 kHz), CHIRP
range: 1, 060-1, 170 kHz (dependent on transducer)
Transmit Power: 1 kW Traditional; 1 kW CHIRP
Maximum Depth: 5, 000 ft at 1kW
Resolution: 1920 x 1200 Pixels
12" Touchscreen Full HD IPS Display (Anti-glare Finish)
Internal or External over NMEA 2000 Antenna
NMEA2000 Compatible
Connections:
- HDMI
- BNC Connector
- NMEA 0183 1 Input / 1 Output Port
- NMEA2000
- 2 x Garmin Marine Network™ Ports

Dual-Frequency (50/200 kHz) Sonar Capable (with external black box)
Dual-Beam (77/200 kHz) Sonar Capable (with external black box)
Operating System Compatibility:
- Mac
- Windows
2 microSD Data Card Slots
10Hz GPS Internal Receiver
Track Log: 50000 Points, 50 Saved Tracks
Waypoints / Routes: 5000 / 100
Flat or Flush Mounting
Resistance: IPX6 & IPX7 Waterproof
Polarized Support
J1939 Compatible
Wireless Connectivity
Tide Tables
Garmin Radar Compatible
BlueChart® Compatible
Garmin Helm Compatible
GRI
D™ (Garmin Remote Input Device) Compatible
Garmin SmartMode Compatible
Supports Spoken Aaudio Alerts
