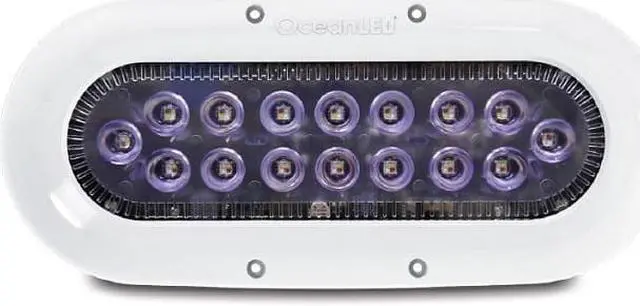

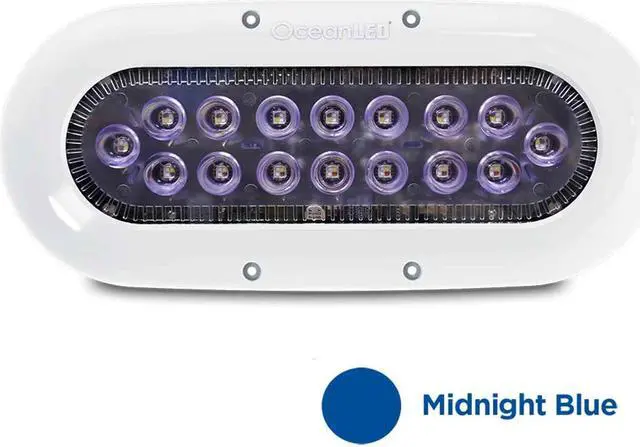

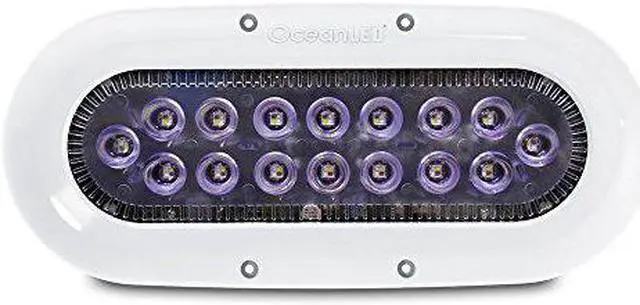

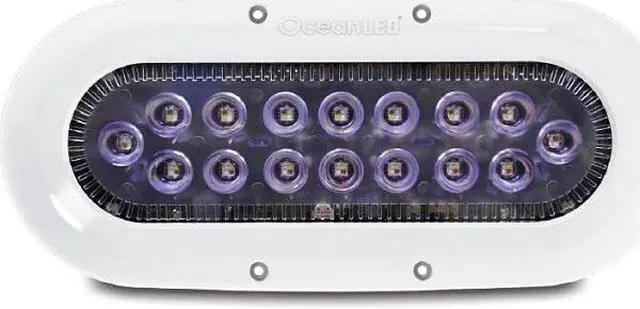

Ocean Led X-Series X16 Blue - 012309B

X-Series X16 - Midnight Blue LEDsThe OceanLED X-Series X16 combines brightness with affordability. Whether cruising or fishing, the X16 gives stunning performance allowing you to enjoy more time on the water with family and friends. The X16 packs a mighty 5, 800 Fixture Lumens into its low profile design and utilizes focused optics to produce a 60° circular beam from each LED providing great water penetration, illuminating a large area. Choose either a single color version from either Midnight Blue or Ultra White or pick our Colours option where you can select any color you want from the RGBW spectrum.

You can toggle between the colors or with our DMX controller and smartphone app, your choice is virtually limitless. Looking to catch more fish? Switch on the Fish-Strobe mode and the light emits a random strobe pattern that is proven to attract extra bait fish and help catch more fish. The low profile, simple design is easy to install even for the weekend DIYer. A small 12.5 mm hole is all that' s needed to run the cable through the hull. Fix 4 screws and that' s the hard work done! Simply attach to 12V and you are ready to light up your world.

Maintenance is virtually zero. Simply wipe the lens with a cloth to remove any marine growth thanks to the special Tritonium coating.
Features: 5, 800 Lumens / 4, 500
Fixture Lumens: Outstanding performance from this small, bright light makes it the obvious choice for those who want tostand out from the crowd. 60° Beam AngleA wide-angled, focused beam lights up a large area of the water. Compact and simple designMade from a chemically resistant optical polymer with a built in driver, there is a lot packed into this compact light. Installation needs only a small, 12.5 mm hole in the hull to feed the cable through and 3 screws in place. No bonding required. Easy to CleanThanks to its Tritonium coating, a simple wipe of the lens removes any underwater growth saving hours ofscrubbing each time you use it. Fish-Strobe ModeExceptionally bright, randomized strobing of the light is proven to attract more fish and catch more bait.
Mounting RecommendationsBoat size: up to 65' (20M) Transom /
Hull spacing: 2-4' ( 0.5 - 1.2M )Transom quantity: 2-6Hull
quantity: 4-8"
; (10-20cm)Maximum hull thickness: N/AInstallation
depth (to top of fixture): 300mm below water lineIn water fitting: NoTechnicalLight
output equivalent to: 150
Metal HalideFixture Lumens* (total light output from a finished fixture): 4, 500Lumens: 5, 800Beam
angle: 60° circularTypical
LED life expectancy: 40, 000 hoursMinimum-Maximum operating voltage
DC: 9 - 32 V DCMinimum-Maximum operating voltage AC (AC/optional) Current /
Amp draw (DC): 3.2A @ 12V DC - 1.5A @ 24V DCApprox. light penetration (avg.
water quality): 40' (12M) Approx.
Light penetration (perfect water quality): 100' (30M)
Driver type: InternalDriver
size (L x W x H): N/AColor
options: Ultra White - Midnight Blue or ColorsCorrelated
Color Temp: 6500 K - 450 nmIP
Rating: IP68Fish
strobe: YES
Anti fouling properties: Tritonium coated lensLED
Manufacturer: CREE
PhysicalSize: 9.84 " (250mm) x 4.29 " (109mm)
Depth: 0.86 " (22mm)
Total weight including electrical driver: 0.50 kgExtension cable length (standard-hard wired to light): 9-7/64' (3M)
Hole cut-out for cable entry: 1/2"
; ( 12.5 mm)Material: Chemically
Resistant Optical PolymerLens material: Pilkington
OptiwhiteBody construction: Machined (First Release)
Bezel material: PlasticBezel
thickness: N/ABezel
options: Stainless Steel
Bezel OptionalBezel color: WhiteDrag
factor:
N/AOptics: CollimatorNo of
LEDs:
16Certification: EMC
ApprovedCE Approved: Yes
